Devoko 7-Piece Outdoor Patio Furniture Set User Manual

Wstęp

Thank you for choosing the Devoko 7-Piece Outdoor Patio Furniture Set. This versatile set, featuring a sectional sofa and a propane fire pit table, is designed to enhance your outdoor living space, providing comfort and warmth for gatherings. This manual provides essential information for the safe assembly, operation, and maintenance of your new furniture set.

The set includes a combination of seating units and a central fire pit table, offering flexible arrangement options to suit various outdoor environments such as backyards, patios, bistros, and poolside areas. The fire pit table is equipped with a CSA certified ignition device, ensuring reliable performance and safety.

Informacje dotyczące bezpieczeństwa

OSTRZEŻENIE: Nieprzestrzeganie tych instrukcji bezpieczeństwa może spowodować poważne obrażenia ciała lub uszkodzenie mienia.

• Always ensure the propane tank is properly secured and closed when not in use.
• Keep children and pets away from the fire pit area, especially when in operation.
• Do not touch the fire pit if it appears damaged or is actively burning.
• This product is designed for outdoor use only. Do not use indoors or in enclosed spaces.
• Ensure adequate ventilation around the fire pit table during operation.
• Never leave the fire pit unattended when lit.
• Keep flammable materials away from the fire pit.

Składniki i zawartość opakowania

Your Devoko 7-Piece Outdoor Patio Furniture Set includes the following main components:

• 1 x Propane Fire Pit Table
• 2 x Corner Sofa Units
• 4 x Armless Sofa Units
• 1 x Protective Cover for Fire Pit Table
• Poduszki siedziska i oparcia (beżowe)
• Volcanic Rock (approximately 6.5 pounds)

Please verify all components are present before beginning assembly. The set is shipped in multiple boxes. If you receive only one box initially, please be aware that the remaining boxes are in transit and will arrive separately.

An illustration detailing the components included with the fire pit table: a fire pit cover, glass stones (blue), a table dust cover, and a glass cover for the flame area.

Konfiguracja i montaż

Assembly of the Devoko patio furniture set is designed to be straightforward. Please refer to the detailed installation instructions provided in the package for step-by-step guidance. An installation manual in PDF format is also available for download via the product listing.

Ensure you have all the necessary tools, which are typically included with the product. The sofa units can be freely combined and rearranged to fit your specific outdoor space and preferences.

A comprehensive diagram displaying the dimensions of each component of the Devoko patio furniture set, including the corner sofa, armless sofa, fire pit table, and the protective cover.

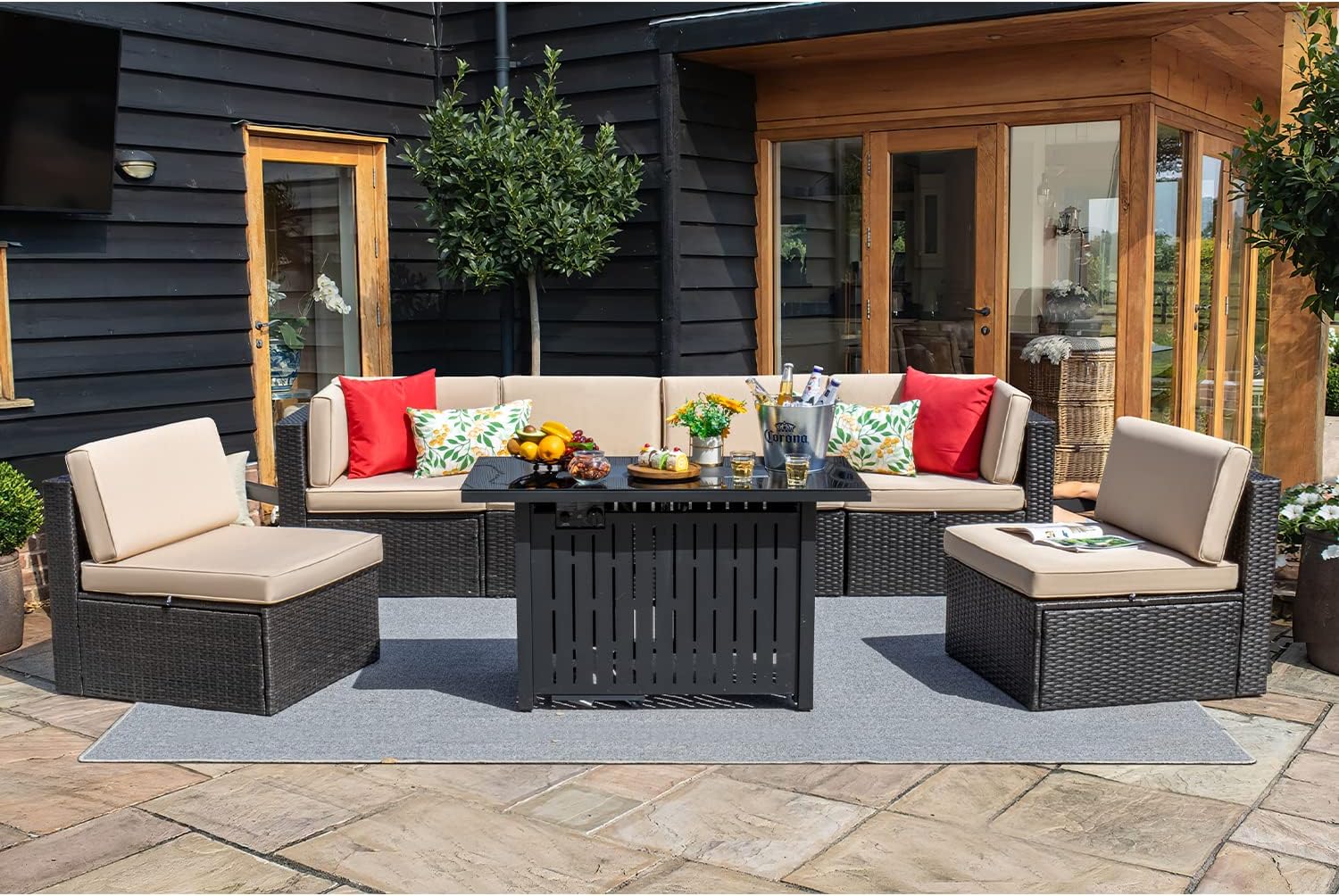

The Devoko patio furniture set placed on a patio with a rug, featuring the sectional sofa, two armless chairs, and the fire pit table. The setting includes a house with large glass doors and surrounding greenery.

Operating Instructions (Propane Fire Pit Table)

The propane fire pit table provides warmth and ambiance for your outdoor gatherings. It can also function as an ordinary table when the fire pit is not in use.

Ignition and Flame Adjustment:

1. Ensure the propane tank is connected securely and the gas valve is open.
2. Locate the fire switch and igniter knob on the side of the fire pit table.
3. Push and turn the igniter knob to the 'LOW' position while simultaneously pressing the igniter button to ignite the flame.
4. Po zapaleniu przytrzymaj pokrętło przez kilka sekund przed ponownym włączeniem.asing to ensure the flame is stable.
5. Adjust the flame intensity by turning the knob between 'LOW' and 'HIGH' settings.
6. To turn off the fire pit, turn the knob to the 'OFF' position and close the propane tank valve.

The CSA certified ignition device is capable of stably outputting high heat up to 50,000 BTU. The included glass cover can be placed around the flame area to help isolate the flame and enhance safety.

A diagram illustrating the dual functionality of the fire pit table, showing it as a fire pit with a propane tank inside and as an ordinary table when the fire pit is covered. A close-up of the fire switch and igniter knob is also shown.

Konserwacja

Proper care and maintenance will extend the life and appearance of your Devoko patio furniture set.

Ogólne sprzątanie:

• Do ogólnego czyszczenia przetrzyj powierzchnie wodąamp płótno.
• The high-quality PE wicker and tempered glass are designed for easy cleaning.

Pielęgnacja poduszek:

• The cushions are water-resistant but it is advisable to take them indoors or use a protective cover during inclement weather or when not in use for extended periods to prolong their service life and prevent fading.
• The furniture features horn buckles designed to help fix the cushions in place.

Fire Pit Table Protection:

• Use the provided dust cover to protect the fire pit table from contamination when not in use.

Szczegółowy views highlighting key features: a horn buckle for securing cushions, a wide armrest for comfort, and the hand-woven rattan material of the furniture.

Rozwiązywanie problemów

W tej sekcji znajdziesz odpowiedzi na często zadawane pytania i rozwiązywane problemy, z którymi możesz się spotkać.

Missing Boxes/Components:

The entire furniture set is shipped in four separate boxes. If you only receive one or some of the boxes, please do not worry. The remaining boxes are on their way. For detailed tracking information or any questions about product delivery, please contact customer service.

Poduszki przesuwne:

While the set includes horn buckles to help secure cushions, some users may find additional measures helpful. Consider using non-slip mats or Velcro strips between the cushions and the furniture frame to prevent sliding.

Fire Pit Not Igniting:

• Ensure the propane tank is full and the valve is fully open.
• Check that the igniter knob is pushed in and turned correctly while pressing the igniter button.
• Verify that the igniter electrode is clean and properly positioned near the burner.

Specyfikacje
