Wurkkos TS21 EDC Flashlight User Manual

1. Koniec produktuview

The Wurkkos TS21 is a high-performance Everyday Carry (EDC) flashlight designed for versatility and durability. It features three LUMINUS SST20 emitters, providing a maximum output of 3500 lumens and a beam distance of up to 217 meters. Equipped with a USB-C port for convenient charging and discharge (power bank function), a magnetic tailcap, and a two-way holding clip, the TS21 is suitable for various activities including exploring, camping, hiking, fishing, and dog walking.

Figure 1: Wurkkos TS21 Flashlight with included USB-C charging cable. The image highlights the flashlight's design and its charging accessory.

Figure 2: The Wurkkos TS21 illuminating a path at night, demonstrating its powerful beam. Icons indicate key features: 3500 Lumens output, 217 meters beam distance, Anduril UI, and magnetic tailcap.

2. Zawartość opakowania

• Wurkkos TS21 Flashlight
• Rechargeable 21700 Battery (5000mAh, pre-installed)
• Kabel ładujący USB-C
• Dwustronny klips kieszonkowy
• Zapasowe pierścienie uszczelniające
• Pasek na nadgarstek
• Instrukcja obsługi (ten dokument)

3. Konfiguracja i pierwsze użycie

3.1 Przygotowanie baterii

Before first use, ensure the battery's insulation sheet is removed. Unscrew the tailcap counter-clockwise, remove the clear plastic insulation disc located between the battery and the spring, and then re-screw the tailcap clockwise until it is finger-tight.

3.2 Ładowanie akumulatora

The TS21 features a built-in USB-C charging port. Connect the provided USB-C cable to the flashlight's port and to a compatible USB power source (e.g., wall adapter, computer USB port, power bank). The side switch LED will indicate charging status:

• Migający niebieski: Trwa ładowanie.
• Stały niebieski: Ładowanie zakończone.

Charging time is approximately 3-6 hours, depending on the power of your charging head. The flashlight supports input and output current up to 3A.

Figure 3: Illustration of the USB-C port for both input charging (from wall adapter, car charger, or laptop) and output discharge (charging a mobile phone).

4. Instrukcja obsługi

The Wurkkos TS21 utilizes the Anduril 2.0 user interface, which offers both simple and advanced modes. For detailed operation, refer to the Anduril 2.0 UI diagram (often found online or in specialized flashlight forums) as its full functionality is extensive. Below are basic operations:

4.1 Podstawowa obsługa (prosty interfejs użytkownika)

• Włącz/Wyłącz: Kliknij raz przełącznik boczny.
• Regulacja jasności: While on, press and hold the side switch to ramp Zwiększ lub zmniejsz jasność. Puść i naciśnij ponownie, aby zmienić kierunek.
• Tryb księżyca: From OFF, press and hold the side switch for approximately 1 second.
• Tryb turbo: From ON or OFF, double-click the side switch.
• Sprawdzenie baterii: From OFF, triple-click the side switch. The main LED will flash out the voltage (np. 3 mignięcia, pauza, 8 mignięcia dla 3.8 V).

4.2 Funkcje zaawansowane

• Magnetyczna nasadka tylna: The integrated magnetic tailcap allows the flashlight to be securely attached to ferrous metal surfaces, providing hands-free illumination.

Figure 4: The magnetic tailcap feature, demonstrating how the flashlight can be attached to a metal surface for hands-free operation, such as during vehicle repair.
• Funkcja banku mocy: The USB-C port can also function as a power output, allowing you to charge small electronic devices like mobile phones.
• Automatic Temperature Regulation (ATR): The flashlight automatically reduces brightness when the driver temperature reaches 45°C (113°F) to prevent overheating. This ensures the longevity of the flashlight and its components. The temperature threshold can be adjusted in advanced settings.
• Klip kieszonkowy: The included two-way pocket clip allows for secure attachment to clothing, bags, or other gear for easy carrying.

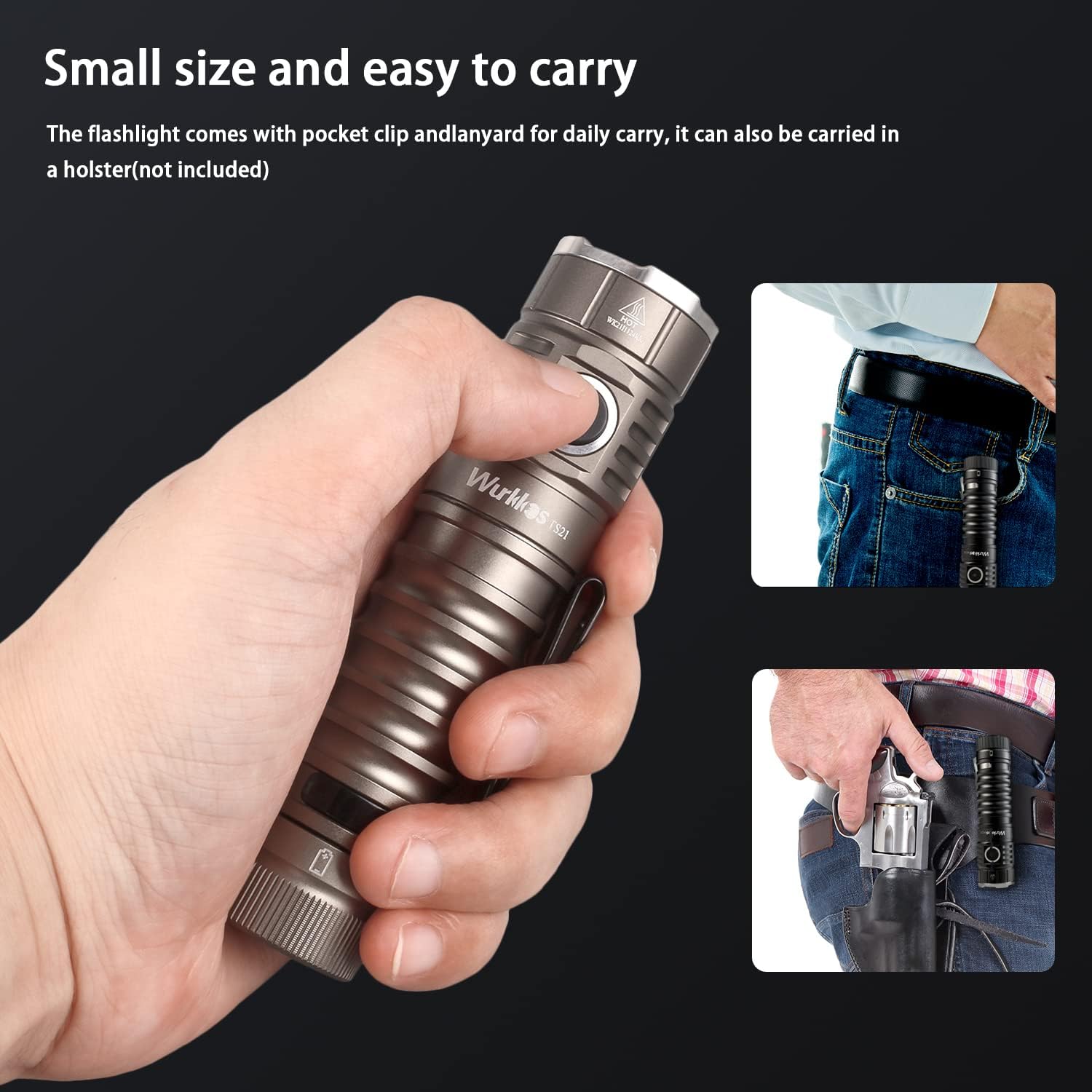

Figure 5: The compact size of the Wurkkos TS21, shown held in hand and demonstrating its portability when clipped to a pocket or carried in a holster.

• Stopień wodoodporności: The TS21 has an IPX8 waterproof rating, meaning it can be submerged in water up to 2 meters for 30 minutes.


Figure 6: The Wurkkos TS21 demonstrating its IPX8 waterproof capability by being submerged in water. This rating ensures reliable performance in wet conditions.

5. Konserwacja

• Czyszczenie: Wyczyść korpus latarki miękką,amp cloth. For the lens, use a lens cleaning cloth. Do not use abrasive cleaners or solvents.
• O-ringi: Periodically inspect the O-rings for wear and tear. Lubricate them with silicone grease to maintain the waterproof seal. Replace if damaged.
• Wątki: Keep the threads clean and lightly lubricated to ensure smooth operation of the tailcap and head.
• Przechowywanie baterii: If storing the flashlight for an extended period, it is recommended to remove the battery or slightly unscrew the tailcap (about a quarter turn) to prevent parasitic drain from the switch LED.

6. Rozwiązywanie Problemów

If the problem persists after attempting these solutions, please contact Wurkkos customer support for further assistance.

7. Specyfikacje

8. Gwarancja i wsparcie

Wurkkos is committed to providing high-quality products and satisfactory customer service. For any questions, concerns, or issues regarding your TS21 flashlight, please contact the Wurkkos after-sales service team. They aim to reply quickly and resolve problems fundamentally.

While specific warranty periods may vary by region or retailer, Wurkkos stands behind its products. Please retain your proof of purchase for any warranty claims.

For the most up-to-date support information, please visit the official Wurkkos webodwiedź witrynę lub skontaktuj się bezpośrednio z działem obsługi klienta.
