Instrukcja obsługi akumulatora litowego ECO-WORTHY 12 V 30 Ah LiFePO4

1. Wprowadzenie

This user manual provides essential information for the safe and efficient operation, installation, and maintenance of your ECO-WORTHY 12V 30Ah LiFePO4 Lithium Battery. This battery is designed for various applications requiring reliable and long-lasting power, including ham radio, fish finders, kids scooters, power wheels, trolling motors, and as a replacement for 12V 35AH SLA batteries.

The ECO-WORTHY LiFePO4 battery offers superior performance with a built-in Battery Management System (BMS) for comprehensive protection and an extended lifespan of over 4000 deep cycles.

2. Koniec produktuview

2.1 Główne cechy

• Wydłużona żywotność: Over 4000 deep cycles, providing more than 10 years of service life.
• Wbudowany BMS: Comprehensive protection against overcharge, over-discharge, discharge over-current, short-circuit, and ensures cell voltage self-balance.
• Lekka konstrukcja: Weighs only 7.2 pounds, significantly lighter than traditional lead-acid batteries, making it highly portable.
• Szerokie zastosowanie: Suitable for trolling motors, power wheels, RVs, marine applications, campers, backup power supplies, solar systems, and off-grid setups.
• Rozszerzenie zdolności produkcyjnych: Can be connected in series (up to 4 identical batteries for 48V) and unlimited batteries in parallel for increased capacity.

2.2 składniki produktu

The ECO-WORTHY 12V 30Ah LiFePO4 battery features a robust design with high-quality internal components for optimal performance and safety.

Rycina 2.1: Przód view of the ECO-WORTHY 12V 30Ah LiFePO4 Lithium Battery, highlighting its key features and specifications.

Figure 2.2: Diagram illustrating the internal Battery Management System (BMS) and its protective functions, including overcharge, over-discharge, overcurrent, short-circuit, and cell voltage self-balance.

Rysunek 2.3: Przekrój view of the battery, revealing the internal Grade A cells (3.2V 10Ah each) arranged in a 4S3P configuration for optimal performance and reliability.

3. Konfiguracja

3.1 Pierwsze ładowanie

Before first use, it is recommended to fully charge the battery. The ECO-WORTHY 12V 30Ah LiFePO4 battery can be recharged using a compatible 12V 10A battery charger or a 100W solar panel.

Figure 3.1: Illustration of charging methods. A 12V 10A battery charger can fully charge the battery in approximately 3 hours, while a 100W solar panel can charge it within one sunny day.

3.2 Connecting Multiple Batteries (Capacity Expansion)

The ECO-WORTHY 12V 30Ah LiFePO4 battery supports both parallel and series connections to expand capacity or increase voltage.

• Połączenie równoległe: Connect batteries in parallel to increase total Amp-hour (Ah) capacity while maintaining 12V. There is no limit to the number of batteries that can be connected in parallel. Ensure all batteries are of the same type and voltage.
• Połączenie szeregowe: Connect up to 4 identical batteries in series to increase the voltage (e.g., 24V, 36V, 48V). For example, four 12V batteries in series will create a 48V battery bank.

Figure 3.2: Visual guide for connecting batteries in parallel (left) to increase current capacity at 12V, and in series (right) to increase voltage up to 48V (using four batteries).

Important: Always ensure batteries are of the same type and charge level before connecting them in series or parallel. Consult a qualified electrician if unsure about wiring configurations.

4. Instrukcja obsługi

4.1 Ogólne użytkowanie

This battery is designed for deep cycle applications and is ideal for powering a wide range of devices. Its lightweight and compact design allows for flexible placement and easy transport.

Rysunek 4.1: Examples of devices powered by the 12V 30Ah battery, including a trolling motor (2.4 hours), fish finder (72 hours), ride-on car (12 hours), water pump (6 hours), radio (9 hours), and scooter (6 hours).

4.2 Ważne informacje dotyczące bezpieczeństwa

DO NOT use this battery as a starter battery for diesel generators or motorcycles.

Figure 4.2: Visual warning against using the battery for starting diesel generators or motorcycles, as it is not designed for high cranking amps.

• Podczas ładowania i rozładowywania należy zapewnić odpowiednią wentylację.
• Unikaj zwarcia zacisków akumulatora.
• Nie wystawiaj akumulatora na działanie ekstremalnych temperatur ani bezpośredniego światła słonecznego przez dłuższy czas.
• Przechowywać w miejscu niedostępnym dla dzieci.

5. Konserwacja

Właściwa konserwacja zapewnia długowieczność i optymalną wydajność akumulatora LiFePO4.

• Regularne ładowanie: While LiFePO4 batteries have a low self-discharge rate (approximately 3% per month), it is advisable to charge them regularly, especially if stored for extended periods.
• Kontrola temperatury: Operate and store the battery within the recommended temperature ranges (Charging: 32-131°F / 0-55°C; Discharging: -4-131°F / -20-55°C).
• Inspekcja terminala: Okresowo sprawdzaj zaciski akumulatora pod kątem korozji i luźnych połączeń. W razie potrzeby wyczyść je.
• Ochrona BMS: The built-in BMS actively manages the battery to prevent damage from overcharge, over-discharge, and other issues, minimizing the need for manual intervention.

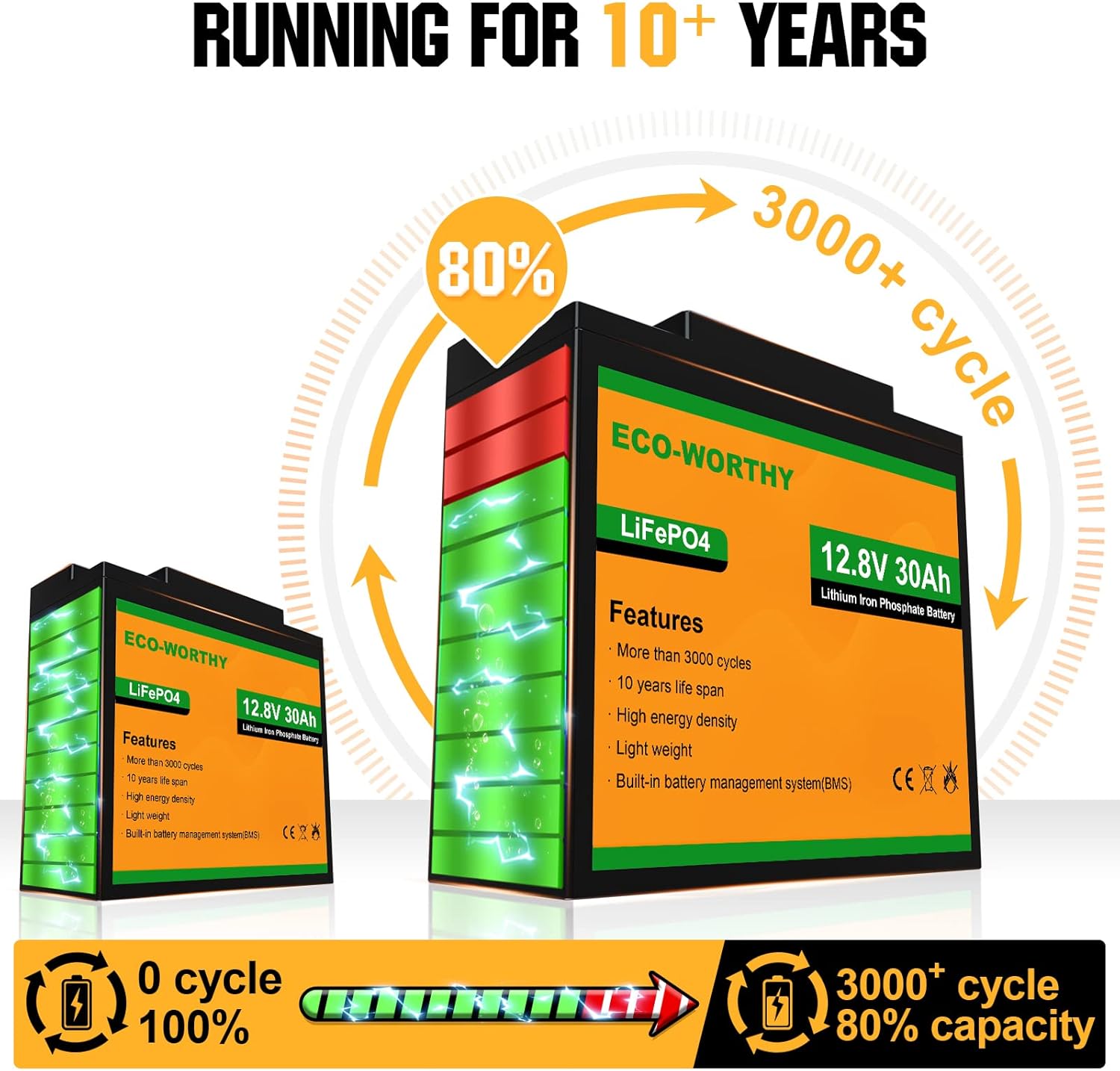

Figure 5.1: The battery is designed for over 3000 cycles, maintaining 80% capacity, contributing to a lifespan of 10+ years.

6. Rozwiązywanie Problemów

Jeśli masz problemy z akumulatorem LiFePO4 ECO-WORTHY, rozważ poniższe typowe kroki rozwiązywania problemów:

If issues persist, please contact ECO-WORTHY customer support for further assistance.

7. Specyfikacje

Detailed technical specifications for the ECO-WORTHY 12V 30Ah LiFePO4 Lithium Battery.

Figure 7.1: Product specifications table, including rated capacity, voltage, dimensions, weight, and operating temperatures.

8. Gwarancja i wsparcie

ECO-WORTHY provides comprehensive after-sales support for its products.

• Gwarancja: This product comes with a 3-year after-sales service warranty. Please retain your proof of purchase for warranty claims.
• Wsparcie techniczne: For any technical inquiries, installation assistance, or troubleshooting beyond this manual, please contact ECO-WORTHY technical support.
• Informacje kontaktowe: Visit the official ECO-WORTHY store or webstrona zawierająca dane kontaktowe i dodatkowe zasoby. Sklep ECO-WORTHY

Rysunek 8.1: Koniecview of ECO-WORTHY's professional services, including technical support and 3 years of after-sales service.
