Tetra EX 700 Plus External Filter User Manual

Wstęp

The Tetra EX 700 Plus is a complete external filter system designed for aquariums ranging from 100 to 200 liters. This powerful yet quiet filter ensures crystal-clear, fish-safe water, allowing you to fully enjoy your aquarium's aquatic life. It comes with all necessary filter materials for quick and easy setup, features a suction cup for instant mounting, precise water flow regulation valves, and a pre-filter function to minimize maintenance.

Image: The Tetra EX 700 Plus external filter in its packaging, highlighting its features.

Informacje dotyczące bezpieczeństwa

Ważny: Please read and follow all instructions carefully before operating the filter. Improper use can lead to damage or injury. Always disconnect the power supply before performing any maintenance or cleaning.

Ensure the filter is used strictly according to the provided instructions for optimal performance and safety.

Produkt ponadview i komponenty

The Tetra EX 700 Plus external filter system includes various components designed for efficient multi-stage filtration. Below is an overview of the main parts and filter media:

Obraz: Wybuch view diagram showing the various parts of the Tetra EX 700 Plus external filter, including the filter head, media baskets, hoses, and connectors.

Filter Media Layers:

1. Tetra CR Filterrings (Ceramic Rings): These rings provide a large surface area for beneficial bacteria to colonize, ensuring biological filtration. They also help distribute water flow evenly.
2. Tetra BF BioFoam (Biological Filter Foam): This foam traps larger particles and provides additional surface area for biological filtration, supporting healthy bacteria growth.
3. Tetra BB BioBalls (Biological Filter Balls): With their special macro-surface, these balls promote the settlement of beneficial bacteria colonies, enhancing biological purification.
4. Tetra CF Carbon (Activated Carbon Filter Material): Granules of activated carbon remove organic impurities, unpleasant odors, and maintain clear water coloration.
5. Tetra FF FilterFloss (Synthetic Filter Wool): This fine filter wool traps the smallest particles that might pass through other media, ensuring crystal-clear water.

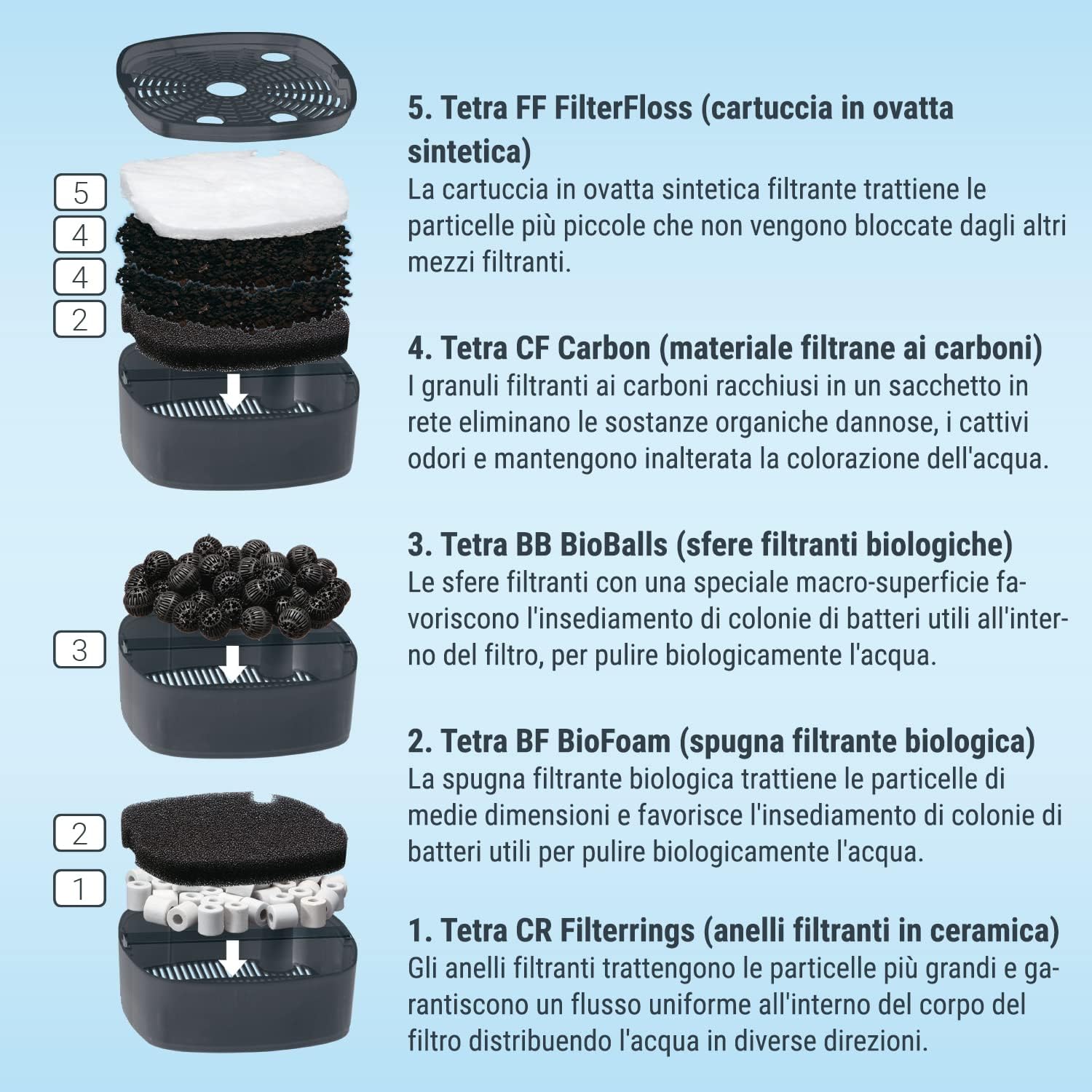

Image: A detailed diagram illustrating the five distinct layers of filter media within the Tetra EX 700 Plus, from ceramic rings at the bottom to fine filter floss at the top.

Konfiguracja i instalacja

Follow these steps to properly set up your Tetra EX 700 Plus external filter:

1. Rozpakuj komponenty: Carefully remove all parts from the packaging. Ensure all filter media and accessories are present as shown in the product overview.
2. Złóż materiał filtracyjny: Place the filter media into the baskets in the correct order, starting with ceramic rings at the bottom, followed by biofoam, bioballs, carbon, and finally filter floss at the top.
3. Podłącz węże: Attach the inlet and outlet hoses to the filter head. Ensure a secure connection to prevent leaks. The filter head features quick-release valves for easy disconnection.
4. Filtr pozycji: Place the filter unit below the aquarium, ensuring it is on a stable, level surface. The filter must be positioned lower than the water level in the aquarium for proper operation.
5. Montaż rur wlotowych/wylotowych: Securely attach the inlet pipe (with strainer) and outlet pipe (with spray bar) inside the aquarium using the provided suction cups. Ensure the inlet is submerged and the outlet is positioned to create good water circulation.
6. Zalej filtr: Use the integrated priming button or lever on the filter head to manually pump water into the filter until it is full and water begins to flow through the outlet hose.
7. Podłącz zasilanie: Once the filter is primed and all connections are secure, plug the filter into a suitable power outlet. The filter should start operating immediately.

Image: A visual guide demonstrating the step-by-step installation process of the Tetra EX 700 Plus external filter, including hose connections and placement.

Image: The Tetra EX 700 Plus filter neatly installed inside an aquarium cabinet, illustrating its compact design and how it fits discreetly below the tank.

Instrukcja obsługi

Once installed and powered on, the Tetra EX 700 Plus will continuously filter your aquarium water. The filter is designed for quiet and energy-efficient operation.

• Regulacja przepływu: Use the integrated valves on the filter head to precisely adjust the water flow rate to suit your aquarium's needs.
• Monitorowanie: Regularly observe the water clarity and fish behavior. A healthy aquarium environment is indicated by clear water and active fish.
• Efektywność energetyczna: The EX Plus series is engineered to provide powerful filtration with low power consumption, contributing to energy savings.

Image: The Tetra EX 700 Plus filter operating, with an illustration of water flowing from the aquarium through the filter and back, demonstrating its continuous filtration cycle.

Konserwacja

Regular maintenance is crucial for the optimal performance and longevity of your Tetra EX 700 Plus filter. The pre-filter function helps extend the intervals between major cleanings.

1. Odłącz zasilanie: Always unplug the filter from the power outlet before beginning any maintenance.
2. Zamknij zawory: Close the inlet and outlet valves on the filter head to stop water flow and prevent spills.
3. Zdejmij głowicę filtra: Disconnect the filter head from the main canister.
4. Czyste media filtracyjne:
   • Rinse mechanical filter media (filter floss, biofoam) in old aquarium water to preserve beneficial bacteria. Replace filter floss when heavily soiled.
   • Rinse biological media (ceramic rings, bioballs) gently in old aquarium water. Do not clean them thoroughly with tap water, as this can kill beneficial bacteria.
   • Replace activated carbon (Tetra CF Carbon) approximately every 4-6 weeks, as its adsorptive capacity diminishes over time.
5. Clean Hoses and Pipes: Periodically clean the inlet and outlet hoses and pipes to remove algae and debris that can restrict flow.
6. Ponowne złożenie i ponowne uruchomienie: Reassemble the filter in reverse order, ensuring all seals are properly seated. Prime the filter as described in the setup section, then reconnect power.

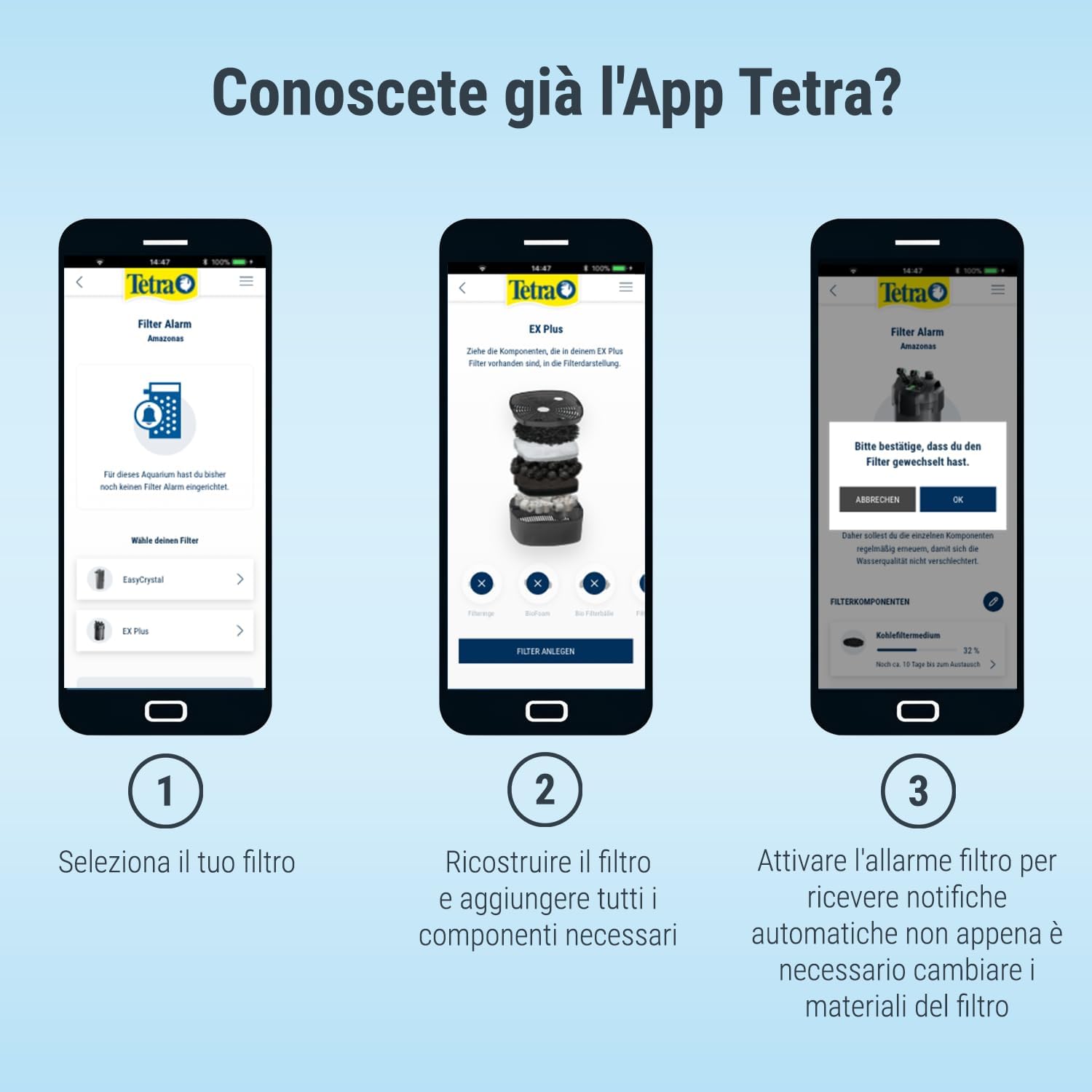

For convenience, consider using the Tetra App (if available) to set filter alarm reminders for media changes.

Rozwiązywanie problemów

Oto kilka typowych problemów i ich potencjalne rozwiązania:

If problems persist, please contact Tetra customer support.

Specyfikacje

Detailed technical specifications for the Tetra EX 700 Plus external filter:

Image: A table detailing the technical specifications for various Tetra EX Plus models, including the EX 700 Plus, showing power consumption, flow rates, and dimensions.

Return Policy and Support

Zasady zwrotu: If you wish to return a product within 30 days of receipt because you have changed your mind, please consult the retailer's return policy. If you have received a defective or damaged product, please refer to the retailer's specific guidelines for such cases. For purchases made on a marketplace, specific marketplace return policies may apply.

Obsługa klienta: For technical assistance, spare parts, or further inquiries regarding your Tetra EX 700 Plus filter, please visit the official Tetra website or contact their customer service department. Always provide your product model number (302747) when seeking support.

Więcej informacji i zasobów pomocy znajdziesz na stronie Tetra Brand Store.
