Produkt ponadview
The TRQ Heavy Duty Inner Tie Rod Removal and Installation Tool (Model TLK01002) is designed for efficient and safe servicing of inner tie rods. This tool simplifies the process of removing and installing inner tie rods by providing a secure grip on the ball and socket joint, allowing for leverage in confined spaces.

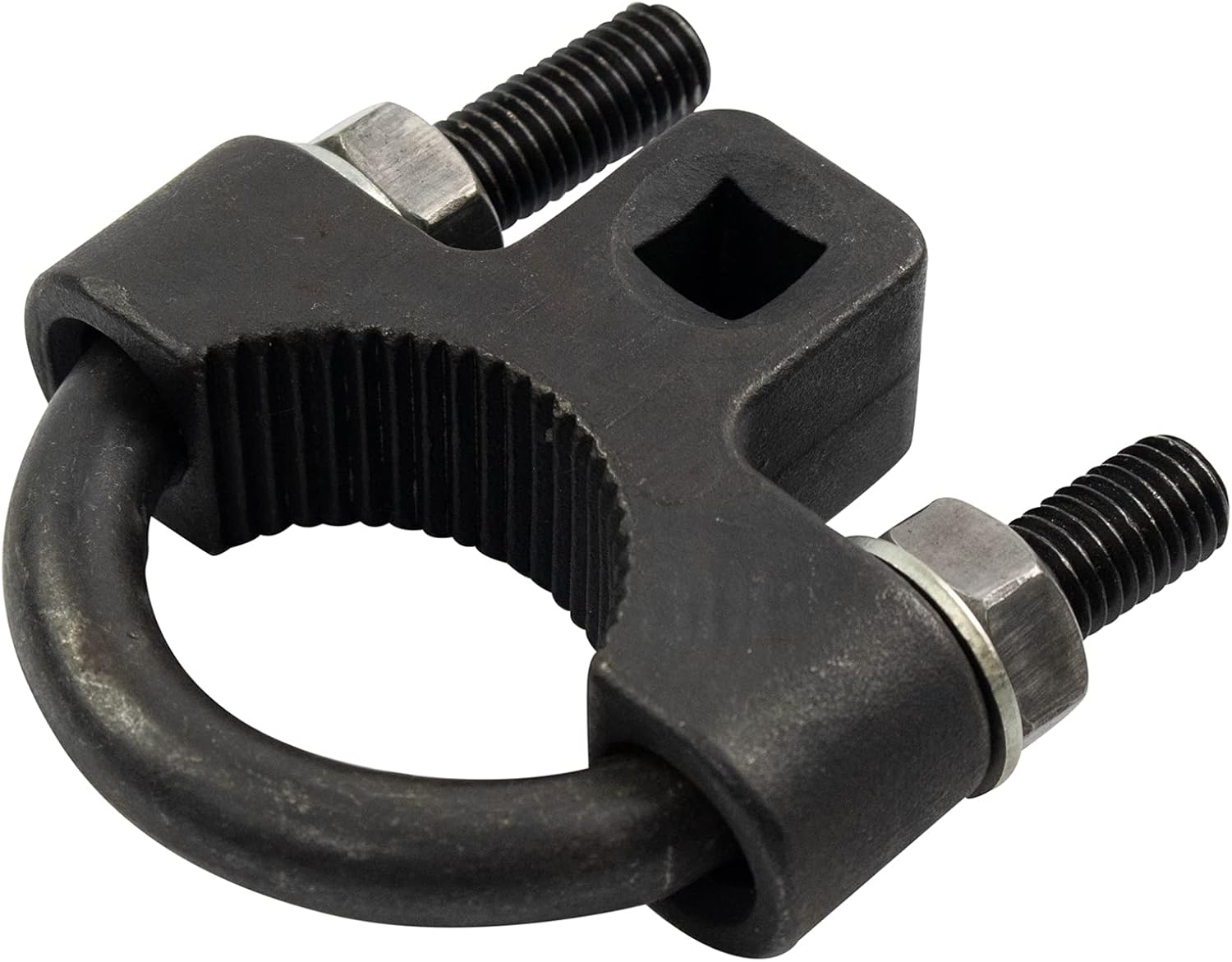

Rysunek 1: The TRQ Heavy Duty Inner Tie Rod Removal and Installation Tool. This image shows the complete tool assembly, highlighting its robust construction and key components.
Specyfikacje
- Numer modelu: TLK01002
- Marka: Kontyngent taryfowy
- Tworzywo: Stal stopowa
- Socket Drive: 3/8 inch Drive
- Klasa produktu: Ciężki
- Tryb działania: Podręcznik
- Waga przedmiotu: 0.33 kilograma
- Zawartość zestawu: Heavy Duty Inner Tie Rod Tool
- Numery referencyjne: W83027
Informacje dotyczące bezpieczeństwa
Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when using this tool. Ensure the vehicle is properly supported on jack stands and the parking brake is engaged. Refer to the vehicle's service manual for specific procedures and torque specifications.
Konfiguracja i obsługa
This tool is designed to clamp onto the ball and socket joint of the inner tie rod, allowing for removal and installation using a 3/8 inch square drive ratchet or breaker bar.
- Przygotowanie: Ensure the vehicle's front end is raised and securely supported. Remove the wheel and any components obstructing access to the inner tie rod.
- Montaż narzędzia: The tool consists of a U-shaped clamp and two threaded bolts with nuts and washers. Loosen the nuts to open the clamp wystarczająco.
- Positioning for Removal: Place the tool around the ball and socket joint of the inner tie rod. Ensure the serrated edges of the clamp firmly grip the joint.
- Securing the Tool: Tighten the two mounting nuts (typically 17mm) with a wrench until the clamp is securely fastened to the inner tie rod joint. Tighten as much as possible to ensure a strong grip.
- Stosowanie dźwigni finansowej: Insert a 3/8 inch square drive extension, breaker bar, or ratchet into the square drive opening on the tool. Use this to apply leverage and loosen the inner tie rod from the steering rack.
- Removing the Tool: Once the inner tie rod is loosened, unclamp the tool by loosening the nuts and remove it from the tie rod.
- Instalacja: For installation, reverse the removal process. Place the tool onto the new inner tie rod joint, secure it, and use the 3/8 inch drive to tighten the tie rod to the steering rack. Refer to the vehicle's service manual for correct torque specifications.
Rysunek 2: The TRQ Inner Tie Rod Tool clamped onto an inner tie rod joint during a removal or installation procedure. This demonstrates how the tool provides access and leverage in tight spaces.
Wideo 1: Demonstration of the TRQ Inner Tie Rod Remover/Installer Tool. This video provides a visual guide on how to properly use the tool for both removal and installation of inner tie rods.
Konserwacja
To ensure the longevity and proper function of your TRQ Inner Tie Rod Tool, follow these maintenance guidelines:
- Czyszczenie: After each use, clean the serrated teeth of the clamp to remove any grease, dirt, or debris. This ensures a proper grip for future applications.
- Smarowanie: Periodically lubricate the threads of the mounting bolts with grease or oil. This reduces friction during tightening and loosening, preventing wear and tear on the threads.
- Składowanie: Store the tool in a clean, dry place to prevent rust and corrosion.
- Kontrola: Regularly inspect the tool for any signs of damage, wear, or deformation. Do not use a damaged tool.
Rozwiązywanie problemów
If you encounter issues while using the TRQ Inner Tie Rod Tool, consider the following:
- Poślizg narzędzia: Ensure the mounting nuts are tightened sufficiently to create a firm grip on the inner tie rod joint. Clean the serrated teeth if they are greasy or dirty.
- Difficulty Tightening/Loosening Nuts: Lubricate the threads of the mounting bolts. If threads are damaged, the tool may need replacement.
- Limited Access: This tool is designed for low-profile access. If space is still an issue, ensure all surrounding components that can be safely removed have been.
Informacje o gwarancji
The TRQ Heavy Duty Inner Tie Rod Removal and Installation Tool comes with a 2-letnia gwarancja producenta. This warranty covers defects in materials and workmanship under normal use. For warranty claims or further details, please contact TRQ customer support.
Wsparcie
For additional support, installation videos, or product inquiries, please visit the official TRQ website or contact their customer service department. TRQ is committed to helping you "View Before You Do" with a comprehensive library of DIY videos.
