Giantex Hanging Egg Chair with Stand Instruction Manual

1. Koniec produktuview

Thank you for choosing the Giantex Hanging Egg Chair with Stand. This chair is designed to provide a comfortable and relaxing seating experience for both indoor and outdoor environments. Its durable construction and thoughtful design ensure stability and ease of use. Please read this manual thoroughly before assembly and use to ensure proper setup and safe operation.

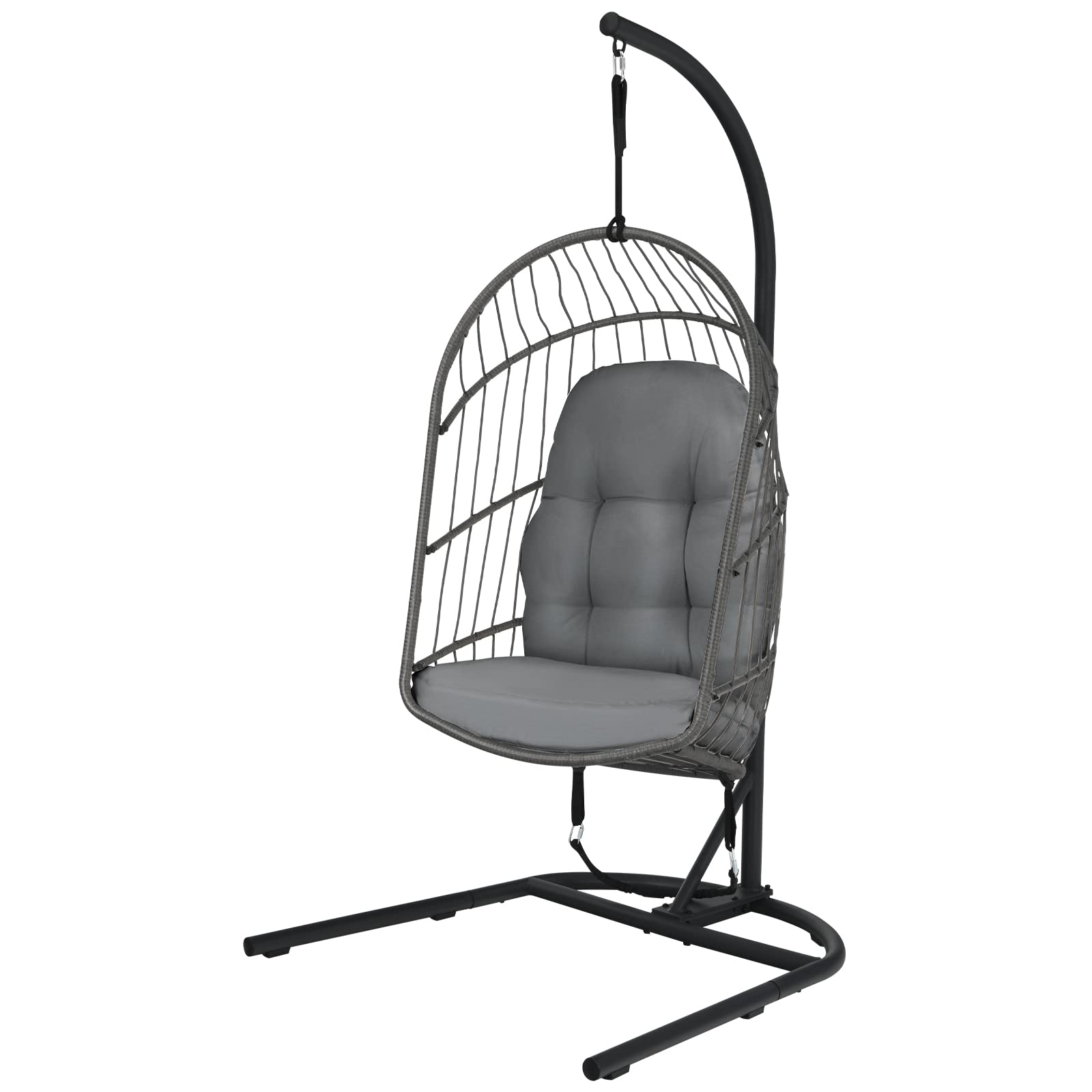

Image 1.1: The Giantex Hanging Egg Chair with Stand in Grey, fully assembled.

Cechy produktu:

• Wygodne siedzenia: Features thick, foam-padded cushions for enhanced comfort.
• Foldable Basket Design: The chair basket can be folded for convenient storage, saving space when not in use.
• Solidna konstrukcja: Crafted with premium PE rattan and a heavy-duty, rustproof steel frame for durability.
• Zwiększone bezpieczeństwo: Includes a safety strap, reinforced steel hook, and a stable C-type base with a triangular structure.
• Wszechstronne zastosowanie: Suitable for various indoor and outdoor settings such as living rooms, patios, balconies, and gardens.

2. Informacje dotyczące bezpieczeństwa

Your safety is paramount. Please adhere to the following warnings and guidelines to prevent injury or damage to the product.

• OSTRZEŻENIE: Maximum weight capacity is 330 funta (150 kg)Nie przekraczaj tego limitu.
• Securely anchor the hammock to stable supports.
• Do not use the chair without its designated stand.
• Keep away from children and pets when unsupervised.
• Do not use in windy conditions to prevent tipping or excessive swaying.
• Inspect the chair and stand for any damage or wear before each use. Discontinue use if any damage is found.
• Ensure all connections and fasteners are tight before use.
• Unikaj stawania na krześle lub używania go jako podnóżka.

Rysunek 2.1: Szczegółowy view of the chair's safety features, including the reinforced steel carabiner, safety strap, and the sturdy triangular base structure for stability.

3. Zawartość opakowania

Przed rozpoczęciem montażu należy sprawdzić, czy wszystkie elementy są obecne. Jeśli brakuje którejkolwiek części lub jest ona uszkodzona, prosimy o kontakt z działem obsługi klienta.

• 1 x Swing Hanging Chair Basket
• 1 x C-shaped Hammock Stand
• 2 x Cushions (Back and Seat)
• 1 x Instrukcja obsługi
• Assembly Hardware (bolts, washers, nuts, spring, chain, safety strap)

4. Instalacja i montaż

Follow these steps carefully to assemble your Giantex Hanging Egg Chair. It is recommended to have two people for assembly.

1. Rozpakuj komponenty: Ostrożnie wyjmij wszystkie części z opakowania i połóż je na czystej, miękkiej powierzchni, aby zapobiec zarysowaniom.
2. Złóż podstawę stojaka: Connect the base components of the C-shaped stand according to the diagrams provided in the separate assembly instructions. Ensure all bolts are securely tightened.
3. Attach the Vertical Pole: Secure the vertical C-shaped pole to the assembled base. Ensure it is firmly attached and stable.
4. Prepare the Chair Basket: If the chair basket is folded, carefully unfold it.
5. Zawieś koszyk na krzesło: Attach the spring and chain to the top of the C-shaped pole. Then, carefully lift the chair basket and attach it to the chain using the reinforced steel carabiner. Ensure the connection is secure.
6. Install Safety Strap: Secure the bi-directional limiting safety rope/strap around the chair basket and the stand pole to prevent excessive swaying, as shown in the safety image.
7. Umieść poduszki: Position the back and seat cushions inside the chair basket for comfort.
8. Kontrola końcowa: Before first use, double-check all connections, bolts, and safety features to ensure they are properly installed and tightened.

Image 4.1: The chair basket can be folded for compact storage when not in use, simplifying setup and takedown.

5. Instrukcja obsługi

Using your Giantex Hanging Egg Chair is simple and designed for relaxation.

• Osadzenie: Gently approach the chair and sit down slowly. Avoid jumping into the chair or applying sudden force.
• Wahadłowy: The chair is designed for gentle swinging. Avoid aggressive or excessive swaying, which could compromise stability or cause the chair to tip. The safety strap helps limit excessive movement.
• Regulacja wysokości: The hanging chain allows for minor height adjustments. Ensure the chair is at a comfortable and safe height, allowing your feet to touch the ground if desired, or to swing freely.
• Składanie do przechowywania: When not in use, especially for extended periods or during adverse weather, the chair basket can be folded to save space. Remove the cushions, detach the basket from the stand, and carefully fold it as shown in the assembly section.

6. Konserwacja

Regular maintenance will prolong the life and appearance of your hanging egg chair.

• Czyszczenie rattanu i ramy: Wipe the PE rattan and steel frame with a soft cloth dampened with mild soap and water. Rinse thoroughly and dry completely to prevent water spots or rust.
• Pielęgnacja poduszek: The cushions are made with hydrophobic fabric to resist spills. For general cleaning, spot clean with a mild detergent and water. Allow to air dry completely. For deeper cleaning, refer to the care label on the cushions. Store cushions indoors during inclement weather or when not in use to protect them from prolonged exposure to elements.
• Kontrola sprzętu: Periodically check all bolts, nuts, chains, and the carabiner for tightness and signs of wear or corrosion. Tighten any loose fasteners.
• Składowanie: During off-season or prolonged periods of non-use, store the chair and stand in a dry, protected area. Consider using a weather-resistant cover if storing outdoors.

Image 6.1: Details of the weather-resistant PE rattan, rustproof steel frame, and anti-slip foot pads, highlighting the durable materials.

Image 6.2: The cushions are designed to be plump and thick, ensuring they do not collapse after prolonged sitting, and are made with sufficient material for elasticity.

7. Rozwiązywanie Problemów

If you encounter any issues with your hanging egg chair, refer to the following common solutions.

• Krzesło wydaje się niestabilne:
  • Upewnij się, że stojak jest umieszczony na płaskiej, równej powierzchni.
  • Check all assembly bolts and connections on the stand and chair for tightness.
  • Verify the safety strap is correctly installed and secured.
• Cushions appear flat or uncomfortable:
  • Fluff the cushions regularly to restore their loft.
  • Ensure the cushions are correctly positioned within the chair basket.
• Piszczące dźwięki podczas użytkowania:
  • Apply a small amount of silicone-based lubricant to the spring or chain connections if they are causing friction.
  • Check for any loose bolts on the stand or chair frame and tighten them.
• Difficulty folding the basket:
  • Ensure no obstructions are preventing the folding mechanism.
  • Follow the folding instructions carefully, applying gentle, even pressure.

8. Specyfikacje

Image 8.1: Dimensional diagram of the assembled chair and stand, indicating key measurements and maximum weight capacity.

9. Gwarancja i wsparcie

For warranty information, product support, or to inquire about replacement parts, please contact Giantex customer service directly. Keep your purchase receipt as proof of purchase.

• Obsługa klienta: Refer to the contact information provided with your purchase or visit the official Giantex webstrona z opcjami pomocy.
• Rejestracja produktu: Registering your product may provide additional benefits and streamline future support requests.
