HONEY JOY 2 Seat 12V Off-Road Ride On Truck Instruction Manual

Wstęp

Thank you for choosing the HONEY JOY 2 Seat 12V Off-Road Ride On Truck. This manual provides essential information for the safe assembly, operation, and maintenance of your new electric vehicle. Please read it thoroughly before use and retain it for future reference.

Ważne informacje dotyczące bezpieczeństwa

Wymagany nadzór osoby dorosłej: This product is intended for children aged 36 months to 8 years and must always be operated under direct adult supervision.
Limit wagowy: Nie przekraczać maksymalnego udźwigu wynoszącego 50 kg (110 funtów).
Pasy bezpieczeństwa: Always ensure children are securely fastened with the provided safety belts.
Środowisko operacyjne: Use on flat, dry surfaces away from roads, pools, steep inclines, or other hazardous areas. Avoid operating in wet conditions.
Sprzęt ochronny: Encourage children to wear appropriate protective gear, such as helmets, when operating the vehicle.
Hamowanie: The vehicle features a slow start and stop technology to prevent sudden acceleration and abrupt braking.

Produkt ponadview

The HONEY JOY 2 Seat 12V Off-Road Ride On Truck is designed for two children, offering a realistic driving experience with various features for enjoyment and safety.

Dual Seating: Accommodates two children with individual safety belts.
Dwa tryby jazdy: Children can drive manually, or parents can control via remote.
Slow Start Technology: Ensures smooth acceleration and braking for enhanced safety.
Zawieszenie sprężynowe: Provides a comfortable ride on various terrains.
Funkcje rozrywkowe: Includes LED lights, music, and storytelling functions.
Składowanie: Features an openable hood for toy storage.

HONEY JOY 2 Seat Ride On Truck in Red — Figure 1: The HONEY JOY 2 Seat Ride On Truck, showcasing its robust design and dual seating capacity.

Close-up of the HONEY JOY Ride On Truck's features including openable doors, safety belt, and back storage box — Figure 2: Exquisite details of the truck, highlighting openable and lockable doors, a 2-seater design with safety belts, and a convenient back storage box.

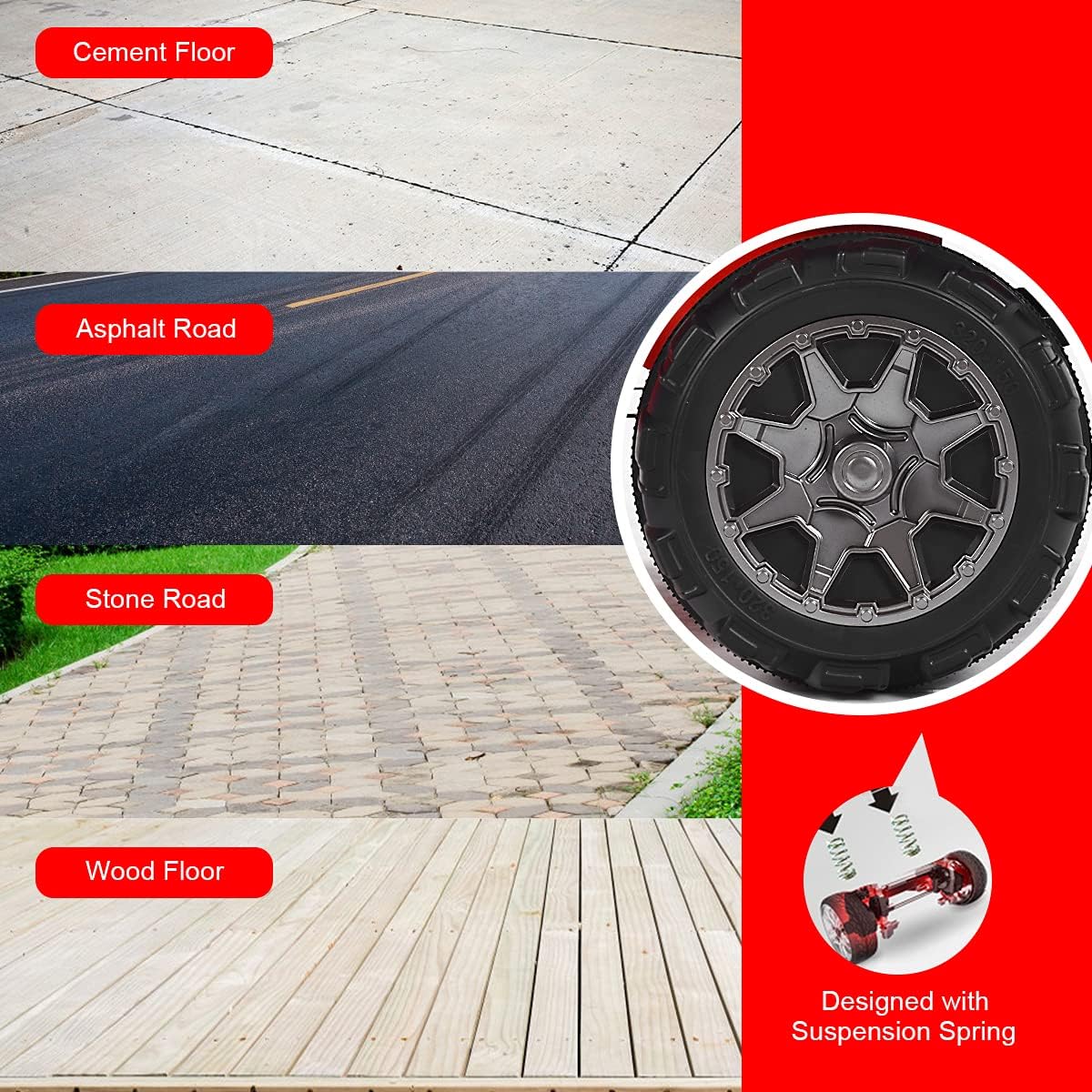

Illustration of the HONEY JOY Ride On Truck's suitability for various terrains like cement, asphalt, stone, and wood floors, with spring suspension — Figure 3: The truck's durable wheels and spring suspension allow for smooth operation on various surfaces including cement, asphalt, stone, and wood floors.

Front engine box of the HONEY JOY Ride On Truck open for storage — Figure 4: The front engine box can be opened to provide storage for toys or other small items during outdoor rides.

Film demonstracyjny produktu

Wideo 1: Overview of the HONEY JOY 2 Seat Ride On Truck in action, demonstrating its features and dual driving modes.

Konfiguracja i montaż

Follow these steps for proper assembly of your ride-on truck. Refer to the assembly video for visual guidance.

Instrukcja montażu w formie filmu

Video 2: Detailed assembly instructions for the HONEY JOY 2 Seater Ride On Car. This video demonstrates each step of putting the vehicle together, from attaching the wheels to connecting the electrical components.

Step-by-Step Assembly (Refer to video for visual details)

Rozpakuj komponenty: Ostrożnie wyjmij wszystkie części z opakowania i sprawdź, czy zgadzają się z listą części zawartą w instrukcji.
Montaż przedniego zderzaka: Attach the front bumper assembly to the main body of the truck using the provided screws. Ensure all connections are secure.
Zamontuj tylny zderzak: Secure the rear bumper to the back of the vehicle.
Connect Steering Column: Insert the steering column into its designated slot and secure it.
Zespół koła: Attach the wheels to the axles, ensuring all washers and nuts are correctly placed and tightened.
Połączenia elektryczne: Connect the battery terminals and other electrical wiring as indicated in the diagram. Pay close attention to polarity.
Install Seats and Roll Bar: Place the seats into position and secure them. Attach the roll bar and any additional decorative elements.
Windshield and Mirrors: Zamontuj przednią szybę i lusterka boczne.
Kontrole końcowe: Before first use, perform a thorough check to ensure all parts are correctly assembled and tightened.

Instrukcja obsługi

1. Ładowanie akumulatora

Locate the charging port, typically found near the battery compartment.
Connect the charger to the port and plug it into a standard electrical outlet.
The charging indicator light will show the charging status. Charge for 8-12 hours before first use, and 8-12 hours for subsequent charges. Do not overcharge.

2. Tryby jazdy

Remote control and slow start graph for HONEY JOY Ride On Truck — Figure 5: Illustration of the 2.4G remote control and the slow start feature, showing speed progression and control options.

Manual Mode (Child Operated):
- Turn on the vehicle using the power button on the dashboard.
- Select "Manual" mode using the switch.
- Children can control the vehicle using the steering wheel and foot pedal.
- Adjust speed using the High/Low speed switch.
Remote Control Mode (Parent Operated):
- Ensure the vehicle is powered on.
- Select "R/C" mode using the switch on the dashboard.
- Parents can control steering, forward/reverse, and speed (3 changeable speeds) using the remote control.
- The remote control also features an emergency stop button for immediate halting of the vehicle.

Dashboard controls for HONEY JOY Ride On Truck — Rysunek 6: Szczegółowy view of the dashboard, showing power display, USB slot, TF slot, AUX port, music/volume controls, story button, mode button, forward/reverse, high/low speed, manual/R/C switch, light switch, and power switch.

3. Funkcje multimedialne

Music and Storytelling: The vehicle comes with pre-programmed music and storytelling functions. Use the dedicated buttons on the dashboard to activate and cycle through them.
External Media: Connect external devices via the AUX port, USB slot, or TF card slot to play your own audio.
Światła LED: Turn the LED headlights and other lights on/off using the light switch on the dashboard.

Konserwacja

Pielęgnacja baterii:
- Zawsze po każdym użyciu należy całkowicie naładować akumulator.
- If storing for extended periods, charge the battery at least once a month to prolong its lifespan.
- Do not attempt to replace the battery with non-approved alternatives.
Czyszczenie: Wytrzyj pojazd miękką, damp płótno. Unikaj stosowania ostrych środków chemicznych lub ściernych środków czyszczących.
Składowanie: Przechowuj pojazd w suchym i chłodnym miejscu, z dala od bezpośredniego światła słonecznego i wilgoci.
Inspekcje: Regularly check all screws, connections, and moving parts for tightness and wear. Replace any damaged parts immediately.

Rozwiązywanie problemów

Problem	Możliwa przyczyna	Rozwiązanie
Pojazd nie porusza się.	Low battery; loose electrical connection; blown fuse.	Charge battery; check all connections; replace fuse if necessary.
Pilot nie działa.	Remote batteries dead; not paired correctly; vehicle not in R/C mode.	Replace remote batteries; re-pair remote; switch vehicle to R/C mode.
Krótki czas pracy baterii.	Undercharged battery; old battery; heavy load.	Ensure full charge; consider battery replacement if old; reduce load.
Nietypowe dźwięki podczas pracy.	Loose parts; debris in wheels/motor.	Inspect and tighten loose parts; clear any debris.

Specyfikacje

Funkcja	Szczegół
Wymiary produktu	48.5 x 31.5 x 31.5 cala
Waga przedmiotu	48 funta
Zalecany wiek producenta	36 miesięcy - 8 lat
Maksymalna nośność	110 funtów
Bateria	12 V
Prędkość	3-6 km/h (approx. 2-4 mph)
Tworzywo	Iron and PP material

Dimensions of the HONEY JOY Ride On Truck — Figure 7: Visual representation of the truck's dimensions: 48.5 inches (length) x 31.5 inches (width) x 31.5 inches (height).

Gwarancja i wsparcie

For warranty information, replacement parts, or technical support, please contact HONEY JOY customer service. Refer to your purchase documentation for specific warranty terms and contact details.

You can also visit the official HONEY JOY store for more information: HONEY JOY Store
