Cooler Depot 72-inch 5-Well Commercial Gas Steam Table Warmer

Wstęp

This manual provides essential instructions for the safe and efficient installation, operation, and maintenance of your Cooler Depot CD-GBM-5 Commercial Gas Steam Table Warmer. Please read this manual thoroughly before operating the appliance and retain it for future reference. This unit is designed for commercial food service use only and is not intended for household use.

The Cooler Depot CD-GBM-5 is an NSF certified, 72-inch wide, 5-well steam table warmer constructed from corrosion-resistant stainless steel. It features individual burner controls for each well, offering flexibility for natural gas or propane fuel systems. The unit includes a heavy-duty undershelf and a cutting board for convenient food preparation and storage.

Ważne informacje dotyczące bezpieczeństwa

OSTRZEŻENIE: Nieprawidłowa instalacja, regulacja, modyfikacja, serwis lub konserwacja może spowodować uszkodzenie mienia, obrażenia lub śmierć. Przed instalacją lub serwisowaniem tego sprzętu należy dokładnie zapoznać się z instrukcją instalacji, obsługi i konserwacji.

• Ensure all gas connections are properly sealed and checked for leaks before initial operation.
• Instalację i serwisowanie tego urządzenia gazowego powinien przeprowadzać wyłącznie wykwalifikowany personel.
• Należy zapewnić odpowiednią wentylację wokół urządzenia.
• Do not operate the unit without the legs properly installed.
• Utrzymuj obszar wokół urządzenia czysty i wolny od materiałów łatwopalnych.
• Always use caution when handling hot water and steam to prevent burns.
• Disconnect the unit from the gas supply before cleaning or servicing.

Instrukcje konfiguracji

1. Rozpakowanie i kontrola

Carefully remove the unit from its packaging. Inspect for any shipping damage. Report any damage immediately to the carrier and your dealer. Keep all packaging materials for inspection.

2. Montaż

Attach the four legs to the bottom of the steam table. Ensure they are securely fastened. Install the undershelf onto the legs at the desired height. The cutting board is designed to fit securely on the side of the unit.

Obraz 1: Bok view of the steam table warmer with undershelf and legs.

3. Połączenie gazowe

This unit is designed for use with either natural gas or propane. A regulator is provided with the unit. The gas intake connection is located on the side of the unit. Ensure the correct gas type is used and that all connections are made by a qualified technician according to local codes and regulations.

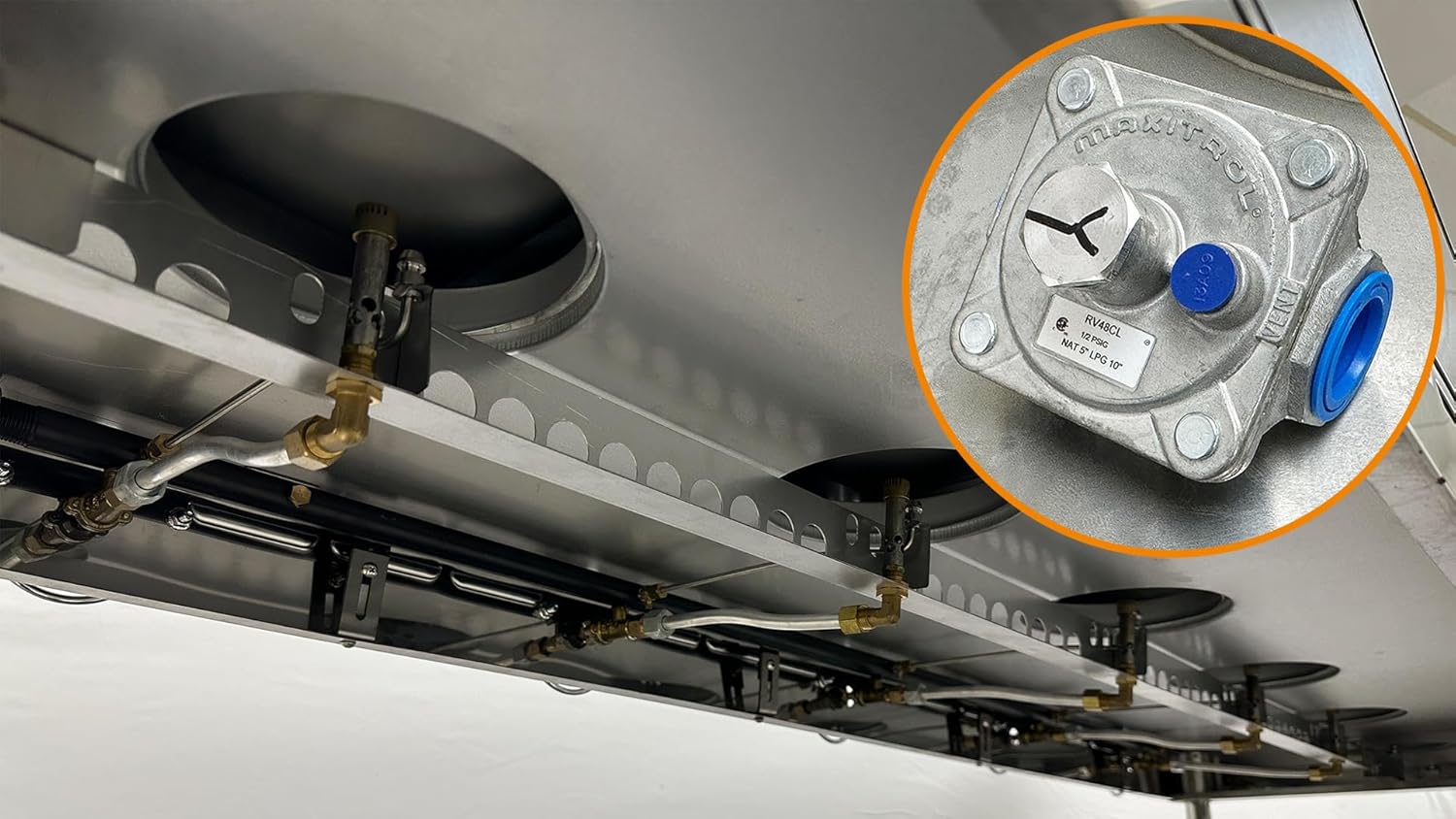

Image 2: Detail of the gas regulator and connection point.

4. Umieszczenie

Place the steam table on a level, stable surface. Ensure there is sufficient clearance around the unit for proper ventilation and safe operation. The overall dimensions are approximately 72 inches (L) x 30 inches (W) x 33 inches (H).

Obraz 3: Całość view of the steam table warmer.

5. Wstępne czyszczenie

Before first use, clean all surfaces that will come into contact with food. Use a mild detergent and warm water, then rinse thoroughly. Dry completely.

Instrukcja obsługi

1. Filling Water Pans

Place empty water pans (not included) into each well. Fill each water pan with hot water to approximately 1 inch below the top edge. Using hot water will reduce heating time.

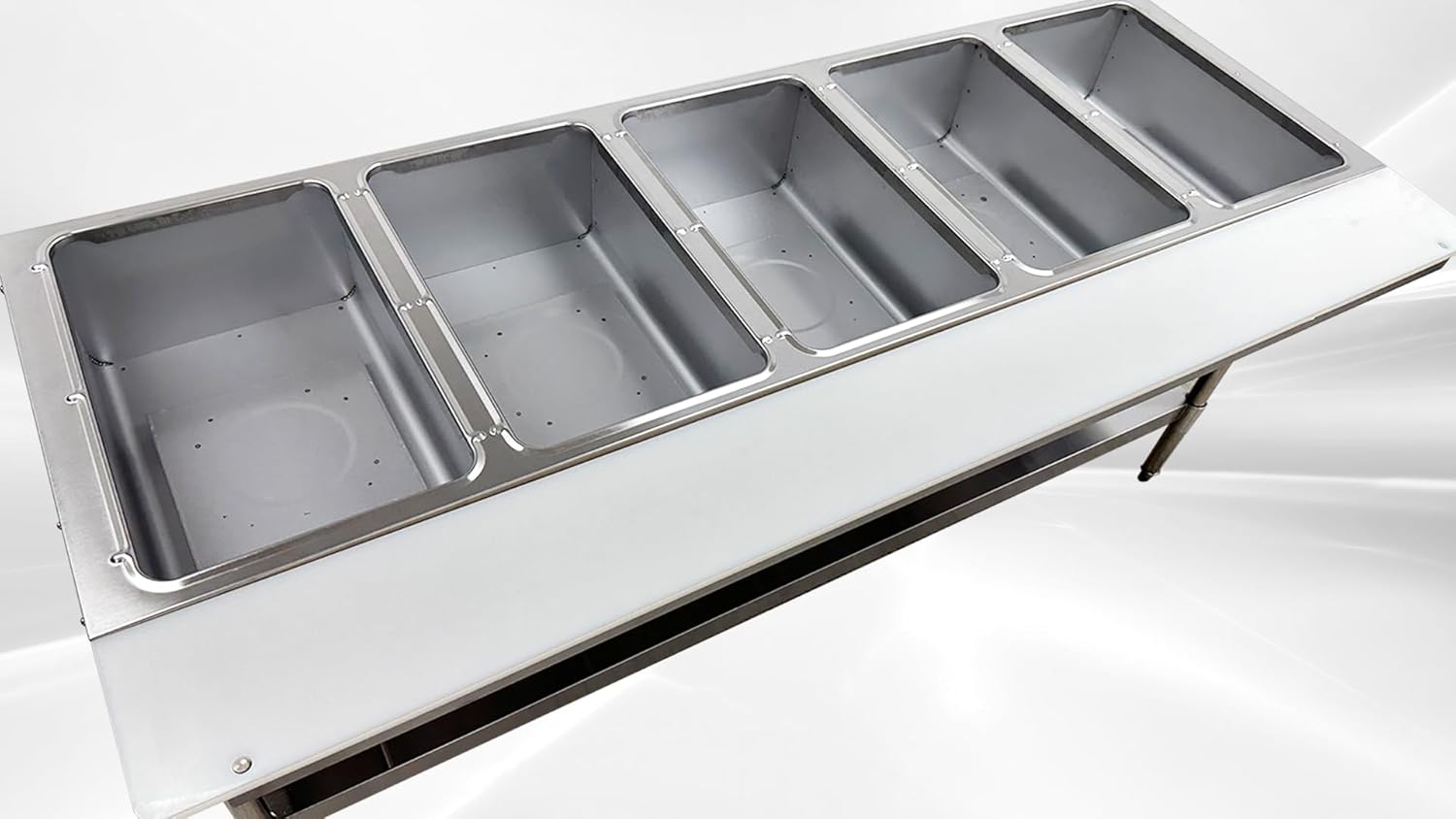

Obraz 4: Góra view of the five wells.

2. Procedura zapłonu

1. Upewnij się, że zawór zasilania gazem jest otwarty.
2. Push in and turn the individual control knob for the desired well to the 'PILOT' position.
3. Ignite the pilot light using a long match or lighter. Hold the knob in for approximately 30 seconds after ignition to allow the thermocouple to heat up.
4. Release the knob. If the pilot light extinguishes, repeat steps 2-3.
5. Once the pilot is lit, turn the knob to the desired temperature setting.

Image 5: Control knobs for individual well temperature adjustment.

3. Kontrola temperatury

Each well has an independent control knob, allowing for precise temperature management for different food items. Adjust the knobs as needed to maintain optimal serving temperatures.

4. Food Pan Placement

Once the water in the pans is heated, place your food pans (not included) into the water pans. Ensure food pans are properly seated to allow for even heating.

5. Procedura wyłączania

To turn off a well, turn its control knob to the 'OFF' position. For complete shutdown, turn off all burner valves and the main gas supply valve.

Konserwacja

1. Codzienne czyszczenie

• Zewnętrzny: Przetrzyj wszystkie powierzchnie ze stali nierdzewnej za pomocąamp cloth and mild detergent. Rinse and dry thoroughly to prevent water spots and corrosion.
• Wells and Water Pans: Drain all water from the wells and remove food pans. Clean the interior of the wells and water pans with a non-abrasive cleaner. Rinse thoroughly and dry.
• Deska do krojenia: Remove and clean the cutting board with appropriate food-safe sanitizers.

2. Regularna kontrola

• Periodically check gas connections for any signs of leaks or damage.
• Inspect burners and pilot lights for proper operation and cleanliness.
• Ensure the undershelf and legs remain stable and secure.

Rozwiązywanie problemów

• Problem: Pilot light will not stay lit.
  Rozwiązanie: Ensure the control knob is held in for at least 30 seconds after ignition to allow the thermocouple to heat up. Check for proper gas supply. If the issue persists, contact a qualified technician.
• Problem: Burner does not ignite.
  Rozwiązanie: Verify that the pilot light is lit. Check that the gas supply is open and the control knob is turned to an 'ON' position. Ensure the gas regulator is functioning correctly.
• Problem: Uneven heating in wells.
  Rozwiązanie: Check water levels in the water pans. Ensure food pans are properly seated. Verify that the individual burner for the affected well is operating correctly.
• Problem: Gas odor detected.
  Rozwiązanie: Immediately turn off all gas supply to the unit and evacuate the area. Do not operate any electrical switches or phones. Contact your gas supplier and a qualified technician immediately.

Specyfikacje

Gwarancja i wsparcie

Cooler Depot offers the following warranty for this product:

• 1 Year All-Parts Warranty
• 1 rok gwarancji na robociznę

For functional failures, a full refund may be applied for within 1 month of the item's delivered date. Please retain the original pallet for returns, as the product must be bound on the pallet and wrapped for return processing.

For technical support, warranty claims, or service inquiries, please contact Cooler Depot USA:

• Adres: 730 W Golden Grove Way, Covina, CA 91722
• E-mail: Zhang26110@gmail.com
• Phone (Office): (626) 332-5670
• Telefon: (626) 665-1926, (626) 484-8223

Więcej informacji znajdziesz na stronie Cooler Depot Store on Amazon.
