ECO-WORTHY 260 Watt Flexible Solar Panel Kit

1. Koniec produktuview

The ECO-WORTHY 260 Watt Flexible Solar Panel Kit is designed to provide efficient and reliable power for various applications, including RVs, boats, tents, and off-grid systems. This kit includes two 130W flexible solar panels and a 30A PWM charge controller, offering a lightweight, durable, and easy-to-install solution for your energy needs.

Główne cechy obejmują:

• Wysoka wydajność: Converts 30% more electricity compared to standard 100W panels, capable of generating up to 520 Wh per day with 4 hours of full sunlight.
• Flexible and Thin Design: Ultra-thin at only 2mm, these panels can conform to curved surfaces and are less prone to breakage than traditional rigid panels.
• Anti-Reflux Protection: Integrated blocking diodes prevent battery discharge at night, protecting the circuit board from current feedback.
• Zaawansowany kontroler ładowania: The 30A PWM charge controller is compatible with lead-acid, gel, and lithium phosphate batteries, featuring dual USB outputs for charging mobile devices, and multiple protections (short-circuit, open-circuit, reverse, overload).

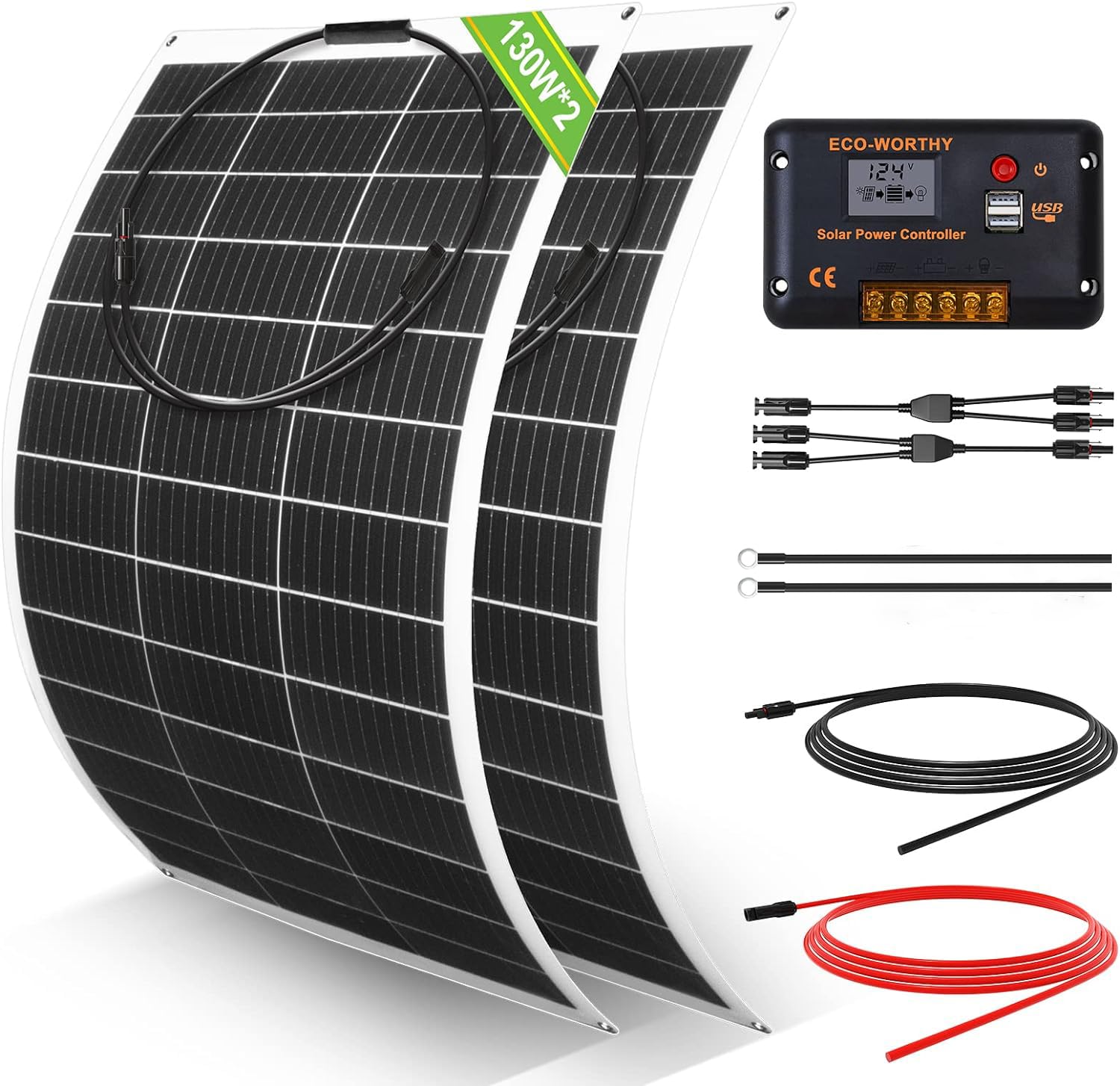

Obraz 1.1: Koniecview of the ECO-WORTHY 260 Watt Flexible Solar Panel Kit, showing two flexible solar panels, a charge controller, and various cables.

2. Co znajduje się w pudełku

Your ECO-WORTHY 260 Watt Flexible Solar Panel Kit includes the following components:

• 2 x 130 W elastyczne panele słoneczne
• 1 x 30A regulator ładowania PWM
• 1 x Pair of 5m Solar Cables
• 1 x Pair of Y-Branch Connectors

3. Konfiguracja i instalacja

The flexible design of these solar panels allows for versatile installation on various surfaces, including curved roofs of RVs and boats. Ensure the installation area is clean and dry before proceeding.

3.1 Rozmieszczenie paneli

Choose a location that receives maximum direct sunlight throughout the day. The flexible panels can be mounted using adhesive or by hanging them with hooks, depending on your application.

Obraz 3.1: Examples of flexible solar panel installation, showing adhesive mounting on a roof and hanging on a vehicle side.

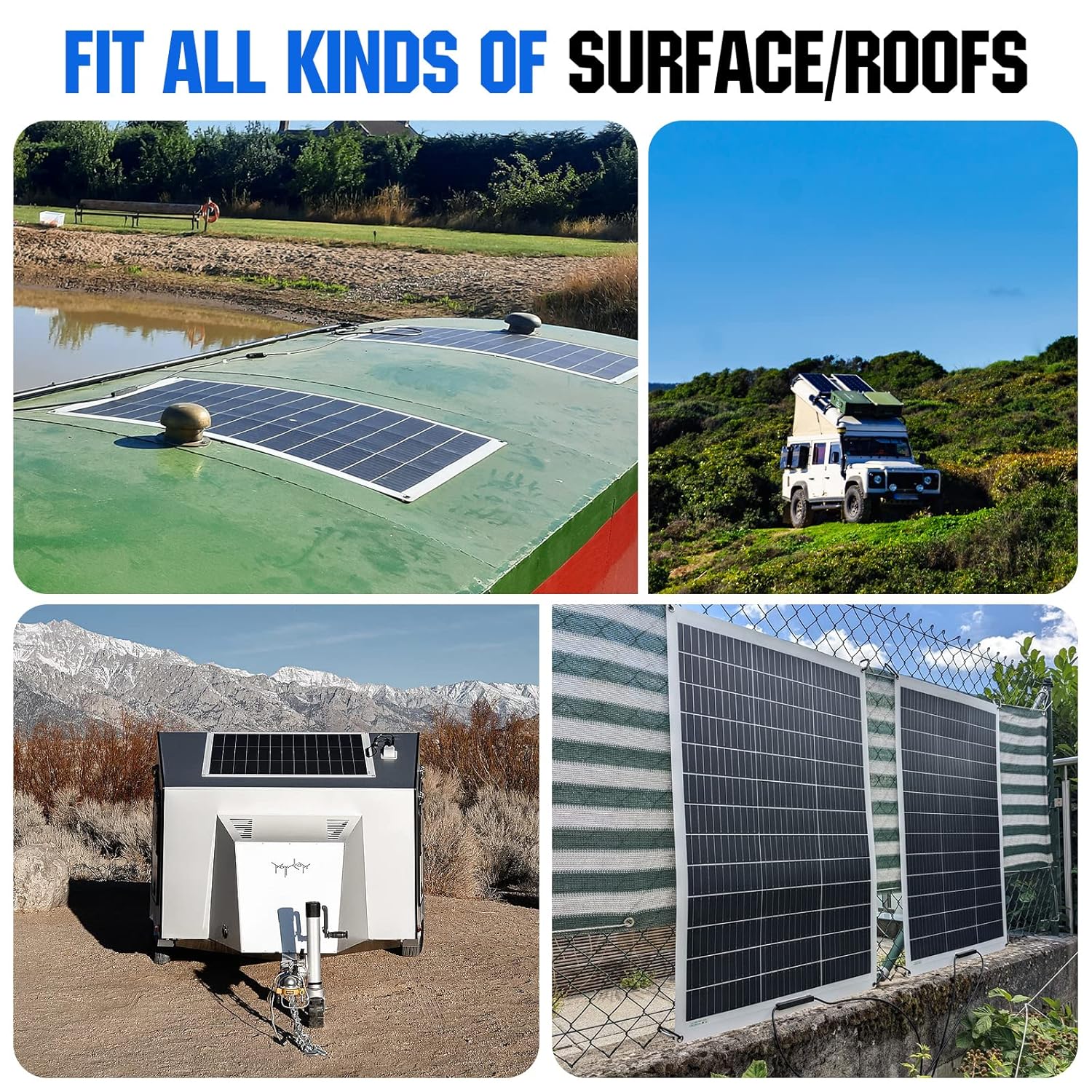

Image 3.2: The flexible solar panels are suitable for various surfaces and roofs, including RVs, boats, and temporary setups.

3.2 Schemat okablowania

Follow the diagram below for correct wiring of the solar panels to the charge controller and battery. Ensure all connections are secure and properly insulated.

1. Najpierw podłącz akumulator do regulatora ładowania.
2. Podłącz panele słoneczne do regulatora ładowania.
3. Connect your load (e.g., lights, devices) to the charge controller's load terminals (if applicable).

Image 3.3: Wiring diagram illustrating the connection from solar panels to the charge controller and then to the battery.

Important: Always connect the battery to the charge controller before connecting the solar panels to prevent damage to the controller. Disconnect in reverse order.

4. Instrukcja obsługi

Once installed, the solar panel kit will begin generating power when exposed to sunlight. The 30A PWM charge controller manages the charging process and protects your battery.

4.1 Generowanie energii

Under optimal conditions (4 hours of full sunlight), this 260W kit can generate approximately 1.04 kWh per day. The actual output may vary based on weather conditions, panel orientation, and shading.

Image 4.1: An RV equipped with multiple flexible solar panels, demonstrating the system's capacity to generate power.

4.2 Funkcje kontrolera ładowania

The 30A PWM charge controller features a display that shows real-time system status, including battery voltage and charging current. It also provides:

• Cell Phone Charge: Two USB outputs allow direct charging of mobile devices.
• Ochrona baterii: Comprehensive protection against short-circuit, open-circuit, reverse polarity, and overload.
• One Button Switch: Simple control for managing the load output.

Image 4.2: Close-up of the ECO-WORTHY Solar Power Controller, highlighting its display, USB charging ports, and protection features.

5. Konserwacja

Regularna konserwacja gwarantuje optymalną wydajność i długowieczność zestawu paneli słonecznych.

• Czyszczenie: Okresowo czyść powierzchnię paneli słonecznych miękką,amp Ściereczką usuń kurz, brud i zanieczyszczenia. Unikaj materiałów ściernych i silnych środków chemicznych.
• Znajomości: Inspect all wiring connections regularly to ensure they are tight and free from corrosion.
• Zacienienie: Minimize shading on the panels from trees, buildings, or other obstructions, as even partial shading can significantly reduce power output.
• Wodoodporna konstrukcja: The panels feature an IP65 junction box, designed to operate well in wet environments. However, avoid submerging the panels.

Image 5.1: The flexible solar panel with water droplets, illustrating its waterproof design (IP65 junction box).

6. Rozwiązywanie Problemów

7. Specyfikacje

Image 7.1: Dimensions of the flexible solar panel (approx. 960mm x 690mm).

8. Gwarancja i wsparcie

ECO-WORTHY products are designed for durability and performance. For any issues or support, please refer to the following information:

8.1 Polityka zwrotów

If you wish to return a product within 30 days of receipt because you have changed your mind, please consult the Amazon return policy page. If you have received a defective or damaged product, please consult the Amazon help page on returns and refunds. For specific information on purchases made through the Marketplace, please consult the Amazon help page.

8.2 Informacje o producencie

Manufacturer: ECO-WORTHY

For further assistance, please visit the official ECO-WORTHY store on Amazon or contact their customer service directly.
