1. Wprowadzenie
This user manual provides essential information for the installation, operation, and maintenance of your A-Premium ABS Wheel Speed Sensor. This sensor is designed to accurately transmit wheel speed data to your vehicle's Anti-lock Braking System (ABS) control module, contributing to improved directional stability and steering ability during braking. Please read this manual thoroughly before installation and use.
2. Koniec produktuview
The A-Premium ABS Wheel Speed Sensor is a critical component of your vehicle's braking system. It is engineered to meet or exceed OEM specifications, ensuring reliable performance and a long service life. Key features include:
- High-Efficient Detector: Provides sensitive and accurate signal transmission.
- Trwała konstrukcja: Made from PA66-GF30 plastic particle for high strength, reliability, and corrosion resistance.
- OE Standard Design: Ensures direct fit and easy installation without the need for tuning.
- Stable Output Signal: Contributes to consistent tire traction and safe braking.

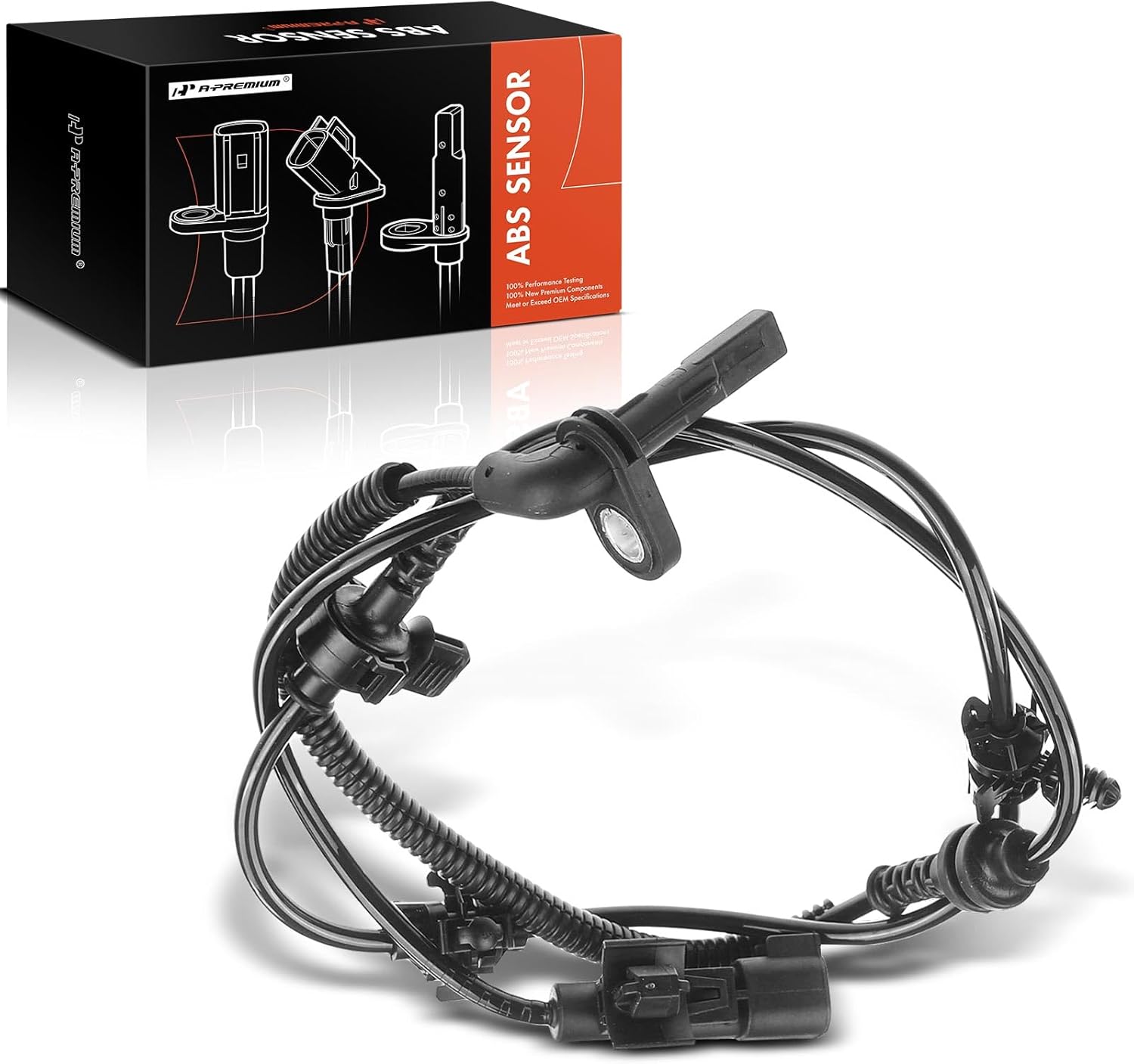

Figure 2.1: A-Premium ABS Wheel Speed Sensor with its packaging.
Figure 2.2: The ABS Wheel Speed Sensor positioned near a vehicle's brake rotor, highlighting its role in the braking system.
3. Specyfikacje
| Atrybut | Wartość |
|---|---|
| Marka | A-Premium |
| Tworzywo | Acrylonitrile Butadiene Styrene (PA66-GF30) |
| Waga przedmiotu | 0.08 kilograma (ok. 2.82 uncji) |
| Styl | Opakowanie 1 szt. |
| Maksymalna objętość dostawtage | 12 V (prąd stały) |
| Dokładność pomiaru | Meets or Exceeds OEM Specifications |
| Typ montażu | Montaż kołnierzowy |
| Typ wyjścia | Cyfrowy |
| Konkretne zastosowania produktu | Wykrywanie prędkości |
| Numer modelu przedmiotu | 42686717 |
| Numer części producenta | APABS0903 |
| Numery części OEM | 13379170, 39002171, 42686717, 13473250, ALS3089 |
4. Wyposażenie pojazdu
This A-Premium ABS Wheel Speed Sensor is compatible with the following vehicle models:
- Chevrolet Cruze: Modele 2016-2019
It is designed for installation on the Front Left or Right (Driver or Passenger) side of the vehicle.
5. Instalacja i konfiguracja
The A-Premium ABS Wheel Speed Sensor is designed for direct fitment, simplifying the installation process. However, proper installation is crucial for the correct functioning of your vehicle's ABS system and overall safety.
Ważne uwagi:
- Zalecana profesjonalna instalacja: If you do not have an installation manual or sufficient skill to install this part, it is highly recommended to seek assistance from a qualified mechanic.
- Consult Shop Manual: Always refer to the appropriate shop manual for your specific vehicle to obtain detailed, step-by-step service instructions for ABS wheel speed sensor replacement.
- Bezpieczeństwo przede wszystkim: Ensure the vehicle is properly supported and all safety precautions are followed before beginning any work.
Figure 5.1: Professional installation is recommended for optimal performance and safety.
Rysunek 5.2: Szczegółowy view of the sensor's electrical connector and sensing tip, designed for precise fitment.
Film 5.1: Animowany filmview demonstrating the function and importance of an ABS Wheel Speed Sensor in a vehicle's braking system. This video illustrates how the sensor detects wheel speed and transmits signals to the ABS module to prevent wheel lock-up during braking.
6. Zasady działania
The ABS Wheel Speed Sensor operates by monitoring the rotational speed of each wheel. This information is continuously sent to the ABS control module. In situations where a wheel begins to lock up during braking, the ABS module uses the sensor's data to rapidly modulate brake pressure to that specific wheel, preventing skidding and maintaining steering control. This process occurs many times per second, ensuring optimal braking performance and vehicle stability.
Figure 6.1: Illustration of the sensor's detection mechanism, showing how it reads the speed of the wheel's tone ring.
Figure 6.2: The ABS sensor contributes to stable driving by helping to maintain tire traction and promote safe braking.
7. Konserwacja
ABS wheel speed sensors are generally maintenance-free components. However, regular vehicle inspections can help identify potential issues early:
- Kontrola wizualna: Periodically check the sensor and its wiring for any signs of physical damage, corrosion, or loose connections.
- Czystość: Ensure the sensor tip and the tone ring (if visible) are free from excessive dirt, debris, or rust, which can interfere with accurate readings.
- Profesjonalne badania kontrolne: Include ABS system checks as part of your routine vehicle maintenance at a qualified service center.
8. Rozwiązywanie Problemów
Common symptoms of a faulty ABS wheel speed sensor include:
- Kontrolka ostrzegawcza ABS: The most common indicator is the illumination of the ABS warning light on your dashboard.
- Traction Control Light: The traction control light may also illuminate, as these systems often share sensor data.
- Erratic Speedometer Readings: In some vehicles, a faulty wheel speed sensor can affect speedometer accuracy.
- Zmniejszona skuteczność hamowania: While the primary braking system may still function, ABS and traction control features will be disabled.
If you experience any of these symptoms, it is recommended to have your vehicle diagnosed by a qualified mechanic. Diagnostic tools can pinpoint which sensor is faulty and help determine the exact cause of the issue.
9. Gwarancja i wsparcie
A-Premium offers a one-year unlimited-mileage guarantee on our meticulously crafted ABS Wheel Speed Sensor. For warranty claims or technical support, please contact A-Premium customer service through their official channels. Ensure you have your purchase details and product model number readily available.
