FUNMILY Elliptical Exercise Machine User Manual

1. Ważne informacje dotyczące bezpieczeństwa

Before beginning any exercise program, consult with your physician. It is essential to read and understand all instructions in this manual before assembling or operating the FUNMILY Elliptical Exercise Machine. Keep this manual for future reference.

• Ensure all parts are securely fastened before each use. Regularly inspect the machine for any loose or damaged components.
• Trzymaj dzieci i zwierzęta z dala od maszyny podczas pracy.
• Always wear appropriate athletic footwear during exercise.
• Place the elliptical on a flat, stable surface with adequate clear space around it.
• Jeśli odczuwasz ból, zawroty głowy lub masz duszności, natychmiast przerwij ćwiczenia i skonsultuj się z lekarzem.
• Nie przekraczać maksymalnego udźwigu wynoszącego 390 funtów (177 kg).
• Używaj urządzenia wyłącznie zgodnie z jego przeznaczeniem opisanym w niniejszej instrukcji.

2. Koniec produktuview

The FUNMILY Elliptical Exercise Machine is designed for home use, offering a full-body workout with adjustable magnetic resistance and an LCD monitor to track your progress.

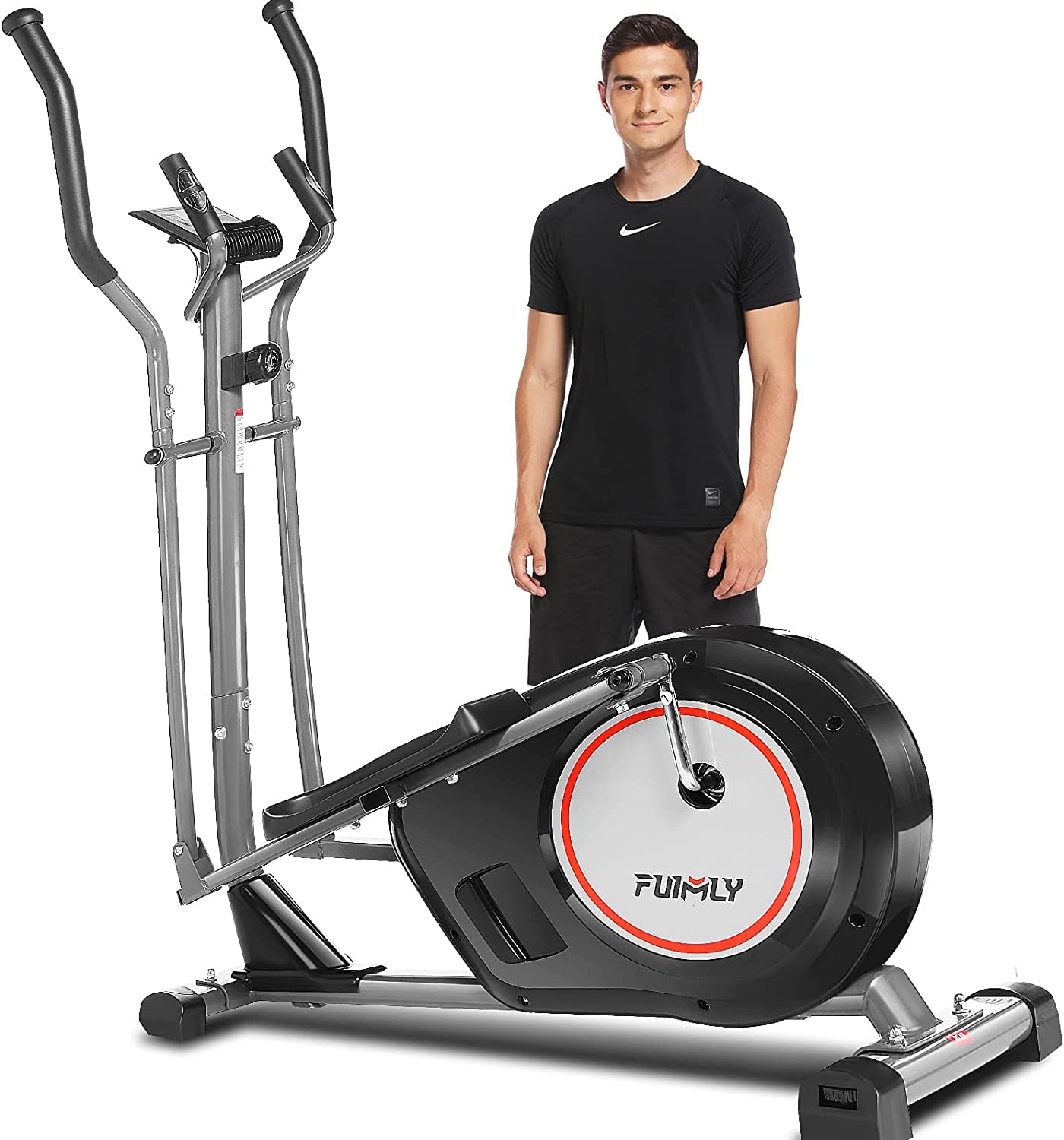

Image: The FUNMILY Elliptical Exercise Machine, showcasing its design and compact footprint suitable for home use.

3. Instalacja i montaż

The elliptical machine requires assembly. Please refer to the separate assembly guide included in your package for detailed, step-by-step instructions. Ensure all components are present before starting assembly.

3.1 Umieszczenie

• Choose a level, stable surface for placement.
• Allow at least 2 feet (60 cm) of clear space around the machine for safe operation and movement.
• Unikać umieszczania urządzenia w bezpośrednim świetle słonecznym lub w pobliżu źródeł ciepła.

3.2 Moving the Machine

The elliptical is equipped with transport wheels for easy relocation.

Image: Close-up of the transport wheels located at the front base of the elliptical machine, designed for easy movement.

1. Grasp the rear stabilizer or main frame firmly.
2. Tilt the machine forward until it rests on its transport wheels.
3. Carefully roll the machine to the desired location.
4. Gently lower the machine back onto its stabilizers.

4. Instrukcja obsługi

4.1 Funkcje monitora LCD

The integrated LCD monitor displays key workout data. Use the 'MODE' button to cycle through display functions and 'RESET' to clear data.

Image: Close-up of the elliptical's LCD monitor, showing digital readouts for various exercise metrics and control buttons.

• CZAS: Wyświetla czas trwania treningu.
• PRĘDKOŚĆ: Pokazuje Twoją aktualną prędkość.
• DYSTANS: Śledzi całkowity dystans pokonany podczas sesji.
• KALORIE: Szacuje spalone kalorie.
• PULS: Wyświetla tętno po trzymaniu czujników tętna.
• SKANDOWAĆ: Automatycznie przełącza wszystkie funkcje wyświetlacza co kilka sekund.

4.2 Regulacja oporu

The machine features 10 levels of magnetic resistance. Turn the resistance knob located on the main frame to increase or decrease the workout intensity.

Image: Visual representation of different resistance levels, suggesting appropriate intensity for walking (1-2 levels), swimming (3-5 levels), and sprint (6-8 levels).

• Turn clockwise to increase resistance for a more challenging workout.
• Turn counter-clockwise to decrease resistance for an easier workout.

4.3 Czujnik tętna

Grip the pulse pads on the stationary handlebars to measure your heart rate. Ensure both hands are firmly on the sensors for an accurate reading.

4.4 Smart Workout App (FITSHOW APP)

Connect your elliptical to the FITSHOW APP for an enhanced workout experience, including virtual reality exercising and detailed data recording.

Image: A smartphone and tablet displaying the FITSHOW APP interface, showing workout data and virtual routes.

1. Download the FITSHOW APP from your device's app store.
2. Włącz Bluetooth w swoim urządzeniu mobilnym.
3. Open the FITSHOW APP and follow the on-screen instructions to connect to your elliptical machine.
4. Begin your workout and track your progress within the app.

4.5 Foot Pedals and Handles

The non-slip 15-inch pedals provide stability, while foam-covered handles allow for upper body engagement.

Image: Close-up of a textured, non-slip foot pedal designed for secure footing during exercise.

• Ensure your feet are centered and secure on the pedals before starting.
• Hold the moving handlebars for a full-body workout, or the stationary handlebars for lower body focus and heart rate monitoring.

5. Konserwacja

Regularna konserwacja gwarantuje długowieczność i bezpieczną pracę Twojego orbitreka.

5.1 Czyszczenie

• Wytrzyj maszynę adamp Po każdym użyciu przetrzyj ściereczką pot i kurz.
• Do not use abrasive cleaners or solvents, as they may damage the finish or electronic components.

5.2 Kontrola

• Okresowo sprawdzaj dokręcenie wszystkich nakrętek, śrub i części ruchomych. Dokręć w razie potrzeby.
• Inspect the belt drive system for any signs of wear or damage.

Image: Diagram showing the internal belt drive system of the elliptical, highlighting its smooth operation.

5.3 Przechowywanie

• Store the machine in a cool, dry place away from moisture and extreme temperatures.

6. Rozwiązywanie Problemów

If you encounter issues with your elliptical machine, refer to the following common problems and solutions.

7. Specyfikacje

Key technical specifications for the FUNMILY Elliptical Exercise Machine.

8. Gwarancja i wsparcie

8.1 Informacje o gwarancji

The FUNMILY Elliptical Exercise Machine comes with a 1-letnia gwarancja from the date of purchase. This warranty covers manufacturing defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or improper assembly.

8.2 Obsługa klienta

For warranty claims, technical assistance, or replacement parts, please contact FUNMILY customer support. Refer to your purchase documentation or the FUNMILY official webstrona dla danych kontaktowych.
