HURRISE 4-Bottle Rotating Liquor Dispenser Instruction Manual

Model: HURRISE1twhz4brp72056

1. Wprowadzenie

This manual provides comprehensive instructions for the safe and effective use of your HURRISE 4-Bottle Rotating Liquor Dispenser. Designed for precise measurement and convenient dispensing, this unit is suitable for various settings. Please read these instructions thoroughly before installation and operation to ensure optimal performance and longevity of the product.

2. Informacje dotyczące bezpieczeństwa

  • Ensure the dispenser is securely mounted to a stable surface (wall or shelf) before attaching any bottles.
  • Do not overload the dispenser beyond its intended capacity.
  • Przechowywać w miejscu niedostępnym dla dzieci.
  • Use caution when handling glass bottles to prevent breakage.
  • Clean the dispenser regularly as per the maintenance instructions to prevent residue buildup.

3. Zawartość opakowania

Sprawdź, czy po rozpakowaniu wszystkie elementy są obecne i nieuszkodzone:

  • 1 x HURRISE 4-Bottle Rotating Liquor Dispenser unit
  • Elementy montażowe (śruby, kotwy)

Note: Liquor bottles are not included.

4. Konfiguracja i instalacja

The dispenser can be mounted on a wall or shelf. Choose a location that is sturdy and can support the weight of the dispenser with four full bottles.

4.1 Mounting the Dispenser

  1. Wybierz lokalizację: Identify a suitable wall stud or a solid shelf surface for mounting.
  2. Zaznacz punkty wiercenia: Hold the dispenser's mounting bracket against the desired surface. Use a pencil to mark the positions for drilling. Ensure the dispenser is level.
  3. Wiercenie otworów: Drill pilot holes at the marked positions. If mounting into drywall without a stud, use appropriate wall anchors.
  4. Bezpieczny dozownik: Attach the dispenser to the wall or shelf using the provided screws. Ensure it is firmly secured and does not wobble.
Tył view of the HURRISE 4-Bottle Rotating Liquor Dispenser showing mounting points.
Obraz 4.1: Tył view of the dispenser's mounting bracket. This image illustrates the back of the dispenser, highlighting the points where it should be attached to a wall or shelf using screws.

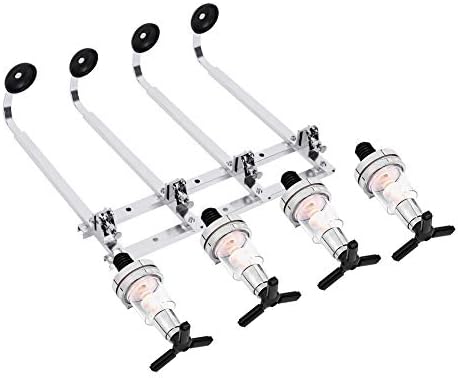

Szczyt view of the HURRISE 4-Bottle Rotating Liquor Dispenser showing bottle holders.
Obraz 4.2: Góra view of the dispenser with bottle holders. This image displays the upper arms and bottle cradles where liquor bottles are inverted and secured into the dispensing mechanism.

4.2 Attaching Bottles

  1. Remove the cap from your liquor bottle.
  2. Carefully invert the bottle and insert its neck into one of the dispenser's pourer mechanisms. The rubber seal should create a tight fit.
  3. Ensure the bottle is securely seated and stable. Repeat for up to four bottles.
Fully assembled HURRISE 4-Bottle Rotating Liquor Dispenser with bottles in place.
Image 4.3: Fully assembled 4-bottle dispenser. This image shows the complete dispenser unit mounted and ready for use, with four bottles inverted into their respective pourer mechanisms.

5. Instrukcja obsługi

The HURRISE dispenser is designed for easy and accurate pouring of 1.5-ounce shots.

5.1 Dispensing Liquor

  1. Place a glass directly beneath the desired pourer.
  2. Firmly push the glass upwards against the pourer mechanism. This action will release a precisely measured 1.5-ounce shot of liquor into the glass.
  3. Once the pour is complete, remove the glass. The mechanism will automatically reset for the next pour.
Close-up of the pourer mechanism on the HURRISE dispenser.
Image 5.1: Close-up of the pourer mechanism. This image details the lower part of the dispenser, showing the valve and lever system that dispenses a measured amount of liquid when a glass is pressed against it.

5.2 Rotating Feature

The dispenser features a rotating design, allowing you to easily switch between the four attached bottles. Simply grasp the central frame and rotate it to bring the desired bottle to the front for dispensing.

6. Konserwacja i czyszczenie

Regular cleaning ensures hygiene and proper functioning of your dispenser.

6.1 Instrukcje dotyczące czyszczenia

  • Puste butelki: Before cleaning, remove all liquor bottles from the dispenser.
  • Tylko pranie ręczne: The dispenser is nie nadaje się do mycia w zmywarce. Clean all parts by hand.
  • Disassemble Pourers: Carefully detach the individual pourer mechanisms from the main unit if possible, following any specific instructions for your model.
  • Umyj komponenty: Wash the pourer mechanisms and any removable parts with warm, soapy water. Use a small brush to clean inside the pourer spouts and around seals.
  • Wyczyść jednostkę główną: Wipe down the main aluminum frame with a damp cloth. Avoid abrasive cleaners that could damage the mirror finish.
  • Płukanie i suszenie: Rinse all washed components thoroughly with clean water. Allow all parts to air dry completely before reassembling and reattaching bottles.

7. Rozwiązywanie Problemów

Jeśli napotkasz problemy z dozownikiem, zapoznaj się z poniższymi typowymi problemami i rozwiązaniami:

ProblemMożliwa przyczynaRozwiązanie
Liquor is not dispensing or flow is slow.Bottle not seated correctly; pourer mechanism clogged; air lock.Ensure bottle is firmly inserted. Clean the pourer mechanism. Briefly remove and reinsert the bottle to release any air lock.
Dispenser is leaking.Bottle seal not tight; damaged pourer seal; dispenser not level.Check that bottles are securely inserted and seals are intact. Inspect pourer seals for damage and replace if necessary. Ensure the dispenser is mounted level.
Dispenser feels unstable after mounting.Improper installation; loose mounting screws.Verify that the dispenser is mounted into a stud or using appropriate anchors. Tighten all mounting screws.

8. Specyfikacje

  • Model: HURRISE1twhz4brp72056
  • Marka: HURRISE
  • Tworzywo: Aluminium
  • Capacity per Pour: 1.5 uncji
  • Number of Bottles: 4
  • Wymiary produktu: 13.39 x 12.2 x 4.33 cala
  • Waga przedmiotu: Około 0.2 funta (3.2 uncji)
  • Można myć w zmywarce: NIE
  • Styl: Nowoczesny

9. Gwarancja i wsparcie

HURRISE offers a hassle-free guarantee for this product. If you have any questions, concerns, or require assistance with your 4-Bottle Rotating Liquor Dispenser, please contact our customer support team. We are committed to ensuring your satisfaction.

For support, please refer to the contact information provided at the point of purchase or visit the official HURRISE store page on Amazon.
