DollaTek 540 21T Brushed Motor and 60A ESC Combo Instruction Manual

1. Wprowadzenie

This manual provides essential information for the proper installation, operation, and maintenance of your DollaTek 540 21T 4 Pole Brushed Motor and 60A Brushed Electronic Speed Controller (ESC) Combo. This combo is designed for 1/10 scale RC racing cars, offering reliable performance and durability. Please read this manual thoroughly before use to ensure optimal performance and safety.

2. Środki ostrożności

• Always disconnect the battery from the ESC when not in use to prevent accidental operation.
• Ensure all connections are secure and correctly polarized to avoid damage to components.
• Motors and ESCs can become hot during operation. Allow components to cool before handling.
• Keep the product away from water unless specifically designed for waterproof use. This ESC is waterproof, but proper sealing of other electronic components is crucial.
• Operate RC vehicles in open areas, away from people, pets, and obstacles.
• W przypadku użytkowników poniżej 14 roku życia zaleca się nadzór osoby dorosłej.

3. Zawartość opakowania

W skład pakietu wchodzą następujące elementy:

• 1 x 540 21T Brushed Motor
• 1 x 60A Brushed ESC

4. Koniec produktuview

The DollaTek 540 21T Brushed Motor features high purity copper windings for maximum efficiency and a precision-balanced rotor for reliability and high RPM. The 60A Brushed ESC provides excellent configuration, acceleration, and linearity characteristics, along with strong resistant current capacity and good heat dissipation. It is also 100% waterproof.

This image displays the front of the 540 21T brushed motor, highlighting its compact cylindrical design and the branding on its casing.

Na bok view of the brushed motor, illustrating the motor shaft extending from one end and the electrical contact points at the base.

This image shows the electronic speed controller from above, featuring its prominent copper heat sink for thermal management and the various colored wires for connection.

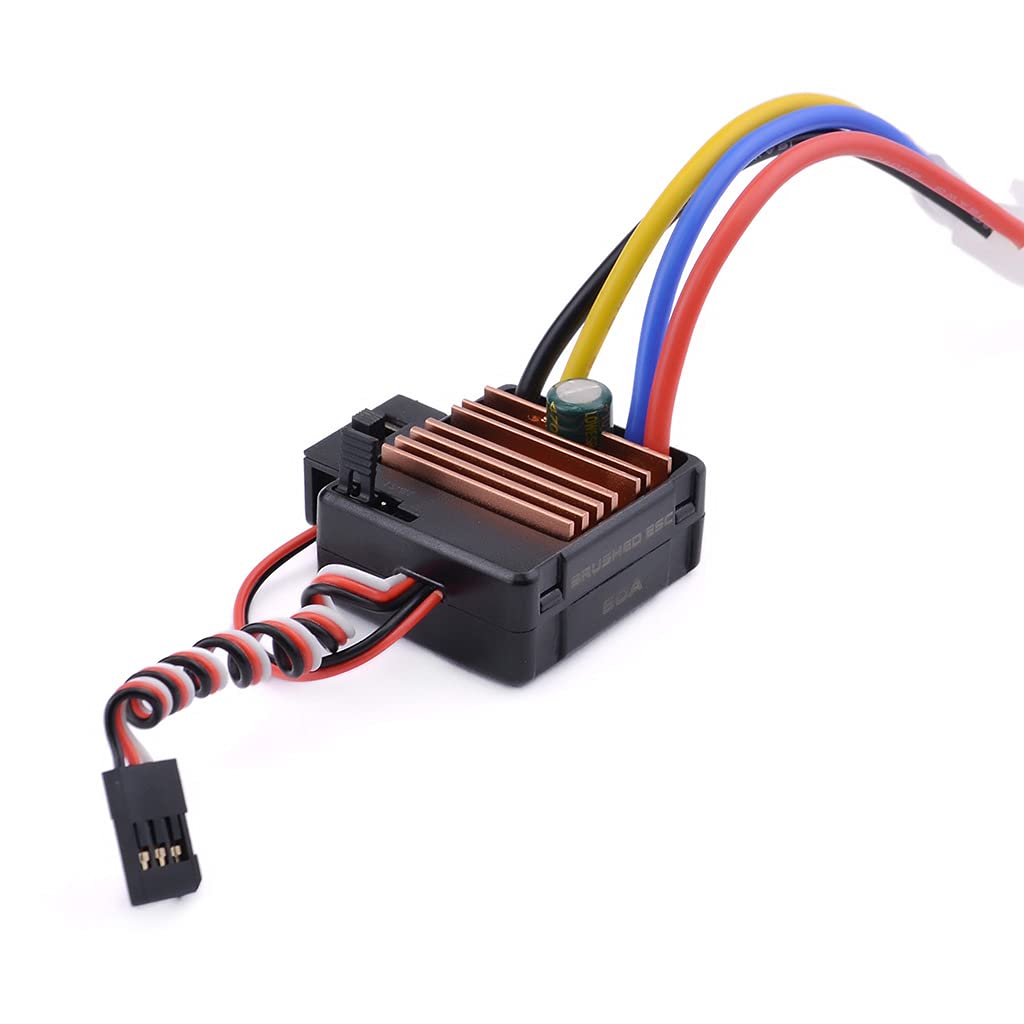

An angled perspective of the ESC, providing a clearer view of its integrated power switch, the heat sink, and the arrangement of its input/output wires.

This image presents the ESC from the side, with overlaid measurements indicating its length (37mm), width (32mm), and height (18mm), useful for installation planning.

5. Specyfikacje

6. Konfiguracja

6.1 Instalacja silnika

1. Montowanie: Securely mount the 540 21T motor into your RC vehicle's motor mount using appropriate screws. Ensure the motor is firmly seated to prevent movement during operation.
2. Pinion Gear: Install the pinion gear onto the motor shaft. Ensure the pinion gear is aligned with the spur gear and secured with a grub screw.
3. Siatka przekładni: Adjust the motor position to achieve proper gear mesh between the pinion and spur gears. There should be a small amount of play (like a thin piece of paper) between the teeth to prevent binding and excessive wear.

6.2 ESC Connection

1. Podłączenie silnika: Connect the two motor wires from the ESC to the motor's terminals. Brushed motors typically do not have a specific polarity for connection, but ensure a secure connection.
2. Podłączenie akumulatora: Connect the ESC's battery connector to your LiPo 2S battery. Ensure correct polarity (red to positive, black to negative). Incorrect polarity can cause severe damage.
3. Połączenie odbiornika: Plug the ESC's signal cable (usually a three-wire servo plug) into the throttle channel (CH2) of your RC receiver.

6.3 Kalibracja regulatora ESC

Calibrate the ESC with your radio transmitter to ensure proper throttle range recognition. Refer to your radio system's manual for specific calibration procedures, which typically involve:

• Turning on the transmitter and setting throttle trim to neutral.
• Holding the throttle at full forward, then powering on the ESC.
• Waiting for a confirmation beep, then moving the throttle to full reverse.
• Waiting for another beep, then returning the throttle to neutral.
• Waiting for a final confirmation beep to indicate successful calibration.

7. Instrukcja obsługi

1. Włączanie: Ensure all connections are correct. Turn on your radio transmitter first, then connect the battery to the ESC.
2. Kontrola wstępna: Verify that the steering and throttle respond correctly to your transmitter inputs.
3. Napędowy: Gradually apply throttle. The ESC provides smooth acceleration and braking.
4. Wodoodporna funkcja: The ESC is waterproof. However, ensure other electronic components in your RC vehicle are protected from water exposure. After running in wet conditions, clean and dry the ESC thoroughly.
5. Wyłączone: Always disconnect the battery from the ESC first, then turn off your radio transmitter.

Główne cechy operacyjne:

• Niska objętośćtage Cut-off Protection: The ESC will reduce or cut power to the motor if the battery voltage drops below a safe level, protecting your LiPo battery from over-discharge.
• Zabezpieczenie przed przegrzaniem: If the ESC's temperature becomes too high, it will reduce power or shut down to prevent damage.
• Ochrona przed utratą sygnału przepustnicy: In case of signal loss from the transmitter, the ESC will automatically cut power to the motor to prevent runaway.

8. Konserwacja

• Czyszczenie: After each use, especially in dirty or wet conditions, clean the motor and ESC. Use a soft brush or compressed air to remove dirt and debris. For the ESC, ensure it is dry before storage.
• Kontrola: Regularly inspect all wires and connectors for signs of wear, fraying, or corrosion. Ensure all solder joints are secure.
• Szczotki silnika: The motor features a replaceable brush radiator design. Periodically check the motor brushes for wear. Replace them if they appear significantly worn to maintain optimal performance.
• Składowanie: Store the motor and ESC in a cool, dry place away from direct sunlight and extreme temperatures. Disconnect batteries during storage.

9. Rozwiązywanie Problemów

10. Gwarancja i wsparcie

DollaTek products are manufactured to high standards. For any issues or support inquiries, please contact your retailer or the manufacturer directly. Keep your purchase receipt as proof of purchase for warranty claims.
