APPASO APS278BN 2-Hole Kitchen Faucet with Pull-Down Sprayer User Manual

1. Wprowadzenie

Thank you for choosing the APPASO APS278BN 2-Hole Kitchen Faucet with Pull-Down Sprayer. This manual provides detailed instructions for the safe installation, operation, and maintenance of your new kitchen faucet. Please read this manual thoroughly before installation and keep it for future reference.

2. Funkcje produktu

• Multi-Function Sprayer: Easily toggle between splash-free aerated stream and powerful pre-rinse spray modes.
• Lead-Free & Easy To Clean: Constructed with a premium valve core and lead-free materials for healthy water. The deep plating brushed nickel finish resists fingerprints and spots.
• Healthy Faucet Aerator: Features a honeycomb-shaped aerator with multiple filters for clean, soft water without splashing or noise.
• Łatwa instalacja: Quick-in system allows for DIY installation in approximately 20 minutes without specialized tools.
• Environmental Protection & CEC Certification: CEC certified with a water consumption of 1.8 GPM to ensure efficient water usage.
• Obrót o 360°: Provides full sink access and flexibility.
• Odporny na wycieki: Designed for durability and to prevent leaks.

Figure 1: The faucet's certified core ensures lead-free and safe water for your family.

3. Specyfikacje

Figure 2: Faucet Dimensions and Mounting Requirements. Maximum counter thickness: 1-3/5" (4cm). Mounting hole size: 1-1/4" ~ 1-2/5" (3.2 ~ 3.5cm).

4. Dołączone komponenty

The APPASO APS278BN kitchen faucet package includes the following items:

• 1x APPASO Kitchen Faucet (Hot & Cold Water Hoses Pre-Installed)
• 1x Accessories: Rubber, Gasket, Nut
• 1x Instrukcja obsługi (ten dokument)
• 1x Weight for pull-down hose

5. Informacje dotyczące bezpieczeństwa

• Przed rozpoczęciem jakichkolwiek prac instalacyjnych lub konserwacyjnych należy zawsze zakręcić dopływ wody.
• Podczas instalacji należy nosić odpowiedni sprzęt ochrony osobistej, taki jak okulary ochronne i rękawice.
• Ensure all connections are tight to prevent leaks, but do not overtighten.
• Jeśli masz wątpliwości co do jakiegokolwiek etapu instalacji, skonsultuj się z wykwalifikowanym hydraulikiem.
• Trzymaj małe części z dala od dzieci, aby zapobiec ryzyku zadławienia.

6. Instrukcja instalacji

Follow these steps for a quick and easy installation of your APPASO kitchen faucet. The quick-in system is designed for a straightforward DIY process.

1. Przygotuj zlew: Ensure the sink area is clean and dry. Turn off the hot and cold water supply lines under the sink.
2. Montaż korpusu kranu: Insert the main faucet body through the primary hole in your sink or countertop. Secure it from underneath with the provided rubber gasket, metal washer, and mounting nut. Tighten the nut using a screwdriver.
3. Zainstaluj uchwyt: Insert the handle body through the secondary hole. Secure it from underneath with its corresponding mounting hardware.
4. Podłącz przewody wodne: Connect the pre-installed hot and cold water hoses from the faucet to your home's water supply lines. Ensure the hot water line (red marking) connects to the hot supply and the cold water line (blue marking) connects to the cold supply.
5. Attach Pull-Down Hose and Weight: Connect the pull-down sprayer hose to the quick-connect fitting under the faucet. Attach the weight to the pull-down hose at the indicated position to ensure smooth retraction.
6. Test szczelności: Slowly turn on the hot and cold water supply valves. Check all connections for any signs of leaks. Operate the faucet to ensure proper water flow and temperature control.

Figure 3: Visual representation of the 5-step installation process for the APPASO faucet.

7. Instrukcja obsługi

Your APPASO faucet is designed for ease of use and versatility in your kitchen tasks.

7.1 Kontrola przepływu i temperatury wody

• Włączanie/wyłączanie: Lift the single handle to turn on the water flow. Push it down to turn off.
• Regulacja temperatury: Przesuń uchwyt w lewo, aby uzyskać ciepłą wodę, lub w prawo, aby uzyskać zimną wodę.

7.2 Pull-Down Sprayer Functions

• Pulling Down: Gently pull the sprayer head down from the spout to extend the hose.
• Tryby natrysku: Use the buttons on the sprayer head to switch between the following modes:
  • Tryb strumieniowania: Zapewnia stały, napowietrzony przepływ do napełniania garnków i mycia.
  • Tryb natryskiwania: Delivers a powerful, wide spray for rinsing dishes and cleaning the sink.
  • Broom Mode: Offers 50% stronger pressure for tackling stubborn grime.
• Wycofanie: The weight on the hose will automatically retract the sprayer head back into the spout when released.

Figure 4: Illustration of the 3-in-1 Power System with stream, spray, and broom modes.

Figure 5: The Neoperl aerator technology ensures gentle, splash-free water flow, keeping countertops dry.

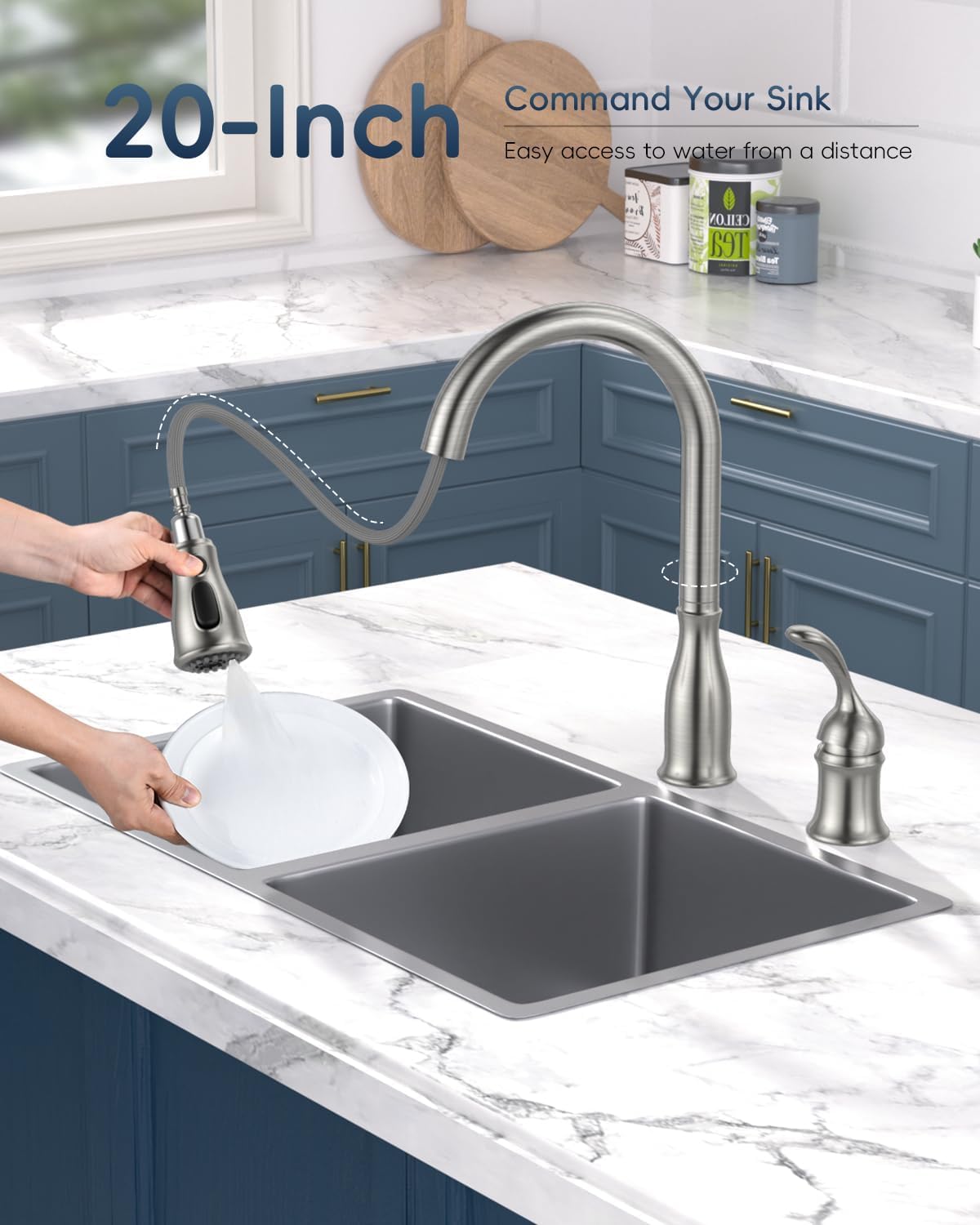

Figure 6: The 20-inch pull-down sprayer provides easy access for washing vegetables and other items.

8. Pielęgnacja i konserwacja

Proper care will ensure the longevity and continued performance of your APPASO faucet.

• Czyszczenie wykończenia: The brushed nickel finish is designed to resist fingerprints and spots. Clean regularly with a soft, damp Ściereczka i delikatne mydło. Unikaj szorstkich środków czyszczących, silnych środków chemicznych i gąbek do szorowania, ponieważ mogą one uszkodzić wykończenie.
• Konserwacja aeratora: Periodically unscrew the aerator from the sprayer head and clean any mineral deposits or debris. This will help maintain optimal water flow and prevent splashing.
• Zapobieganie wyciekom: The faucet features a premium valve core designed for leak resistance. If you notice any drips, ensure all connections are secure.
• Pielęgnacja węży: Ensure the pull-down hose moves freely under the sink and is not obstructed by objects.

Figure 7: The faucet's finish is tested for durability in harsh conditions, ensuring long-lasting appearance.

9. Rozwiązywanie Problemów

10. Gwarancja i wsparcie

APPASO products are manufactured to the highest quality standards and are backed by a manufacturer's warranty. For specific warranty details, please refer to the warranty card included with your purchase or visit the official APPASO webstrona.

If you encounter any issues or have questions regarding your faucet, please contact APPASO customer support for assistance. Our team is dedicated to providing excellent service and support.
