PUREPLUS CRF-950Z Water Filter Instruction Manual

1. Wprowadzenie

Thank you for choosing the PUREPLUS CRF-950Z Replacement Water Filter. This filter is designed to provide clean, great-tasting water by effectively reducing various contaminants. This manual provides essential information for the proper installation, operation, and maintenance of your new water filter.

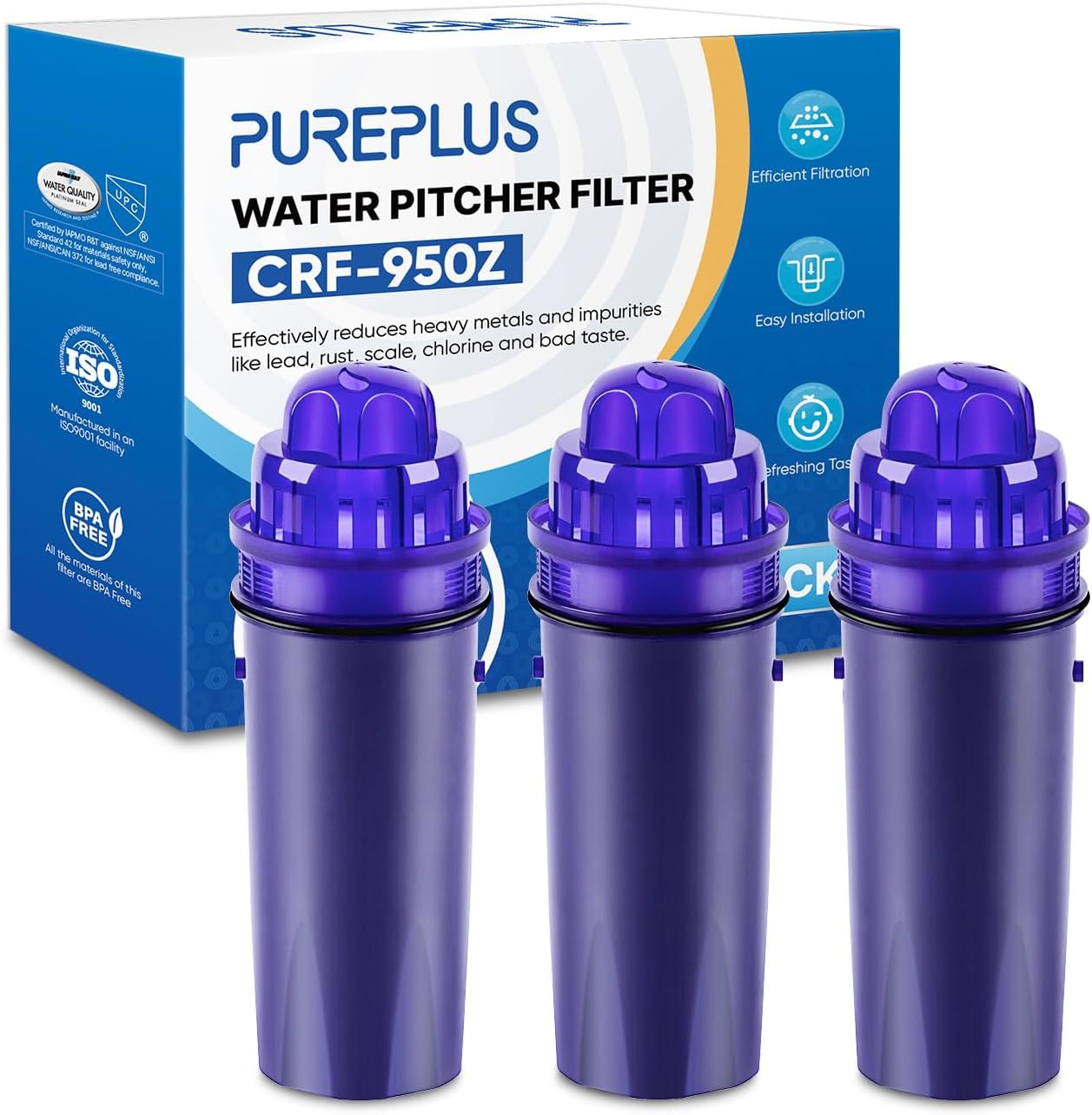

Image: PUREPLUS CRF-950Z water filter 3-pack with packaging, showing the product and its box.

Cechy produktu

• Certyfikowana jakość: Utilizes NSF certified activated carbon, filtering 99% of chlorine, lead, and mercury. Food-grade materials comply with European regulations EC1935-2004, Australian watermark, TUV, RoHS, REACH, and are BPA-free.
• Efektywna filtracja: High-quality filtration media combining activated carbon particles and advanced ion-exchange resin effectively removes 99% of chlorine and odors, 99% of heavy metals, and reduces over 100 contaminants including limescale, sediment, and rust.
• Innowacyjna technologia: Multi-layer technology ensures different levels of filtration efficiency for various harmful substances. The advanced structure provides stable and continuous water flow.

Image: IAPMO R&T certification logo, indicating compliance with NSF/ANSI 42 and NSF/ANSI/CAN 372 standards for material safety and chlorine reduction.

Image: Coconut shells and activated carbon, illustrating the premium, lead-free materials used in the filter construction.

2. Konfiguracja i instalacja

The PUREPLUS CRF-950Z filter is designed for easy and quick installation, typically taking only a few seconds without the need for any tools.

Kroki instalacji:

1. Przygotuj filtr: Remove the new filter from its packaging. It is recommended to rinse the filter under cold tap water for 15 seconds to remove any carbon dust.
2. Usuń stary filtr: If replacing an existing filter, carefully remove the old filter from your PUR pitcher or dispenser.
3. Wstaw nowy filtr: Align the new PUREPLUS CRF-950Z filter with the opening in your pitcher or dispenser. Firmly press and twist the filter into place until it is securely seated. Ensure a snug fit to prevent leaks.
4. Początkowe płukanie: Fill the pitcher/dispenser with water and allow it to filter through. Discard the first two full pitchers of filtered water to prime the filter and remove any remaining carbon fines.

The filter is designed to fit perfectly and provide a leak-free experience.

Obraz: Zbliżenie view of the PUREPLUS filter being inserted into a water pitcher, demonstrating its easy, tool-free, and leak-free installation.

3. Instrukcja obsługi

Once installed, the PUREPLUS CRF-950Z filter operates automatically as water passes through it. Simply fill your pitcher or dispenser with tap water, and the filter will begin the purification process.

Proces filtracji:

The filter utilizes an advanced multi-stage filtration technology to purify your water:

• Sediment Filter Layers: These layers remove larger particles such as sand, rust, and sediment.
• Materiały jonowymienne: These materials are crucial for reducing heavy metals like lead and mercury, and also help in reducing limescale.
• Granulowany węgiel aktywowany: This component effectively absorbs chlorine, odors, and other organic impurities, significantly improving the taste of the water.
• Siatka ekranowa: Acts as a final barrier to ensure no media particles are released into the filtered water.

Image: Diagram illustrating the internal multi-stage filtration process, including sediment filter layers, ion exchange materials, and granulated activated carbon.

Contaminants Reduced:

The PUREPLUS CRF-950Z filter is designed to reduce over 100 contaminants, including but not limited to:

• Chlor
• Smak i zapach
• Piasek
• Osad
• Rdza
• Zawiesiny
• Zanieczyszczenia
• Large Particles

Image: Visual representation of various contaminants that the filter effectively eliminates, such as chlorine, sand, rust, and impurities.

4. Konserwacja

Regular filter replacement is essential to ensure optimal performance and continued water quality.

Częstotliwość wymiany filtra:

It is recommended to replace your PUREPLUS CRF-950Z filter every 2 miesięcy lub po filtrowaniu 40 galona of water, whichever comes first. This frequency may vary depending on your water quality and usage habits.

Image: Water being poured from a pitcher, illustrating the filter's capacity to purify up to 40 gallons of water.

Składowanie:

Store unused filters in a cool, dry place away from direct sunlight. Do not store filters in freezing temperatures.

5. Rozwiązywanie Problemów

If you experience any issues with your PUREPLUS CRF-950Z filter, please refer to the common issues below. If the problem persists, contact PUREPLUS customer support.

Typowe problemy:

• Powolna filtracja: This can occur if the filter is clogged or nearing the end of its lifespan. Ensure the filter has been properly primed by discarding the first two pitchers of water. If the issue persists, replace the filter.
• Smak/zapach wody: If the filtered water still has an undesirable taste or odor, the filter may need to be replaced, or it might not have been properly primed. Ensure the filter is securely installed.
• Wyciek: Ensure the filter is firmly twisted and seated correctly in the pitcher or dispenser. If the leak continues, check for any damage to the filter or the pitcher/dispenser seal.

6. Specyfikacje

7. Kompatybilne modele

The PUREPLUS CRF-950Z filter is compatible with the following PUR filter models, pitchers, and dispensers:

Compatible PUR Filter Models:

• CRF-950Z
• PPF951K
• PPF900Z

Compatible PUR Pitchers and Dispensers:

• PPT700W
• CR-1100C
• DS-1800Z
• CR-6000C
• PPT711W
• PPT711
• PPT710W
• PPT11W
• PPT11R
• DS1811Z
• CR1100CV3

8. Gwarancja i wsparcie

For any questions, concerns, or support regarding your PUREPLUS CRF-950Z water filter, please contact PUREPLUS customer service. Refer to the product packaging or the official PUREPLUS webAby uzyskać informacje kontaktowe i szczegóły dotyczące wszelkich obowiązujących gwarancji, odwiedź tę stronę.
