1. Wprowadzenie
Thank you for choosing the Scheppach GS60 Electric Garden Shredder. This manual provides essential information for the safe and effective use, assembly, maintenance, and troubleshooting of your new garden shredder. Please read these instructions carefully before operating the machine and keep them for future reference.
The Scheppach GS60 is a powerful electric garden shredder designed for efficient processing of garden waste such as branches and leaves. It features a 2800 W motor, a cutting thickness of up to 45 mm, and a 60 L collection box. Its slow-rotating roller cutter ensures quiet operation, making it an ideal tool for maintaining your garden.
Figure 1: The Scheppach GS60 Electric Garden Shredder, a powerful tool for processing garden waste.
2. Instrukcje bezpieczeństwa
Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury. Familiarize yourself with all controls and proper use of the machine.
Bezpieczeństwo ogólne
- Read and understand the entire manual before operating the shredder.
- Wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, sturdy gloves, and long pants.
- Trzymaj dzieci i osoby postronne z dala od obszaru operacyjnego.
- Do not operate the shredder in wet conditions or rain.
- Upewnij się, że miejsce pracy jest dobrze oświetlone i wolne od przeszkód.
- Never insert hands or feet into the feed chute or discharge opening.
- Always disconnect the power supply before cleaning, maintenance, or if the machine becomes jammed.
Bezpieczeństwo elektryczne
- Upewnij się, że zasilanie jest zgodne z objtage specified on the machine's rating plate.
- Use only extension cords suitable for outdoor use and rated for the shredder's power requirements.
- Do not abuse the power cord. Never carry the shredder by the cord or yank it to disconnect from the outlet.
- Regularly inspect the power cord for damage. If damaged, have it replaced by a qualified electrician.
3. Koniec produktuview
The Scheppach GS60 is designed for efficient and quiet shredding of garden waste. Key features include:
- Powerful 2800 W motor: Ensures effective shredding of tough materials.
- Cutting thickness up to 45 mm: Capable of processing branches with a diameter of up to 45 mm.
- Slow rotating roller cutter: Operates at a low sound level for quieter use.
- Roller cutting squeeze system: Features an adjustable counter plate for optimal shredding.
- Hardened steel cutting roller: Durable and efficient cutting mechanism.
- 60 L collection box: Conveniently collects shredded material.
- Large wheels: Facilitate easy transportation of the unit.
- Zabezpieczenie przed przeciążeniem: Integrated reset button on the control panel.
Figure 2: An illustration detailing key technical specifications of the shredder, including a maximum branch thickness of 44 mm, a cutting speed of 60 revolutions per minute, a knife roller diameter of 90 mm, and a powerful 2800 W motor.
Rysunek 3: Szczegółowy view of the shredder's internal cutting mechanism, showing the robust steel roller with 8 cutting edges designed for efficient shredding.

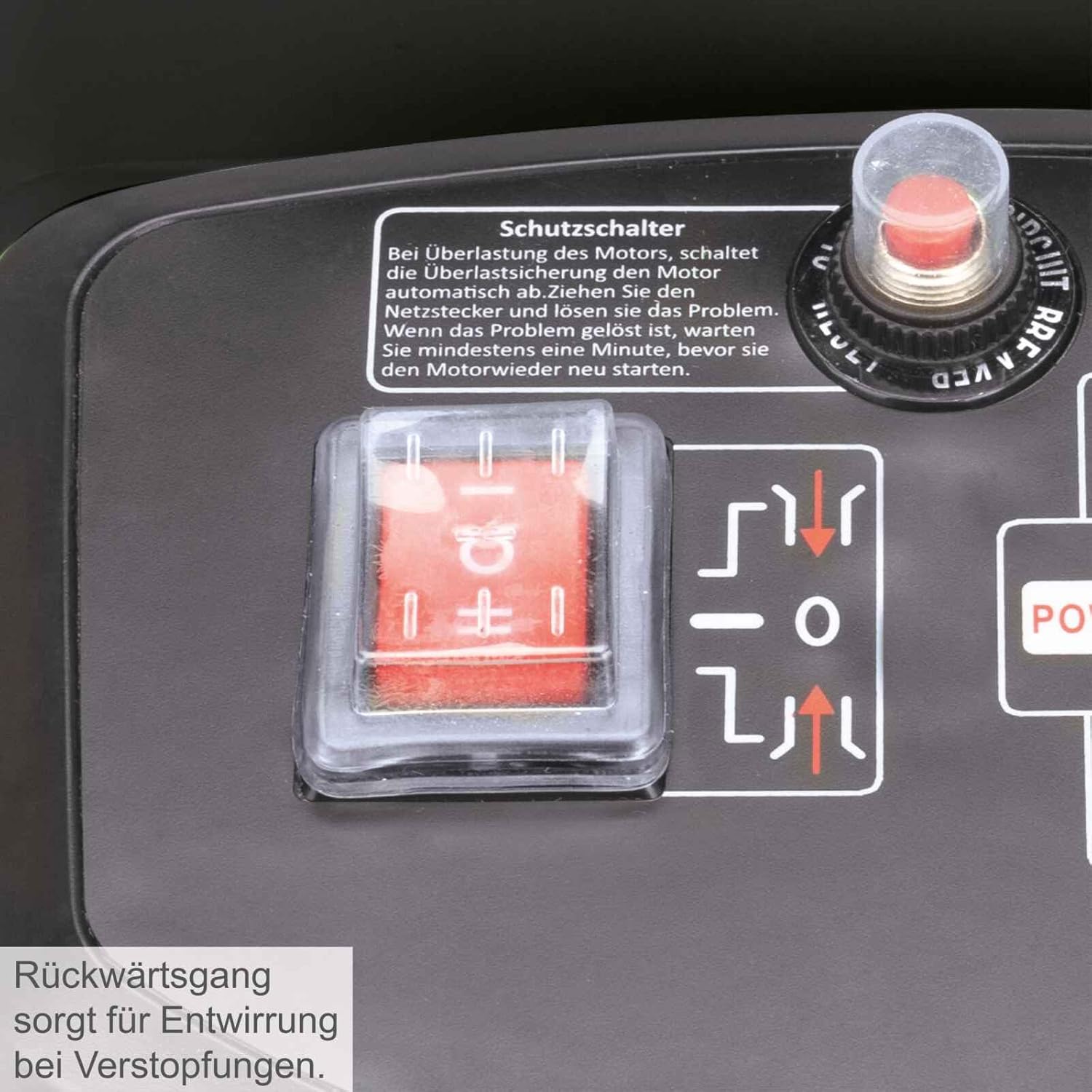

Figure 4: The control panel featuring a safety switch and a reverse gear function, which helps to clear blockages during operation.
Figure 5: The main control panel, providing easy access to the power ON/OFF buttons and a reset button for overload protection.
4. Montaż i konfiguracja
Before first use, some assembly may be required. Follow these general steps:
- Rozpakowywanie: Ostrożnie wyjmij wszystkie elementy z opakowania. Sprawdź, czy nie uległy uszkodzeniu podczas transportu.
- Zespół koła: Attach the wheels to the main unit as per the diagrams in the included manual. Ensure they are securely fastened for stability and easy transport.
- Skrzynka na datki: Position the 60 L collection box correctly under the discharge chute. The shredder will not operate unless the collection box is properly seated and secured, engaging the safety interlock.
- Podłączenie zasilania: Connect the shredder to a suitable outdoor-rated power outlet. Ensure the power cord is free from damage and positioned to avoid tripping hazards.
- Inspekcja wstępna: Before starting, ensure all fasteners are tight and no foreign objects are in the feed chute or cutting mechanism.
Figure 6: The shredder being tilted and moved on its large wheels, illustrating its easy transport feature.
5. Działanie
Follow these steps for safe and effective operation of your Scheppach GS60 shredder:
- Przygotowanie: Ensure the shredder is on a firm, level surface. Wear all recommended PPE.
- Uruchamianie niszczarki: Press the green 'ON' button on the control panel. The motor should start.
- Materiał paszowy: Gradually feed branches and garden waste into the feed chute. Allow the machine to pull the material through. Do not force material into the chute.
- Typ materiału: The shredder is suitable for branches up to 45mm in diameter and leafy material. Avoid feeding stones, metal, plastic, or other non-organic materials.
- Usuwanie blokad: If the shredder jams, immediately press the red 'OFF' button and disconnect the power. Use the reverse function if available (refer to Figure 4) or carefully clear the blockage using the provided refill plug or a suitable tool, never your hands.
- Skrzynka na datki: Monitor the collection box and empty it regularly to prevent overfilling and potential blockages.
- Zatrzymywanie niszczarki: Press the red 'OFF' button to stop the motor. Disconnect the power supply after use.
Figure 7: A user demonstrating the feeding of branches into the shredder's intake chute for processing.
Figure 8: An illustration showing the types of garden waste the shredder is suitable for, including leaves and branches.
Rysunek 9: Example of wood chips produced by the shredder, suitable for use as mulch to suppress weeds and provide habitat for beneficial insects in garden beds.
6. Konserwacja i czyszczenie
Regularna konserwacja zapewnia długowieczność i optymalną wydajność niszczarki.
Czyszczenie
- Zawsze odłączaj zasilanie przed czyszczeniem.
- Remove any accumulated debris from the feed chute, cutting mechanism, and discharge area using a brush or a non-metallic tool.
- Przetrzyj zewnętrzną część maszyny za pomocą reklamyamp płótno. Nie używaj ostrych środków chemicznych ani ściernych środków czyszczących.
- Aby zapobiec przegrzaniu, upewnij się, że otwory wentylacyjne są czyste i wolne od zanieczyszczeń.
Składowanie
- Store the shredder in a dry, secure location, away from children and pets.
- Protect the machine from direct sunlight and extreme temperatures.
7. Rozwiązywanie Problemów
W tej sekcji opisano typowe problemy, jakie mogą wystąpić podczas korzystania z niszczarki.
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Shredder does not start | No power supply; Collection box not correctly seated; Overload protection activated. | Check power connection; Ensure collection box is fully engaged; Press the reset button (Figure 5) and wait a minute before restarting. |
| Material is not shredding properly / Machine jams | Cutting roller clogged; Material too thick or hard; Counter plate adjustment incorrect. | Stop machine, disconnect power, clear blockage using reverse function or tool; Do not feed oversized material; Adjust the counter plate as per the main manual. |
| Nadmierny hałas lub wibracje | Loose components; Foreign object in cutting mechanism; Worn cutting roller. | Check all fasteners; Stop machine, disconnect power, inspect and remove foreign objects; Contact customer support for roller inspection/replacement. |
8. Specyfikacje techniczne
| Funkcja | Specyfikacja |
|---|---|
| Model | GS60 |
| Producent | Scheppach |
| Źródło zasilania | Electric (DC) |
| Moc silnika | 2800 W |
| Maksymalna grubość cięcia | 45 mm |
| Knife Rollers Diameter | 90 mm |
| Pojemność pojemnika na zbiórkę | 60 Ł |
| Waga przedmiotu | 20.8 kg (45.86 funtów) - Note: Product data lists 2.2 pounds, but feature bullets state 20.8 kg for secure stand, which is more realistic for a shredder. Using 20.8 kg. |
| Wymiary produktu | 5.91 x 5.91 x 3.94 cale (Note: This seems to be package dimensions, not product. Actual dimensions for a shredder would be larger. Refer to manufacturer's full manual for accurate product dimensions.) |
| Zawarte komponenty | Garden shredder, Gloves, Refill plug, Secateurs |
9. Gwarancja i obsługa klienta
For warranty information, please refer to the warranty card included with your product or visit the official Scheppach webGwarancja zazwyczaj obejmuje wady produkcyjne przez określony czas od daty zakupu.
If you encounter any issues that cannot be resolved using the troubleshooting guide, or if you require spare parts or service, please contact Scheppach customer support. Contact details can usually be found in the product packaging, the full instruction manual, or on the manufacturer's official webstrona.
