Wstęp
Thank you for choosing the PROFLO PF1732 Wall Mounted Elongated Toilet Bowl. This manual provides essential information for the safe installation, operation, maintenance, and troubleshooting of your new toilet bowl. Please read these instructions thoroughly before installation and retain them for future reference. This product is designed for use with a compatible wall-mounted flush valve system, which is sold separately.
Informacje dotyczące bezpieczeństwa
- Zalecana profesjonalna instalacja: Due to the complexity of wall-mounted plumbing and structural requirements, professional installation by a licensed plumber is strongly recommended.
- Zaopatrzenie w wodę: Przed rozpoczęciem jakichkolwiek prac instalacyjnych lub konserwacyjnych należy upewnić się, że główne dopływy wody są zamknięte.
- Ciężki obiekt: The toilet bowl is heavy (approximately 46.3 pounds). Use proper lifting techniques or seek assistance to prevent injury.
- Narzędzia: Do montażu należy używać odpowiednich narzędzi. Należy nosić okulary ochronne i rękawice.
- Chemikalia: Avoid using harsh chemical cleaners that can damage the toilet's finish or internal components.
Zawartość opakowania
Verify that all components are present before beginning installation. If any parts are missing or damaged, do not proceed with installation and contact PROFLO customer support.
- PROFLO PF1732 Wall Mounted Elongated Toilet Bowl (White)
- Installation hardware (bolts, washers, caps) - Specific hardware may vary; refer to packaging.
Notatka: This product includes the toilet bowl only. A compatible wall-mounted flush valve system and toilet seat must be purchased separately.

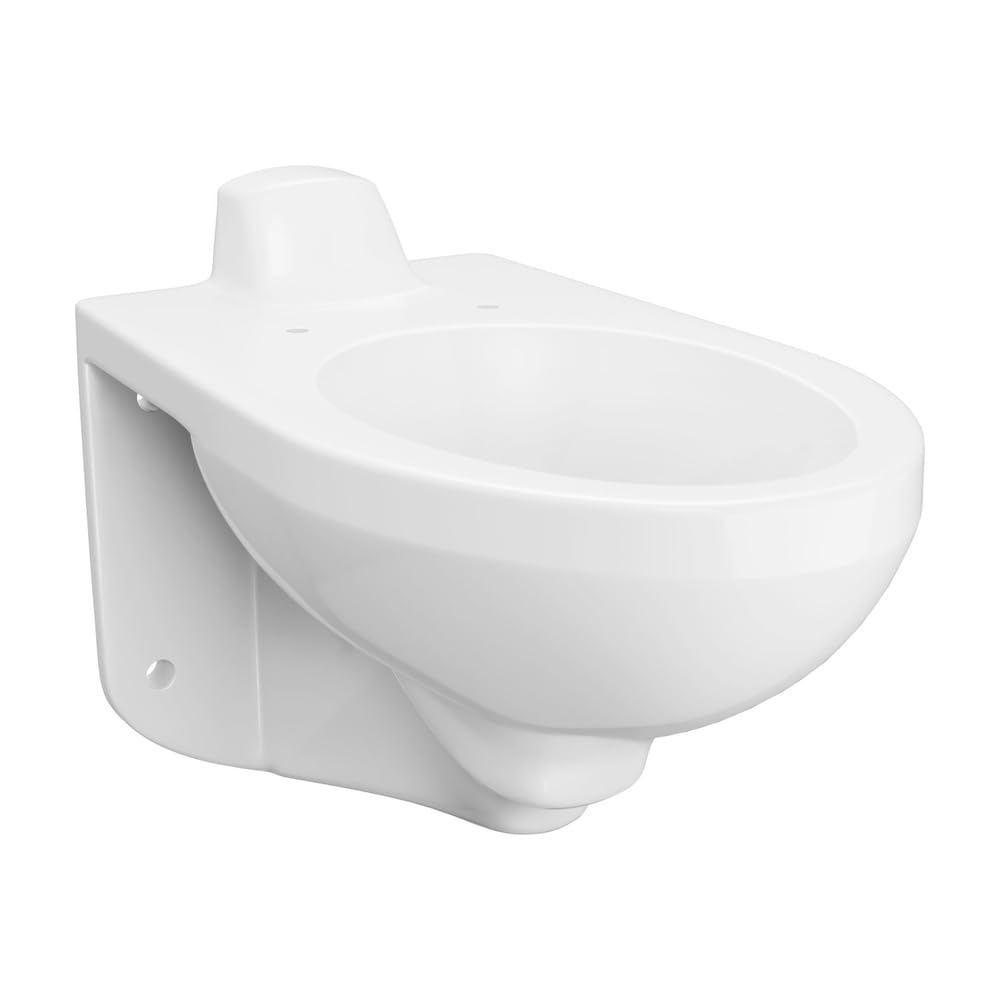

Image: The PROFLO PF1732 Wall Mounted Elongated Toilet Bowl in white, showing its sleek design.
Konfiguracja i instalacja
Installation of a wall-mounted toilet requires specific plumbing and structural considerations. It is highly recommended that this product be installed by a qualified professional.
Kontrole przed instalacją:
- Ensure the wall carrier system (not included) is correctly installed and securely anchored to the wall studs, meeting local building codes.
- Verify that the water supply line and waste outlet are correctly positioned and accessible for connection to the toilet bowl and flush valve.
- Confirm you have a compatible wall-mounted flush valve system and toilet seat ready for installation.
General Installation Steps (Consult a professional or detailed carrier/flush valve manual):
- Prepare the Carrier: Ensure the carrier bolts are extended to the correct length and the waste pipe connection is ready.
- Connect Waste Outlet: Attach the toilet bowl to the waste outlet of the carrier system, ensuring a watertight seal.
- Mount the Bowl: Carefully slide the toilet bowl onto the carrier bolts. Secure it with the provided washers and nuts. Do not overtighten.
- Connect Flush Valve: Connect the wall-mounted flush valve (purchased separately) to the toilet bowl's inlet, following the flush valve manufacturer's instructions.
- Montaż deski sedesowej: Attach the toilet seat (purchased separately) according to its manufacturer's instructions.
- Test szczelności: Turn on the water supply and flush the toilet multiple times, checking all connections for leaks.
Instrukcja obsługi
The PROFLO PF1732 toilet bowl operates in conjunction with a wall-mounted flush valve system. Operation is straightforward:
- Płukanie: Activate the flush handle or button on your wall-mounted flush valve. This will release water into the bowl, initiating the flush cycle.
- Poziom wody: The water level in the bowl is determined by the design of the bowl and the flush valve system. It should be sufficient to cover the trapway.
Konserwacja
Regular cleaning and maintenance will ensure the longevity and optimal performance of your PROFLO toilet bowl.
Czyszczenie miski:
- Use a soft cloth or sponge with mild, non-abrasive toilet bowl cleaner.
- Avoid abrasive cleaners, scouring pads, or harsh chemicals (e.g., bleach, acid-based cleaners) as they can damage the vitreous china finish.
- Po czyszczeniu dokładnie spłukać.
Ogólna konserwacja:
- Periodically inspect the connections between the toilet bowl and the wall carrier/flush valve for any signs of leaks.
- Check the toilet seat for tightness and adjust if necessary.
- For maintenance of the flush valve system, refer to the separate manual provided by the flush valve manufacturer.
Rozwiązywanie problemów
This section addresses common issues you might encounter with your toilet bowl. For issues related to the flush valve, consult its specific manual.
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Słaby Flush | Issue with flush valve, low water pressure, or partial clog. | Check flush valve settings. Ensure adequate water pressure. Clear any obstructions in the bowl or trapway. |
| Toilet Clogs Frequently | Obstruction in the trapway or drain line. | Use a toilet plunger to clear the clog. If persistent, a plumber may be needed to inspect the drain line. |
| Leaks Around Base/Connections | Loose connections, damaged seals, or improper installation. | Turn off water supply. Inspect and tighten all connections. Replace seals if damaged. If the issue persists, contact a professional plumber. |
| Water Not Filling Bowl Correctly | Issue with flush valve or water supply. | Ensure water supply is fully open. Refer to the flush valve manual for troubleshooting its fill mechanism. |
Specyfikacje
| Funkcja | Szczegół |
|---|---|
| Numer modelu | PF1732 |
| Marka | PROFLO |
| Kolor | Biały |
| Wymiary produktu (Gł. x Szer. x Wys.) | 25.13" x 14.5" x 13.75" |
| Tworzywo | Chiny szkliste |
| Waga przedmiotu | 46.3 funta |
| Metoda instalacji | Montaż na ścianie |
| Kształt | Wydłużony |
| Compatible Seat Material (Not Included) | Plastik (zwykle) |
| Zawarte komponenty | Tylko muszla klozetowa |
Informacje o gwarancji
The PROFLO PF1732 Wall Mounted Elongated Toilet Bowl is covered under PROFLO's limited warranty. For complete details regarding warranty coverage, terms, and conditions, please refer to the official PROFLO website or contact PROFLO customer support directly. Proof of purchase may be required for warranty claims.
Wsparcie
For technical assistance, replacement parts, or further information regarding your PROFLO PF1732 toilet bowl, please contact PROFLO customer support:
- Webstrona: Odwiedź oficjalną stronę PROFLO Store lub ich główna spółka korporacyjna webStrona zawierająca informacje kontaktowe i zasoby.
- Telefon/E-mail: Refer to the PROFLO webstrona zawierająca aktualne dane kontaktowe działu obsługi klienta.
