Wstęp
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your PAXCESS Robotic Pool Vacuum Cleaner. Designed for both above-ground and in-ground pools, this intelligent cleaner offers powerful suction and wall-climbing capabilities to ensure a pristine pool environment.
The PAXCESS robotic pool cleaner features a long, tangle-free cord, allowing it to reach all areas of your pool. Its compact design enables effective cleaning of both pool walls and floors. Lightweight and easy to handle, it simplifies filter cleaning and overall pool maintenance.

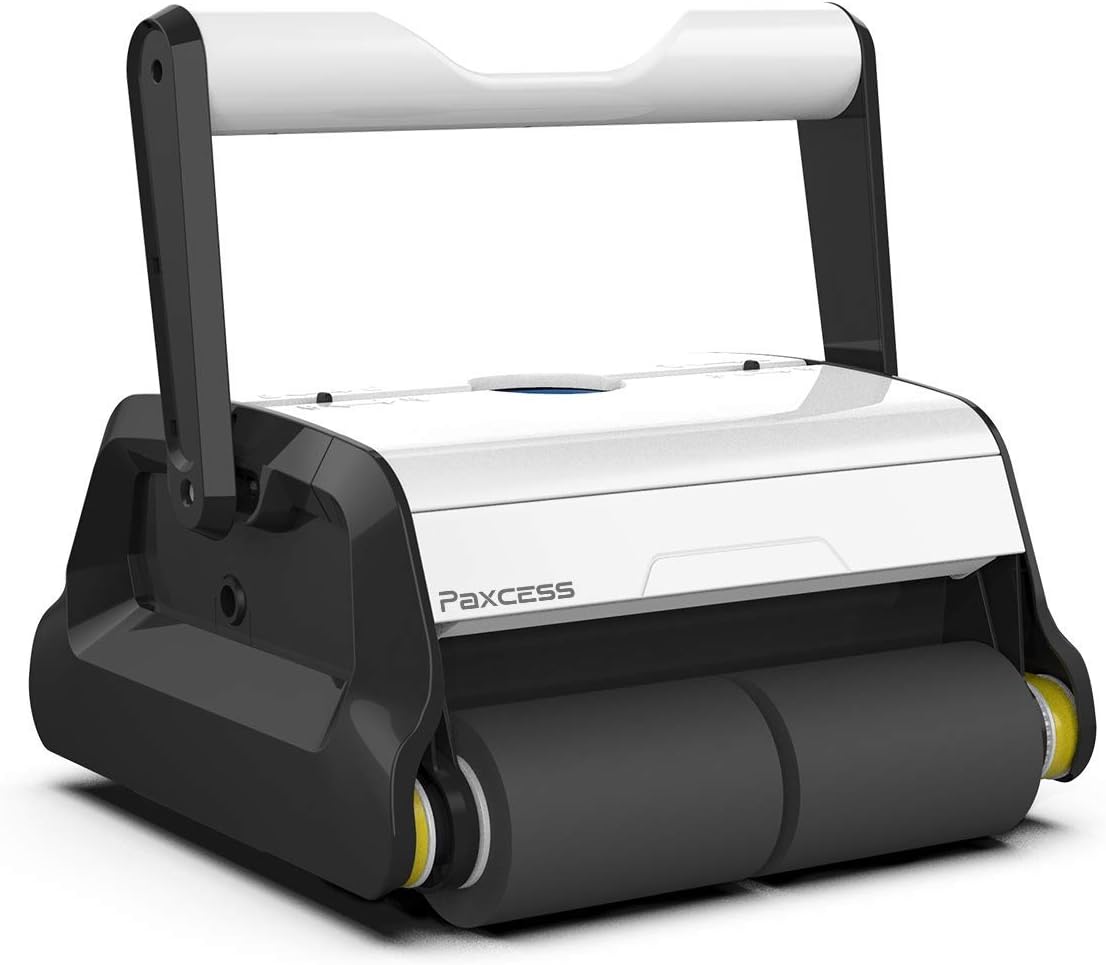

Obraz: Ponadview of the PAXCESS Robotic Pool Cleaner and its key features.
Instrukcje bezpieczeństwa
- Always read and understand all instructions before operating the cleaner.
- Przed przystąpieniem do czynności konserwacyjnych lub czyszczenia należy upewnić się, że zasilanie jest odłączone.
- Nie używaj odkurzacza, jeśli przewód zasilający jest uszkodzony.
- Podczas pracy urządzenia czyszczącego należy trzymać dzieci i zwierzęta domowe z dala od basenu.
- Środek czyszczący należy stosować wyłącznie w wodzie o temperaturze od 10°C (50°F) do 35°C (95°F).
- Do not use the cleaner to remove large debris such as rocks or large leaves, as this may damage the unit.
Organizować coś
- Rozpakowywanie: Carefully remove the robotic pool cleaner and all accessories from the packaging. Ensure all components are present.
- Umieszczenie: Place the cleaner into the pool. Ensure it is fully submerged before powering on.
- Podłączenie zasilania: Plug in the PAXCESS Robotic Pool Vacuum Cleaner and turn it on using the power button on the control panel.
- Wybór cyklu: Set the automatic cleaning function to your desired duration: 1 hour, 2 hours, or 3 hours.
Video: Demonstrates the initial setup, including placing the cleaner in the pool and powering it on.
Image: The PAXCESS Robotic Pool Cleaner ready for operation.
Instrukcja obsługi
The PAXCESS Robotic Pool Cleaner is designed for intelligent and thorough cleaning of your pool's floor and walls.
- Działanie automatyczne: Once powered on and a cleaning cycle is selected, the robot will automatically begin its cleaning path. It is controlled by an advanced intelligent computer program, requiring no supervision during operation.
- Wall-Climbing Function: Equipped with 4 PVC roller brushes, the cleaner provides strong adsorption for excellent wall climbing. It will clean both the floor and walls. Note: The cleaner cannot climb steps.
- Kabel zapobiegający plątaniu: The swivel cord helps prevent tangles, allowing the cleaner to move efficiently around the pool.
- Moc ssania: Dual powerful motors and wide suction doors ensure effective collection of large debris like leaves, providing a deep clean for pools up to 1614 sq ft (approx. 12m/50ft in length).
Image: The robotic cleaner actively climbing a pool wall.
Image: Diagram illustrating the intelligent cleaning path of the robot.
Konserwacja
Regular maintenance ensures optimal performance and longevity of your PAXCESS Robotic Pool Vacuum Cleaner.
- Usuwanie z puli: After the cleaning cycle is complete, the cleaner will return to the wall. Carefully lift the cleaner from the water using its handle. Allow excess water to drain.
- Czyszczenie filtra: The cleaner features twin extra-large top filter baskets. To clean, simply press the button to open the top covers, remove the filter baskets, and rinse them thoroughly with a garden hose.
- Składowanie: Once clean and dry, store the cleaner in a safe, dry place away from direct sunlight and extreme temperatures.
Image: The cleaner with its large cartridge filters open for easy access.
Image: Diagram illustrating the easy filter rinsing process.
Rozwiązywanie problemów
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Cleaner not moving or stopping unexpectedly. | Power supply issue, tangled cord, clogged filters, damaged belt. |
|
| Sprzątaczka nie wspina się skutecznie po ścianach. | Dirty roller brushes, insufficient water absorption by rollers (first use), pool surface too slippery. |
|
| Control panel blinking or unresponsive. | Internal error, power surge. |
|
Specyfikacje
| Funkcja | Szczegół |
|---|---|
| Marka | PAKSES |
| Nazwa modelu | HJ2052 |
| Wymiary produktu | 24 x 21 x 12 cala |
| Waga przedmiotu | 30.1 funta |
| Długość węża | 50 stóp |
| Tomtage | 120 wolty |
| Metoda kontroli | Dotykać |
| Tworzywo | Polichlorek winylu (PCW) |
| Typ instalacji | Robotyczny |
| Efektywność | Large Debris Chamber, Deep Clean, Time-efficient |
| Baterie | Wymagana jest 2 bateria litowo-jonowa. |
| Rodzaj gwarancji | Rozszerzony |
Gwarancja i wsparcie
Your PAXCESS Robotic Pool Vacuum Cleaner comes with an extended 2-year manufacturer's assurance, demonstrating our commitment to providing a high-quality product.
For technical support, warranty claims, or to purchase replacement parts, please visit the official PAXCESS store or contact our customer service team.
Oficjalny sklep: PAXCESS Store on Amazon
