Aain® A034 Heavy Duty U-Joint Puller Tool Instruction Manual

1. Koniec produktuview

The Aain® A034 Heavy Duty U-Joint Puller is a specialized tool designed for the safe and efficient removal of seized U-joint cups on Class 7-8 intermediate trucks, buses, and farm equipment. This robust tool is engineered to withstand heavy use and provides a reliable method for driveline disassembly without damaging the driveshaft, yokes, joints, or bearing cups.

Rycina 1: Przód view of the Aain A034 Heavy Duty U-Joint Puller.

It is compatible with U-joint bearing cups ranging from 1.5 inches to 2.2 inches and fits virtually all Class 7 and 8 trucks and machinery. This includes various Spicer drivelines (1610, 1710, 1760, 1810, 1880, SPL 140, 170, 250 "Life Series") and Meritor (Rockwell) series (16N, 17N, 18N, 1710, RPL 20, 25 "Permalube" Series).

2. Informacje dotyczące bezpieczeństwa

• Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when operating this tool.
• Ensure the workpiece is securely supported and stable before beginning any operation.
• Do not use the tool if it appears damaged or modified.
• Podczas pracy trzymaj dłonie i palce z dala od ruchomych części.
• Use the correct size impact wrench (up to one-inch) for optimal performance and to prevent damage to the tool or workpiece.
• Avoid using excessive force beyond what is necessary, as this can lead to tool or component damage.
• Store the tool in a clean, dry place away from moisture and corrosive materials.

3. Konfiguracja

1. Sprawdź narzędzie: Before each use, visually inspect the U-joint puller for any signs of wear, cracks, or damage. Ensure the forcing screw operates smoothly.
2. Prepare the Driveline: Clean the U-joint area thoroughly to remove dirt, grease, or rust that might impede the removal process.
3. Umieść narzędzie: Place the U-joint puller over the U-joint bearing cup that needs to be removed. Ensure the tool's jaws are properly aligned with the bearing cup and the yoke. The tool is designed to work with U-joint bearing cups from 1.5 inches to 2.2 inches.
4. Pierwsze zaangażowanie: Hand-tighten the forcing screw until it makes firm contact with the opposite side of the U-joint, ensuring the tool is seated squarely.

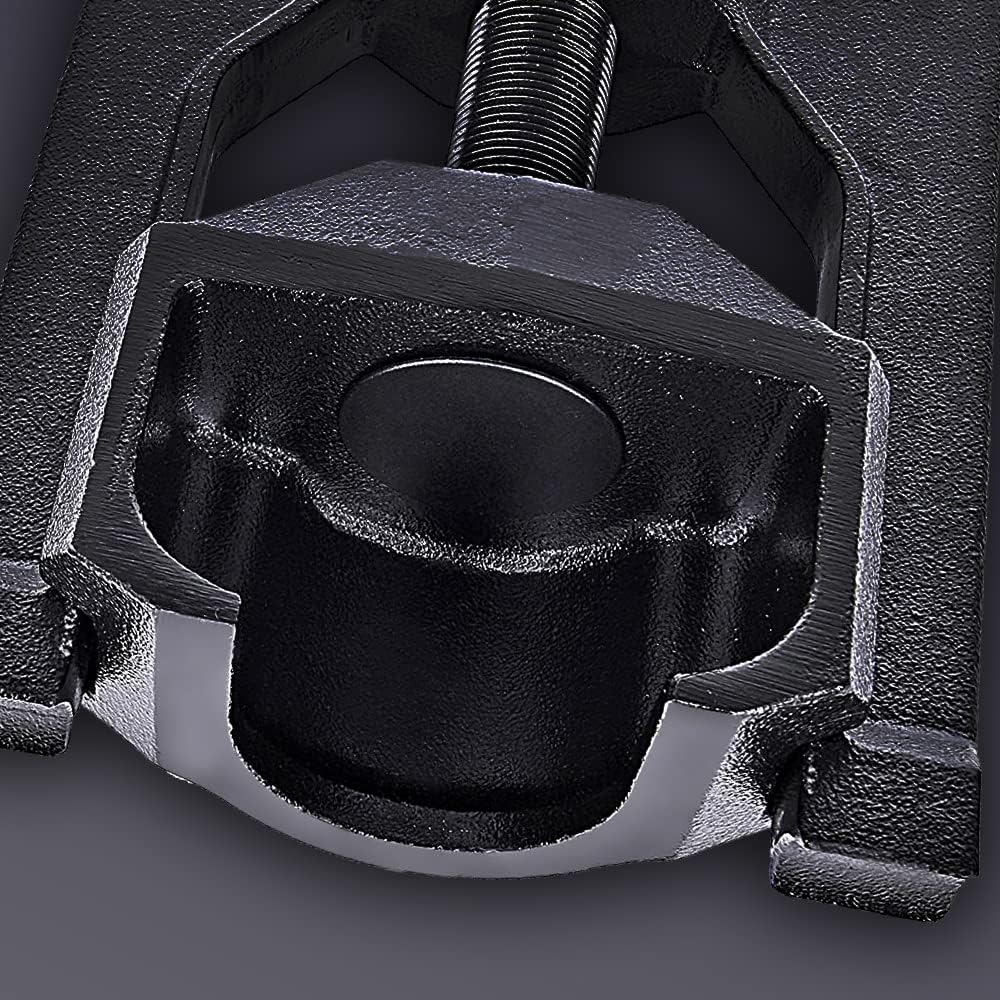

Rysunek 2: Zbliżenie view of the tool's cup engagement area, designed for secure fitment.

4. Instrukcja obsługi

The Aain A034 U-Joint Puller is designed for quick and easy removal of sealed U-joint cups, eliminating the need for dangerous vice and socket or hammering methods. It is engineered for use with up to a one-inch impact wrench for maximum efficiency.

1. Connect Impact Wrench: Attach a suitable one-inch impact wrench to the head of the forcing screw.
2. Zastosuj siłę: Slowly and steadily apply force with the impact wrench. The forcing screw will push the U-joint bearing cup out of its housing.
3. Observe Removal: Continue applying force until the bearing cup is fully dislodged. The tool's design ensures that the driveshaft, yokes, joints, or bearing cups are not damaged during this process.
4. Usuń narzędzie: Once the cup is removed, release the pressure from the impact wrench and carefully remove the U-joint puller from the driveline.
5. Repeat for Remaining Cups: Rotate the driveline and repeat the process for any remaining U-joint bearing cups.

Figure 3: The tool is engineered for use with a one-inch impact wrench to provide significant force for driveline disassembly.

Figure 4: The tool's compatibility with U-joint bearing cups from 1.5 to 2.2 inches ensures broad application across Class 7 and 8 trucks and machinery.

5. Konserwacja

• Czyszczenie: After each use, clean the tool thoroughly to remove any grease, dirt, or debris. Use a clean cloth and a mild degreaser if necessary.
• Smarowanie: Periodically apply a light coat of machine oil to the forcing screw threads to ensure smooth operation and prevent rust.
• Składowanie: Store the U-joint puller in a dry environment to prevent corrosion. Keep it in its original packaging or a designated toolbox to protect it from damage.
• Kontrola: Regularly inspect the tool for any signs of wear, particularly on the forcing screw and the jaws. Replace the tool if significant wear or damage is observed.

6. Rozwiązywanie Problemów

7. Specyfikacje

Figure 5: Dimensional diagram of the Aain A034 U-Joint Puller.

8. Gwarancja i wsparcie

For information regarding product warranty, returns, or technical support, please refer to the official Aain webstronę internetową lub skontaktuj się ze sprzedawcą bezpośrednio za pośrednictwem platformy zakupowej.

This product is typically covered by a standard return policy, allowing returns within 30 days of purchase. Extended protection plans may also be available for purchase separately.

Aby uzyskać dodatkowe zasoby i informacje o produkcie, odwiedź stronę Aain Store on Amazon.
