1. Wprowadzenie
Welcome to the user manual for your DollaTek F540 3300KV Brushless Motor and 60A Electronic Speed Controller (ESC) Set. This manual provides essential information for the proper installation, operation, and maintenance of your new RC car power system. Please read this manual thoroughly before use to ensure optimal performance, safety, and longevity of your components.
This set is designed for 1/10 scale RC cars, offering a powerful and efficient upgrade or replacement for your vehicle's propulsion system. The components are engineered for reliability and performance in various conditions.
2. Środki ostrożności
Always observe the following safety guidelines to prevent injury, damage to the product, or damage to other property:
- Bezpieczeństwo baterii: Always use appropriate Li-Po or NiMH batteries as specified for the ESC. Incorrect battery types or improper handling can lead to fire, explosion, or severe injury. Never overcharge or over-discharge batteries.
- Ciepło: The motor and ESC can become very hot during operation. Avoid touching them immediately after use to prevent burns. Allow components to cool down before handling.
- Wodoodporność: While the components are described as waterproof, this refers to splash and light rain resistance. Do not submerge the motor or ESC in water, as this can cause damage. Always dry components thoroughly after exposure to moisture.
- Okablowanie: Ensure all connections are secure and correctly polarized. Incorrect wiring can cause short circuits and damage to the components or battery.
- Ruchome części: Keep fingers, loose clothing, and other objects away from the rotating motor shaft and gears when the RC car is powered on.
- Wentylacja: Ensure adequate airflow around the ESC, especially during operation, to prevent overheating.
- Dzieci: This product is not a toy. Keep out of reach of small children. Adult supervision is required during operation and maintenance.
3. Koniec produktuview
The DollaTek F540 3300KV Brushless Motor and 60A ESC are designed to provide robust and efficient power for your 1/10 scale RC vehicle.
3.1 Motor Features
- 4-pole and 12-slot high torque motor design
- CNC Machined 6061 T6 Billet Aluminum Radiator Can
- High purity copper windings maximize efficiency
- ABEC5 Oversized High RPM Bearings
- Universal fit, fits all 1/10 brushless cars - multiple mounting system for M3 screws
- Precision balanced rotor, smoothness for improved reliability and maximum RPM
- Stator - supercienkie (0.35 mm) laminacje
- Removable / replaceable rotor
- Precision engineered for maximum power conversion
- 3.175mm shaft diameter
Image: The DollaTek F540 3300KV Brushless Motor, showcasing its orange aluminum casing and gold banana plug connectors.
3.2 ESC Features
- Waterproof design for various conditions
- Ciągły prąd: 60A
- Prąd Burst: 320A
- Battery Compatibility: 2S Li-Po / 6 cells NiMH
- BEC Output: 5.8V/3A (NIMH)
- Power Plugs: T-male plug
- Motor Plugs: 4mm female banana plug

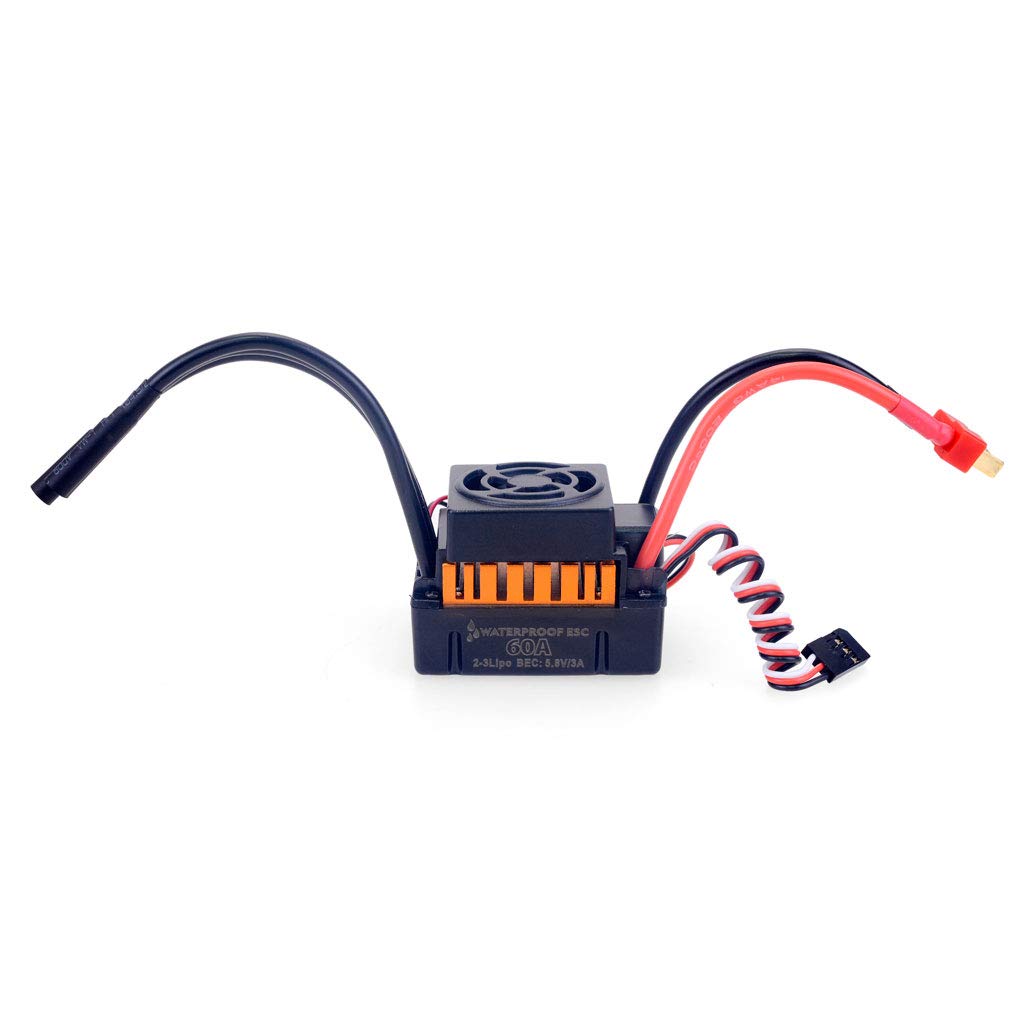

Image: The DollaTek 60A Waterproof Electronic Speed Controller (ESC) with its cooling fan and various connection wires.
3.3 Zawartość opakowania
Po otwarciu przesyłki powinieneś znaleźć następujące elementy:
- 1 x DollaTek F540 3300KV Brushless Motor
- 1 x DollaTek 60A Waterproof Electronic Speed Controller (ESC)
- 1 x Instrukcja obsługi (ten dokument)
Image: The complete DollaTek F540 3300KV Brushless Motor and 60A ESC Set, as included in the package.
4. Konfiguracja i instalacja
Proper installation is crucial for the performance and safety of your RC vehicle. Follow these steps carefully:
4.1 Instalacja silnika
- Montowanie: Secure the F540 motor into your 1/10 scale RC car's motor mount using M3 screws. Ensure the motor is firmly attached to prevent movement during operation.
- Pinion Gear: Install the appropriate pinion gear onto the motor shaft (3.175mm diameter). Ensure proper gear mesh with the spur gear to avoid excessive wear and noise.
4.2 ESC Installation and Wiring
- Montowanie: Find a suitable location in your RC car chassis to mount the 60A ESC. Use double-sided tape or zip ties to secure it, ensuring good airflow for cooling.
- Podłączenie silnika: Connect the three 4mm female banana plugs from the ESC to the corresponding 4mm gold banana plugs on the brushless motor. The order of connection may affect motor rotation direction; if the motor spins in reverse, swap any two of the three wires.
- Podłączenie akumulatora: Connect your 2S Li-Po or 6-cell NiMH battery to the T-male plug on the ESC. Ensure correct polarity (red to positive, black to negative).
- Połączenie odbiornika: Plug the BEC output cable (usually a three-wire servo connector) from the ESC into the throttle channel (CH2) of your RC receiver.
- Przycisk zasilania: Position the ESC's power switch in an easily accessible location on your chassis.
Obraz: Byłyample installation of the DollaTek F540 Motor and 60A ESC within an RC car chassis. Note: The RC car chassis is not included with the motor and ESC set.

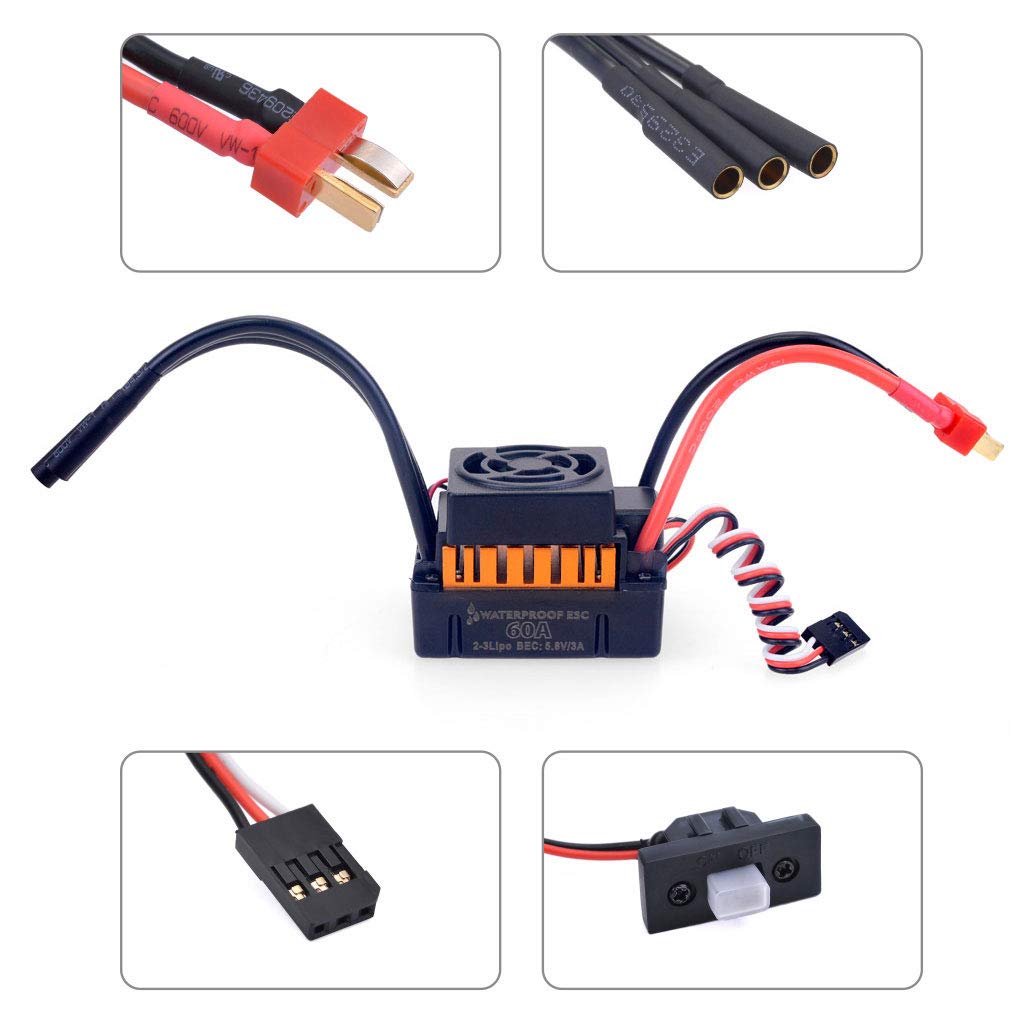

Obraz: Zbliżenie view of the DollaTek 60A ESC, highlighting the T-male battery connector, 4mm female motor connectors, and the BEC receiver plug.
5. Instrukcja obsługi
Once the motor and ESC are correctly installed and wired, follow these steps to operate your RC car:
- Nadajnik włączony: Always turn on your RC transmitter first.
- Podłącz akumulator: Connect the battery to the ESC's T-male plug.
- ESC On: Turn on the power switch on the ESC. The ESC will emit a series of beeps, indicating it has detected the battery cells and is ready.
- Kalibracja przepustnicy (jeśli jest potrzebna): If the throttle response is incorrect, refer to your ESC's specific calibration procedure (usually involves holding full throttle, then full brake, then neutral on the transmitter while powering on the ESC).
- Działanie: You can now operate your RC car. Start with gentle throttle inputs to familiarize yourself with the new power system.
- Wyłączone: Always turn off the ESC first, then disconnect the battery, and finally turn off your transmitter.
6. Konserwacja
Regular maintenance will help ensure the longevity and optimal performance of your DollaTek motor and ESC set:
- Czyszczenie: After each use, especially in dusty or dirty conditions, clean the motor and ESC with a soft brush or compressed air to remove debris.
- Kontrola: Okresowo sprawdzaj wszystkie przewody i złącza pod kątem śladów zużycia, przetarć lub korozji. Upewnij się, że wszystkie połączenia są solidne.
- Łożyska silnika: While the motor uses sealed ABEC5 bearings, extreme conditions may require occasional inspection or replacement if noise or resistance is detected.
- Chłodzenie: Ensure the ESC's cooling fan (if present and functional) is free from obstructions and operating correctly.
- Składowanie: Store the components in a dry, cool place away from direct sunlight and extreme temperatures.
7. Rozwiązywanie Problemów
Jeśli napotkasz problemy, zapoznaj się z poniższymi typowymi problemami i rozwiązaniami:
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Silnik nie obraca się / Brak mocy | Battery not connected or discharged; ESC not powered on; Loose connections; Faulty motor/ESC. | Check battery connection and charge level; Ensure ESC switch is ON; Verify all wiring is secure; Test components individually if possible. |
| Silnik obraca się w złym kierunku | Incorrect motor wire connection order. | Swap any two of the three motor-to-ESC wires. |
| ESC przegrzewa się | Poor ventilation; Overgearing; Excessive load; Faulty component. | Ensure adequate airflow; Check gear ratio; Reduce load; Inspect ESC for damage. |
| Erratic throttle response | ESC not calibrated; Interference; Loose receiver connection. | Perform ESC throttle calibration; Check for sources of interference; Secure receiver connection. |
Jeśli po wypróbowaniu tych rozwiązań problem nadal występuje, skontaktuj się z obsługą klienta.
8. Specyfikacje
8.1 F540 3300KV Brushless Motor
| Funkcja | Szczegół |
|---|---|
| Model | F540 |
| KV (obr./min./wolt) | 3300KV |
| Maksymalne obroty | 50000 |
| Waty | 820 W |
| Maksymalna objętośćtage | <17 V |
| Maksymalnie Amps | 47A |
| Diameter (with fins) | 36 mm |
| Długość | 50 mm |
| Długość wału przedłużającego | 15 mm |
| Średnica wału | 3.17 mm |
| Typ wtyczki | 4 mm Gold Banana Plug |
| Zalecany model | Samochód zdalnie sterowany 1/10 |
| Tworzywo | Metal, Miedź |
8.2 60A Waterproof ESC
| Funkcja | Szczegół |
|---|---|
| Nazwa przedmiotu | ESC Waterproof |
| Prąd ciągły | 60A |
| Burst Prąd | 320A |
| Bateria | 2S Li-Po / 6 cells NiMH |
| Wyjście BEC | 5.8 V/3 A (NIMH) |
| Wtyczki zasilania | T-male plug |
| Motor Plugs | 4 mm Female Banana Plug |
9. Gwarancja i wsparcie
DollaTek products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. If you experience any issues or have questions regarding your DollaTek F540 3300KV Brushless Motor and 60A ESC Set, please reach out to the seller or DollaTek customer support for assistance.
Please have your product model number (F540 3300KV Motor, 60A ESC) and purchase details ready when contacting support.
