Wstęp
This instruction manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Cooler Depot DW6R Gelato Freezer Display Case. Please read this manual thoroughly before installation and use, and keep it for future reference.
The Cooler Depot DW6R is a commercial-grade countertop gelato freezer display case, NSF certified, designed to hold 6 pans of gelato, ice cream, popsicles, Italian ice, or sorbet. It features anti-fogging treated glass, interior LED illumination, and an attractive modern oval shape for optimal product visibility.
Ważne instrukcje bezpieczeństwa
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electrical shock, and injury to persons.
- Przed użyciem urządzenia należy przeczytać całą instrukcję.
- Do not touch cold surfaces immediately after plugging in the unit.
- Upewnij się, że urządzenie jest prawidłowo uziemione.
- Nie używaj urządzenia, jeśli przewód lub wtyczka są uszkodzone.
- Utrzymuj otwory wentylacyjne drożne.
- W tym urządzeniu nie należy przechowywać substancji wybuchowych, takich jak puszki aerozolowe z łatwopalnym paliwem.
- Odłącz urządzenie od prądu przed czyszczeniem lub konserwacją.
Konfiguracja i instalacja
Rozpakowywanie
Carefully remove the unit from its packaging. Inspect for any shipping damage. Keep all packaging materials until you are satisfied with the unit's condition.

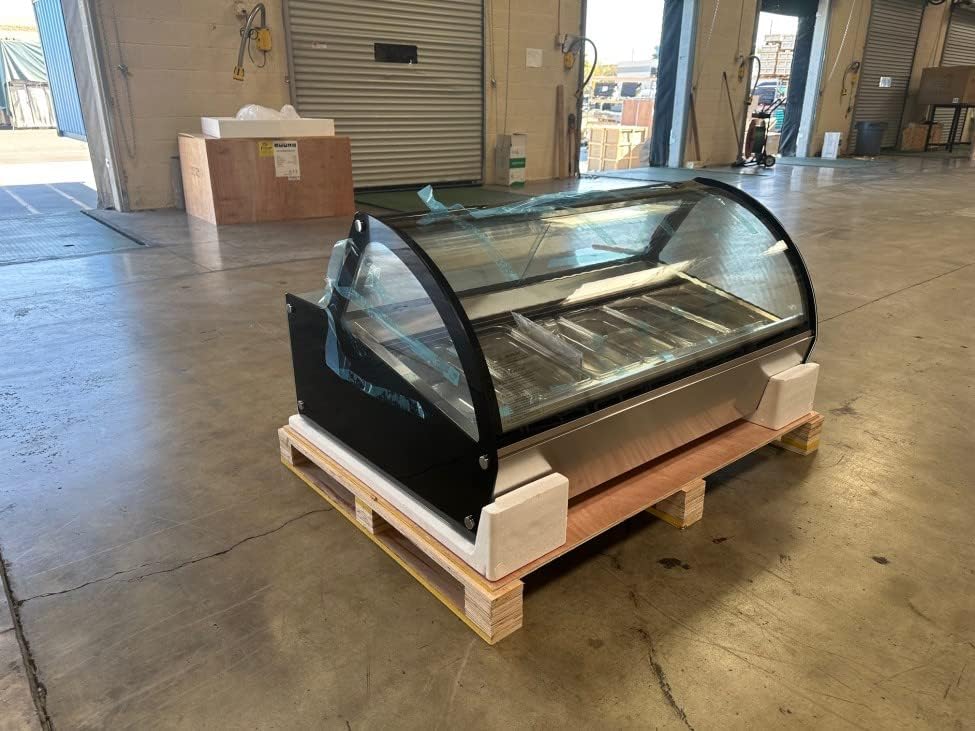

Figure 1: The DW6R Gelato Freezer Display Case as received on a wooden pallet.
Rycina 2: Przód view of the DW6R unit, showcasing its curved glass display.
Rysunek 3: Tył view of the DW6R unit, showing the compressor area and power cord.
Umieszczenie
Place the unit on a stable, level countertop. Ensure adequate ventilation around the compressor area. Avoid direct sunlight or heat sources.
Połączenie elektryczne
The unit operates on 110V voltage and uses a standard plug. Connect the unit to a dedicated, properly grounded 110V outlet. The power consumption is 680 Watts.
Video 1: Demonstration of the Cooler Depot DW6R Gelato Freezer, showing its dimensions, internal layout, and power connection. The video highlights the standard 110V plug and the temperature control panel.
The unit features a temperature control panel located at the back. This panel displays the current temperature and allows for adjustment. An LED lighting switch is also present to illuminate the interior.
Figure 4: Close-up of the specification label, detailing electrical requirements (110V, 680W), refrigerant type (R290), and NSF certification.
Instrukcja obsługi
Pierwsze uruchomienie
After installation, allow the unit to stand upright for at least 2-4 hours before plugging it in. This allows the refrigerant to settle. Once plugged in, the unit will begin to cool. Monitor the temperature display to ensure it reaches the desired range.
Kontrola temperatury
The digital temperature control panel at the back allows you to set and monitor the internal temperature. The operating temperature range is -22°C to -13°C (or -8°F to 8°F).
Ładowanie produktu
The unit is designed to hold 6 standard gelato pans/trays. Ensure products are pre-chilled before placing them into the display case to maintain optimal temperature and product quality. The unit comes with covers for the pans.
Figure 5: Technical diagram of the Gelato Showcase DW-6R, illustrating its dimensions, internal layout, and key features like LED lighting and NSF certification.
Oświetlenie LED
The interior LED lighting can be controlled by a switch, enhancing product visibility for customers.
Konserwacja
Regular maintenance ensures the longevity and efficient operation of your gelato freezer.
Czyszczenie
- Wnętrze: Regularly clean the interior with a mild detergent and warm water. Rinse thoroughly and dry completely to prevent ice buildup and odors.
- Zewnętrzny: Wipe down exterior surfaces with a soft cloth and mild cleaner. Avoid abrasive cleaners.
- Szkło: Clean the anti-fogging treated glass with a non-abrasive glass cleaner to maintain clear visibility.
Rozmrażanie
The unit features automatic defrost. However, if excessive ice buildup occurs, manually defrost the unit by unplugging it and allowing the ice to melt. Remove all products before defrosting.
Czyszczenie wężownicy skraplacza
Periodically clean the condenser coils located at the back of the unit to ensure efficient cooling. Use a brush or vacuum cleaner to remove dust and debris. Ensure the unit is unplugged before cleaning.
Rozwiązywanie problemów
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Urządzenie nie włącza się | No power supply; tripped circuit breaker; faulty plug/cord. | Check power connection; reset circuit breaker; inspect plug/cord for damage. |
| Unit not cooling properly | Blocked condenser coils; improper temperature setting; excessive door openings; unit overloaded. | Clean condenser coils; adjust temperature setting; ensure doors are closed; do not overload. |
| Nadmierny hałas | Jednostka nie jest wypoziomowana, wentylator jest zablokowany, elementy są luźne. | Ensure unit is level; check for fan obstruction; contact service for loose components. |
| Nagromadzenie lodu | Frequent door openings; high humidity; faulty door seal. | Minimize door openings; ensure door seal is intact; perform manual defrost if necessary. |
If troubleshooting steps do not resolve the issue, please contact Cooler Depot customer support.
Specyfikacje
| Funkcja | Szczegół |
|---|---|
| Model | DW6R |
| Marka | Chłodnia Depot |
| Wymiary (szer. x wys. x gł.) | 41" x 21" x 30" (całkowicie) |
| Internal Dimensions (L x W x D) | 83" (Length) x 22" (Width) x 29" (Depth) - Note: Internal length and width are for the main compartment, depth is from top to bottom. |
| Pojemność | 122 Liters (6 trays/pans) |
| Zakres temperatur | -22°C do -13°C (-8°F do 8°F) |
| Chłodziwo | R290 (Ozone friendly, energy efficient) |
| Tomtage | 110 V |
| Cotage | 680 watów |
| System rozmrażania | Automatyczny |
| Orzecznictwo | Certyfikat NSF |
| Cechy specjalne | Anti-fogging treated glass, Sliding door, Sneeze Guard, Interior LED illumination |
Gwarancja i wsparcie
Cooler Depot offers the following warranty for this product:
- 3 Years All-Parts Warranty
- 6-letnia gwarancja na sprężarkę
- 1 rok gwarancji na robociznę
For functional failures within 1 month of the item's delivered date, you may apply for a full refund. For any questions, support, or warranty claims, please contact Cooler Depot USA directly.
Contact information for Cooler Depot USA can typically be found on their official webstronie lub poprzez platformę zakupową.
