Cooler Depot Commercial Chest Freezer BD850 Instruction Manual

1. Wprowadzenie

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Cooler Depot Commercial Chest Freezer, Model BD850. Please read all instructions carefully before using the appliance and retain this manual for future reference.

Informacje dotyczące bezpieczeństwa

• Upewnij się, że urządzenie jest prawidłowo uziemione.
• W tym urządzeniu nie należy przechowywać substancji wybuchowych, takich jak puszki aerozolowe z łatwopalnym paliwem.
• Utrzymuj otwory wentylacyjne drożne.
• Nie należy stosować urządzeń mechanicznych ani innych środków przyspieszających proces rozmrażania, poza tymi, które zaleca producent.
• To urządzenie jest przeznaczone wyłącznie do użytku komercyjnego.

2. Koniec produktuview

The Cooler Depot BD850 is a 27 cubic feet commercial chest freezer designed for reliable storage of frozen food products. It maintains temperatures between -9 to 0 degrees Fahrenheit, suitable for various commercial settings. The unit features a durable painted steel exterior and aluminum interior for easy cleaning.

Główne cechy:

• 27 cu. ft. storage capacity.
• Temperature range: -9 to 0 degrees Fahrenheit.
• Manual defrost and temperature controls.
• Eco-friendly R290 refrigerant.
• Includes two epoxy-coated steel storage baskets (22 lb. capacity each).
• NSF certified for commercial use.

Składniki produktu

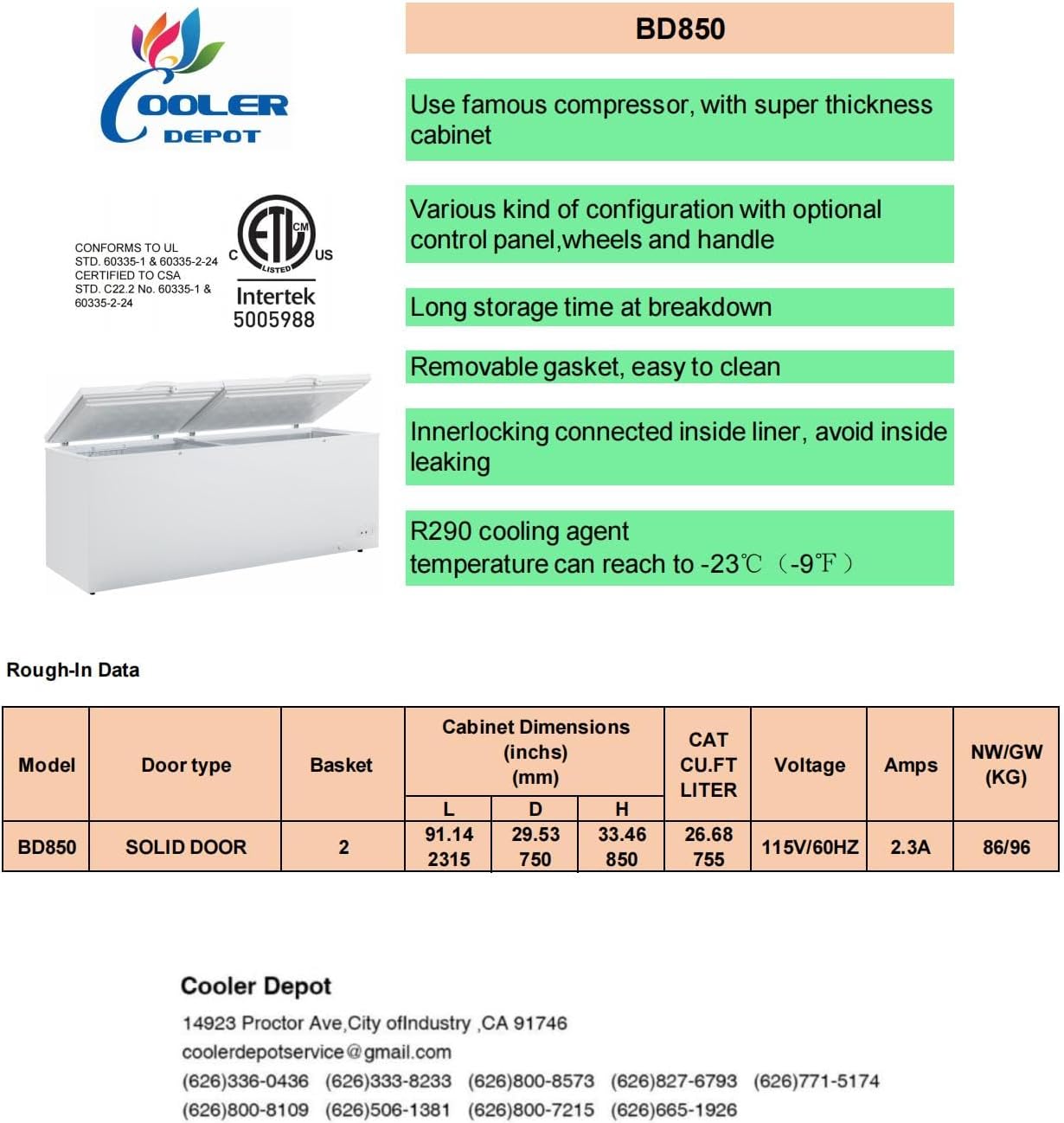

3. Specyfikacje

Detailed technical specifications for the Cooler Depot BD850 Commercial Chest Freezer.

4. Konfiguracja

Rozpakowywanie i umieszczanie

Carefully unpack the freezer, ensuring all packaging materials are removed. Place the freezer on a level, stable surface, away from direct sunlight or heat sources. Allow adequate space around the unit for proper ventilation.

Czyszczenie wstępne

Przed pierwszym użyciem należy umyć wnętrze i zewnętrzną część zamrażarki łagodnym detergentem i ciepłą wodą. Dokładnie opłukać i całkowicie wysuszyć.

Podłączenie zasilania

Connect the freezer to a dedicated 110 Volts (AC) outlet. Ensure the outlet is properly grounded. Allow the freezer to stand upright for at least 2-4 hours before plugging it in to allow the refrigerant to settle.

5. Instrukcja obsługi

Kontrola temperatury

The temperature control dial is located on the front of the unit. Adjust the dial from 1 (least cold) to 7 (super cold) to set your desired temperature. The recommended operating temperature range is -9 to 0 degrees Fahrenheit.

Kontrolki świetlne

• Lampka zasilania: Oznacza, że ​​jednostka jest zasilana.
• Uruchom światło: Indicates the compressor is actively cooling.
• Światło alarmowe: Illuminates if the internal temperature rises above the safe threshold.

6. Konserwacja

Czyszczenie

Regular cleaning of the interior and exterior is essential for hygiene and efficiency. Use a mild detergent and warm water. Avoid abrasive cleaners or sharp objects that could damage surfaces. The painted steel exterior and aluminum interior are designed for simple cleaning.

Rozmrażanie

This unit features manual defrost. When ice buildup reaches approximately 1/4 inch (0.6 cm) thickness, or at least once a year, the freezer should be defrosted. Unplug the unit, remove all contents, and allow the ice to melt naturally. The internal drain plug can be removed to facilitate water drainage.

Konserwacja uszczelek

The removable gasket allows for easy cleaning and ensures a tight seal. Regularly inspect the gasket for any damage or wear and clean it to maintain optimal performance.

7. Rozwiązywanie Problemów

If your freezer is not operating correctly, please check the following common issues before contacting support:

• Freezer not running: Check if the power cord is securely plugged in and the outlet is functional. Ensure the temperature control is not set to 'Off'.
• Temperatura jest zbyt wysoka: Verify the temperature setting is appropriate. Ensure the door is closing properly and the gasket is sealing. Avoid placing hot items directly into the freezer.
• Nadmierny hałas: Check if the freezer is level. Ensure there are no objects vibrating against the unit.
• Nadmierne gromadzenie się lodu: This is a manual defrost unit. Regular defrosting is required. Ensure the door is not left open frequently.

For more detailed troubleshooting steps, refer to the user manual included with your product.

8. Gwarancja i wsparcie

Cooler Depot offers the following warranty for this product:

• 3 Years All-Parts Warranty: Covers all parts for three years from the date of purchase.
• 6-letnia gwarancja na kompresor: Obejmuje sprężarkę przez okres sześciu lat od daty zakupu.
• 1 Year Labor Warranty: Obejmuje koszty robocizny związanej z naprawami w okresie jednego roku od daty zakupu.

For functional failures within 1 month of the item's delivered date, a full refund may be applicable. Please retain the original pallet for returns.

For technical support or warranty claims, please refer to the contact information provided in your user manual or visit the Cooler Depot webstrona.

Film demonstracyjny produktu

Watch this video for a visual demonstration of a Cooler Depot chest freezer, including features and dimensions. Note that the model shown may vary slightly from your specific unit (BD850).
