Ampinvt 6000W/18000W Pure Sine Wave Power Inverter Charger (Model: Ampinvt 6000W) Instruction Manual

1. Wprowadzenie

W niniejszej instrukcji znajdują się szczegółowe instrukcje dotyczące Ampinvt 6000W/18000W Pure Sine Wave Power Inverter Charger. This device converts 48V DC battery power to 120V/240V AC output, suitable for various off-grid solar applications. It features advanced protection mechanisms and multiple operating modes to ensure reliable power supply.

2. Informacje dotyczące bezpieczeństwa

WARNING: Please read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Zapewnij prawidłowe uziemienie falownika.
• Do not expose the inverter to rain, snow, spray, or excessive dust.
• Unikaj demontażu urządzenia. Serwisowanie zleć wykwalifikowanemu personelowi.
• Aby zapobiec przegrzaniu, należy zapewnić odpowiednią wentylację wokół falownika.
• Use appropriate wiring and circuit breakers for all connections.
• Trzymać materiały łatwopalne z dala od falownika.

3. Koniec produktuview

Ten Ampinvt Pure Sine Wave Inverter features a robust design with an intuitive LCD display and various connection ports. Below are key components and their descriptions.

Rycina 3.1: Przód view z Ampinvt 6000W Pure Sine Wave Inverter Charger, showing the LCD display and control buttons.

Figure 3.2: Detailed front panel showing indicator lights (AC, BAT, INV, FAULT) and working mode settings (AC Input Priority, Battery Priority, ECO Mode, Generator Mode, Unattended Mode).

Rysunek 3.3: Tył view of the inverter, highlighting the AC fuse, AC input/output terminal block, and AC output sockets.

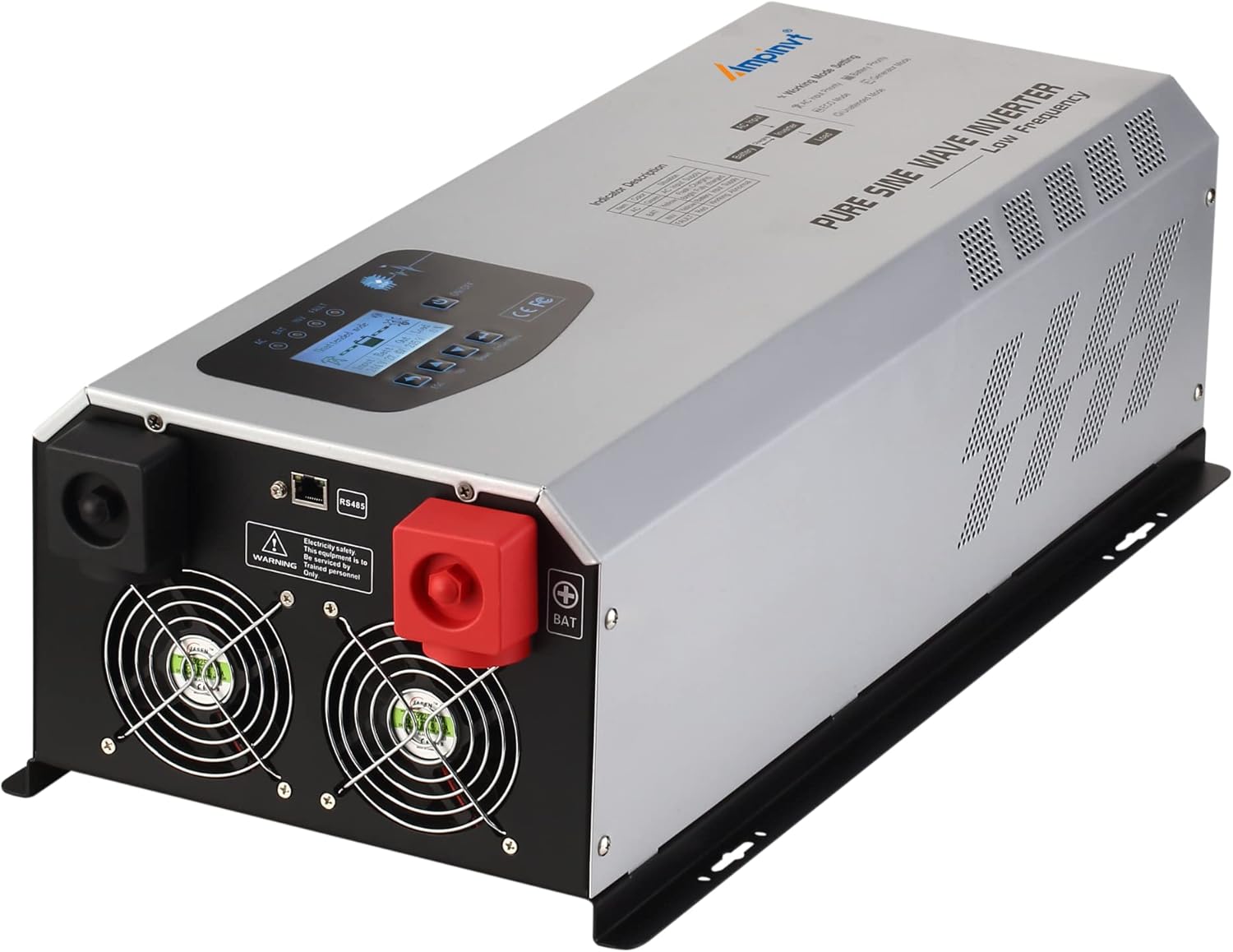

Rysunek 3.4: Strona view of the inverter, showing the positive and negative battery terminals and cooling fans.

4. Konfiguracja i instalacja

Prawidłowa instalacja ma kluczowe znaczenie dla bezpiecznego i wydajnego działania Twojego urządzenia. Ampinvt inverter. Follow these steps carefully.

4.1 Umieszczenie fizyczne

• Install the inverter in a dry, well-ventilated area, away from direct sunlight and heat sources.
• Ensure sufficient clearance around the unit for proper airflow, especially around the cooling vents.
• Zamontuj falownik w sposób stabilny i bezpieczny na stabilnej powierzchni.

Figure 4.1: Product dimensions for installation planning. The inverter measures 650mm (length) x 300mm (width) x 185mm (height) and weighs 30.4kg.

4.2 połączeń przewodów

All wiring should be performed by a qualified electrician. Ensure all power sources are disconnected before making any connections.

1. Podłączenie akumulatora: Connect the DC battery cables to the inverter's battery terminals. Ensure correct polarity (red to positive, black to negative).
2. Podłączenie wejścia AC: Connect the AC input power source (e.g., grid or generator) to the AC INPUT terminal block.
3. Podłączenie wyjściowe prądu przemiennego: Connect your AC loads to the AC OUTPUT terminal block or directly to the AC output sockets.
4. Grunt: Connect the inverter to an appropriate earth ground.

Figure 4.2: Detailed wiring diagram illustrating connections for AC input (L, N, G), AC output (HOT1, N, HOT2, GND for 120V/240V split phase), and battery terminals.

4.3 Remote Panel Connection (Optional)

The inverter supports an optional remote panel for convenient monitoring and control.

Figure 4.3: The intelligent remote panel connection port (RS485) on the inverter and an example of the remote screen (purchased separately).

4.4 Przewodnik wideo po konfiguracji

5. Instrukcja obsługi

The inverter features an LCD display for monitoring and configuration, along with several working modes to suit different power requirements.

5.1 Wyświetlacz LCD i elementy sterujące

The LCD provides real-time data and allows adjustment of settings. Use the ESC, Up, Down, and Enter/Menu buttons to navigate and configure the inverter.

Figure 5.1: The LCD display interface, showing AC input priority mode, battery voltage, objętość wyjściowatage, load status, and options for setting battery type and charging current.

Figure 5.2: Status indicator lights (AC, Battery, Inverter, Fault) and a description of the LCD display button functions (Return, Up, Down, Confirm, Turn On/Off).

5.2 tryby pracy

The inverter offers five distinct working modes, configurable via the LCD display:

1. AC Input Priority Mode: Prioritizes utility power (110V AC). If utility power fails, the inverter switches to battery power. When utility power returns, it switches back.
2. Tryb priorytetu baterii: Prioritizes battery power. If battery voltage drops below a set threshold, it switches to utility power. Once the battery is sufficiently charged, it reverts to battery power.
3. Tryb ekologiczny: For energy saving. If the load is less than 10%, the inverter enters sleep mode and stops output. It automatically restarts normal inversion when the load exceeds 10%.
4. Generator Mode: Designed for use with unstable AC voltage sources, such as generators. The inverter's AVR regulator stabilizes the output voltage.
5. Tryb bezobsługowy: Gdy poziom naładowania akumulatoratage is low, the inverter enters a standby (power-saving) state. It automatically restores normal output when the battery voltage recovers (e.g., from solar charging), enabling fully automatic operation without supervision.

5.3 regulowane ustawienia

• Objętość ładowania prądem przemiennymtage i prąd: Regulowana objętość ładowaniatage (13.4-14.9VDC for 12V systems) and current (0-35A) for various battery types.
• Niska objętośćtagOchrona i odzyskiwanie danych: Customizable voltage thresholds for low voltage protection and recovery to prevent battery over-discharge.
• Ustawienie typu baterii: Compatible with Sealed, Gel, AGM, Flooded, and Lithium batteries. Ensure the correct battery type is selected for optimal charging and discharge cycles.

6. Konserwacja

Regularna konserwacja zapewnia długowieczność i optymalną wydajność falownika.

• Czyszczenie: Okresowo czyść zewnętrzną część falownika i upewnij się, że otwory wentylacyjne są wolne od kurzu i zanieczyszczeń. Używaj suchej ściereczki.
• Znajomości: Regularly check all electrical connections (battery, AC input, AC output) for tightness and corrosion. Tighten any loose connections.
• Stan baterii: Monitoruj pojemność bateriitage and health according to battery manufacturer guidelines. Ensure proper charging cycles.
• Środowisko: Maintain the operating environment within specified temperature and humidity ranges.

7. Rozwiązywanie Problemów

This section provides solutions to common issues. For complex problems, contact qualified service personnel.

8. Specyfikacje

9. Gwarancja i wsparcie

For warranty information, technical support, or service inquiries, please refer to the contact details provided with your product packaging or visit the official AMPZaproszenie webstrona. Zachowaj dowód zakupu na potrzeby roszczeń gwarancyjnych.
