GARAGE STOP Multi-Code Linear 3089 Garage Door Opener Remote Instruction Manual

Wstęp

This manual provides detailed instructions for the setup, programming, operation, and maintenance of your GARAGE STOP Multi-Code Linear 3089 Garage Door Opener Remote. Please read this manual thoroughly before use to ensure proper functionality and safety.

Figure 1: GARAGE STOP Multi-Code Linear 3089 Remote Control

Zgodność

This remote control is compatible TYLKO with 300 MHz Multi-Code receivers. This includes models such as:

• Multi-Code receivers: 1090, 1099-20, 1099-30, 1099-40, 3021, 3028
• Nice/Linear models: 109950, 302850

Ensure your existing garage door opener system operates on a 300 MHz frequency and uses a 10-digit dip switch coding system for proper compatibility.

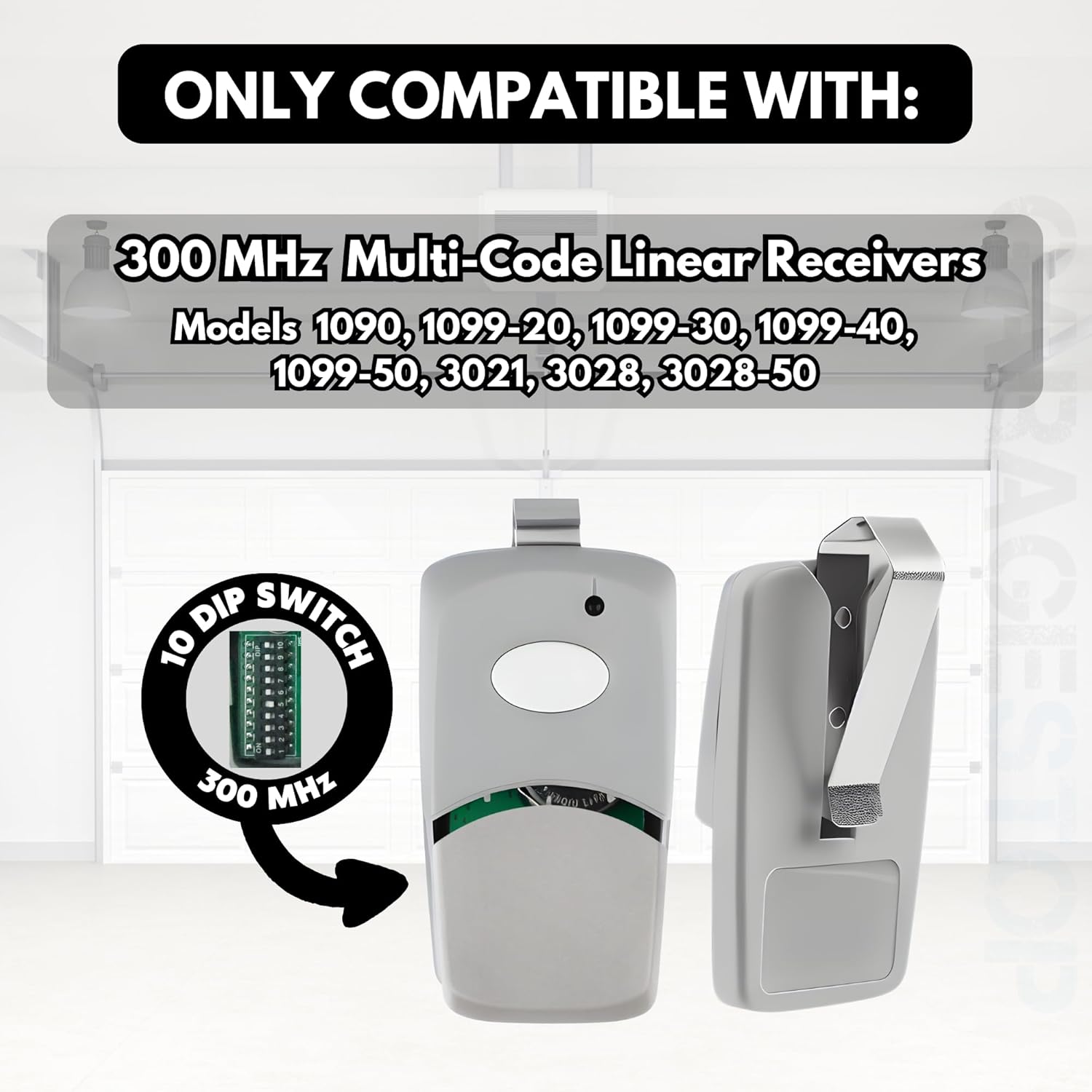

Rysunek 2: Zgodnośćview

Zawartość opakowania

Po otwarciu przesyłki powinieneś znaleźć następujące elementy:

• 1 x GARAGE STOP Multi-Code Linear 3089 Remote Control
• 2 x CR2032 Lithium Metal Batteries (pre-installed)
• 1 x klips do daszka
• 1 x Instruction Guide (this document)

Figure 3: Items Included with Purchase

Konfiguracja i programowanie

Programming your GARAGE STOP remote involves matching its internal dip switches to the code set on your existing garage door opener receiver. Follow these steps carefully:

1. Locate Your Receiver's Code: Find your garage door opener receiver (typically located near the motor unit on the garage ceiling) and identify its unique 10-digit code. This code is set using a series of ON/OFF switches (dip switches). You may choose to set a new code on your receiver at this time for enhanced security. Keep a record of this unique code.
2. Access Remote's Dip Switches: Gently remove the front panel of your new GARAGE STOP remote control. This will expose the 10-digit dip switch selector inside.
3. Match the Code: Using a small tool (like a paper clip or the visor clip), carefully adjust the 10 dip switches on your new remote to match the ON/OFF positions of the code you identified on your receiver in Step 1. Each switch has an ON and OFF position.
4. Operacja testowa: Once the switches are matched, replace the front panel of the remote. Stand back approximately 50 feet from your garage door (away from any moving parts) and press the transmit button on the remote. The garage door should open and close. If it does not, confirm the remote has a functioning battery and that the 10-digit code on the remote precisely matches the receiver's code.

Wskazówka:

• For optimal security, use a random sequence of numbers for your 10-digit code. Avoid easily guessable sequences.
• Repeat steps 1-3 for any additional remotes you wish to program. The 10-digit code on all remote controls must match what was selected in step 1.

Figure 4: Programming Instructions Diagram

Programming Video Tutorial

Video 1: Official tutorial demonstrating the step-by-step process to program the GARAGE STOP Multi-Code Linear 3089 garage door opener remote.

Instrukcja obsługi

Once programmed, operating your GARAGE STOP remote is straightforward:

• To open or close your garage door, simply press the large button on the front of the remote control.
• The remote offers a long-range distance, typically allowing activation from over 100 feet away, providing convenient access.
• The included visor clip allows for easy attachment to your car's sun visor for quick access.

Konserwacja

Wymiana baterii

The remote control uses two CR2032 Lithium Metal batteries. When the remote's range decreases or the indicator light does not illuminate, it's time to replace the batteries.

1. Gently remove the front top panel and then the main front panel of the remote control.
2. Carefully remove the old CR2032 batteries.
3. Włóż dwie nowe baterie CR2032, zwracając uwagę na prawidłową biegunowość.
4. Replace the front panels, ensuring they snap securely into place.

Rozwiązywanie problemów

• Pilot nie działa po zaprogramowaniu:
  • Verify that the batteries are correctly installed and functional.
  • Double-check that the 10 dip switches inside the remote precisely match the code on your garage door opener receiver. Even a single switch mismatch will prevent operation.
• Limited range or intermittent operation:
  • Replace the CR2032 batteries with new ones.
  • Upewnij się, że między pilotem a odbiornikiem nie ma żadnych znacznych przeszkód.
• To erase a remote control transmitter:
  • You can erase a transmitter by selecting a new unique code on your receiver. All existing remotes will need to be reprogrammed to this new code.
  • Alternatively, you can alter the 10-digit code on the specific transmitter so it no longer matches the receiver's code.

Specyfikacje

Wsparcie

For further assistance or inquiries regarding your GARAGE STOP Multi-Code Linear 3089 remote control, please refer to the contact information provided with your purchase or visit the official GARAGE STOP website. Support resources, including additional programming videos and FAQs, are often available online.
