Scheppach MTE380 Electric Tiller User Manual

1. Wprowadzenie

Thank you for choosing the Scheppach MTE380 Electric Tiller. This manual provides essential information for the safe assembly, operation, and maintenance of your new electric tiller. Please read these instructions thoroughly before using the machine to ensure proper function and to prevent injury or damage.

The Scheppach MTE380 is designed for loosening soil, preparing seedbeds, incorporating compost or fertilizer, and removing weeds in small to medium-sized gardens. Its powerful 1050W motor and robust blades make it an efficient tool for various gardening tasks.

2. Instrukcje bezpieczeństwa

Aby zmniejszyć ryzyko porażenia prądem, pożaru lub poważnych obrażeń, należy zawsze przestrzegać następujących środków ostrożności:

• Przeczytaj instrukcję: Familiarize yourself with all controls and proper use before operating the tiller.
• Środki ochrony osobistej (PPE): Always wear sturdy footwear, long trousers, and eye protection. Gloves are recommended.
• Bezpieczeństwo elektryczne: Ensure the power supply matches the specifications on the rating plate. Use only outdoor-rated extension cords that are undamaged. Keep the power cord clear of the tines and away from water. Disconnect from power before cleaning, maintenance, or if the machine is left unattended.
• Obszar roboczy: Keep children, pets, and bystanders away from the operating area. Clear the work area of stones, sticks, wires, and other debris that could be thrown by the tines.
• Działanie: Do not operate the tiller in wet conditions or rain. Maintain a firm grip on both handles. Do not overreach. Operate the tiller by pulling it backward towards you, rather than pushing it forward, to maintain better control and prevent it from running away.
• Konserwacja: Regularly inspect the machine for damage. Replace worn or damaged parts immediately.

3. Koniec produktuview

The Scheppach MTE380 Electric Tiller consists of several key components designed for efficient soil cultivation.

Rysunek 3.1: Ogólnie view of the Scheppach MTE380 Electric Tiller, showing its compact design and handles.

Kluczowe komponenty:

• Obudowa silnika: Contains the 1050W electric motor.
• Uchwyty: Ergonomically designed for comfortable operation, featuring a soft-start safety switch and cable strain relief.
• Tines/Blades: 16 robust steel blades for effective soil loosening.
• Przełącznik bezpieczeństwa: Integrated into the handle for immediate power cut-off.
• Skrzynia biegów: High-quality die-cast aluminum gearbox for durability.

Rysunek 3.2: Detail of the comfortable handle with soft-start safety switch and cable strain relief for secure operation.

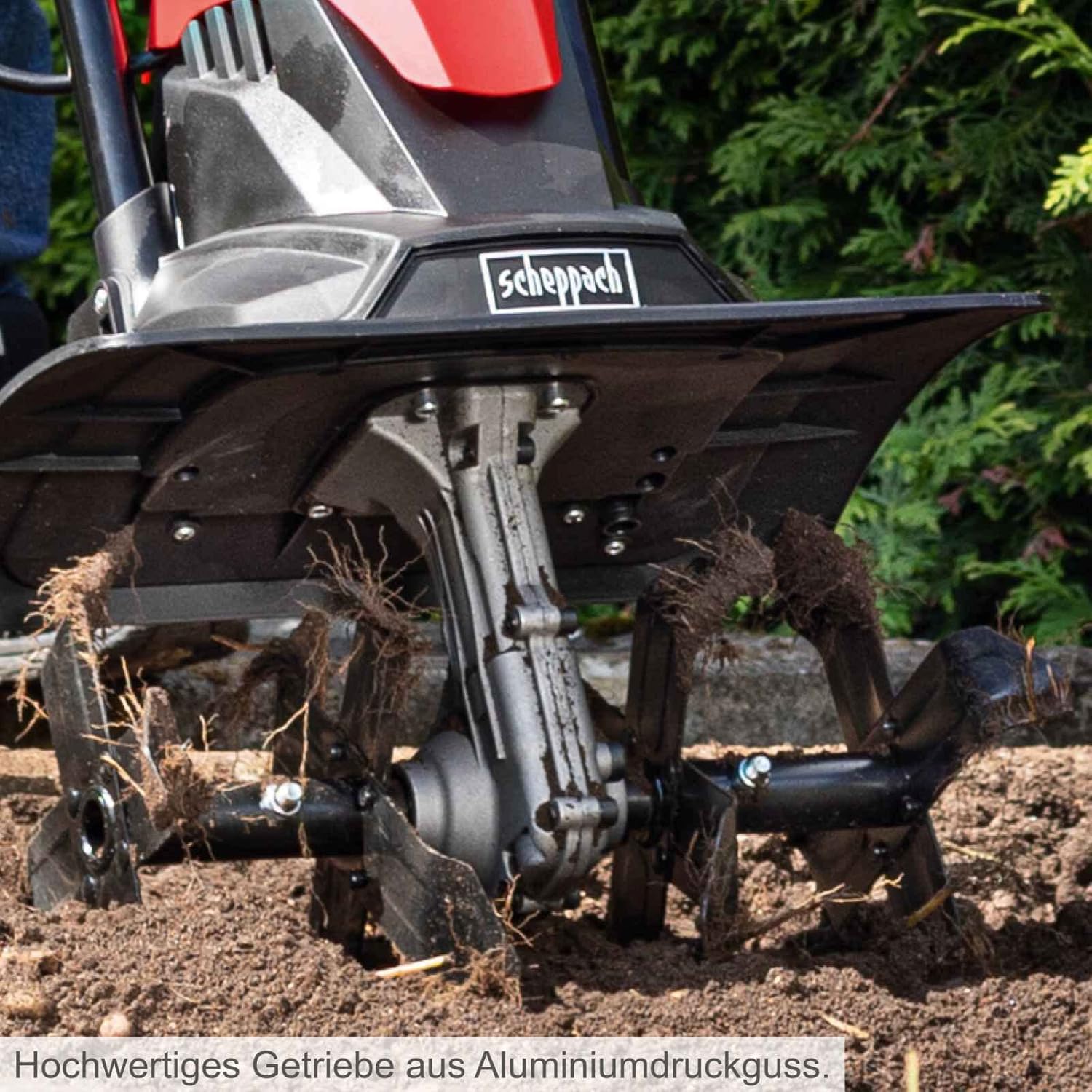

Rysunek 3.3: View of the robust die-cast aluminum gearbox, ensuring durability and efficient power transfer to the tines.

4. Instalacja i montaż

The Scheppach MTE380 is designed for quick and easy assembly. Follow these steps to prepare your tiller for use:

1. Rozpakować: Ostrożnie wyjmij wszystkie elementy z opakowania. Sprawdź, czy nie ma uszkodzeń lub brakujących części.
2. Zespół uchwytu: Attach the upper handle section to the lower handle section using the provided fasteners. Ensure all connections are secure. The handles are foldable for transport and storage.
3. Zarządzanie kablami: Secure the power cable along the handle using the integrated cable clips or ties to prevent it from interfering with operation or getting caught in the tines. Ensure the cable strain relief is properly engaged.
4. Inspekcja wstępna: Before connecting to power, ensure all bolts and screws are tightened, and the tines are free to rotate.

Rysunek 4.1: The tiller shown with its handle folded, illustrating its compact design for easy transport and space-saving storage.

5. Instrukcja obsługi

Follow these guidelines for effective and safe operation of your electric tiller.

5.1 Przed rozpoczęciem

• Ensure the work area is clear of debris.
• Nosić odpowiedni sprzęt ochronny.
• Connect the tiller to a suitable outdoor-rated extension cord, ensuring the cord is positioned to avoid contact with the tines.

5.2 Uruchamianie i zatrzymywanie

• Zacząć: Press and hold the safety switch, then squeeze the operating lever. The tines will begin to rotate.
• Zatrzymać: Release the operating lever. The tines will stop.

5.3 Tilling Technique

For best results and control, operate the tiller by pulling it backward towards you. This method allows for better control over the tilling depth and direction, and prevents the machine from surging forward unexpectedly.

Rysunek 5.1: A user demonstrating the proper technique for operating the electric tiller, pulling it backward to cultivate the soil.

• Make shallow passes first, gradually increasing depth with subsequent passes. The maximum working depth is 22 cm.
• Move at a steady, controlled pace. Do not force the machine.
• If the tines become jammed, immediately release the operating lever and disconnect the power supply before clearing the obstruction.

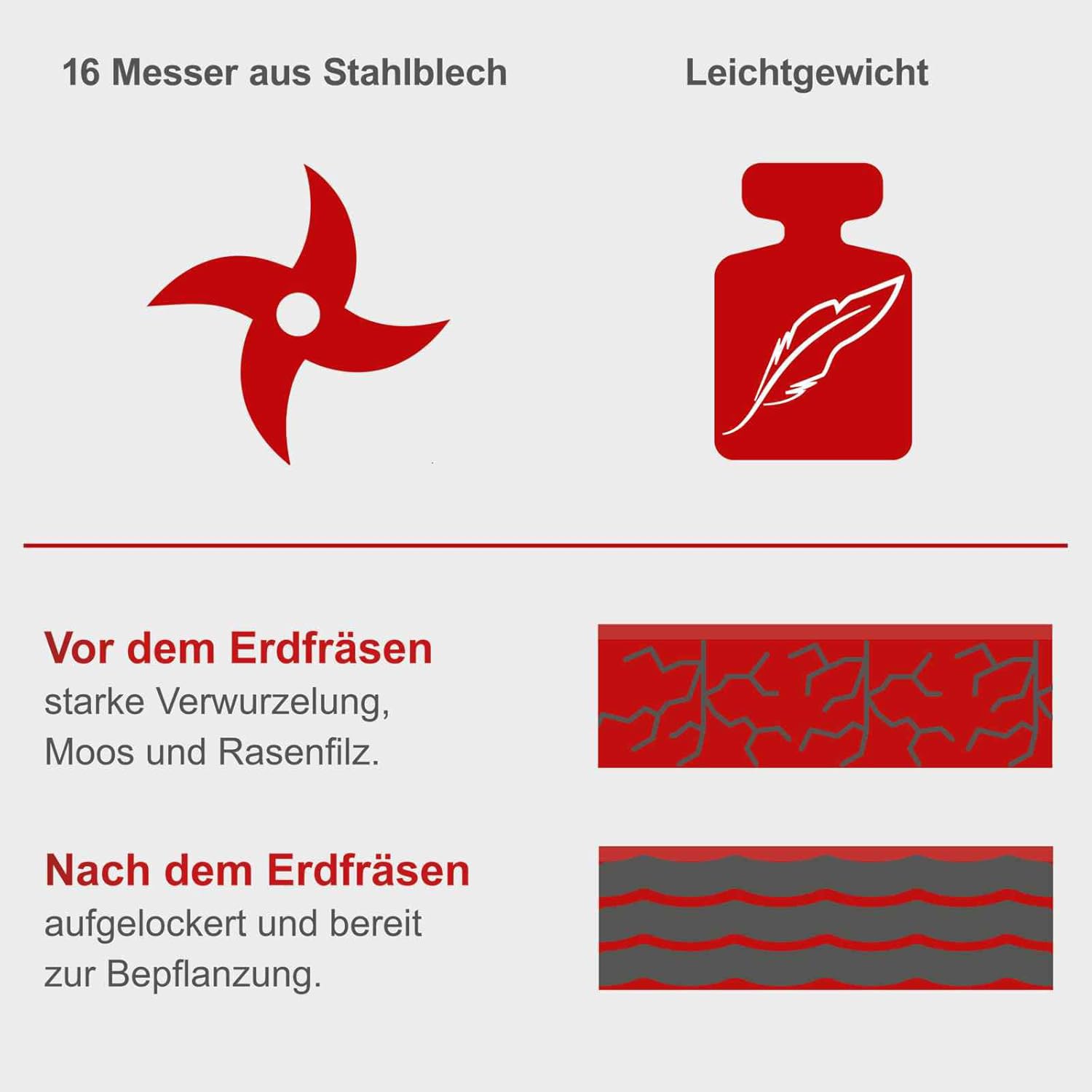

Rysunek 5.2: The 16 robust steel blades effectively breaking up and aerating the soil during operation.

5.4 Zastosowania

The MTE380 is suitable for various tasks:

• Soil Loosening: Breaking up compacted soil.
• Usuwanie chwastów: Effectively dislodging weeds and their roots.
• Seedbed Preparation: Creating a fine, aerated soil structure for planting.
• Fertilizer Incorporation: Mixing compost or fertilizer into the soil.

Rysunek 5.3: Visual representation of the tiller's versatility in different gardening applications.

Rysunek 5.4: Comparison of soil structure before tilling (compacted, rooted) and after tilling (loosened, aerated).

6. Konserwacja i przechowywanie

Regular maintenance ensures the longevity and safe operation of your tiller.

6.1 Czyszczenie

• Zawsze odłączaj zasilanie przed czyszczeniem.
• Remove soil, plant debris, and roots from the tines and motor housing using a brush or damp ściereczką. Nie używaj strumienia wody ani silnych środków chemicznych.
• Inspect the tines for wear or damage.

6.2 Przechowywanie

• Clean the tiller thoroughly before storing.
• Store the tiller in a dry, well-ventilated area, away from direct sunlight and extreme temperatures.
• The foldable handle allows for compact storage.
• Przechowywać w miejscu niedostępnym dla dzieci.

7. Rozwiązywanie Problemów

This section addresses common issues you might encounter with your Scheppach MTE380 Electric Tiller.

Jeżeli napotkasz problemy, które nie zostały tutaj wymienione lub jeżeli proponowane rozwiązania nie pomogą w rozwiązaniu problemu, skontaktuj się z obsługą klienta.

8. Specyfikacje techniczne

9. Gwarancja i wsparcie

Scheppach products are manufactured to high-quality standards. In the unlikely event of a defect, please refer to your purchase documentation for warranty details. For technical support, spare parts, or service inquiries, please contact your retailer or the official Scheppach customer service. Always provide the model number (MTE380) and serial number (if applicable) when contacting support.
