1. Wprowadzenie
This manual provides essential information for the safe and effective use of your ECHANFIT Water Rowing Machine R49 Max. Please read all instructions carefully before assembly and operation. Retain this manual for future reference.
Image 1.1: The ECHANFIT Water Rowing Machine R49 Max during operation.
2. Instrukcje bezpieczeństwa
To reduce the risk of serious injury, read all important precautions and instructions in this manual and on your rowing machine before use. ECHANFIT assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
- Przed rozpoczęciem jakiegokolwiek programu ćwiczeń skonsultuj się z lekarzem.
- Keep children and pets away from the rowing machine.
- Place the rowing machine on a level surface with at least 2 feet (0.6 meters) of clearance around it.
- Inspect the rowing machine for worn or loose parts before each use. Do not use if damaged.
- Noś odpowiedni strój sportowy i obuwie sportowe.
- Nie forsuj się. Natychmiast przerwij ćwiczenia, jeśli poczujesz osłabienie, zawroty głowy lub ból.
3. Montaż
The ECHANFIT Water Rowing Machine R49 Max requires some assembly. Ensure all parts are present before beginning. Refer to the included assembly guide for detailed diagrams and hardware identification.
3.1 Komponentyview
- Rama główna
- Szyna siedziska
- Zespół zbiornika wody
- Footrests and Pedals
- Kierownica
- Electronic Display and Tablet Holder
- Zestaw elementów montażowych (śruby, podkładki, nakrętki, narzędzia)
3.2 Etapy montażu
- Przymocuj przedni stabilizator do ramy głównej za pomocą dołączonych śrub.
- Secure the rear stabilizer to the seat rail.
- Connect the seat rail to the main frame.
- Install the seat onto the seat rail, ensuring the built-in smooth wheels are correctly aligned.
- Mount the footrests and pedals to the main frame.
- Attach the electronic display and adjustable tablet holder to the console arm.
- Connect any necessary cables for the electronic display.

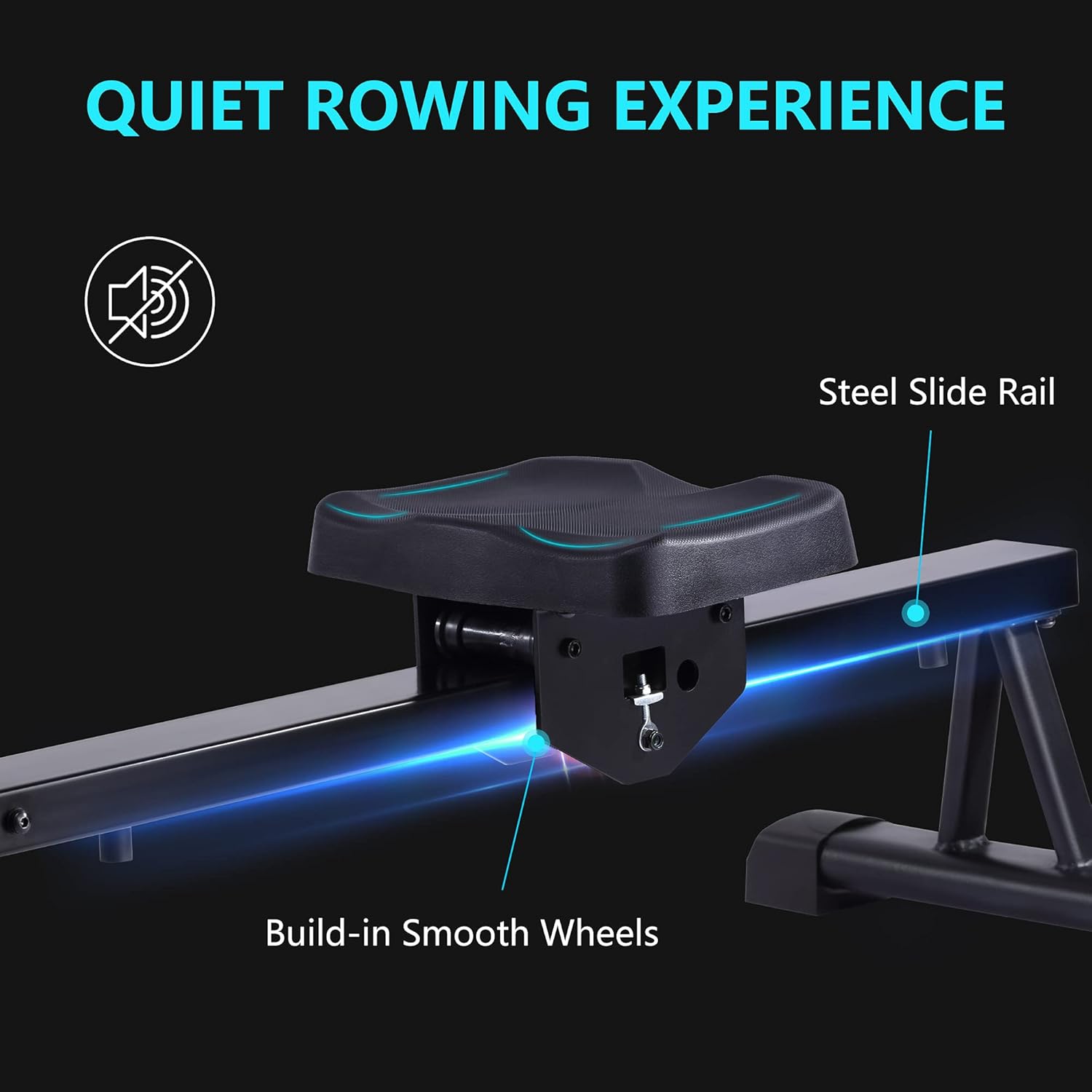

Image 3.1: Detail of the oversized steel seat rail and smooth wheels for quiet operation.
4. Konfiguracja
4.1 Filling the Water Tank and Resistance Levels
The ECHANFIT R49 Max uses water resistance, which is determined by the amount of water in the tank. The tank has a guide indicating 6 resistance levels.
- Wyjąć korek zbiornika.
- Use the included siphon pump to fill the tank with clean tap water to your desired resistance level, referring to the level guide on the tank.
- Dokładnie zakręć korek zbiornika.
Image 4.1: Water level guide for adjusting resistance from minimum to maximum fill.
4.2 Adjusting the Tablet Holder
The adjustable tablet holder allows for optimal viewpodczas treningu.
- Loosen the adjustment knob on the tablet holder arm.
- Adjust the height and angle to your preference.
- Tighten the knob to secure the holder in place.
Image 4.2: The tablet holder can be adjusted for height and angle.
4.3 Regulacja pedałów
The pedals are designed to be adjustable and flex with your movement, providing secure foot placement.
- Połóż stopy na pedałach.
- Adjust the large Velcro straps to secure your feet comfortably.
Image 4.3: Adjustable pedals with secure Velcro straps.
5. Instrukcja obsługi
5.1 Electronic Display Functions
The electronic display provides real-time workout data. It operates with a simple one-touch interface.
- Czas: Wyświetla czas trwania aktualnego treningu.
- Liczyć: Shows the number of strokes performed.
- Dystans: Measures the simulated distance covered.
- Kalorie: Szacuje liczbę spalonych kalorii podczas sesji.
- Total Count: Accumulates the total strokes over all workouts.
- Skandować: Automatycznie przełącza wszystkie metryki.
Use the 'SET' button to select a specific display mode or to set target values. Press 'RESET' to clear current workout data.
Image 5.1: The electronic display showing various workout metrics.
5.2 Technika wiosłowania
Proper rowing technique maximizes effectiveness and minimizes injury risk. The rowing stroke consists of four phases: the catch, the drive, the finish, and the recovery.
- Haczyk: Siedź prosto, z rękami wyciągniętymi do przodu, zegnij kolana i ustaw piszczele pionowo.
- Napęd: Odepchnij się nogami, następnie lekko odchyl się w biodrach i na koniec pociągnij uchwyt w stronę brzucha.
- Zakończenie: Nogi wyciągnięte, ciało odchylone do tyłu, uchwyt na brzuchu, łokcie poza ciałem.
- Odzyskiwanie: Extend arms forward, then pivot forward from the hips, and finally bend knees to slide forward to the catch position.
Image 5.2: Rowing engages approximately 84% of the body's muscle groups, including chest, abdominal, back, gluteus, lower extremity, and arm muscles.
5.3 Uchwyt ergonomiczny
The ergonomic rowing handle is designed for comfortable, sustained use, helping to protect your palms during workouts.
Image 5.3: The ergonomic handle provides a comfortable grip.
6. Konserwacja
6.1 Czyszczenie
Regular cleaning helps maintain the longevity and appearance of your rowing machine.
- Wipe down the frame and seat rail with a damp Po każdym użyciu przetrzyj ściereczką pot i kurz.
- Unikaj stosowania środków czyszczących o właściwościach ściernych i rozpuszczalników, gdyż mogą one uszkodzić powłokę.
6.2 Uzdatnianie wody
To prevent algae growth and keep the water clear, it is recommended to add a water purification tablet to the tank every 6-12 months, or as needed. Consult the manufacturer for recommended water treatment products.
6.3 Przechowywanie
The ECHANFIT R49 Max can be stored vertically to save space.
- Ensure the rowing machine is clean and dry before storing.
- Carefully lift the rear of the machine and pivot it into an upright position.
- Ensure it is stable and not at risk of tipping over.
Image 6.1: The rowing machine can be stored vertically to conserve space.
7. Rozwiązywanie Problemów
This section addresses common issues you might encounter with your ECHANFIT Water Rowing Machine R49 Max.
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Electronic display not working. | Niski poziom baterii lub jej rozładowanie; luźne połączenie kabli. | Replace AAA batteries (2 required). Check all cable connections to the display. |
| No or inconsistent resistance. | Insufficient water in the tank; impeller issue. | Check water level and add water if necessary. Ensure the impeller is free from obstructions. |
| Pisk lub zgrzytanie. | Loose bolts; dirty seat rail; worn wheels. | Tighten all visible bolts. Clean the seat rail. Inspect seat wheels for wear. |
| Siedzisko nie przesuwa się płynnie. | Dirty seat rail; obstructions. | Clean the seat rail thoroughly. Ensure no objects are blocking the seat's path. |
8. Specyfikacje
Key specifications for the ECHANFIT Water Rowing Machine R49 Max:
| Funkcja | Szczegół |
|---|---|
| Marka | ODPOWIEDŹ |
| Nazwa modelu | Water Rowing Machine (R49 Max) |
| Mechanizm oporu | Woda |
| Poziomy oporu | 6 (adjustable by water volume) |
| Maksymalna zalecana waga | 400 funtów |
| Materiał ramy | Stal stopowa |
| Waga przedmiotu | 27.34 kilograma |
| Wymiary produktu (DxSxW) | 70.28 x 20.47 x 35.24 cala |
| Typ wyświetlacza | LCD |
| Źródło zasilania (wyświetlacz) | 2 baterie AAA (wymagane) |
| UPC | 614608998623 |
Image 8.1: Detailed product dimensions of the ECHANFIT Water Rowing Machine R49 Max.
9. Gwarancja i wsparcie
9.1 Informacje o gwarancji
The ECHANFIT Water Rowing Machine R49 Max comes with a 12-month warranty on replacement parts. This warranty covers defects in materials and workmanship under normal use.
9.2 Obsługa klienta
For any questions, assistance, or to claim warranty service, please contact ECHANFIT customer support. Refer to your purchase documentation for specific contact details or visit the official ECHANFIT webstrona.
