iRV Technology iRV32V2 RV Radio Stereo User Manual

1. Wprowadzenie

The iRV Technology iRV32V2 is a versatile wall-mount RV radio stereo system designed to provide comprehensive entertainment and connectivity options for your recreational vehicle. This unit supports a wide range of media formats including AM/FM radio, CD, DVD, MP3, and MP4. It features HDMI input and output with Audio Return Channel (ARC), Digital 2.1 and Surround Sound capabilities, Bluetooth connectivity, Consumer Electronics Control (CEC), and Near Field Communication (NFC) for quick pairing. With its 3-zone audio distribution and smartphone app control, the iRV32V2 offers a modern and convenient audio-visual experience.

Figure 1: iRV32V2 RV Stereo with its remote control, showcasing the main unit and its dedicated remote for convenient operation.

2. Co znajduje się w pudełku

Upon unpacking your iRV32V2 RV Radio Stereo, please verify that all the following components are included:

• iRV32V2 Main Unit
• Zdalne sterowanie
• Wiązka zasilania
• Uprząż głośnikowa
• Instrukcja obsługi (ten dokument)
• Zaślepki

Figure 2: The remote control and essential wiring harnesses provided with the iRV32V2 unit, crucial for installation and operation.

3. Konfiguracja i instalacja

Proper installation is crucial for optimal performance of your iRV32V2 unit. It is recommended to consult a professional for installation if you are unfamiliar with RV electrical systems.

3.1. Wymiary

Before installation, ensure adequate space for the unit. The dimensions are approximately:

• Wymiary produktu: 7.8 x 5.5 x 7 cali (dł. x szer. x wys.)
• Waga przedmiotu: 3.7 funta

Figure 3: Detailed measurements of the iRV32V2 unit, providing essential information for mounting and space planning.

3.2. Połączenia okablowania

Connect the provided power and speaker harnesses to the corresponding ports on the rear of the unit and to your RV's electrical and speaker systems. Ensure all connections are secure and correctly polarized to prevent damage.

Figure 4: The rear panel of the iRV32V2, showing the various connection points for power, speakers, and other audio/video inputs and outputs.

For detailed wiring diagrams and specific installation steps, please refer to the full User Manual PDF available at: iRV32V2 User Manual PDF.

4. Instrukcja obsługi

Familiarize yourself with the controls and functions of your iRV32V2 stereo system.

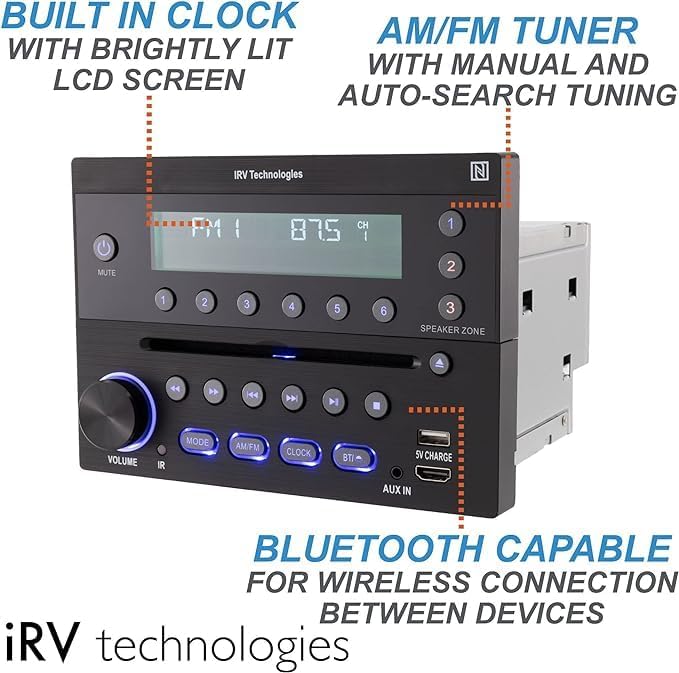

Figure 5: Front panel of the iRV32V2, illustrating key features such as the built-in clock, AM/FM tuner, and Bluetooth controls.

4.1. Podstawowe sterowanie

• Przycisk zasilania/wyciszania: Press to turn the unit on/off. Press briefly to mute/unmute audio.
• Pokrętło głośności: Obróć, aby dostosować głośność dźwięku.
• Przycisk trybu: Cycle through available audio sources (AM/FM, CD, DVD, USB, AUX, Bluetooth, HDMI).
• Przycisk AM/FM: Directly switch to AM or FM radio mode.
• Przycisk zegara: Display and set the time.
• BT/I Button: Activate Bluetooth pairing mode or switch to Bluetooth input.
• Speaker Zone Buttons (1, 2, 3): Independently control audio output to different speaker zones.

4.2. Łączność Bluetooth

The iRV32V2 features Bluetooth 4.1 for wireless audio streaming and NFC for quick pairing.

• Pairing via Bluetooth Button: Press the dedicated BT/I button to enter pairing mode. Szukaj 'iRV32V2' on your smart device and connect.
• Parowanie przez NFC: Tap your NFC-enabled smartphone to the NFC label on the unit for instant Bluetooth pairing.

4.3. Kontrola aplikacji

Download the free iRV app from your Android or Apple app store. The app transforms your smartphone into a wireless remote control, allowing you to manage various functions of the stereo system remotely.

4.4. HDMI and CEC

The unit includes HDMI input and output with ARC (Audio Return Channel) and CEC (Consumer Electronics Control) functionality. CEC allows you to control multiple HDMI-connected devices (e.g., TV, DVD player) with a single remote, simplifying your entertainment setup.

4.5. Ładowanie przez USB

The integrated USB port provides 5V charging for both Android and Apple devices, allowing you to conveniently charge your smartphone or tablet while enjoying your media.

5. Konserwacja

To ensure the longevity and optimal performance of your iRV32V2 RV Radio Stereo, follow these general maintenance guidelines:

• Czyszczenie: Use a soft, dry cloth to clean the unit's exterior. For stubborn marks, a slightly damp cloth can be used, followed by a dry one. Avoid abrasive cleaners, solvents, or strong chemicals.
• Wentylacja: Aby zapobiec przegrzaniu, należy upewnić się, że otwory wentylacyjne urządzenia nie są zablokowane.
• Taca na płytę: Keep the CD/DVD disc tray free of dust and debris. Handle discs by their edges to avoid fingerprints and scratches.
• Warunki środowiskowe: Unikaj wystawiania urządzenia na działanie ekstremalnych temperatur, długotrwałego bezpośredniego światła słonecznego i nadmiernej wilgoci.

6. Rozwiązywanie Problemów

If you encounter issues with your iRV32V2 unit, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact iRV Technologies customer support for further assistance.

7. Specyfikacje

Detailed technical specifications for the iRV32V2 RV Radio Stereo:

8. Gwarancja i wsparcie

For warranty information and technical support, please refer to the documentation included with your purchase or contact ATP Products Inc., the manufacturer of iRV Technologies products. You can also find additional support resources and the full user manual PDF on the product's official support page or through the retailer where the product was purchased.

Producent: ATP Products Inc.

Instrukcja obsługi w formacie PDF: https://m.media-amazon.com/images/I/C1AH-nmhMnL.pdf
