MELLCOM Mid-Century Lounge Chair with Ottoman Instruction Manual

Wstęp

This manual provides detailed instructions for the assembly, operation, and maintenance of your MELLCOM Mid-Century Lounge Chair with Ottoman. Please read all instructions carefully before assembly and use to ensure safe and proper functioning of the product. Keep this manual for future reference.

Informacje dotyczące bezpieczeństwa

• Przed montażem upewnij się, że wszystkie części są kompletne i nieuszkodzone. Nie używaj, jeśli brakuje którejkolwiek części lub jest ona uszkodzona.
• Aby zapobiec zarysowaniom, złóż krzesło na miękkiej i czystej powierzchni.
• Tighten all screws and bolts securely. Periodically check and re-tighten as needed.
• Do not stand on the chair or ottoman.
• Trzymaj dzieci z dala od miejsca montażu. Małe części mogą stanowić zagrożenie zadławienia.
• Maximum weight capacity for the chair is 330 pounds (150 kg). Do not exceed this limit.

Zawartość opakowania

Sprawdź, czy w opakowaniu znajdują się wszystkie elementy wymienione poniżej:

• Lounge Chair Backrest
• Lounge Chair Seat
• Poduszka osmańska
• Podstawa krzesła (5-gwiazdkowa)
• Ottoman Base (4-star)
• Podłokietniki (lewy i prawy)
• Sprzęt montażowy (śruby, podkładki, klucz imbusowy)

Instrukcja montażu

Follow these steps carefully to assemble your lounge chair and ottoman.

Step 1: Attach Armrests to Chair Seat

Align the armrests with the pre-drilled holes on the sides of the chair seat. Secure them using the provided screws and Allen wrench. Do not overtighten initially.

Rysunek 1: Close-up of the chair's armrest and seat, highlighting the connection area and the adjustable backrest lever.

Step 2: Attach Backrest to Chair Seat and Armrests

Carefully connect the backrest to the assembled seat and armrests. Ensure all holes align and secure with screws. Fully tighten all screws for the chair frame.

Rysunek 2: View of the chair's backrest and seat, showing the overall structure and the button-tufted PU leather.

Step 3: Assemble Chair Base

Attach the 5-star chair base to the bottom of the assembled chair frame. Ensure it is securely fastened. The chair base allows for 360-degree rotation.

Rysunek 3: Spód view of the chair base, illustrating the 360-degree rotating steel feet for stability and movement.

Step 4: Assemble Ottoman

Attach the 4-star ottoman base to the ottoman cushion. Secure all connections firmly.

Rysunek 4: The fully assembled MELLCOM Lounge Chair and Ottoman, showcasing its design and presence in a room.

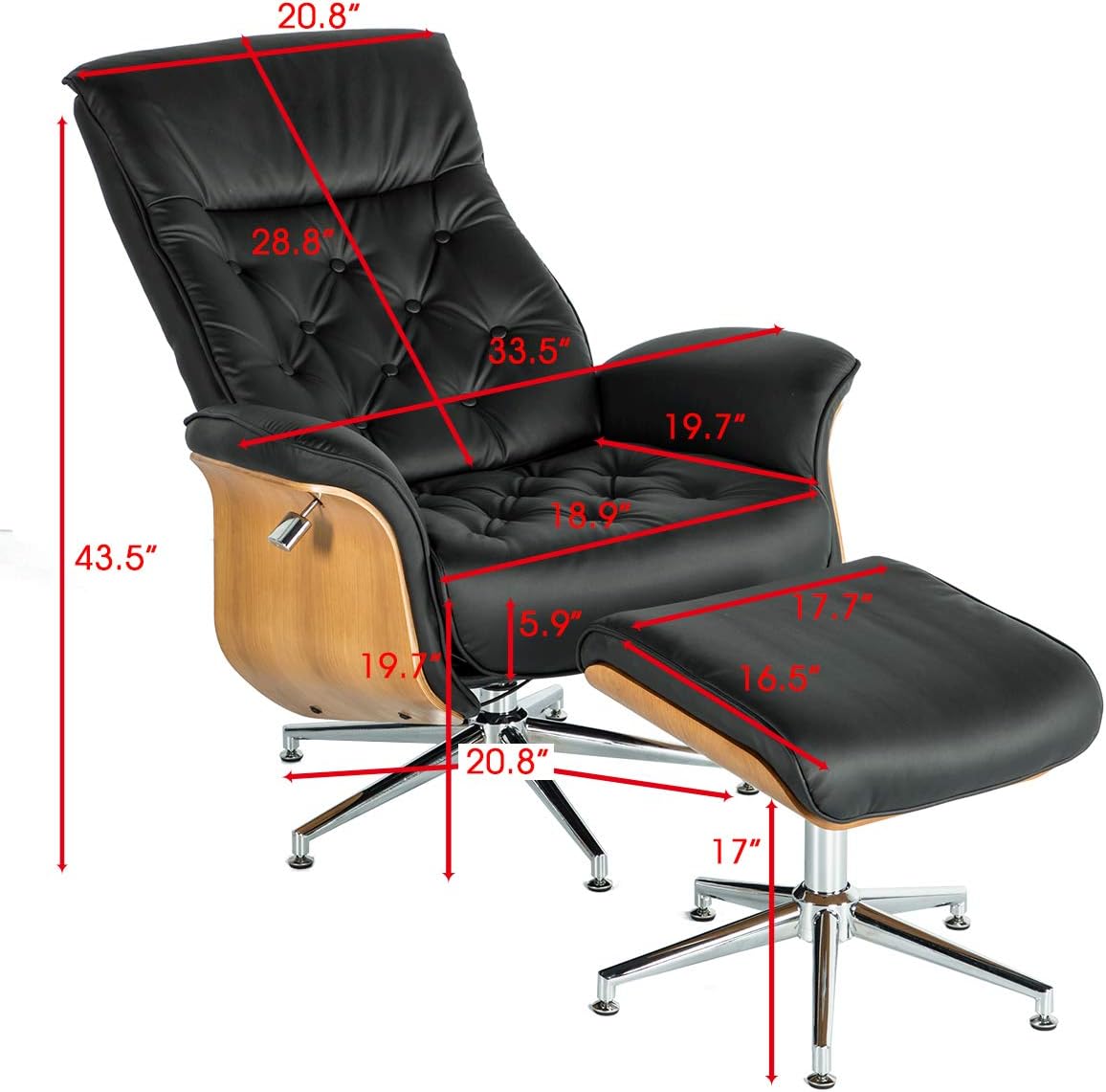

Rysunek 5: Detailed dimensional drawing of the lounge chair and ottoman, indicating various measurements for reference.

Instrukcja obsługi

Regulacja oparcia

The lounge chair features an adjustable backrest with a range of 110° to 145°. To adjust the backrest, locate the lever on the side of the chair (refer to Figure 1). Pull the lever to release the locking mechanism, then lean back or forward to your desired angle. Release the lever to lock the backrest in position. The high-quality liquid device ensures a smooth and controlled adjustment.

Rysunek 6: Close-up of the adjustable backrest control lever, indicating its position for easy operation.

Using the Ottoman

The included ottoman provides additional comfort and support for your legs. Position it in front of the lounge chair as desired. It is designed to complement the chair's ergonomic tilt angle.

Konserwacja

Czyszczenie skóry PU

The PU leather surface is designed for easy cleaning. For general cleaning, wipe with a soft, damp cloth. For spills, blot immediately with a clean, dry cloth. Avoid using harsh chemicals, abrasive cleaners, or excessive moisture, as these can damage the material.

Pielęgnacja drewna

The laminated wood components can be cleaned with a soft, dry cloth. Avoid direct sunlight and extreme temperature changes to prevent warping or fading. Do not use furniture polish containing silicone.

Inspekcja sprzętu

Okresowo sprawdzaj wszystkie śruby i nakrętki, aby upewnić się, że są dobrze dokręcone. W razie potrzeby dokręć je, aby zachować stabilność i bezpieczeństwo.

Rozwiązywanie problemów

Problem: Krzesło wydaje się niestabilne lub chwiejne.

Rozwiązanie: Check all assembly screws and bolts. Ensure they are fully tightened. Verify that the chair is on a flat, even surface.

Issue: Backrest adjustment is stiff or not locking.

Rozwiązanie: Ensure the adjustment lever is fully engaged or disengaged. Check for any obstructions in the mechanism. If the issue persists, contact customer support.

Problem: Piszczące dźwięki podczas użytkowania.

Rozwiązanie: Re-tighten all screws and bolts. A small amount of silicone-based lubricant can be applied to moving parts if the noise persists, avoiding contact with upholstery.

Specyfikacje

Gwarancja i wsparcie

MELLCOM provides a limited warranty for this product against manufacturing defects. For specific warranty terms, please refer to the warranty card included in your package or visit the official MELLCOM website. For technical support, replacement parts, or any other inquiries, please contact MELLCOM customer service.

Informacje kontaktowe:

• Webstrona: MELLCOM Official Store (do ogólnych zapytań)
• Refer to your product packaging or included documentation for direct customer service contact details.
