SOMMER Pearl Twin S10019-00001 Garage Door Remote Control User Manual

1. Wprowadzenie

The SOMMER Pearl Twin S10019-00001 is a high-quality 2-command remote control transmitter designed for use with SOMMER garage door operators. It features an interference-resistant radio signal and robust 128-bit encryption for secure and reliable operation. This manual provides essential information for the proper setup, operation, and maintenance of your remote control.

2. Koniec produktuview

The Pearl Twin remote control features two buttons for operating your garage door or other compatible SOMMER devices. Its compact design ensures ease of use and portability.

Image 1: SOMMER Pearl Twin S10019-00001 remote control in its retail packaging, showing the front of the device with two grey buttons and the SOMMER logo.

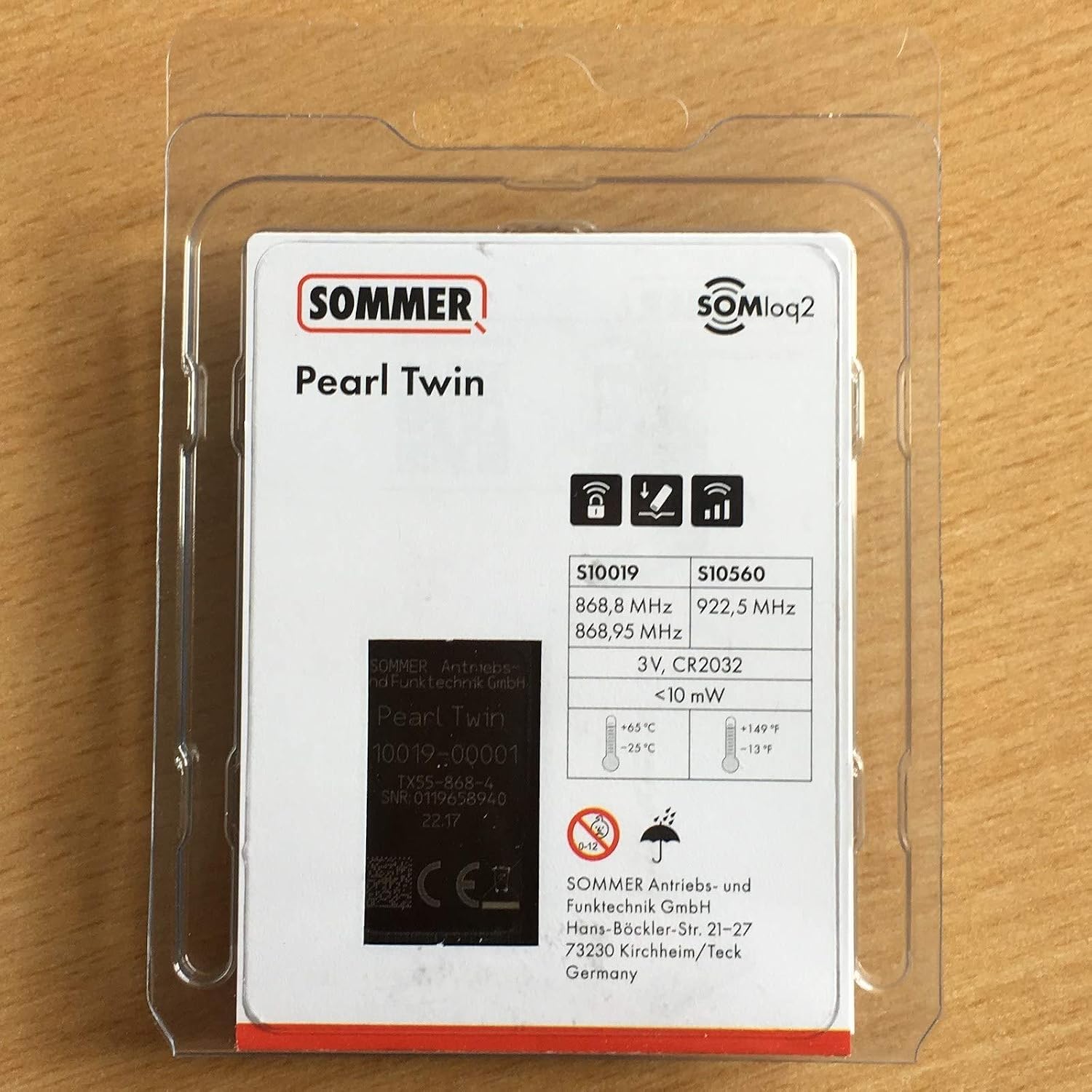

Image 2: Back of the SOMMER Pearl Twin S10019-00001 packaging, displaying technical details such as model number (S10019), frequencies (868.8 MHz, 868.95 MHz), battery type (3V, CR2032), and manufacturer information.

3. Konfiguracja i programowanie

To use your SOMMER Pearl Twin remote control, it must first be programmed to your SOMMER garage door operator. The programming process is straightforward:

1. Locate the Programming Button: On your SOMMER garage door operator's control unit, find the programming button. This button is often labeled "Radio" or may be a distinct color, such as blue. Refer to your garage door operator's manual for its exact location.
2. Aktywuj tryb programowania: Press and release the programming button on the operator. The indicator light on the operator will typically illuminate or flash, indicating it is in programming mode.
3. Zaprogramuj pilota: Within a few seconds of activating programming mode on the operator, press and hold the desired button on your Pearl Twin remote control that you wish to program.
4. Potwierdź parowanie: Release the button on the remote control once the operator's indicator light confirms successful pairing. This confirmation may be indicated by the light flashing rapidly, changing color, or turning off.
5. Operacja testowa: Test the remote control to ensure it operates the garage door correctly. If not, repeat the programming steps.

4. Instrukcja obsługi

Once programmed, operating your SOMMER Pearl Twin remote control is simple:

• Otwórz/Zamknij drzwi: Press the programmed button on the remote control to open or close your garage door.
• Zatrzymaj działanie: Pressing the button again during the door's movement will stop the door at its current position.

5. Konserwacja

The SOMMER Pearl Twin remote control requires minimal maintenance, primarily battery replacement.

Wymiana baterii

The remote control is powered by a CR2032 3V lithium coin cell battery. When the remote's range decreases or it stops responding, it is likely time to replace the battery.

1. Otwórz komorę baterii: Locate the battery compartment on the back of the remote control. Use a small screwdriver or a coin to carefully open the compartment cover.
2. Wyjmij starą baterię: Remove the old CR2032 battery from its holder.
3. Włóż nową baterię: Insert a new CR2032 3V lithium coin cell battery, ensuring that the positive (+) side faces upwards, as indicated in the compartment.
4. Zamknij przedział: Dokładnie zamknij pokrywę komory baterii.

Sprzedaż: Zużyte baterie należy utylizować zgodnie z lokalnymi przepisami. Nie wyrzucaj baterii do odpadów domowych.

6. Rozwiązywanie Problemów

If you encounter issues with your SOMMER Pearl Twin remote control, refer to the following troubleshooting tips:

• Pilot nie odpowiada:
  • Check the battery. Replace it if it is low or depleted (refer to Section 5).
  • Ensure the remote is within range of the garage door operator.
  • Re-program the remote control to the garage door operator (refer to Section 3).
• Ograniczony zasięg:
  • Wymień baterię.
  • Ensure there are no significant obstructions (e.g., metal objects, thick walls) between the remote and the operator.
  • Check for sources of radio interference in the vicinity (e.g., other wireless devices).
• Door Opens/Closes Unintentionally:
  • Ensure the remote control buttons are not being accidentally pressed (e.g., in a pocket or bag).
  • If the issue persists, re-program the remote control.

Jeśli powyższe czynności nie rozwiążą problemu, skontaktuj się z działem obsługi klienta lub wykwalifikowanym technikiem.

7. Specyfikacje

8. Informacje o gwarancji

Specific warranty terms for the SOMMER Pearl Twin S10019-00001 remote control may vary. Please retain your proof of purchase and refer to the warranty documentation provided by your retailer or contact SOMMER directly for detailed warranty information.

9. Wsparcie

For further assistance, technical support, or inquiries regarding your SOMMER Pearl Twin S10019-00001 remote control, please contact:

• Your authorized SOMMER retailer.
• The official SOMMER customer service (contact details typically available on the manufacturer's webStrona).
