Aurlane LUNAR SQUARE 90 Square Shower Cabin User Manual

1. Wprowadzenie

Thank you for choosing the Aurlane LUNAR SQUARE 90 shower cabin. This manual provides essential information for the safe installation, operation, and maintenance of your new shower cabin. Please read these instructions carefully before beginning installation and keep them for future reference.

The LUNAR SQUARE 90 is a modern square shower cabin featuring a matte black aluminum frame, a 5mm transparent tempered glass pivot door, and 4mm tempered glass side and extra-white back panels. It includes a reinforced white acrylic shower tray, a height-adjustable rain shower, and an anti-limescale hand shower, all designed for a comfortable and stylish showering experience.

2. Informacje dotyczące bezpieczeństwa

• Zalecana profesjonalna instalacja: Installation should ideally be performed by a qualified professional to ensure safety and proper function.
• Required Installation Height: A minimum height of 230 cm is required for proper installation of the shower cabin.
• Obsługa szkła: Tempered glass, while strong, can shatter if struck forcefully or if edges are chipped. Handle all glass panels with extreme care. Wear appropriate safety gloves and eye protection.
• Woda i prąd: Ensure all water and electrical connections (if applicable) are performed by certified technicians according to local regulations.
• Bezpieczne mocowanie: All components must be securely fastened to prevent movement or collapse.
• Waga: The shower cabin components can be heavy. Use proper lifting techniques or seek assistance to prevent injury.
• No Silicone Assembly: This model is designed for assembly without silicone. Follow instructions carefully to ensure a watertight seal.

3. Zawartość opakowania

Before beginning installation, please verify that all components are present and undamaged. Refer to the detailed diagram for component identification.

• 1 x Shower Cabin (including frame, glass panels, and shower tray)
• Matte Black Aluminum Frame profiles
• 5mm Transparent Tempered Glass Pivot Door
• 4mm Tempered Glass Side Panels
• 4mm Extra-White Tempered Glass Back Panels
• Reinforced White Acrylic Shower Tray
• Height-Adjustable Main Shower (Rain Shower, Matte Black)
• Anti-Limescale Hand Shower (Matte Black)
• Matte Black Shower Hose
• Matte Black Aluminum Faucet Frame
• Matte Black Towel Handles
• Chrome-plated Mixer Handles
• Mechanical Mixer Tap
• 60mm Drain
• Assembly Hardware (screws, gaskets, etc.)

Rysunek 1: Wybuchł view diagram showing the main components of the Aurlane LUNAR SQUARE 90 shower cabin, including the pivot door, matte black aluminum profiles, reinforced acrylic tray, and 60mm drain.

4. Konfiguracja i instalacja

This section outlines the general steps for installing your Aurlane LUNAR SQUARE 90 shower cabin. Refer to the detailed assembly instructions provided with your product for specific diagrams and fastening details. Remember, a minimum installation height of 230 cm is required.

1. Przygotuj obszar instalacji: Ensure the floor is level and the wall surfaces are clean and ready for installation. Verify that water supply and drainage connections are correctly positioned.
2. Position the Shower Tray: Place the reinforced white acrylic shower tray in its final position. Ensure it is level and properly supported. Connect the 60mm drain to your plumbing system.
3. Złóż ramę: Construct the matte black aluminum frame according to the manufacturer's instructions. This model is designed for assembly without silicone, relying on precise fittings and gaskets for a watertight seal.
4. Zainstaluj panele szklane: Carefully insert the 4mm tempered glass side and extra-white back panels into the frame profiles. Ensure they are seated correctly and secured.
5. Mount the Pivot Door: Attach the 5mm transparent tempered glass pivot door to the frame. Adjust hinges to ensure smooth operation and a secure magnetic closure.
6. Install Shower Fixtures: Mount the matte black aluminum faucet frame, mechanical mixer tap, chrome-plated mixer handles, height-adjustable rain shower, anti-limescale hand shower, and shower hose. Connect all water lines.
7. Attach Towel Handles: Secure the matte black towel handles to the designated locations.
8. Test szczelności: Before final use, thoroughly test all water connections and seals for any leaks. Run water through the shower system to check functionality.

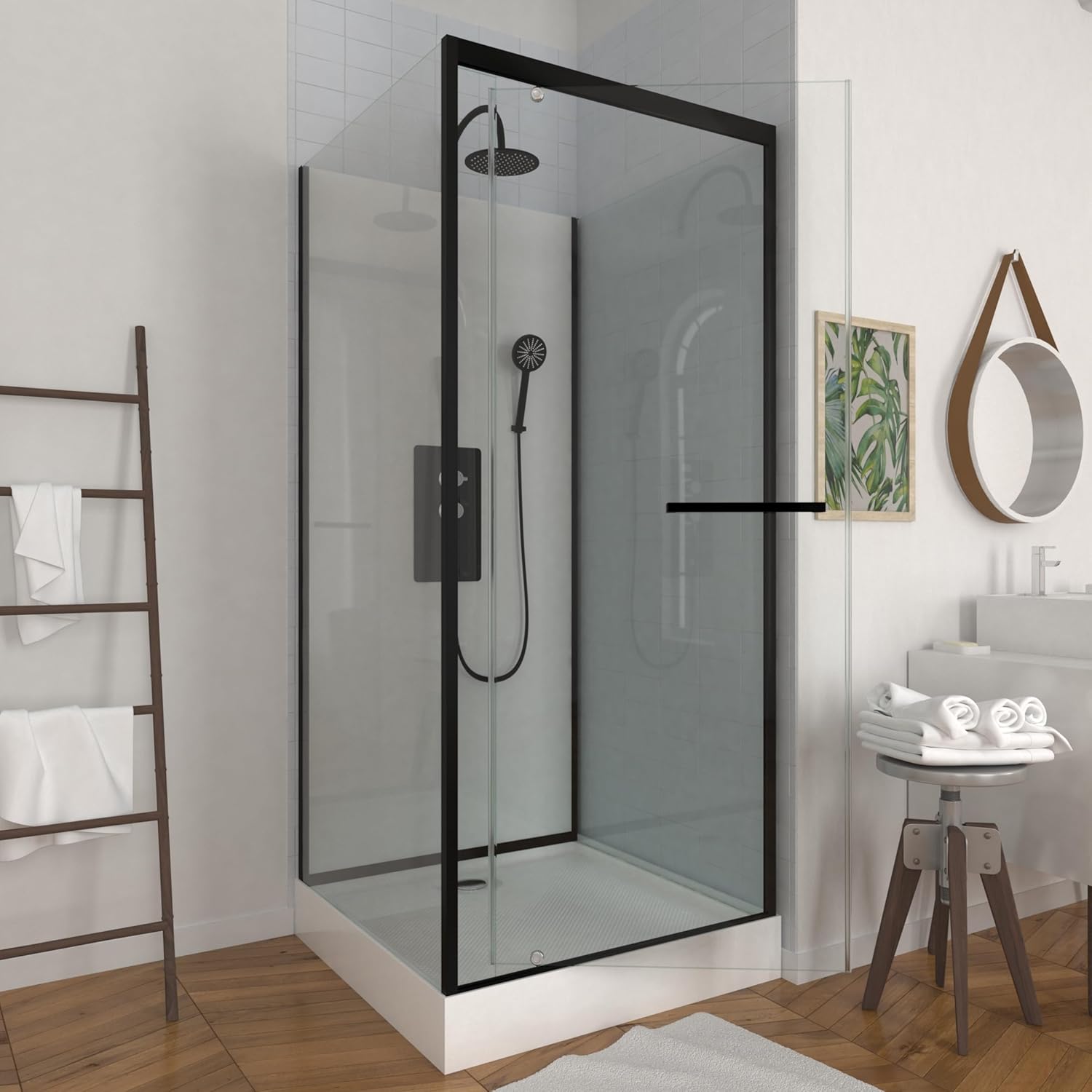

Rysunek 2: Aurlane LUNAR SQUARE 90 shower cabin fully installed, showcasing its matte black frame and clear glass panels in a bathroom setting.

Rysunek 3: Wnętrze view z Aurlane LUNAR SQUARE 90 shower cabin, highlighting the matte black shower panel with integrated mixer, rain shower, and anti-limescale hand shower.

5. Instrukcja obsługi

Using your Aurlane LUNAR SQUARE 90 shower cabin is straightforward:

• Przepływ wody: Use the chrome-plated mixer handles to turn the water on and off and to adjust the water temperature.
• Shower Selection: The mechanical mixer tap allows you to switch between the overhead rain shower and the anti-limescale hand shower.
• Hand Shower Adjustment: The hand shower is designed with anti-limescale nozzles for easy cleaning.
• Pivot Door: The pivot door opens smoothly. Ensure it is fully closed for a secure magnetic seal before showering to prevent water leakage.

6. Konserwacja

Regular cleaning and maintenance will ensure the longevity and pristine appearance of your shower cabin.

• Panele szklane: Clean glass panels regularly with a soft cloth and a non-abrasive glass cleaner. Avoid harsh chemicals or abrasive sponges that can scratch the glass or damage coatings. For anti-limescale hand shower nozzles, gently rub to dislodge mineral deposits.
• Aluminium Profiles: Wipe matte black aluminum profiles z miękkim, damp ściereczką. Nie używaj środków czyszczących o właściwościach ściernych ani rozpuszczalników, ponieważ mogą one uszkodzić wykończenie.
• Acrylic Shower Tray: Clean the reinforced white acrylic shower tray with mild soap and water. Avoid abrasive cleaners or brushes that could scratch the surface.
• Drenaż: Periodically check and clean the 60mm drain to prevent blockages.
• Foki: Inspect door seals and gaskets regularly for wear and tear. Replace if necessary to maintain watertight integrity.

7. Rozwiązywanie Problemów

8. Specyfikacje

9. Gwarancja i wsparcie

Aby uzyskać informacje o gwarancji i obsłudze klienta, zapoznaj się z dokumentacją dołączoną do produktu lub skontaktuj się ze sprzedawcą. Zachowaj dowód zakupu na wypadek roszczeń gwarancyjnych.

For technical assistance or spare parts, please contact Aurlane customer service through their official webstronę internetową lub dane kontaktowe dostarczone wraz z produktem.
