Spares2go Washing Machine Door Seal Instruction Manual

1. Koniec produktuview

This document provides instructions for the Spares2go replacement door seal, designed for specific Siemens washing machine models. This component ensures a watertight seal for the washing machine door, preventing leaks during operation.

Obraz 1: Przód view of the Spares2go replacement washing machine door seal.

2. Zgodność

This Spares2go door seal is compatible with a wide range of Siemens washing machine models. Please verify your washing machine's model number against the list below to ensure proper fit.

Kompatybilne modele:

• WD12H360TI/01, WD12H360TI/20, WD12H360TI/21, WD12H360TI/22
• WD12H420EE/01, WD12H420EE/02, WD12H420EE/03, WD12H420EE/04
• WD12H420EP/01, WD12H420EP/02, WD12H420EP/03
• WD12H460TI/01, WD12H460TI/02, WD12H460TI/03, WD12H460TI/20, WD12H460TI/21, WD12H460TI/22
• WD14H320GB/01, WD14H340GC/01
• WD14H368TI/01, WD14H368TI/20, WD14H368TI/21, WD14H368TI/22
• WD14H420EE/01, WD14H420EE/02, WD14H420EE/03, WD14H420EE/04
• WD14H420EP/01, WD14H420EP/02, WD14H420EP/03
• WD14H420EU/01, WD14H420EU/02, WD14H420EU/03, WD14H420EU/04
• WD14H420GB/01, WD14H420GB/02, WD14H420GB/03, WD14H420GB/04, WD14H420GB/05
• WD14H420OE/01, WD14H420OE/02
• WD14H420TR/01, WD14H420TR/02, WD14H420TR/03
• WD14H421EU/01, WD14H421EU/02, WD14H421EU/03
• WD14H421GB/01
• WD14H42XEE/01, WD14H42XEE/02, WD14H42XEE/03
• WD14H42XEP/01, WD14H42XEP/02, WD14H42XEP/03
• WD14H44/02
• WD14H440/01, WD14H440/02, WD14H440/03, WD14H440/04, WD14H440/05, WD14H440/06
• WD14H441OE/01, WD14H441OE/02, WD14H441OE/03, WD14H441OE/04
• WD14H460FF/01, WD14H460FF/02, WD14H460FF/03, WD14H460FF/04
• WD14H461FF/01, WD14H461FF/02, WD14H461FF/03, WD14H461FF/05
• WD14H468TI/01, WD14H468TI/02, WD14H468TI/03, WD14H468TI/20, WD14H468TI/21, WD14H468TI/22
• WD15G4/90, WD15G421GB/01, WD15G441DN/01
• WD15H590/01

3. Wytyczne dotyczące instalacji

Replacing a washing machine door seal requires careful attention. If you are unsure about any step, it is recommended to consult a qualified technician.

Środki ostrożności:

• Always disconnect the washing machine from the power supply before attempting any repairs or maintenance.
• Zamknąć dopływ wody do pralki.
• Należy nosić odpowiedni sprzęt ochrony osobistej, np. rękawice.

Ogólne kroki instalacji:

1. Access the Old Seal: Open the washing machine door. The old door seal is typically held in place by a retaining spring or clamp around the outer edge and another around the inner drum.
2. Usuń zewnętrzną warstwęamp: Carefully locate and remove the outer retaining spring or clamp. This may require a screwdriver or pliers.
3. Detach from Door Frame: Gently pull the outer lip of the old seal away from the door frame.
4. Usuń wewnętrzny Clamp: Wejdź do środka bębna i znajdź wewnętrzną blokadęamp or spring that secures the seal to the drum. Remove this clamp.
5. Disconnect Drain Tube (if applicable): Some seals have a small drain tube at the bottom. Disconnect this if present.
6. Usuń starą plombę: Gdy oba klamps are removed and any drain tubes disconnected, carefully pull the old seal out of the washing machine.
7. Czysty obszar: Thoroughly clean the area where the new seal will be installed, removing any dirt, soap residue, or mold.
8. Zamontuj nową uszczelkę: Position the new Spares2go door seal, ensuring the drain holes (if any) align with the bottom of the drum.
9. Bezpieczna wewnętrzna krawędź: Carefully fit the inner lip of the new seal around the drum opening. Reinstall the inner retaining clamp or spring, ensuring it is securely seated.
10. Bezpieczna krawędź zewnętrzna: Fit the outer lip of the new seal around the door frame. Reinstall the outer retaining spring or clamp, zapewniając dokładne dopasowanie.
11. Reconnect Drain Tube (if applicable): Reconnect any small drain tubes.
12. Test: Close the door and run a short, empty wash cycle to check for leaks before normal use.

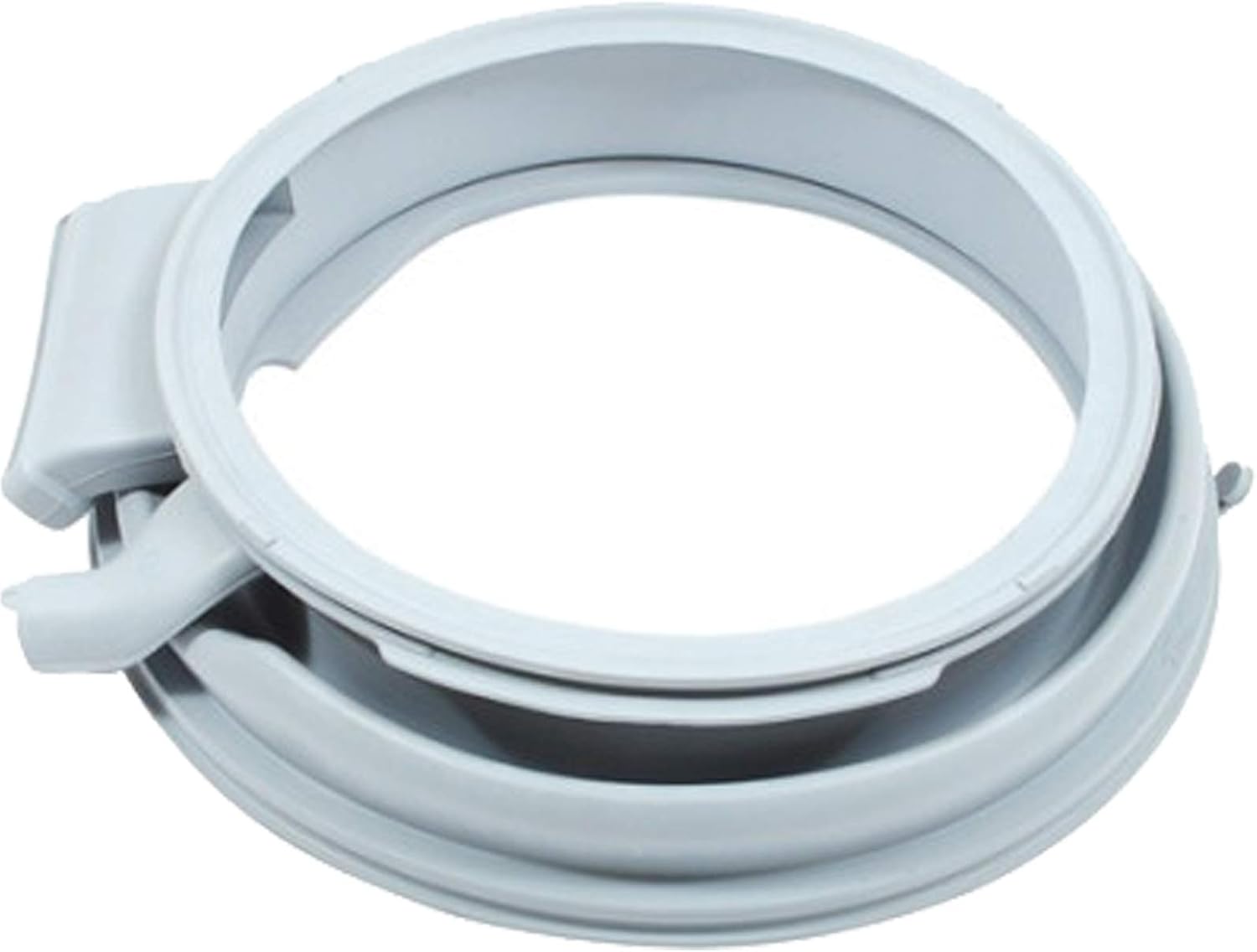

Obraz 2: Bok view of the door seal, showing the drainage channel.

4. Zagadnienia operacyjne

Once the door seal is correctly installed, ensure the washing machine door closes completely and securely before starting any wash cycle. A properly functioning door seal is crucial for the safe and efficient operation of your appliance.

5. Konserwacja

Regular maintenance of your washing machine door seal can extend its lifespan and prevent issues such as leaks and mold growth.

• Wytrzyj po użyciu: After each wash cycle, wipe the door seal dry with a clean cloth to remove excess water and detergent residue.
• Sprawdź pod kątem zanieczyszczeń: Periodically check the seal for any trapped items like coins, hairpins, or small clothing articles, which can damage the seal or cause leaks.
• Regularnie czyść: Clean the seal thoroughly with a mild detergent or a specialized washing machine cleaner to prevent mold and mildew buildup. Pay attention to the folds and crevices.
• Zostaw drzwi uchylone: When the washing machine is not in use, leave the door slightly ajar to allow air circulation and prevent moisture buildup, which can lead to odors and mold.

6. Rozwiązywanie Problemów

If you encounter issues after replacing the door seal, consider the following common problems and solutions:

• Wycieki z drzwi:
  Przyczyna: Improper installation of the retaining clamps, seal not seated correctly, or damage to the new seal.
  Rozwiązanie: Re-check both inner and outer retaining clamps for secure fit. Ensure the seal is evenly seated around the drum and door frame. Inspect the seal for any tears or punctures.
• Mold or Odor:
  Przyczyna: Gromadzenie się wilgoci i resztek detergentu.
  Rozwiązanie: Clean the seal thoroughly as described in the Maintenance section. Ensure the door is left ajar after use to allow drying.
• Drzwi nie zamykają się prawidłowo:
  Przyczyna: Seal is not correctly aligned or is twisted.
  Rozwiązanie: Re-align the seal, ensuring it is not twisted or bunched up, especially around the door latch mechanism.

7. Specyfikacje

8. Wsparcie i gwarancja

For further assistance or inquiries regarding this Spares2go product, please refer to the retailer or manufacturer's official support channels. Specific warranty information for this replacement part may vary and is generally provided at the point of purchase or on the manufacturer's webstrona.

As per available information, specific details on spare parts availability and software updates are not provided for this item.
