Deerma NU05 Rechargeable Personal Power Blender Instruction Manual

1. Wprowadzenie

Thank you for choosing the Deerma NU05 Rechargeable Personal Power Blender. This compact and portable blender is designed for convenient preparation of fresh juices, smoothies, and other blended beverages. Featuring a 400 ml Tritan jar and a powerful motor, it offers a simple and efficient blending experience. Please read this manual thoroughly before first use to ensure proper operation and maintenance.

2. Informacje dotyczące bezpieczeństwa

• Przeczytaj wszystkie instrukcje: Before operating the blender, carefully read and understand all instructions provided in this manual.
• Bezpieczeństwo elektryczne: Do not immerse the motor base in water or other liquids. Ensure the charging port is dry before connecting the charging cable.
• Bezpieczeństwo ostrza: The blades are sharp. Handle with extreme care when assembling, disassembling, or cleaning the unit. Avoid contact with moving parts.
• Bezpieczeństwo dzieci: Keep the blender out of reach of children. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities unless supervised.
• Prawidłowe użycie: Do not operate the blender without the jar securely attached. Do not overfill the jar.
• Temperatura: Do not blend hot liquids. Allow hot ingredients to cool before blending.
• Twarde składniki: Avoid blending extremely hard ingredients such as whole nuts, coffee beans, or large ice cubes, as this may damage the blades or motor.
• Ładowanie: Use only the provided charging cable. Do not attempt to charge the blender with damaged cables or chargers.
• Konserwacja: Do not attempt to repair or modify the blender yourself. Contact customer support for any issues.

3. Koniec produktuview

The Deerma NU05 Personal Power Blender consists of a motor base, a blending jar, and a blade assembly integrated into the lid. It features a simple one-button operation and indicator lights for status feedback.

Figure 3.1: Deerma NU05 Personal Power Blender, showcasing its compact design and rose gold finish.

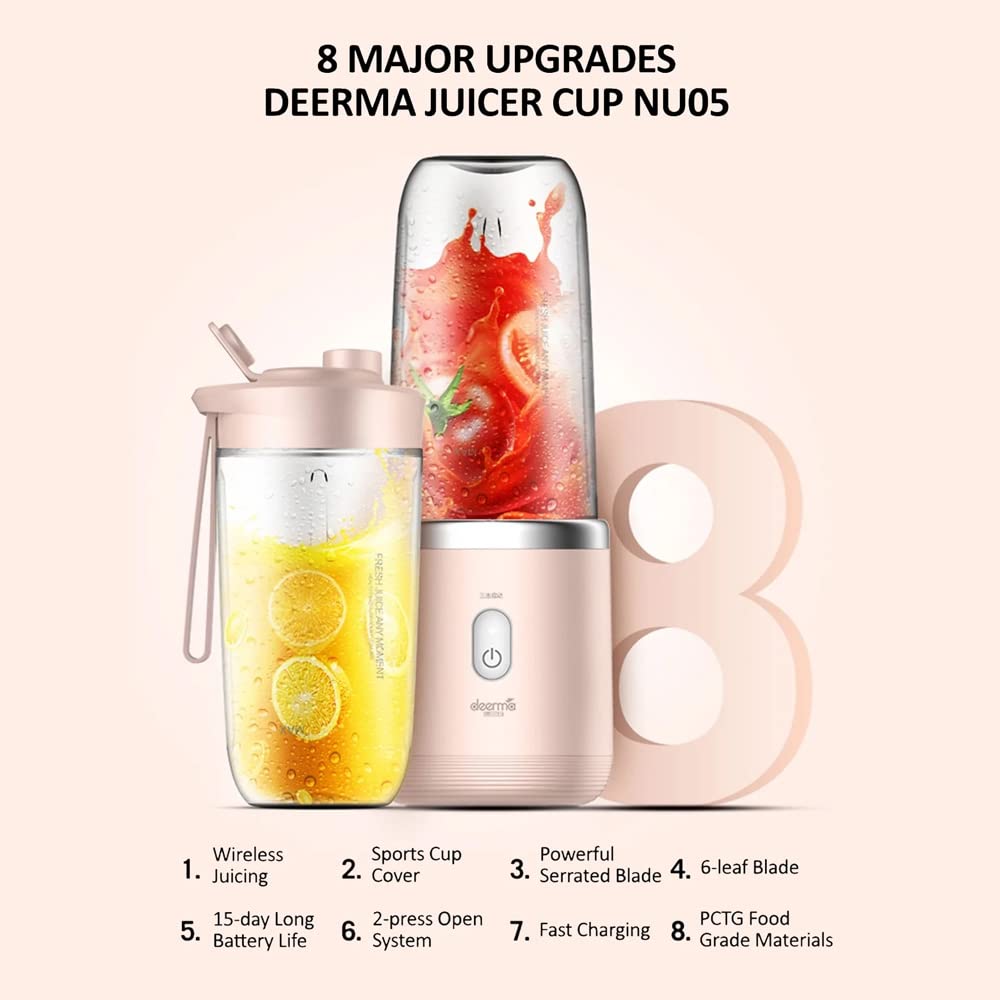

Figure 3.2: Key features of the Deerma NU05, including wireless juicing, sports cup design, powerful serrated 6-leaf blade, 15-day battery life, 2-press open system, fast charging, and PCTG food-grade materials.

Figure 3.3: Indicator Light Meanings:
Niebieskie światło: Indicates the cup is installed properly and the device has sufficient charge, ready for use.
Czerwone światło: Indicates the cup is not installed correctly or the battery charge is too low. Check the device before use.

4. Konfiguracja

1. Czyszczenie wstępne: Before first use, wash the blending jar and lid with warm soapy water. Rinse thoroughly and dry all parts. Do not immerse the motor base in water.
2. Ładowanie: Ensure the blender is fully charged before first use. Connect the charging cable to the charging port on the motor base and plug it into a suitable USB power source. The indicator light will show charging status (refer to Figure 3.3).
3. Montaż: Place the blade assembly (integrated into the lid) onto the motor base. Ensure it is securely twisted and locked into place. Then, attach the Tritan jar to the blade assembly, twisting until it clicks securely.

5. Obsługa

1. Przygotuj składniki: Cut fruits and vegetables into small pieces (approximately 1-2 cm) to ensure optimal blending.
2. Dodaj składniki: Place your desired ingredients into the Tritan jar. For best results, add liquids first, then soft ingredients, and finally harder ingredients. Do not exceed the maximum fill line (400 ml).
3. Zabezpiecz pokrywę: Ensure the lid with the blade assembly is securely fastened onto the jar, and the jar is securely attached to the motor base. The blue indicator light should illuminate, confirming proper assembly and readiness.
4. Rozpocznij mieszanie: Double-press the power button to start the blending cycle. The blender will operate for a preset duration (typically 30-40 seconds) or until you press the button again to stop.
5. Wskazówki dotyczące mieszania:
   • If ingredients are stuck, gently shake the blender while it is operating.
   • For thicker mixtures, add more liquid.
   • Do not continuously operate the blender for more than 1 minute to prevent overheating. Allow it to cool down if multiple cycles are needed.
6. Po zmieszaniu: Once blending is complete, carefully unscrew the jar from the motor base. You can drink directly from the jar or pour the contents into another container.

Figure 5.1: The Deerma NU05 blender filled with fresh berries and strawberries, ready for blending.

Figure 5.2: The Deerma NU05 blender containing avocado and pineapple chunks, demonstrating its capacity for various ingredients.

6. Konserwacja

Regular cleaning and proper storage will extend the life of your Deerma NU05 blender.

• Cleaning the Jar and Lid: After each use, rinse the jar and blade assembly immediately to prevent food residue from drying. You can fill the jar with water and a drop of dish soap, then run a short blending cycle to clean the blades. Disassemble the jar and lid, wash with warm soapy water, and rinse thoroughly.
• Czyszczenie podstawy silnika: Wytrzyj podstawę silnika adamp cloth. Do not immerse it in water or place it under running water. Ensure the charging port is dry before cleaning.
• Wysuszenie: Przed ponownym złożeniem lub przechowywaniem należy odczekać, aż wszystkie części całkowicie wyschną na powietrzu.
• Składowanie: Przechowuj blender w czystym i suchym miejscu, z dala od bezpośredniego światła słonecznego i ekstremalnych temperatur.

7. Rozwiązywanie Problemów

8. Specyfikacje

• Model: DEM-NU05
• Pojemność: 400 ml
• Materiał korpusu: Trytan
• Materiał ostrza: Stal nierdzewna
• Źródło zasilania: Zasilanie bateryjne (ładowalne)
• Tomtage: 220 wolty
• Wymiary produktu: 32D x 11W x 10H centymetrów
• Waga przedmiotu: 820 gramów
• Zawartość zestawu: 1 x Juice blender
• Dodatek specjalny: Bezprzewodowy

9. Gwarancja i wsparcie

For warranty information and customer support, please contact the manufacturer or authorized importer. Keep your purchase receipt as proof of purchase.

Producent: Guangdong Deerma Technology Co., Ltd., Foshan city, Guangdong Provine, China

Importer (Indie): ALLIN IMPEX SERVICES PVT LTD, C-38, SECTOR-63, NOIDA, UP, 201301
Przenośny: 9313132789
E-mail: sales@allinexporters.com
