Echo 10101044332/10101044331 Cylinder Head Base Gasket Instruction Manual

1. Koniec produktuview

This document provides instructions for the installation and proper use of the OEM Genuine Echo Cylinder Head Base Gasket, part numbers 10101044332 and 10101044331. This is a genuine Echo replacement part, supplied new and bulk packed. It is designed for use with various Echo equipment models including SRM-2100, LHD-1700, SV-4A, and PE-2400. The gasket ensures a proper seal between the cylinder head and cylinder block, which is critical for maintaining engine compression and preventing leaks.

Image: Echo Cylinder Head Base Gasket (Part 10101044332/10101044331)

The gasket is an essential component for the reliable operation of your Echo equipment's engine. It is manufactured to OEM specifications to ensure a precise fit and durable performance.

2. Informacje dotyczące bezpieczeństwa

Always prioritize safety when performing maintenance or repairs on any equipment. Failure to follow safety guidelines can result in injury or damage to the equipment.

• Zapoznaj się z instrukcją obsługi urządzenia: Always refer to your specific Echo equipment's owner's manual or service manual for detailed safety procedures and disassembly/assembly instructions.
• Środki ochrony osobistej (PPE): Wear appropriate PPE, including safety glasses or goggles, and work gloves, to protect against debris, sharp edges, and chemicals.
• Stan silnika: Ensure the engine is completely cool before beginning any work. Hot engine components can cause severe burns.
• Odłącz zasilanie: Disconnect the spark plug wire to prevent accidental engine starting during maintenance.
• Wentylacja: Work in a well-ventilated area, especially if using cleaning solvents.

3. Instalacja (konfiguracja)

Proper installation of the cylinder head base gasket is crucial for engine performance and longevity. Follow these general steps, always cross-referencing with your equipment's specific service manual.

1. Przygotowanie: Ensure the engine is completely cool and clean. Disconnect the spark plug wire to prevent accidental starting. Gather all necessary tools, including a torque wrench.
2. Demontaż: Carefully remove the cylinder head according to your equipment's service manual. Pay attention to the order and position of all components, including bolts, washers, and any other gaskets.
3. Czyszczenie powierzchni: Thoroughly clean both the cylinder block and cylinder head mating surfaces. Remove all traces of old gasket material, carbon deposits, and oil. Use a suitable gasket scraper and solvent, ensuring no debris falls into the engine's internal components. The surfaces must be perfectly clean and smooth for a proper seal.
4. Umieszczenie uszczelki: Carefully position the new Echo 10101044332/10101044331 gasket onto the cylinder block. Ensure it aligns correctly with all bolt holes and passages. The gasket should sit flat without any kinks, bends, or obstructions.

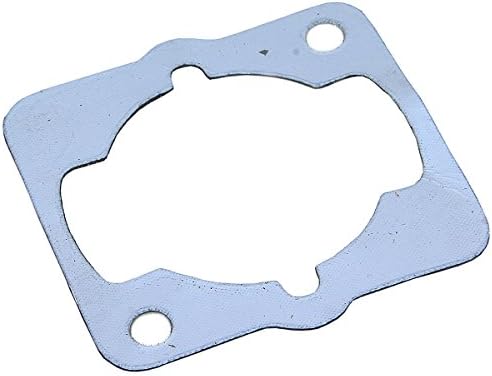

Image: Detail of Gasket Material and Cut

5. Ponowny montaż: Carefully place the cylinder head back onto the gasket and cylinder block. Install cylinder head bolts and tighten them to the torque specifications provided in your equipment's service manual. Follow the recommended tightening sequence (e.g., a cross-pattern) to ensure even pressure across the gasket surface. Uneven tightening can lead to leaks or gasket failure.
6. Kontrole końcowe: Reconnect the spark plug wire and any other components removed during disassembly. Double-check all connections for security and proper fitment.

4. Zagadnienia dotyczące użytkowania

Once the gasket is installed, its primary function is to maintain the engine's seal. The following considerations apply after installation:

• Initial Engine Start: After reassembly, start the engine and allow it to run for a short period. Carefully observe the cylinder head area for any signs of oil, fuel, or exhaust gas leaks.
• Monitorowanie wydajności: Pay attention to engine performance. Unusual noises, loss of power, or difficulty starting could indicate an issue with the gasket seal or other related components.
• Okres docierania: Some engine repairs may require a short break-in period. Refer to your equipment's manual for any specific recommendations after major engine work.

5. Pielęgnacja i przechowywanie

This gasket is a replacement part and, once installed, becomes an integral part of the engine. It does not require separate maintenance. However, proper care of your equipment will ensure the longevity of all components, including the gasket.

• Konserwacja silnika: Adhere to the regular maintenance schedule outlined in your Echo equipment's owner's manual. This includes oil changes, air filter cleaning, and spark plug inspection, all of which contribute to overall engine health.
• Unused Gaskets: Store any unused gaskets in their original packaging in a cool, dry place, away from direct sunlight, extreme temperatures, and chemicals. This prevents degradation and ensures the gasket remains in optimal condition for future use.

6. Rozwiązywanie typowych problemów

If you encounter problems after installing the cylinder head base gasket, consider the following common issues:

• Engine Leaks: If oil, fuel, or combustion gases are leaking from the cylinder head area, the gasket may be improperly seated, damaged during installation, or the cylinder head bolts may not be torqued correctly.
• Rozwiązanie: Re-check the torque specifications and tightening sequence for the cylinder head bolts. If leaks persist, it may be necessary to remove the cylinder head, inspect the gasket for damage, clean the mating surfaces again, and re-install with a new gasket if the old one is compromised.
• Utrata kompresji: A faulty or improperly installed head gasket can lead to a loss of engine compression, resulting in reduced power, misfires, or difficulty starting.
• Rozwiązanie: Perform a compression test to confirm low compression. If confirmed, the gasket is a likely culprit. Re-installation or replacement may be required.
• Przegrzanie: While less common for a base gasket, severe leaks can sometimes contribute to engine overheating due to loss of coolant (if applicable) or improper combustion.
• Rozwiązanie: Address any leaks immediately. Ensure proper cooling system function (if applicable to your equipment).

For complex issues or if you are unsure about the repair process, it is recommended to consult an authorized Echo service technician.

7. Specyfikacje

8. Gwarancja i wsparcie

As an OEM Genuine Echo replacement part, this gasket is subject to Echo's standard warranty policies for replacement components. Specific warranty terms may vary.

• Informacje o gwarancji: For detailed warranty information, please refer to the official Echo product warranty documentation that came with your equipment, or visit the official Echo webstrona.
• Obsługa klienta: If you require technical assistance, have questions about compatibility, or need to report a defective part, please contact Echo customer support directly or consult an authorized Echo service center.
