SIEMENS LDU11.523A17 Gas Valve Proving System User Manual

Model: LDU11.523A17

1. Wprowadzenie

This manual provides essential information for the installation, operation, and maintenance of the SIEMENS LDU11.523A17 Gas Valve Proving System. This system is designed to ensure the safe and reliable operation of gas valves in industrial applications by verifying their leak-tightness before burner ignition, contributing to overall system safety and efficiency.

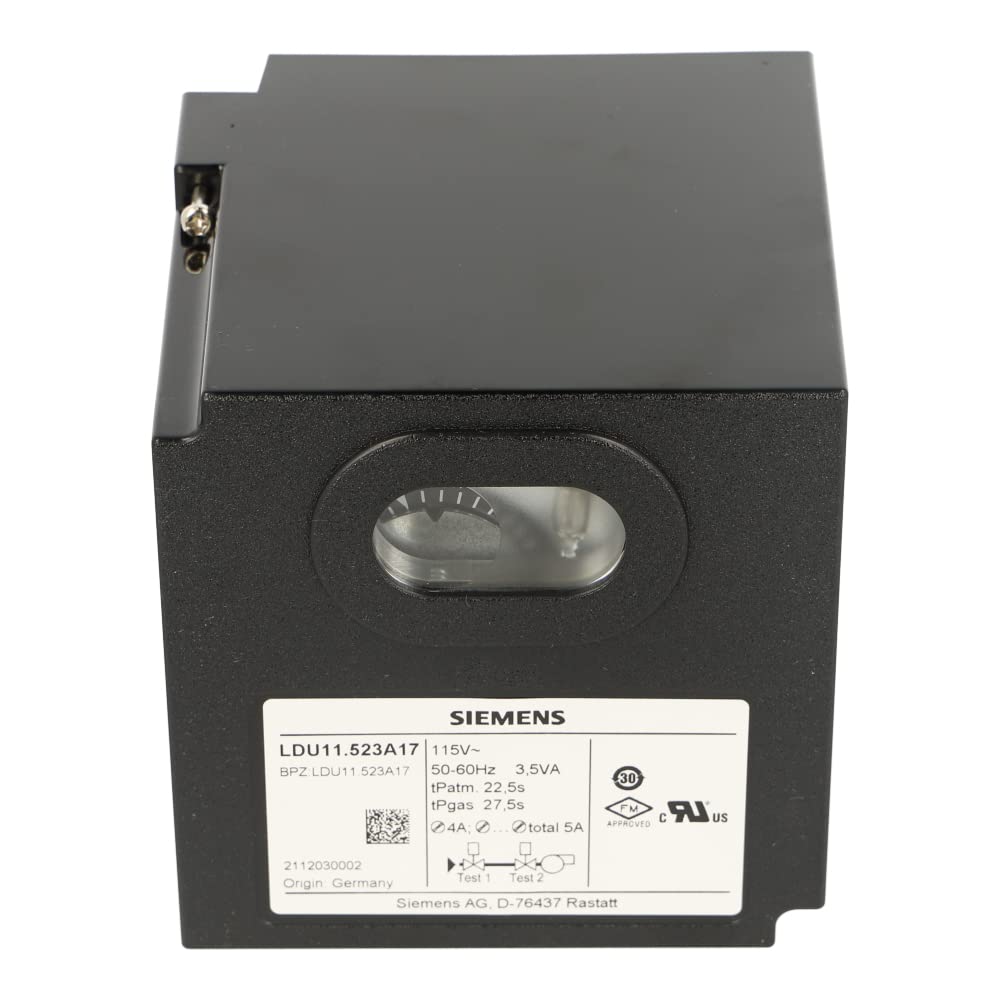

Przód view of the SIEMENS LDU11.523A17 Gas Valve Proving System.

Przód view of the SIEMENS LDU11.523A17 Gas Valve Proving System.

2. Informacje dotyczące bezpieczeństwa

Adherence to the following safety precautions is crucial to prevent personal injury, equipment damage, and ensure proper system function.

  • Always read and understand all instructions in this manual before attempting installation, operation, or maintenance.
  • Installation, electrical connections, and maintenance procedures must be performed exclusively by qualified and authorized personnel.
  • Ensure that all power supplies are disconnected and locked out before performing any service or maintenance on the unit.
  • Verify proper grounding of the system to prevent electrical hazards.
  • Comply with all applicable local, national, and international electrical and safety codes and regulations.
  • Do not operate the system if any visible damage to the unit or its components is observed.
A universal safety warning symbol indicating important precautions.

A universal safety warning symbol indicating important precautions.

3. Konfiguracja i instalacja

Follow these guidelines for the correct setup and installation of the LDU11.523A17 system.

3.1. Montaż

Mount the unit securely in a clean, dry environment, protected from excessive vibration, direct heat sources, and corrosive atmospheres. Ensure sufficient clearance around the unit for proper ventilation and ease of wiring connections.

3.2. Okablowanie

Connect the power supply and control signals according to the provided wiring diagram. All electrical connections must conform to local electrical codes.

  • Zasilanie: AC 100-110 V, 50/60 Hz.
  • Sygnały wejściowe: Connect the necessary control signals for valve proving, including T3 (pre-purge time) and T4 (proving time) inputs.
  • Sygnały wyjściowe: Connect status indicators and alarm relays as required for system integration.
Detailed wiring diagram for the SIEMENS LDU11.523A17 Gas Valve Proving System, showing connections for power, inputs, and outputs.

Detailed wiring diagram for the SIEMENS LDU11.523A17 Gas Valve Proving System, showing connections for power, inputs, and outputs.

4. Instrukcja obsługi

This section details the operational procedures for the SIEMENS LDU11.523A17 Gas Valve Proving System.

4.1. Włącz zasilanie

Apply power to the unit (AC100-110V). The system will initiate a self-test sequence. Upon successful completion, the system will indicate readiness.

4.2. Proving Cycle

The LDU11.523A17 automatically initiates a gas valve proving cycle before allowing burner ignition. This cycle involves pressurizing the section of the gas valve being tested and monitoring for any pressure drops that would indicate a leak.

  • T3 (Pre-purge time): Configured for 5 seconds. This is the initial time period for the system to prepare and establish stable conditions before the active leak detection phase.
  • T4 (Proving time): Configured for 5 seconds. This is the duration during which the system actively monitors the gas valve for leaks. A successful proving cycle confirms the valve's integrity.

4.3. Wskaźniki stanu

Monitor the LED indicators on the unit for real-time system status:

  • Zielona dioda LED: Indicates the system is ready for operation or that the proving cycle was successful.
  • Czerwona dioda LED: Indicates a fault condition, typically a gas leak detected during the proving cycle or a system error.
Z bliska view of the LED status indicators on the SIEMENS LDU11.523A17 unit, showing green for ready and red for fault.

Z bliska view of the LED status indicators on the SIEMENS LDU11.523A17 unit, showing green for ready and red for fault.

5. Konserwacja

Regular maintenance is essential to ensure the continued optimal performance, reliability, and longevity of your LDU11.523A17 system.

5.1. Rutynowe kontrole

  • Roczna inspekcja: Annually inspect all wiring and connections for signs of wear, damage, or loose terminals.
  • Czystość: Keep the unit's exterior clean and free from dust, debris, and moisture. Do not use abrasive cleaners.
  • Weryfikacja wskaźnika: Periodically verify that the LED status indicators are functioning correctly during system operation.

5.2. Kalibracja

Any calibration or internal adjustments should only be performed by authorized SIEMENS service personnel or certified technicians, strictly following manufacturer guidelines and using specialized equipment.

A technician performing a routine inspection on industrial control equipment, similar to the SIEMENS LDU11.523A17.

A technician performing a routine inspection on industrial control equipment, similar to the SIEMENS LDU11.523A17.

6. Rozwiązywanie Problemów

This section provides solutions for common issues encountered with the LDU11.523A17 Gas Valve Proving System. For problems not listed here, contact technical support.

ProblemMożliwa przyczynaRozwiązanie
Red LED active / Fault indicationGas leak detected during proving cycle.Inspect gas valves and associated piping for leaks. Rectify any leaks found.
Jednostka nie ma mocyPower supply issue or incorrect voltage.Verify the AC100-110V power supply is connected and active. Check fuses or circuit breakers.
System not initiating proving cycleIncorrect or missing input signals (T3/T4).Check the connections and functionality of the T3 and T4 input signals from the control system.
Intermittent faultsLoose wiring connections or environmental interference.Tighten all terminal connections. Ensure proper grounding and shielding if electromagnetic interference is suspected.
A visual representation of a troubleshooting flowchart, guiding users through common problems and solutions for industrial equipment.

A visual representation of a troubleshooting flowchart, guiding users through common problems and solutions for industrial equipment.

7. Specyfikacje

Key technical specifications for the SIEMENS LDU11.523A17 Gas Valve Proving System:

  • Model: LDU11.523A17
  • Marka: SIEMENS
  • Zasilanie: Prąd zmienny 100-110 V, 50/60 Hz
  • Pre-purge Time (T3): 5 sekund
  • Proving Time (T4): 5 sekund
  • Aplikacja: Gas Valve Proving System
  • Producent: Siemens
  • ASIN: B07HCX7NP3
  • Data pierwszej dostępności: 17 lipca 2019 r.
Product label of the SIEMENS LDU11.523A17 Gas Valve Proving System, displaying model number, voltage, and other key specifications.

Product label of the SIEMENS LDU11.523A17 Gas Valve Proving System, displaying model number, voltage, and other key specifications.

8. Gwarancja i wsparcie

For detailed warranty information, technical assistance, or service inquiries regarding your SIEMENS LDU11.523A17 Gas Valve Proving System, please refer to the official SIEMENS webodwiedź witrynę lub skontaktuj się bezpośrednio z działem obsługi klienta.

Producent: Siemens

Kontakt: Refer to the official SIEMENS website for regional support contacts and service centers.

Zasoby internetowe: www.siemens.com

The official SIEMENS logo, representing the manufacturer of the gas valve proving system.

The official SIEMENS logo, representing the manufacturer of the gas valve proving system.

© 2024 SIEMENS. Wszelkie prawa zastrzeżone.
