Goulds AVB10050A0X0X0X1 Aquavar Intelligent Pump Controller User Manual

1. Wprowadzenie

This manual provides essential information for the safe and efficient installation, operation, and maintenance of the Goulds AVB10050A0X0X0X1 Aquavar Intelligent Pump Controller. Please read this manual thoroughly before attempting to install or operate the unit. Retain this manual for future reference.

2. Informacje dotyczące bezpieczeństwa

WARNING: Electrical shock hazard. Installation and servicing must be performed by qualified personnel only. Disconnect all power before servicing.

• Always ensure the main power supply is disconnected before performing any installation, maintenance, or troubleshooting procedures.
• Stosuj się do wszystkich lokalnych i krajowych przepisów dotyczących instalacji elektrycznych.
• Zapewnij prawidłowe uziemienie urządzenia.
• Do not operate the controller with damaged wiring or components.
• This controller is designed for specific applications. Do not use it for purposes other than those specified.

3. Koniec produktuview

The Goulds AVB10050A0X0X0X1 Aquavar Intelligent Pump Controller is a sophisticated device designed to optimize the performance and efficiency of pump systems. It provides variable speed control for single-phase pumps, ensuring consistent water pressure and energy savings.

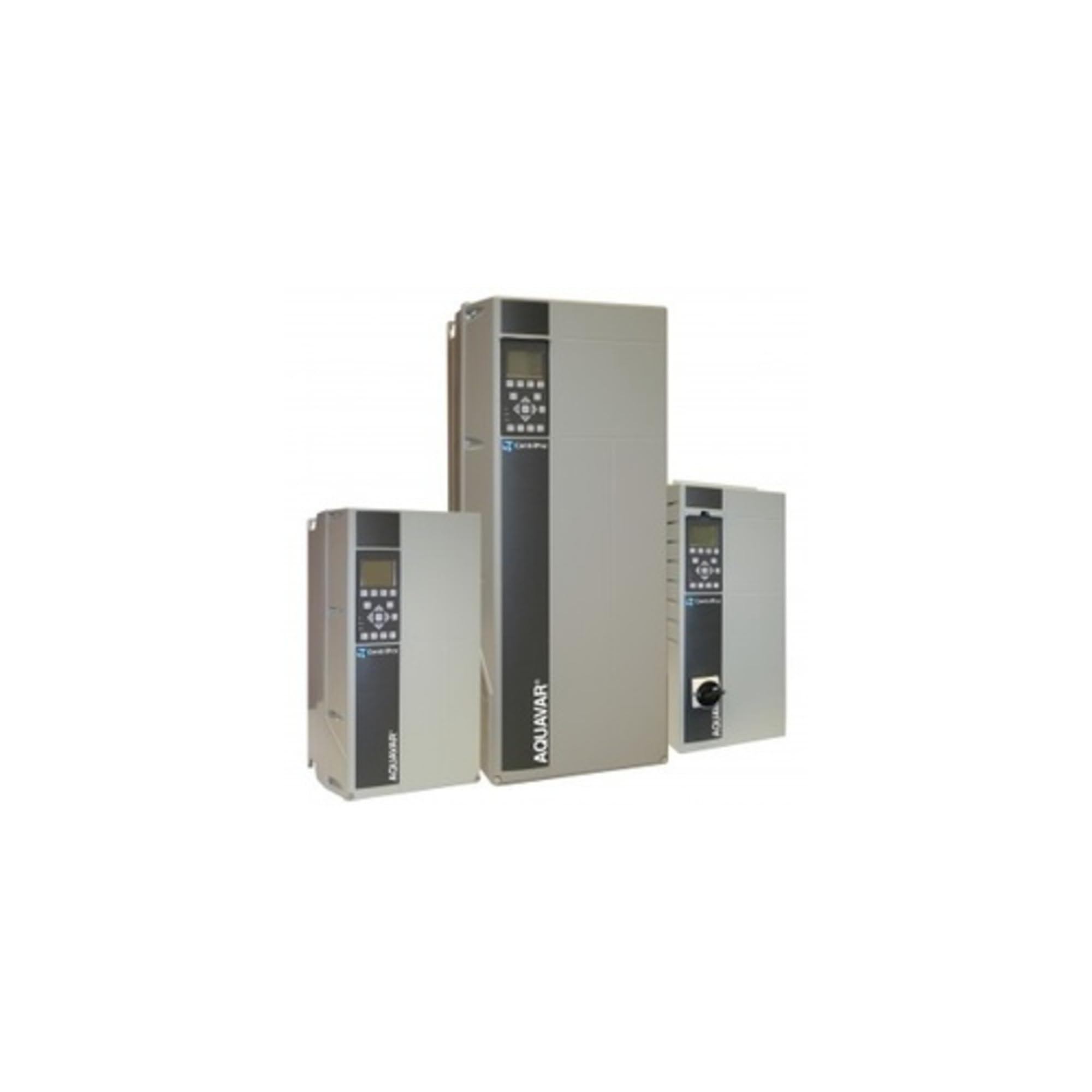

Obraz 1: Przód view of the Goulds AVB10050A0X0X0X1 Aquavar Intelligent Pump Controller, showcasing its robust enclosure and control interface.

Główne cechy:

• Wejście Voltage: 230 V
• Phase: Single Phase (1 PH)
• Horsepower Rating: 5 HP
• Intelligent variable speed control for constant pressure.
• Built-in motor protection.
• User-friendly interface for configuration and monitoring.

4. Konfiguracja i instalacja

Installation of the Aquavar Intelligent Pump Controller requires electrical and plumbing expertise. It is strongly recommended that installation be performed by a qualified professional.

4.1 Montaż

1. Select a suitable location that is dry, well-ventilated, and protected from direct sunlight, extreme temperatures, and vibrations.
2. Należy zapewnić odpowiednią ilość miejsca wokół urządzenia, aby umożliwić wentylację i serwisowanie.
3. Mount the controller securely to a rigid surface using appropriate fasteners.

4.2 Połączenia elektryczne

CAUTION: Verify all wiring connections are correct before applying power to prevent damage to the controller or pump.

• Moc wejściowa: Connect the 230V, single-phase power supply to the designated terminals. Ensure proper wire gauge and overcurrent protection.
• Podłączenie silnika: Connect the pump motor wiring to the motor output terminals.
• Połączenia czujnika: Connect pressure transducers or other control sensors to the appropriate input terminals as per the wiring diagram provided with the unit.
• Grunt: Ensure the controller is properly grounded according to local electrical codes.

Refer to the detailed wiring diagrams included with your product packaging for specific connection points and requirements.

5. Instrukcja obsługi

Once the controller is properly installed and wired, follow these steps for initial startup and operation.

5.1 Początkowe włączenie zasilania

1. After verifying all connections are secure and correct, apply power to the controller.
2. Observe the display for any error codes or status indicators.
3. The controller will typically perform a self-diagnostic check.

5.2 Konfiguracja i ustawienia

The Aquavar controller features a user interface for setting operational parameters such as desired pressure, pump protection limits, and other system-specific settings. Consult the dedicated programming guide (usually a separate document or section within the main manual) for detailed instructions on navigating the menu and adjusting parameters.

5.3 Normalna praca

During normal operation, the controller will automatically adjust pump speed to maintain the set pressure. Monitor the display for operational status and any alerts.

6. Konserwacja

Regular maintenance ensures the longevity and reliable operation of your Aquavar Intelligent Pump Controller.

• Przeglądy okresowe: Annually inspect the controller for any signs of physical damage, corrosion, or loose connections.
• Czyszczenie: Keep the exterior of the controller clean and free from dust and debris. Use a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• Wentylacja: Ensure that ventilation openings are clear and not obstructed to prevent overheating.
• Połączenia elektryczne: Periodically check all electrical connections for tightness. Loose connections can lead to overheating and system malfunction.

7. Rozwiązywanie Problemów

W tej sekcji znajdziesz wskazówki dotyczące typowych problemów. W przypadku skomplikowanych problemów skontaktuj się z wykwalifikowanym personelem serwisowym.

Typowe problemy i rozwiązania:

• Kontroler się nie włącza:
  • Sprawdź główne źródło zasilania i wyłącznik obwodu.
  • Verify all input power connections are secure.
• Pompa nie uruchamia się:
  • Check for error codes on the controller display.
  • Ensure the pressure sensor is correctly installed and functioning.
  • Verify pump motor connections.
• Erratic Pressure / Pump Cycling:
  • Inspect the pressure sensor for damage or blockages.
  • Check for leaks in the plumbing system.
  • Review controller settings for appropriate pressure setpoints.

If the issue persists after attempting these solutions, contact Goulds technical support or a certified service technician.

8. Specyfikacje

9. Gwarancja i wsparcie

Warranty information for the Goulds AVB10050A0X0X0X1 Aquavar Intelligent Pump Controller is typically provided at the time of purchase or can be found on the official Goulds webStrona. Zachowaj dowód zakupu na wypadek roszczeń gwarancyjnych.

For technical support, service, or to inquire about replacement parts, please contact Goulds customer service or your authorized distributor. Provide the model number (AVB10050C0X0X0X1) and serial number (if applicable) when seeking assistance.

Goulds Official Webstrona: www.goulds.com
