DollaTek 5-Piece 4x4 Universal 16-Key Membrane Keypad User Manual

1. Wprowadzenie

This manual provides detailed instructions for the DollaTek 5-piece 4x4 Universal 16-Key Membrane Keypad. This keypad is a versatile input device designed for use with microcontrollers such as Arduino, Raspberry Pi, and other embedded systems. It offers 16 tactile keys arranged in a 4x4 matrix, making it suitable for various data entry and control applications.

Rycina 1: Przód view of the DollaTek 4x4 16-Key Membrane Keypad.

2. Funkcje produktu

• 16 Tactile Keys: Arranged in a 4x4 matrix (0-9, A-D, *, #) for comprehensive input.
• Złącze 8-stykowe: Standard FPC connector for easy integration with microcontrollers.
• Podkład klejący: Features a removable white sticker on the back for secure mounting.
• Durable Membrane Design: Provides reliable and consistent key presses.
• Kompaktowy rozmiar: Ideal for projects with limited space.

3. Zawartość opakowania

Każdy pakiet zawiera:

• 5x DollaTek 4x4 16-Key Membrane Keypads

4. Specyfikacje

5. Konfiguracja

To integrate the DollaTek 4x4 16-Key Membrane Keypad into your project, follow these general steps:

1. Identyfikacja pinów: The keypad features an 8-pin FPC connector. These pins correspond to the 4 rows and 4 columns of the keypad matrix. Typically, the first 4 pins are for rows and the next 4 for columns, or vice-versa. Refer to your specific microcontroller's documentation or a keypad library for exact pin assignments.
2. Connect to Microcontroller: Connect the 8 pins of the keypad to digital I/O pins on your microcontroller (e.g., Arduino). It is common practice to connect the row pins to output pins and column pins to input pins with pull-up resistors (either external or internal to the microcontroller).
3. Montowanie: The back of the keypad has a white adhesive sticker. Peel off the protective layer to expose the adhesive and firmly attach the keypad to a clean, dry surface on your project enclosure.

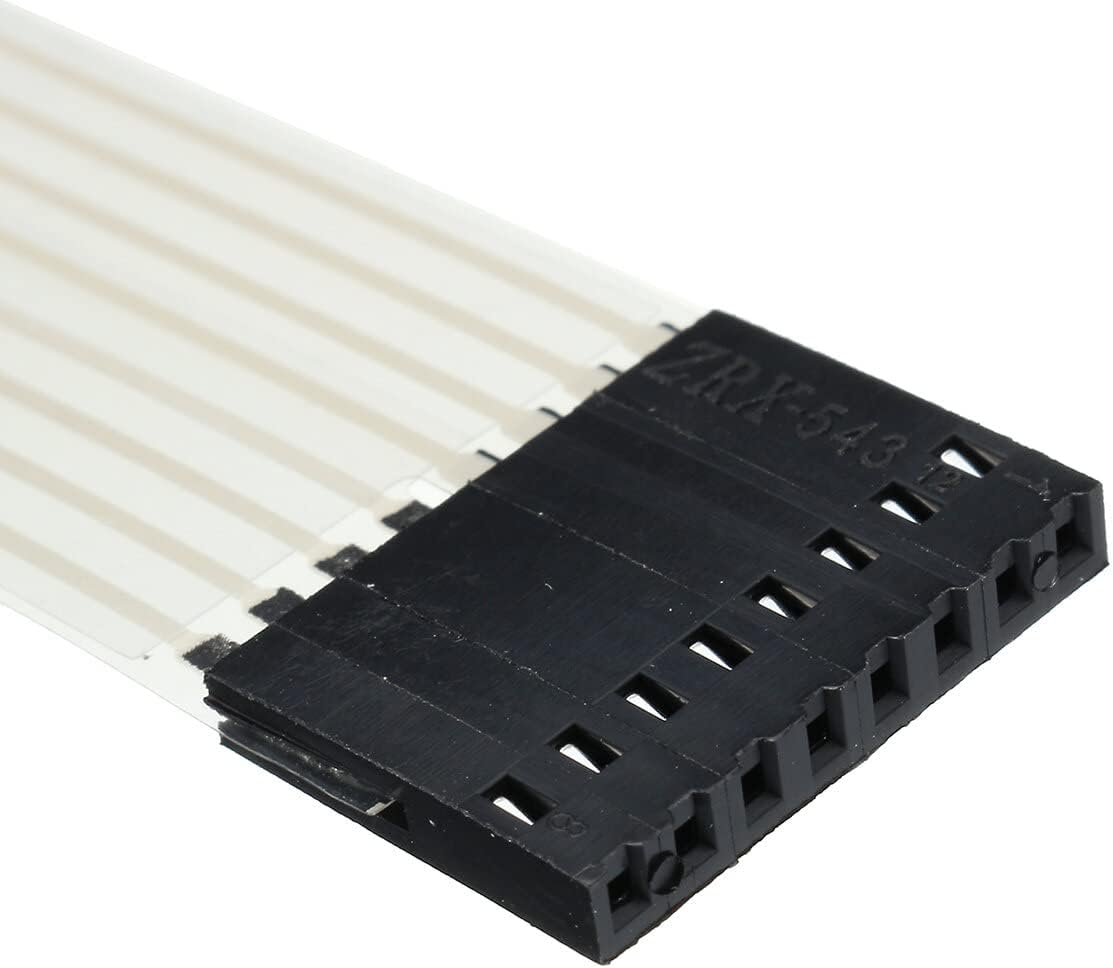

Rysunek 2: Zbliżenie view of the 8-pin FPC connector.

Rysunek 3: Tył view of the keypad showing the adhesive layer.

6. Instrukcja obsługi

Once connected, the keypad operates by detecting when a key is pressed, which creates a connection between a specific row and column pin. Your microcontroller program will scan the rows and columns to determine which key has been activated.

1. Programowanie: Use a suitable library for your microcontroller (e.g., the 'Keypad' library for Arduino) to simplify reading inputs from the 4x4 matrix. This library handles the scanning logic.
2. Mapowanie kluczy: Define the character map for your keypad in your code. The standard layout is typically:

char keys[4][4] = {
  {'1','2','3','A'},
  {'4','5','6','B'},
  {'7','8','9','C'},
  {'*','0','#','D'}
};

3. Reading Input: Your program will continuously check for key presses. When a key is pressed, the library will return the corresponding character.
4. Debouncing: Keypad libraries typically include debouncing mechanisms to prevent multiple readings from a single key press.

7. Konserwacja

The DollaTek membrane keypad requires minimal maintenance to ensure longevity and reliable operation.

• Czyszczenie: Do czyszczenia powierzchni klawiatury użyj miękkiej, suchej ściereczki. W przypadku uporczywych zabrudzeń, delikatnie przetrzyj powierzchnię.amp Można użyć ściereczki zwilżonej łagodnym mydłem, upewniając się, że żaden płyn nie przedostanie się do wnętrza podzespołów.
• Składowanie: Store the keypads in a cool, dry environment, away from direct sunlight and extreme temperatures.
• Obsługiwanie: Unikaj zginania lub łamaniaasing the flexible cable or the keypad itself, as this can damage the internal traces. Do not apply excessive force to the keys.

8. Rozwiązywanie Problemów

If you encounter issues with your DollaTek 4x4 16-Key Membrane Keypad, consider the following troubleshooting steps:

• No Key Response:
  • Verify all 8 pins are correctly connected to your microcontroller.
  • Sprawdź, czy połączenia nie są poluzowane lub przewody nie są uszkodzone.
  • Ensure your code correctly initializes the keypad pins and uses the appropriate library.
  • Confirm that the row and column pins are correctly mapped in your software.
• Incorrect Key Input:
  • Double-check your key mapping in the code against the physical layout of the keypad.
  • Ensure there are no short circuits between adjacent pins on the connector or on your breadboard/PCB.
• Intermittent Key Presses:
  • Ensure your code includes proper debouncing for key presses.
  • Check for environmental factors like electromagnetic interference.
• Keypad Not Sticking:
  • Ensure the mounting surface is clean, dry, and smooth before applying the adhesive.
  • Apply firm, even pressure across the entire keypad when mounting.

9. Gwarancja i wsparcie

DollaTek products are designed for reliability and performance. For specific warranty information or technical support, please refer to the DollaTek official webOdwiedź witrynę lub skontaktuj się ze sprzedawcą. Zachowaj paragon jako dowód zakupu.
