Sun2Solar Solar Cover Reel System User Manual

Wstęp

The Sun2Solar Solar Cover Reel System is designed to simplify the process of removing and storing your solar pool cover. This system allows for easy, one-person operation, making it convenient to manage your pool cover before and after swimming. It is constructed from lightweight, non-corrosive plastic and sturdy aluminum tubing, suitable for round or oval above-ground pools up to 21 feet wide.

Ważne informacje dotyczące bezpieczeństwa

Please read and understand all safety instructions before installation and use. Failure to follow these instructions may result in injury or property damage.

• Ensure proper installation, use, maintenance, and storage of the pool cover to prevent drowning hazards, entrapment, or suffocation.
• Handle the cover material with care.
• Secure the cover in place when not in use.
• Protect the system from extreme weather or prolonged direct sunlight exposure when not in use to extend its lifespan.

Zawartość opakowania

Przed rozpoczęciem montażu należy sprawdzić, czy wszystkie elementy są obecne:

• Solar Cover Reel System components (Wheel Handles, Hubs, Supports, Bases)
• 5 Aluminum Telescopic Poles (up to 3" diameter)
• All necessary attachment hardware (straps, fasteners)
• Note: Solar cover is NOT included.

Konfiguracja i montaż

Follow these steps to assemble your Sun2Solar Solar Cover Reel System. It is recommended to have a second person assist with certain steps.

1. Rozpakuj komponenty: Ostrożnie wyjmij wszystkie części z opakowania i sprawdź je na liście zawartości opakowania.
2. Złóż słupy: Connect the 5 aluminum telescopic poles to achieve the desired width for your pool (up to 21 feet). Ensure all connections are secure.
3. Attach Hubs and Wheel Handles: Slide the hubs onto the ends of the assembled poles. Then, attach the wheel handles to the hubs, ensuring they are firmly in place.
4. Install Supports and Bases: Secure the supports to the bases. These will form the upright stands for the reel.
5. Mount the Reel: Place the assembled reel (poles with hubs and handles) onto the supports. The lift-and-swing design allows for easy placement and removal.
6. Attach Solar Cover: Secure your solar cover to the reel using the provided attachment hardware (straps). Distribute the straps evenly along the length of the reel for balanced operation.

Instrukcja obsługi

Using your solar cover reel system is designed for ease and efficiency.

1. Prepare the Cover: If your solar cover is wider than the reel, fold the ends of the cover to match the length of the solar cover reel pole. This ensures smooth reeling.

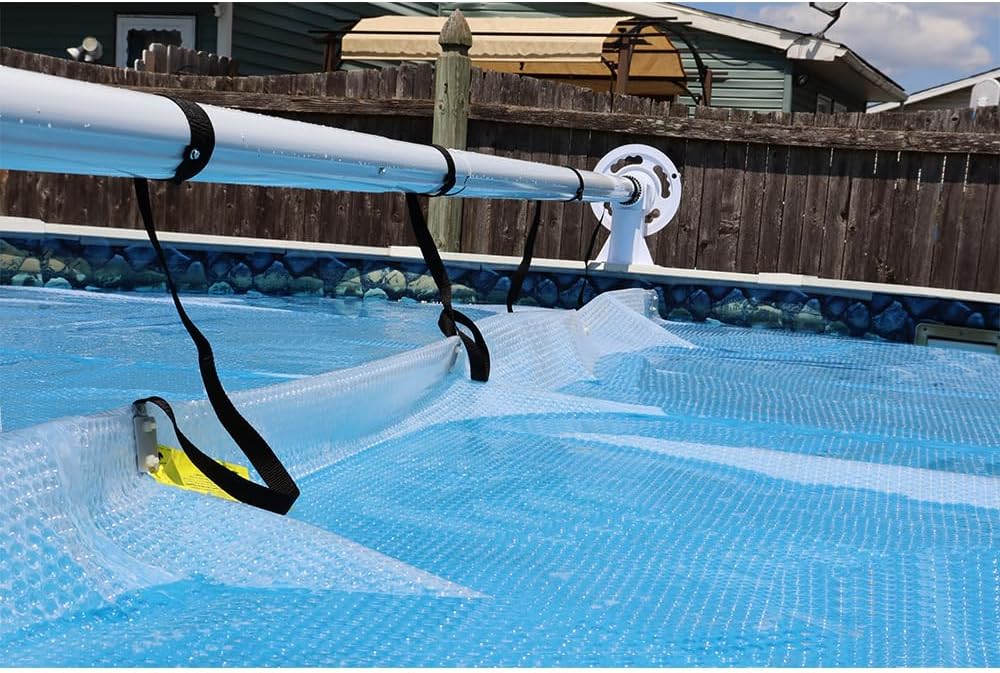

2. Reel In the Cover: Rotate the steering-wheel styled handle to begin reeling in your solar cover. The cover will wrap around the aluminum poles.
3. Fully Reel: Continue rotating the handle until the solar cover is fully reeled onto the system.

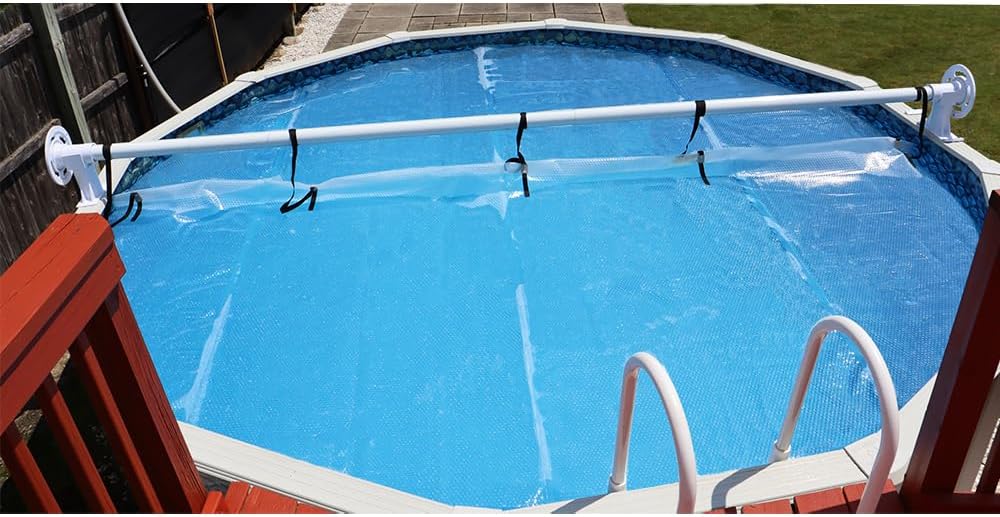

4. Remove from Pool (Optional): For swimming, you can remove one end of your solar cover reel from its support post and pivot it out of the way. Alternatively, with assistance, you can completely remove the reel and place it on ground level for storage.

Konserwacja

Proper maintenance will ensure the longevity and optimal performance of your solar cover reel system.

• Czyszczenie: Periodically wipe down the aluminum poles and plastic components with a damp Ściereczką usuń brud i zanieczyszczenia. Unikaj środków czyszczących o działaniu ściernym.
• Smarowanie: If the reeling mechanism feels stiff, apply a silicone-based lubricant to the moving parts of the wheel handles and hubs.
• Składowanie: During off-season or extended periods of non-use, it is recommended to remove the reel system from the pool area and store it in a dry, shaded location to protect it from harsh weather conditions and UV degradation.
• Kontrola paska: Regularly inspect the attachment straps for wear and tear. Replace any damaged straps to ensure secure attachment of the solar cover.

Rozwiązywanie problemów

Specyfikacje

• Numer modelu: 150-240
• Tworzywo: Aluminum tubing, non-corrosive plastic components
• Kolor: Biały
• Zgodność: Round or Oval Above-Ground Pools up to 21 feet wide
• Solar Cover Thickness: Designed for solar covers up to 12 mil thick (or up to 1200 series)
• Działanie: Easy 1-person operation with steering wheel styled handle
• Projekt: Lift-and-swing design for easy removal

Informacje o gwarancji

The Sun2Solar Solar Cover Reel System comes with a 3-roczna ograniczona gwarancja. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, please contact Sun2Solar customer support.

Obsługa klienta

For further assistance, questions, or to purchase replacement parts, please visit the official Sun2Solar store or contact their customer service department.

Sun2Solar Official Store: Odwiedź sklep
