Spares2go Fagor Washing Machine Door Lock - Model 07-WDL-004

1. Wprowadzenie

This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of the Spares2go replacement door lock for Fagor washing machines, model 07-WDL-004. Please read these instructions carefully before attempting any installation or repair to ensure safe and correct usage.

2. Informacje dotyczące bezpieczeństwa

WARNING: Risk of Electric Shock. Always disconnect the washing machine from the main power supply before attempting any installation, maintenance, or repair.

• Ensure the appliance is completely unplugged or the circuit breaker is switched off before starting work.
• If you are unsure about any step, it is recommended to consult a qualified appliance repair technician.
• W razie konieczności należy nosić odpowiedni sprzęt ochrony osobistej, np. rękawice.
• Handle the new part carefully to avoid damage.

3. Koniec produktuview

This is a premium quality replacement door lock switch designed for various Fagor washing machine models. It ensures the washing machine door remains securely locked during operation and unlocks when the cycle is complete.

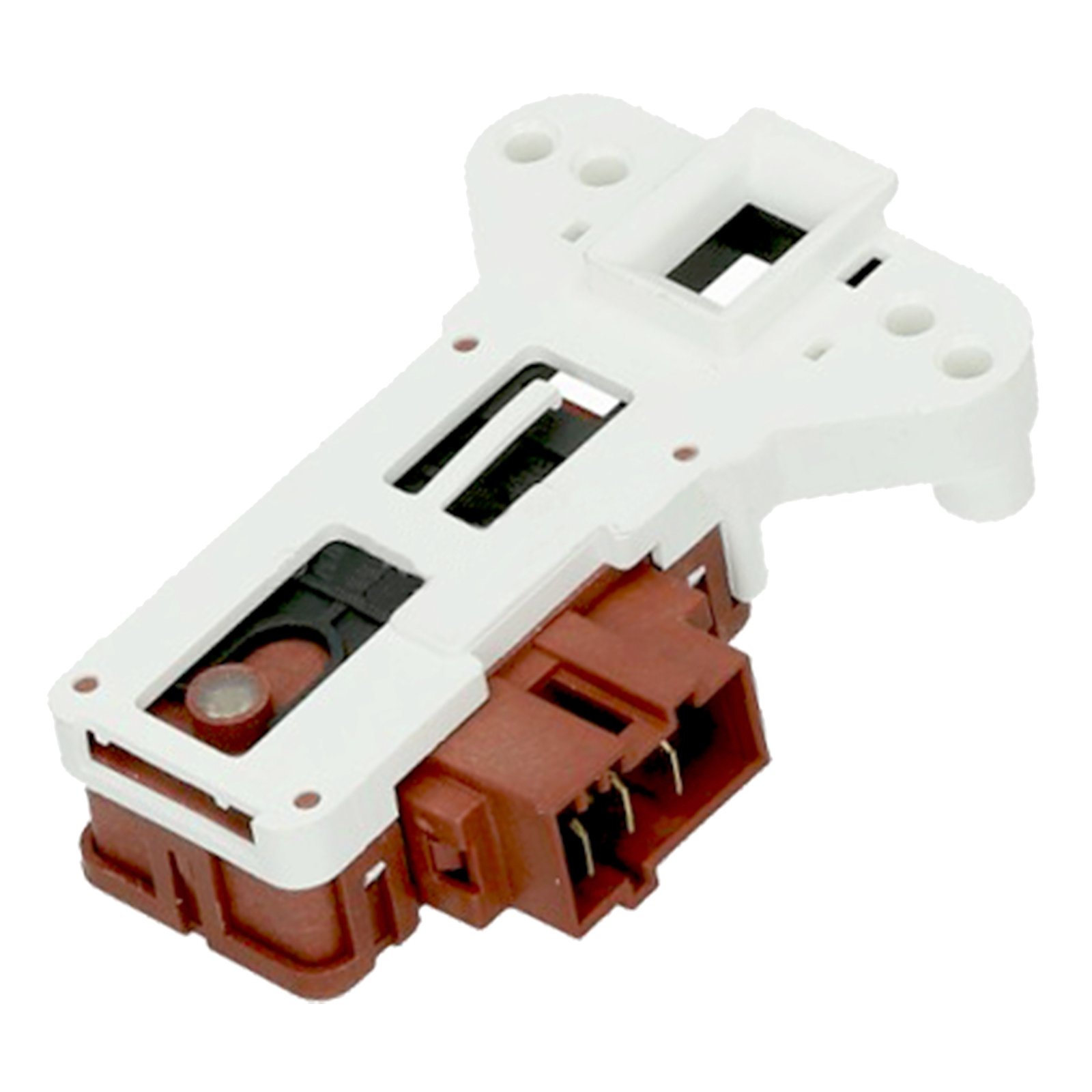

Obraz 1: Przód view of the Spares2go Fagor Washing Machine Door Lock (Model 07-WDL-004).

Obraz 2: Bok view of the Spares2go Fagor Washing Machine Door Lock, showing connection points.

Compatible Fagor Washing Machine Models:

This door lock is compatible with a wide range of Fagor washing machine models, including but not limited to:

• 1F-1148I, 1F-1148IN, 1F206, 1F2609PN, 1F-2611, 1F-3611IT, 1FE1047S, 1L-209R, 1L270R, 2F107CKD, 2F-2609, 2F3609CKD, 2F-3611IT, 2FS-3611IT, 2FU-3613LX, 3F1609, 3F-211, 3F3608IT, 3F-3612IT, CL-510T, F2710LX, F-3609LA, F6012, F-7210, F7210IT, FA-5382, FE-10599LA, V, FE-2010, FE205, FE2109, FE-417, FE-6010, FE-7014, FES-1148, FF-1105, FF-111X, FF-136, FF1750, FF-207, FF-2105X, FF-2306X, FF-3611, FF-5010
• FF-530, FF-6013/WR, FF60131, FF-6213, FF-6214, FF-623, FF-65, FF70141, FF-75, FI1750, FS-3611IT, FSE-6212IT, FU-3611IT, FU-3613X, FUM-6126LX, FU-6146X, FUS-3611IT, FWD612IT, L-192C, L-3082R, L4082P, L5110P, L7110S, L9081M, LD-1050, LD-2005, LD-2120, LD-550, LD-9081M, LF45, LF4530, LFA1000, LFB310, WFA-7110, WL1000, WM5003

4. Instrukcje instalacji

This section outlines the general steps for replacing a washing machine door lock. Specific procedures may vary depending on your washing machine model. Always refer to your washing machine's service manual for detailed instructions if available.

1. Odłącz zasilanie: Unplug the washing machine from the electrical outlet or switch off the circuit breaker for the appliance. Verify that there is no power to the machine.
2. Dostęp do zamka drzwi: Depending on your washing machine model, you may need to remove the front panel, top panel, or the door seal to access the door lock mechanism. This often involves unscrewing retaining screws and carefully prying off panels.
3. Usuń stary zamek w drzwiach:
   • Locate the existing door lock. It is typically mounted to the front frame of the washing machine, near the door opening.
   • Disconnect the electrical wiring harness from the old lock. Note the position of the wires or take a photo for reference.
   • Unscrew any mounting screws or release any clips holding the old lock in place. Carefully remove the old lock.
4. Montaż nowego zamka drzwi:
   • Position the new Spares2go door lock (Model 07-WDL-004) into the opening, ensuring it aligns correctly with the mounting points.
   • Secure the new lock with the mounting screws or clips that were removed earlier. Ensure it is firmly in place.
   • Reconnect the electrical wiring harness to the new door lock. Ensure all connections are secure and correctly matched.
5. Reassemble the Washing Machine: Reattach any panels or the door seal that were removed to access the lock. Ensure all screws are tightened and panels are securely fitted.
6. Test the Appliance:
   • Reconnect the washing machine to the main power supply.
   • Close the washing machine door and select a short wash cycle.
   • Observe if the door locks correctly at the beginning of the cycle and unlocks at the end. Listen for any unusual noises.
   • If the door does not lock or unlock, or if any issues arise, refer to the troubleshooting section or seek professional assistance.

5. Instrukcja obsługi

The door lock operates automatically as part of the washing machine's cycle. Once a wash program is selected and started, the door lock will engage to prevent the door from being opened during operation. At the end of the wash cycle, or after a safe period, the door lock will disengage, allowing the door to be opened.

• Ensure the washing machine door is fully closed before starting a cycle.
• Do not attempt to force the door open while the lock is engaged, as this can damage the lock mechanism or the door.
• Wait for the wash cycle to complete and the door to unlock automatically before opening.

6. Konserwacja

The Spares2go door lock is designed for durability and requires minimal maintenance. However, following these general guidelines can help prolong its lifespan:

• Zachowaj czystosc: Periodically inspect the area around the door lock and the door strike for any lint, debris, or detergent residue. Clean with a soft, damp jeśli to konieczne, szmatkę.
• Unikaj wymuszania: Never force the washing machine door open or closed. If the door is stiff or not closing properly, investigate the cause rather than applying excessive force.
• Regularna kontrola: If you notice any unusual sounds or difficulty with the door locking/unlocking, inspect the lock for visible damage or wear.

7. Rozwiązywanie Problemów

If you encounter issues with your washing machine door lock, consider the following common troubleshooting steps:

For persistent issues, it is recommended to contact a qualified appliance repair technician.

8. Specyfikacje

9. Informacje o gwarancji

Specific warranty details for this replacement part are typically provided by the seller or manufacturer at the time of purchase. Please retain your proof of purchase for any warranty claims. For detailed warranty terms and conditions, please refer to the documentation provided with your purchase or contact Spares2go directly.

10. Wsparcie

If you require further assistance, have questions regarding installation, or need to report a defective part, please contact the seller from whom you purchased this product. You may also visit the official Spares2go website for general support and product information.

For direct support, please refer to the contact information provided on your purchase invoice or the Spares2go packaging.
