Bussmann LPS-RK-50SP Dual-Element, Time-Delay Fuse Instruction Manual

1. Wprowadzenie

This instruction manual provides essential information for the safe and effective use of the Bussmann LPS-RK-50SP Dual-Element, Time-Delay Fuse. This fuse is designed for ultimate protection in various electrical applications, offering current-limiting capabilities and a time-delay characteristic to prevent nuisance tripping.

Please read this manual thoroughly before installation or operation and retain it for future reference. Proper installation and adherence to safety guidelines are crucial for optimal performance and safety.

2. Koniec produktuview i funkcje

The Bussmann LPS-RK-50SP is a Class RK1 dual-element, time-delay, current-limiting fuse. It is engineered to provide superior protection for electrical systems.

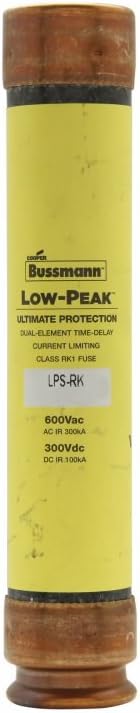

Rysunek 2.1: Bussmann LPS-RK-50SP Dual-Element, Time-Delay Fuse. This image shows a yellow cylindrical fuse with copper end caps, clearly labeled with its model number, protection type, voltage, and interrupting ratings.

Główne cechy:

• Dual-Element Design: Provides both short-circuit and overload protection.
• Time-Delay Characteristic: Allows for temporary overcurrents (e.g., motor starting) without nuisance tripping, while still providing protection against sustained overloads. Permits 130% Full Load Amperage (FLA) sizing for back-up motor protection.
• Current-Limiting: Reduces the magnitude and duration of short-circuit currents, minimizing damage to electrical components. Offers maximum short-circuit protection.
• Class RK1: Indicates high interrupting rating and current-limiting capabilities.
• Tomtage Ocena: 600V AC and 300V DC.
• High Inrush Current Motor Protection: Designed to handle the high current surges associated with motor startup.
• Protection Against Single-Phase Motor Damage: Helps safeguard motors from damage due to single-phasing conditions.
• Low Watt Loss Power Consumption: Efficient operation reduces energy waste.
• Electrically Isolated End Caps: Enhances safety during handling and installation.
• Na liście UL: Certified for safety and performance by Underwriters Laboratories.

Typowe zastosowania:

• Feeder and Branch Circuits
• Transformatory
• Silniki
• Elektromagnesy
• General Purpose Circuits
• Branch Distribution

3. Specyfikacje

Rysunek 3.1: Technical specifications and performance curves for Bussmann LPS-RK-SP fuses. This image displays dimensional data, a detailed list of features, typical applications, and a current-limitation curve graph for various fuse ratings.

4. Instalacja i konfiguracja

Installation of electrical fuses should only be performed by qualified personnel in accordance with all national and local electrical codes and safety regulations.

Kroki instalacji:

1. Bezpieczeństwo przede wszystkim: Ensure that the circuit to be protected is completely de-energized and locked out/tagged out before beginning any work. Verify with a voltagtester.
2. Verify Fuse Rating: Confirm that the Bussmann LPS-RK-50SP fuse (50 Amps, 600V AC/300V DC) matches the required rating for the circuit and equipment being protected. Using an incorrect fuse rating can lead to equipment damage or fire.
3. Inspect Fuse Holder: Ensure the fuse holder is clean, free from corrosion, and compatible with Class RK1 fuses.
4. Włóż bezpiecznik: Carefully insert the fuse into the appropriate fuse holder clips. Ensure a firm and secure connection. Do not force the fuse into place.
5. Bezpieczne połączenia: If applicable, ensure all connections to the fuse holder are tightened to the manufacturer's specifications.
6. Obwód ponownego naładowania: Once the fuse is securely installed and all safety checks are complete, the circuit can be re-energized.

Ważny: Never bypass a fuse or use a fuse with a higher amperage rating than specified for the circuit. This can lead to severe electrical hazards and equipment damage.

5. Działanie

The Bussmann LPS-RK-50SP fuse operates passively to protect electrical circuits and equipment from overcurrent conditions. When installed correctly, it continuously monitors the current flow.

• Normalna praca: Under normal operating conditions, the fuse allows current to flow unimpeded through the circuit.
• Zabezpieczenie przed przeciążeniem: In the event of a sustained overload (current exceeding the fuse's rating but not a direct short circuit), the time-delay element will activate, allowing a brief period for temporary overcurrents to subside before interrupting the circuit. This prevents unnecessary shutdowns.
• Zabezpieczenie przed zwarciem: In the event of a severe short circuit, the current-limiting element rapidly melts, interrupting the circuit almost instantaneously. This quick response minimizes the destructive energy of the short circuit, protecting upstream and downstream components.

Once a fuse has interrupted a circuit due to an overcurrent condition, it must be replaced. It is a single-use protective device.

6. Konserwacja

Fuses are generally maintenance-free devices. However, periodic inspection of the fuse and its holder is recommended to ensure continued reliable operation.

• Kontrola wizualna: Periodically inspect the fuse for any signs of physical damage, discoloration, or arcing. Ensure the fuse is securely seated in its holder.
• Integralność kontaktu: Check that the fuse holder clips maintain good contact with the fuse ends. Loose connections can lead to overheating and premature fuse failure.
• Wymiana: A fuse that has operated (blown) to interrupt a circuit must be replaced with a new fuse of the exact same type, voltagi, i amperage rating (Bussmann LPS-RK-50SP). Never attempt to repair a blown fuse.
• Czyszczenie: Ensure the fuse holder and surrounding area are kept clean and free from dust, dirt, and moisture, which can affect electrical conductivity and heat dissipation.

Always de-energize the circuit before performing any inspection or maintenance on the fuse or fuse holder.

7. Rozwiązywanie Problemów

If the Bussmann LPS-RK-50SP fuse blows, it indicates an overcurrent condition in the circuit it protects. Follow these steps to troubleshoot:

1. Odłącz obwód od napięcia: Immediately turn off power to the affected circuit at the main breaker or disconnect switch.
2. Zidentyfikuj przepalony bezpiecznik: Visually inspect the fuse. Some fuses may have an indicator, but often a continuity tester is needed to confirm if the fuse has blown.
3. Określ przyczynę: Investigate the cause of the overcurrent. Common causes include:
   • Overloaded circuit (too many devices drawing power).
   • Short circuit in wiring or equipment.
   • Faulty appliance or motor.
   • Błąd uziemienia.
4. Correct the Fault: Before replacing the fuse, resolve the underlying issue that caused it to blow. If the cause cannot be identified or corrected, consult a qualified electrician.
5. Wymień bezpiecznik: Replace the blown fuse with a new Bussmann LPS-RK-50SP fuse of the identical ampwiek i objętośćtage rating. Never use a fuse with a different rating or bypass the fuse.
6. Re-energize and Monitor: Restore power to the circuit. If the new fuse blows immediately, there is still an unresolved fault in the circuit. De-energize immediately and seek professional assistance.

Repeated fuse blowing indicates a persistent problem that requires professional diagnosis and repair.

8. Informacje dotyczące bezpieczeństwa

Working with electricity can be dangerous. Adhere to the following safety precautions at all times:

• Wykwalifikowany personel: Only qualified and authorized personnel should install, maintain, or troubleshoot electrical fuses and circuits.
• Odłącz obwody od napięcia: Always ensure circuits are de-energized, locked out, and tagged out before working on them. Verify zero voltage przy użyciu odpowiedniego urządzenia testowego.
• Środki ochrony osobistej (PPE): Wear appropriate PPE, including safety glasses, insulated gloves, and flame-resistant clothing, when working with electrical systems.
• Correct Fuse Replacement: Always replace a blown fuse with a fuse of the exact same type, voltagi, i amperage rating. Never substitute with a higher-rated fuse or conductive material.
• Unikaj wilgotnych warunków: Do not work on electrical systems in wet or damp warunki.
• Follow Codes: All electrical work must comply with national, state, and local electrical codes and regulations (e.g., NEC, NFPA 70E).
• No Bypassing: Never bypass or defeat the protective function of a fuse.

9. Gwarancja i wsparcie

Specific warranty information for the Bussmann LPS-RK-50SP fuse is not provided in this manual. For details regarding product warranty, please refer to the official Bussmann website or contact your authorized Bussmann distributor.

For technical support or further inquiries, please contact Bussmann customer service or a qualified electrical professional.

• Bussmann Official Webstrona: www.eaton.com/bussmann
