SONGMICS HSR12SV1 Heavy Duty Metal Coat Rack Stand

1. Wprowadzenie

Thank you for choosing the SONGMICS HSR12SV1 Heavy Duty Metal Coat Rack Stand. This manual provides essential information for the safe assembly, operation, and maintenance of your new garment rack. Please read these instructions carefully before use and retain them for future reference.

This robust and versatile garment rack is designed to provide ample storage for your clothing, featuring adjustable height and length, and smooth-rolling wheels for easy mobility. Its chrome-plated iron construction ensures durability and a long service life.

2. Ważne informacje dotyczące bezpieczeństwa

• Nośność: Do not exceed the maximum weight recommendation of 110 kg (242 lbs). Overloading the rack can lead to instability and potential damage or injury.
• Uwaga dotycząca montażu: When assembling, ensure both vertical rods are handled simultaneously to prevent difficulty in fitting components.
• Regulacja wysokości: Exercise caution and mind your head when adjusting the height of the rack to avoid accidental impact.
• Stabilne umiejscowienie: Always place the garment rack on a flat, stable, and level surface to prevent tipping.
• Dzieci i zwierzęta: Keep children and pets away from the rack during assembly and adjustment. Do not allow them to climb or hang on the rack.
• Przesuwanie stojaka: When moving the rack, ensure all items are securely placed and that the path is clear to prevent accidents. Lock the wheels once the rack is in its desired position.

3. Zawartość opakowania

Przed rozpoczęciem montażu należy sprawdzić, czy wszystkie elementy są obecne. Jeśli brakuje którejkolwiek części lub jest ona uszkodzona, prosimy o kontakt z działem obsługi klienta.

• 1 x SONGMICS HSR12SV1 Heavy Duty Metal Coat Rack Stand (disassembled components)
• 1 x Instrukcja obsługi (ten dokument)
• All necessary fasteners and connectors (pre-attached or included)

Figure 3.1: Fully assembled SONGMICS HSR12SV1 Garment Rack.

This image displays the complete garment rack, showcasing its dual hanging bars, sturdy vertical supports, and wheeled base. The chrome finish is visible, highlighting its sleek design.

4. Instalacja i montaż

The SONGMICS HSR12SV1 garment rack is designed for easy assembly using snap-fasteners. No additional tools are typically required.

1. Rozpakuj komponenty: Ostrożnie wyjmij wszystkie części z opakowania i rozłóż je na czystej, płaskiej powierzchni.
2. Zmontuj podstawę: Connect the horizontal base bars to the vertical support posts. Ensure all connections are secure and click into place.
3. Dołącz koła: Securely attach the four industrial wheels to the base. Ensure the two wheels with locking mechanisms are positioned conveniently for access.
4. Install Lower Vertical Rods: Insert the lower sections of the vertical support rods into the base.
5. Connect Upper Vertical Rods: Attach the upper sections of the vertical support rods. Important: Assemble both vertical rods simultaneously to ensure proper alignment and ease of connection.
6. Attach Hanging Bars: Secure the two horizontal hanging bars to the top of the vertical support rods. These bars are extendable.
7. Kontrola końcowa: Once assembled, gently shake the rack to ensure all connections are firm and stable.

Figure 4.1: Detail of the robust industrial wheels, two of which feature locking brakes for stability.

This image highlights the durable, 360-degree swivel wheels, emphasizing their solid construction and the presence of locking mechanisms for secure placement.

5. Instrukcja obsługi

5.1 Regulacja wysokości

The height of the garment rack can be adjusted to three different configurations to accommodate various clothing lengths. The available heights are approximately 148 cm, 159 cm, and 172 cm.

• Locate the adjustment pins or levers on the vertical support rods.
• Carefully lift or lower the upper section of the rack to the desired height, ensuring the adjustment pins securely click into the corresponding holes.
• Always adjust both sides evenly to maintain stability.

5.2 Regulacja długości

The top hanging bars are extendable, allowing you to adjust the overall length of the rack from 129 cm to 169 cm. The optimal expansion range for the upper rod is 0-20 cm on each side.

• Gently pull the ends of the top hanging bars outwards to extend them.
• Push the ends inwards to shorten the bars.
• Ensure both sides are extended or retracted evenly for balanced load distribution.

5.3 Utilizing Wheels and Brakes

The rack is equipped with four industrial wheels for easy movement. Two of these wheels have integrated brakes.

• To move the rack, ensure the brakes on the two wheels are disengaged.
• To secure the rack in place, push down the levers on the two braked wheels until they lock. This prevents unintended movement.

Figure 5.1: Illustrates the adjustable features of the garment rack, including extendable ends and multiple height settings for the hanging bars.

This image visually demonstrates how the rack's length can be extended by pulling the top bars and how its height can be set to different levels (148 cm, 160 cm, 172 cm) to accommodate various garment lengths.

Figure 5.2: The garment rack in a typical home environment, displaying its capacity for hanging clothes and storing items on the base.

This image shows the rack in practical use, filled with various garments and with storage boxes on its lower frame, demonstrating its functionality and aesthetic integration into a living space.

6. Konserwacja

The chrome-plated surface of the SONGMICS HSR12SV1 garment rack is designed for easy cleaning and rust resistance.

• Czyszczenie: To clean the rack, simply wipe it down with a soft, damp cloth. Avoid using abrasive cleaners or harsh chemicals, as these can damage the chrome finish.
• Zapobieganie rdzewieniu: While rust-resistant, it is advisable to keep the rack in a dry environment to prolong its lifespan.
• Kontrola okresowa: Periodically check all connections and fasteners to ensure they remain tight and secure. Retighten if necessary.

7. Rozwiązywanie Problemów

7.1 Trudności z montażem

• Problem: Difficulty in connecting rods during assembly.
• Rozwiązanie: Ensure you are assembling the two main vertical rods simultaneously. Attempting to connect one side fully before the other can cause misalignment.

7.2 Rack Instability

• Problem: The rack feels wobbly or unstable after assembly.
• Rozwiązanie: Verify that all snap-fasteners are fully engaged and secure. Ensure the rack is placed on a flat, level surface. Check that the wheels are locked if the rack is stationary. Do not exceed the maximum weight capacity.

7.3 Cosmetic Imperfections

• Obserwacja: Minor scratches may be present at welded junctions or due to polishing.
• Notatka: This is considered normal and does not indicate a defective product. It does not affect the functionality or durability of the rack.

8. Specyfikacje

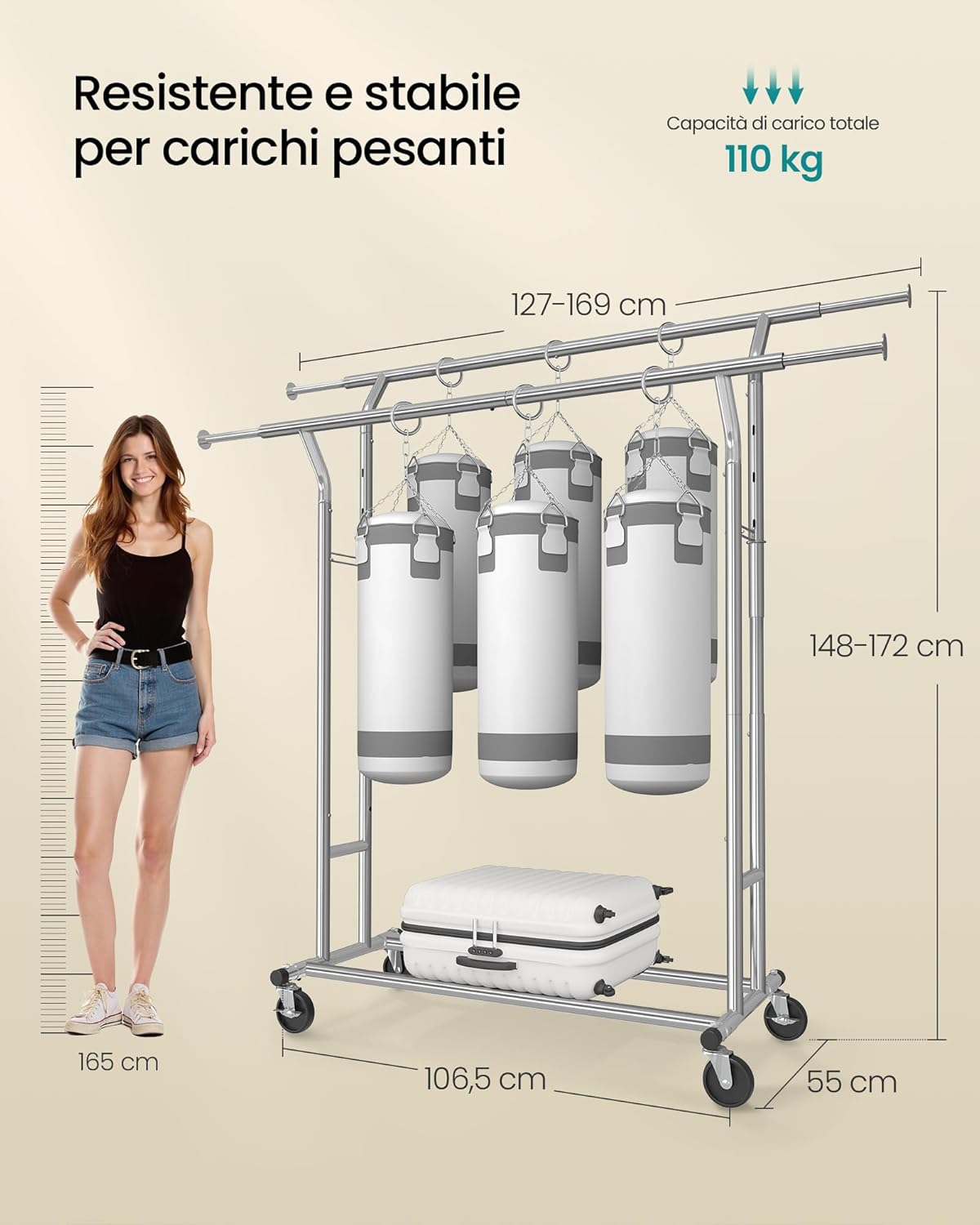

Figure 8.1: Detailed dimensions and total load capacity of the garment rack.

This image provides a clear diagram of the rack's adjustable length (127-169 cm) and height (148-172 cm), along with its depth (55 cm) and a visual representation of its 110 kg total load capacity.

Figure 8.2: Highlights the rack's robust construction, including its 110 kg weight capacity and the 25.4 mm diameter of its steel tubes.

This image emphasizes the heavy-duty nature of the rack, showing multiple garments on the bar and a close-up of the thick steel tubing, reinforcing its strength and durability.

9. Gwarancja i wsparcie

Aby uzyskać informacje dotyczące gwarancji i obsługi klienta, zapoznaj się z dokumentacją dołączoną do zakupionego produktu lub odwiedź oficjalną stronę internetową SONGMICS webZachowaj paragon jako dowód zakupu na wypadek ewentualnych roszczeń gwarancyjnych.

If you encounter any issues not covered in this manual, or require further assistance, please contact SONGMICS customer service directly.
