Wstęp
The Brookstone Pure-Ion Pro Air Purifier is designed to help improve indoor air quality by removing common airborne irritants. This unit effectively filters pollen, mold, pet dander, dust mites, bacteria, and smoke from the air that passes through its system. It features a user-friendly design with multiple cleaning speeds and a built-in timer for convenient operation.
The Pure-Ion Pro also incorporates an Ion Boost feature, which generates negative ions to mimic natural environments rich in these ions. This feature is intended to enhance the user experience. Please note, this product is not a medical device and meets voluntary UL867 guidelines for ozone emission, maintaining levels below 50 ppb.

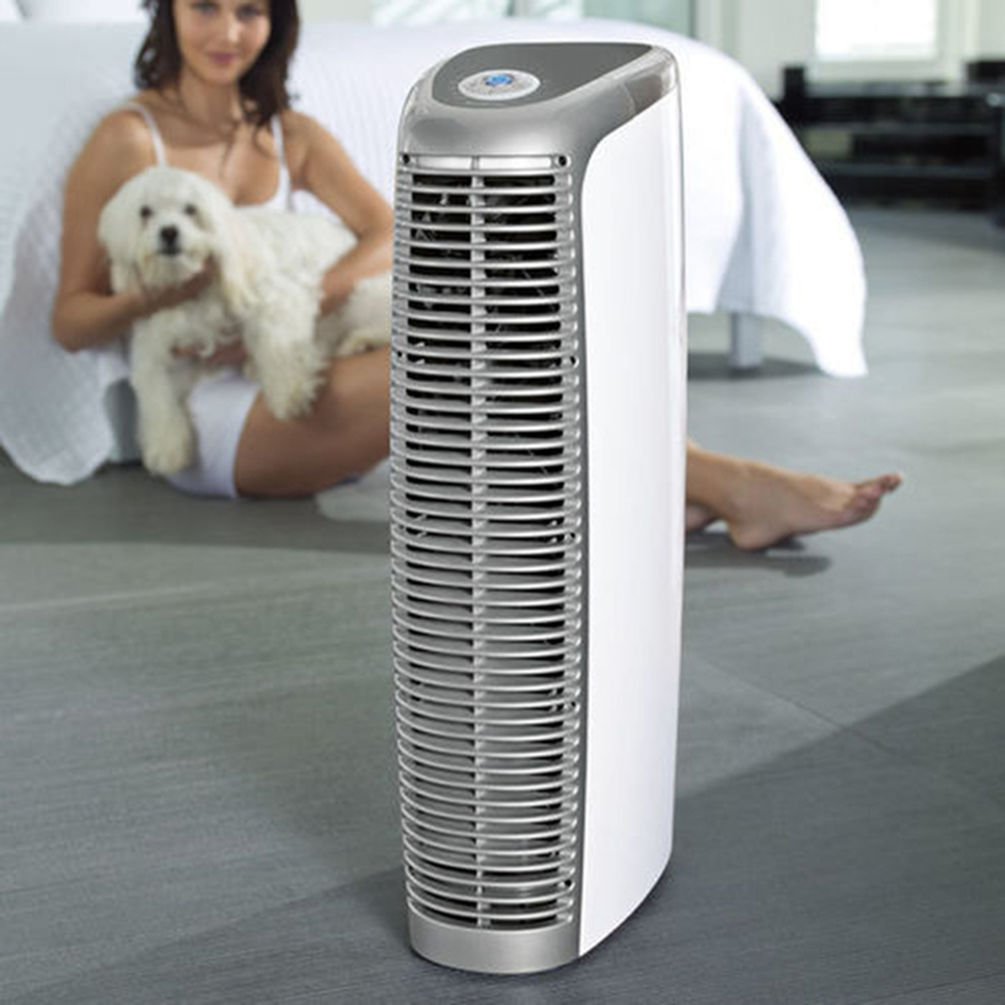

Image: The Brookstone Pure-Ion Pro Air Purifier, a tall, sleek white and silver unit designed for air purification.
Ważne instrukcje bezpieczeństwa
Aby zmniejszyć ryzyko pożaru, porażenia prądem lub obrażeń ciała, zawsze należy przestrzegać poniższych podstawowych środków ostrożności:
- Przed użyciem urządzenia należy uważnie przeczytać wszystkie instrukcje.
- Do not operate any appliance with a damaged cord or plug. If the cord or plug is damaged, contact customer service immediately.
- Do not use the air purifier near water or in damp środowisk, takich jak łazienki czy pralnie.
- Trzymaj urządzenie z dala od źródeł ciepła, bezpośredniego światła słonecznego i materiałów łatwopalnych.
- Always unplug the air purifier from the electrical outlet before cleaning, performing any maintenance, or when not in use for extended periods.
- Ensure that air vents are not blocked. Maintain adequate clearance around the unit for proper airflow.
- Używaj tego urządzenia tylko zgodnie z jego przeznaczeniem, jak opisano w niniejszej instrukcji.
- This product is not a medical device. Consult a healthcare professional for any medical conditions.
- Nie wkładaj żadnych przedmiotów do otworów.
- Należy nadzorować dzieci podczas korzystania z urządzenia.
Produkt ponadview
Familiarize yourself with the components and controls of your Pure-Ion Pro Air Purifier.
Panel sterowania
Obraz: szczegółowy view of the control panel, showing the central power button, fan speed settings (Whisper, Low, Med, High, Turbo), timer settings (2, 4, 6, 8, 12 hours), and the ION button.
- Przycisk zasilania: Located at the center, turns the unit on or off.
- Ustawienia prędkości wentylatora: Select from Whisper, Low, Med, High, or Turbo for varying levels of air purification and noise.
- Ustawienia timera: Set the unit to operate for 2, 4, 6, 8, or 12 hours before automatically shutting off.
- Przycisk ION: Activates or deactivates the Ion Boost feature.
Komponenty wewnętrzne
Image: An internal diagram illustrating the airflow path through the air purifier, highlighting the multiple fans and the filter system.
- Washable Aluminum Filter: The primary filtration component that captures airborne particles. This filter is designed for repeated cleaning and does not require replacement.
- Fani: Four powerful, quiet fans draw air into the unit and circulate purified air back into the room.
Organizować coś
- Rozpakuj jednostkę: Carefully remove the air purifier and all packaging materials from the box. Retain packaging for future storage or transport.
- Wybierz lokalizację: Place the air purifier on a firm, level surface. Ensure there is at least 6 inches (15 cm) of clearance around all sides of the unit to allow for proper air intake and output. Avoid placing it directly against walls or furniture that could obstruct airflow.
- Włączać do kontaktu: Podłącz przewód zasilający do standardowego gniazdka elektrycznego 120 V prądu zmiennego.
Image: The Brookstone Pure-Ion Pro Air Purifier positioned upright, ready for use in a room.
Instrukcja obsługi
- Włączanie/wyłączanie: Press the central Power Button on the control panel to turn the unit on. Press it again to turn the unit off.
- Wybierz prędkość wentylatora: Once powered on, use the fan speed buttons (Whisper, Low, Med, High, Turbo) to adjust the airflow and purification intensity. The Whisper setting provides the quietest operation, while Turbo offers maximum air circulation.
- Ustaw timer (opcjonalnie): To set an automatic shut-off time, press the Timer button repeatedly to cycle through the available options: 2, 4, 6, 8, or 12 hours. The corresponding indicator light will illuminate. The unit will operate for the selected duration and then power off automatically.
- Activate Ion Boost (Optional): Press the ION button to activate the Ion Boost feature. An indicator light will confirm activation. Press the button again to deactivate it.
Image: A visual representation of the air purification process, with arrows showing dirty air entering the unit and clean air being expelled.
Konserwacja
Regular cleaning of your Pure-Ion Pro Air Purifier ensures optimal performance and extends the life of the unit. Always unplug the unit before performing any maintenance.
Czyszczenie filtra
The Pure-Ion Pro features a washable aluminum filter that never needs replacement. A crackling sound from the unit or an illuminated indicator light on the control panel will signal when the filter requires cleaning.
- Usuń filtr: Gently open the filter access panel and carefully pull out the aluminum filter assembly.
- Wyczyść filtr: The aluminum filter can be cleaned manually or in a dishwasher.
- Czyszczenie ręczne: Rinse the filter under warm running water until clean. For stubborn dirt, use a soft brush and mild detergent.
- Czyszczenie zmywarki: Place the filter in the dishwasher on a gentle cycle.

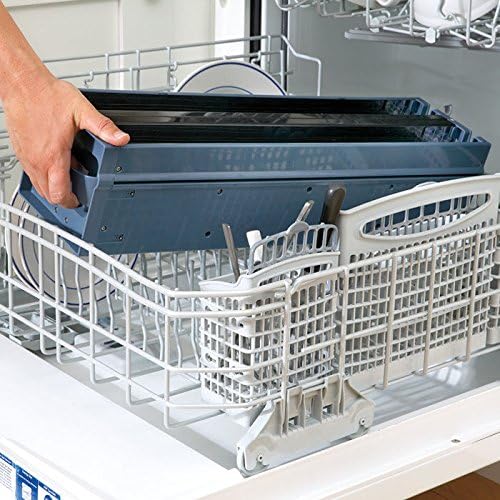

Image: The washable aluminum filter assembly placed inside a dishwasher rack for cleaning.
- Wysusz filtr: Allow the filter to air dry completely before reinserting it into the unit. Ensure no moisture remains.
- Ponowna instalacja filtra: Carefully slide the dry filter assembly back into its compartment until it clicks securely into place. Close the access panel.
Image: A hand demonstrating the removal of the filter assembly from the top of the air purifier unit.
Czyszczenie zewnętrzne
Wytrzyj zewnętrzną część oczyszczacza powietrza miękką, damp ściereczką. Nie używaj środków czyszczących o właściwościach ściernych ani rozpuszczalników, ponieważ mogą one uszkodzić wykończenie.
Rozwiązywanie problemów
W tej sekcji znajdziesz informacje o typowych problemach i ich rozwiązaniach.
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Jednostka się nie włącza. | No power supply; unit unplugged. | Ensure the power cord is securely plugged into a working electrical outlet. Check the power button. |
| Crackling sound from the unit. | Filtr wymaga czyszczenia. | Unplug the unit and clean the washable aluminum filter as described in the Maintenance section. |
| Reduced airflow or purification effectiveness. | Blocked air vents; dirty filter. | Check that air intake and output vents are not obstructed. Clean the aluminum filter. |
| Unusual noises (e.g., sparking, loud buzzing) or burning smell. | Internal malfunction; electrical issue. | Immediately unplug the unit. Do not attempt to operate or repair. Contact Brookstone customer service for assistance. |
Specyfikacje
- Marka: Kamień potokowy
- Model: PUREIONPRO
- Kod UPC: 883594054440
- CADR (wskaźnik dostarczania czystego powietrza):
- Pollen: 153.7 (average)
- Smoke: 179.5 (average)
- Dust: 144.2 (average)
- Pobór mocy: As little as 10 watts per hour
- Ozone Emission: Meets UL867 guidelines (less than 50 ppb)
- Kolor: Wielobarwność
Image: The AHAM Certified Clean Air Delivery Rate badge, indicating independent performance testing.
Gwarancja i wsparcie
For warranty information, please refer to the documentation included with your product at the time of purchase or visit the official Brookstone website. If you require technical support or have questions not covered in this manual, please contact Brookstone customer service.
Informacje kontaktowe: Please refer to the Brookstone official webNajaktualniejsze dane kontaktowe działu obsługi klienta można znaleźć na stronie internetowej lub na paragonie za zakup.
