SOLEM BL-IP Bluetooth Irrigation Controller User Manual

1. Wprowadzenie i koniecview

The SOLEM BL-IP is a battery-powered, waterproof (IP68 rated) Bluetooth irrigation controller designed for garden use. It can be installed directly into a valve box, offering a discreet and protected solution for managing your irrigation system. Available in 2, 4, and 6-zone versions, the BL-IP allows remote programming and control via a smartphone or tablet (iOS or Android) using Bluetooth technology. This cable-free irrigation system supports multiple BL-IP modules in a single garden, each capable of managing its own set of irrigation zones.

2. Funkcje produktu

• Sterowanie bezprzewodowe: Manage your irrigation system via Bluetooth from your smartphone or tablet (iOS/Android).
• Wodoodporna konstrukcja: IP68 rated for complete protection against dust and water immersion, suitable for installation in valve boxes.
• Zasilany bateryjnie: Operates on a 9V battery (not included), eliminating the need for external power wiring.
• Możliwość obsługi wielu stref: Available in versions supporting 2, 4, or 6 irrigation zones.
• Elastyczne programowanie: Create custom watering schedules for each zone.
• Skalowalny system: Multiple BL-IP modules can be used within the same garden.

3. Informacje dotyczące bezpieczeństwa

• Always ensure the battery compartment is securely sealed to maintain the IP68 waterproof rating.
• Nie próbuj samodzielnie otwierać ani naprawiać urządzenia. W celu uzyskania pomocy skontaktuj się z wykwalifikowanym personelem.
• Use only the specified 9V battery type. Incorrect battery usage may damage the device.
• Przechowywać urządzenie w miejscu niedostępnym dla dzieci.
• Disconnect the battery before performing any maintenance or wiring changes.

4. Zawartość opakowania

• SOLEM BL-IP Bluetooth Irrigation Controller Module
• Instrukcja obsługi (ten dokument)

Uwaga: Do działania urządzenia wymagana jest bateria 9 V, która nie jest dołączona do zestawu.

5. Konfiguracja i instalacja

5.1 Instalacja baterii

1. Unscrew the battery compartment cover on the BL-IP module.
2. Włóż nową baterię alkaliczną 9V, zwracając uwagę na prawidłową biegunowość.
3. Securely re-attach the battery compartment cover, ensuring the seal is tight to maintain waterproofing.

5.2 Wiring to Solenoid Valves

The BL-IP module connects to standard 9V latching solenoid valves. Each colored wire corresponds to a specific zone.

Image 1: The SOLEM BL-IP controller showing its multi-colored wiring harness, indicating connections for up to six irrigation zones. The main body of the controller is light grey with 'BL-IP' visible on its surface.

1. Identify the common wire from your solenoid valves (usually white or black). Connect this common wire to the common terminal on the BL-IP module (often marked 'C' or with a specific color like black).
2. Connect each individual solenoid valve wire to its corresponding zone wire on the BL-IP module (e.g., Zone 1 to the first colored wire, Zone 2 to the second, and so on).
3. Ensure all connections are secure and waterproof, especially if installing in a damp środowisko.

5.3 Fizyczna instalacja

The BL-IP module is designed to be installed directly inside a standard irrigation valve box. Its compact size and waterproof rating make it ideal for this purpose.

• Place the module in the valve box, ensuring it is not submerged in water and that wires are not pinched.
• Close the valve box lid securely.

6. Instrukcja obsługi

6.1 Downloading the SOLEM App

1. Szukaj the 'SOLEM' irrigation app on the Apple App Store (for iOS devices) or Google Play Store (for Android devices).
2. Pobierz i zainstaluj aplikację na swoim smartfonie lub tablecie.

6.2 Connecting to the BL-IP Module

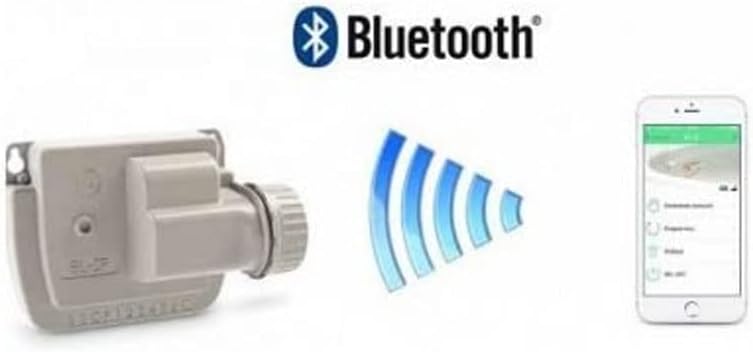

Image 2: This image illustrates the SOLEM BL-IP controller's wireless capability, showing the module itself, a prominent Bluetooth logo, and a smartphone displaying the SOLEM app interface for irrigation control.

1. Sprawdź, czy Bluetooth jest włączony na Twoim smartfonie lub tablecie.
2. Open the SOLEM application. The app will automatically scan for nearby BL-IP modules.
3. Select your BL-IP module from the list of discovered devices. If prompted, follow the on-screen instructions to pair the device.

6.3 Programming Irrigation Schedules

Once connected, you can use the SOLEM app to:

• Set Watering Start Times: Define when each irrigation cycle should begin.
• Adjust Watering Duration: Specify how long each zone should water.
• Wybierz dni podlewania: Choose specific days of the week for irrigation.
• Obsługa ręczna: Manually start or stop watering for individual zones or all zones.
• Dostosowanie sezonowe: Easily increase or decrease watering times across all programs by a percentage.

Refer to the in-app help section for detailed instructions on advanced programming features.

7. Konserwacja

7.1 Wymiana baterii

The BL-IP module operates on a 9V battery. Battery life varies depending on usage and environmental conditions. Replace the battery when the app indicates a low battery level or if the controller becomes unresponsive.

1. Aby zainstalować baterię, wykonaj czynności opisane w rozdziale 5.1.
2. Always use a fresh, high-quality 9V alkaline battery.

7.2 Czyszczenie

Periodically inspect the module for dirt or debris, especially around the battery compartment seal. Clean with a damp płótno. Nie używaj ostrych środków chemicznych ani ściernych środków czyszczących.

8. Rozwiązywanie Problemów

• Kontroler nie odpowiada: Check the 9V battery. Replace if necessary. Ensure the battery compartment is sealed correctly.
• Nie można połączyć się przez Bluetooth: Ensure Bluetooth is enabled on your device. Make sure you are within range of the BL-IP module. Restart the SOLEM app.
• Zones not watering: Verify that the solenoid valves are functioning correctly. Check wiring connections between the BL-IP module and the valves. Ensure the battery has sufficient power.
• Problemy z aplikacją: Ensure your SOLEM app is updated to the latest version. Try restarting your smartphone/tablet.

9. Specyfikacje

10. Gwarancja i wsparcie

Specific warranty information for the SOLEM BL-IP Bluetooth Irrigation Controller is not provided in this document. Please refer to the retailer or manufacturer's official webSzczegółowe warunki gwarancji można znaleźć na naszej stronie.

For technical support, product inquiries, or assistance with troubleshooting, please contact SOLEM customer service or your authorized dealer.
