DEWALT 60 Gallon Stationary Vertical Air Compressor User Manual

Produkt ponadview

The DEWALT 60 Gallon Stationary Vertical Air Compressor is designed for professional and home improvement use, offering reliable and efficient air compression. This electric air compressor provides high performance and durability for various applications.

Image: The DEWALT 60 Gallon Stationary Vertical Air Compressor, a tall yellow tank with a black compressor head and motor on top.

Główne cechy:

• Wysoka wydajność: Delivers 13.5 SCFM at 175 PSI and 15.3 SCFM at 100 PSI for reliable operation.
• Wydajna moc: Robust 5 HP, 230-volt electric motor with thermal overload protection.
• Cicha praca: Operates at approximately 65 dB, suitable for various environments.
• Trwała konstrukcja: Sturdy 60-gallon tank with a 2-stage pump for longevity.
• Wszechstronne zastosowanie: Ideal for air brushing, drilling, nailing, and spraying applications.

Ważne informacje dotyczące bezpieczeństwa

Przed uruchomieniem sprężarki powietrza należy zawsze przeczytać i zrozumieć wszystkie ostrzeżenia i instrukcje dotyczące bezpieczeństwa. Nieprzestrzeganie tych instrukcji może spowodować porażenie prądem, pożar i/lub poważne obrażenia.

• Bezpieczeństwo elektryczne: Ensure the compressor is connected to a properly grounded 230-volt AC power supply. Do not use extension cords unless absolutely necessary and ensure they are rated for the compressor's power requirements.
• Bezpieczeństwo ciśnieniowe: Never exceed the maximum operating pressure of any air tool or accessory. Always wear appropriate eye protection when operating the compressor or using air tools.
• Ochrona przed hałasem: The compressor operates at 65 dB. Prolonged exposure to noise can cause hearing damage. Wear hearing protection during operation.
• Bezpieczeństwo konserwacji: Disconnect power before performing any maintenance or service. Allow the compressor to cool down before handling hot components.
• Umieszczenie: Position the compressor on a stable, level surface in a well-ventilated area. Maintain adequate clearance around the unit for proper airflow.

Ostrzeżenie dotyczące Propozycji 65: Ten produkt może zawierać substancje chemiczne, o których władze stanu Kalifornia wiedzą, że mogą powodować raka, wady wrodzone lub inne uszkodzenia układu rozrodczego.

Konfiguracja i instalacja

Proper setup is crucial for the safe and efficient operation of your DEWALT air compressor.

1. Rozpakowanie i kontrola:

Carefully remove the compressor from its packaging. Inspect the unit for any shipping damage. Report any damage to your dealer immediately.

2. Umieszczenie:

Place the compressor on a firm, level surface. Ensure there is sufficient space around the unit for ventilation and maintenance. The stationary vertical design optimizes space efficiency.

Image: The DEWALT air compressor positioned next to a yellow DEWALT toolbox, demonstrating its vertical, space-saving design in a workshop setting.

3. Połączenie elektryczne:

This compressor requires a 230-volt AC power supply. It is recommended to have a qualified electrician install a dedicated circuit and appropriate wiring (e.g., 6 AWG) for the compressor to ensure safe and optimal performance. The motor includes thermal overload protection.

Obraz: Zbliżenie view of the DEWALT air compressor's electric motor and the product label displaying the model number DXCMV5076055.

4. Initial Oil Check and Fill:

Before first use, verify the oil level. The compressor may be overfilled from the factory; adjust the oil volume to the recommended level as per the oil sight glass or dipstick. Use only full synthetic (not blended) oil specified for air compressors.

5. Break-in Procedure:

Follow the manufacturer's break-in procedure outlined in the comprehensive user manual (link provided in the support section). This typically involves running the compressor for a period with the tank drain open to allow components to seat properly.

Instrukcja obsługi

Operating your DEWALT air compressor is straightforward once properly set up.

1. Uruchomienie sprężarki:

Ensure all connections are secure and the power switch is in the "OFF" position. Connect the compressor to the 230-volt power supply. Turn the pressure switch to the "AUTO" or "ON" position. The compressor will start and build pressure until it reaches its maximum cut-off pressure.

Obraz: szczegółowy view of the air compressor's pressure gauge, showing current tank pressure, and the red ON/OFF/AUTO switch for operation control.

2. Monitoring Pressure:

The large 60-gallon vertical tank is fitted with a convenient tank pressure gauge, allowing you to monitor the pressure effortlessly. The compressor will automatically cycle on and off to maintain the desired pressure range.

3. Connecting Air Tools:

Attach your pneumatic tools to the air outlet. Adjust the regulator (if present) to the required pressure for your specific tool. The compressor provides 13.5 SCFM at 175 PSI and 15.3 SCFM at 100 PSI, suitable for air brushing, drilling, nailing, and spraying.

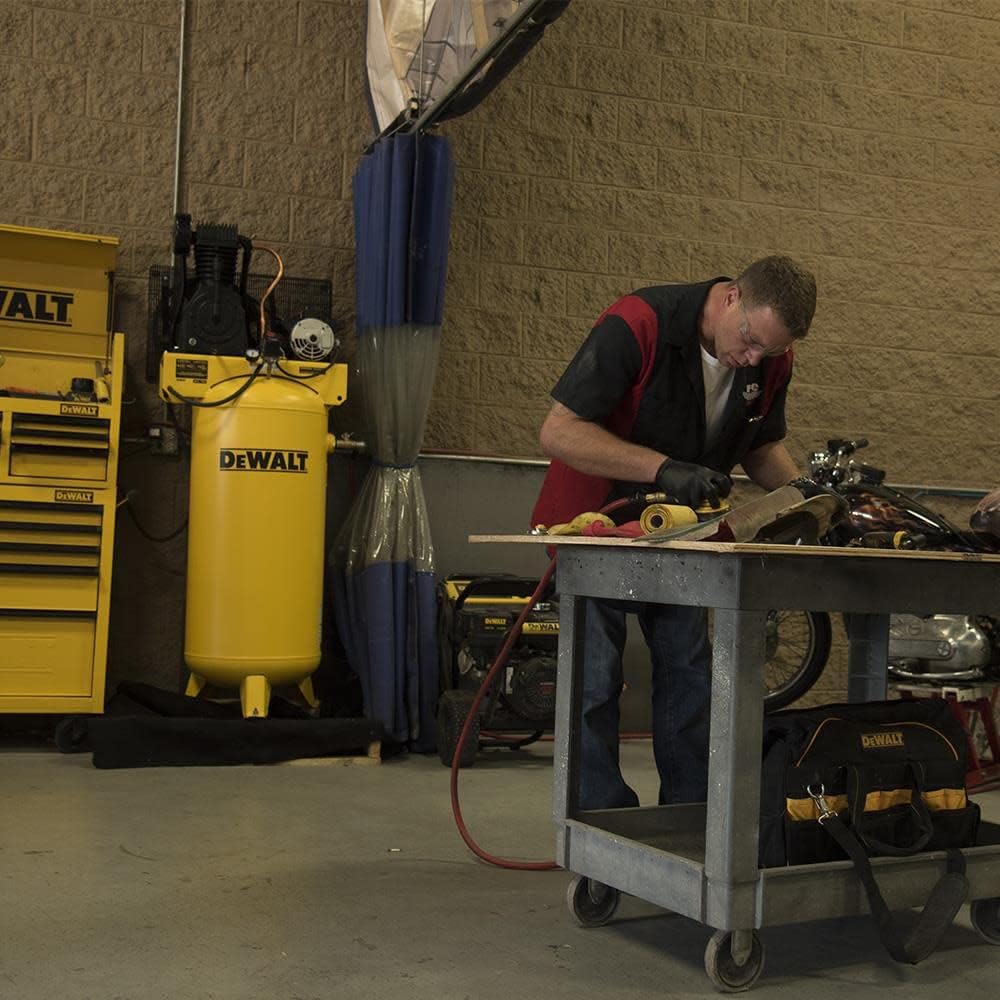

Image: A person working on a project in a workshop, with the DEWALT air compressor visible in the background, demonstrating its use in a practical setting.

4. Wyłączanie:

When finished, turn the pressure switch to the "OFF" position. Disconnect the power supply. Drain any accumulated moisture from the tank using the drain valve at the bottom of the tank.

Konserwacja

Regular maintenance ensures the longevity and optimal performance of your DEWALT air compressor.

1. Oil Level Check:

Regularly check the oil level using the sight glass or dipstick. Maintain the oil level within the recommended range. Use only full synthetic compressor oil as specified by DEWALT.

Obraz: Zbliżenie view of the black pump head and cooling fins of the DEWALT air compressor, highlighting the oil-lubricated pump system.

2. Draining Condensate:

Moisture accumulates in the air tank during operation. Drain the tank daily or after each use by opening the drain valve at the bottom. Some models may feature an automatic drain for convenience.

3. Air Filter Inspection:

Inspect the air intake filter regularly. Clean or replace it as needed to ensure proper airflow and prevent dust from entering the pump.

4. Przegląd ogólny:

Periodically check all hoses, fittings, and electrical connections for wear, damage, or leaks. Tighten any loose connections. Ensure the safety valve is functioning correctly by pulling its ring briefly to release air.

Rozwiązywanie problemów

W tej sekcji znajdziesz rozwiązania typowych problemów, jakie możesz napotkać ze swoim kompresorem powietrza.

For more detailed troubleshooting or issues not listed here, please refer to the full user manual or contact DEWALT customer support.

Specyfikacje

Note: While listed as 'Portable' in some specifications, this model is primarily designed as a stationary vertical unit for workshop use.

Gwarancja i wsparcie

For warranty information, technical support, or service inquiries, please contact DEWALT customer support.

• Oficjalna instrukcja obsługi: A detailed user manual in PDF format is available for download. It contains comprehensive instructions for installation, operation, maintenance, and troubleshooting. Pobierz instrukcję obsługi (PDF)
• Obsługa klienta: For direct assistance, visit the official DEWALT webodwiedź witrynę lub skontaktuj się z działem obsługi klienta.
• Rejestracja produktu: Zarejestruj swój produkt online, aby otrzymywać aktualizacje i ułatwić składanie reklamacji.
