1. Koniec produktuview
The Piscifun Platte Fly Fishing Reel is engineered for durability and performance, featuring a fully sealed drag system and a lightweight, CNC-machined aluminum alloy body. This manual provides essential information to ensure optimal use and longevity of your reel.
2. Zawartość opakowania
Upon opening your Piscifun Platte Fly Fishing Reel package, please verify that all components are present:
- 1 x Piscifun Platte Fly Fishing Reel
- 1 x Schematic Paper (Detailed Parts Diagram)
- 1 x Reel Protection Bag (Neoprene-padded)
3. Instalacja i montaż

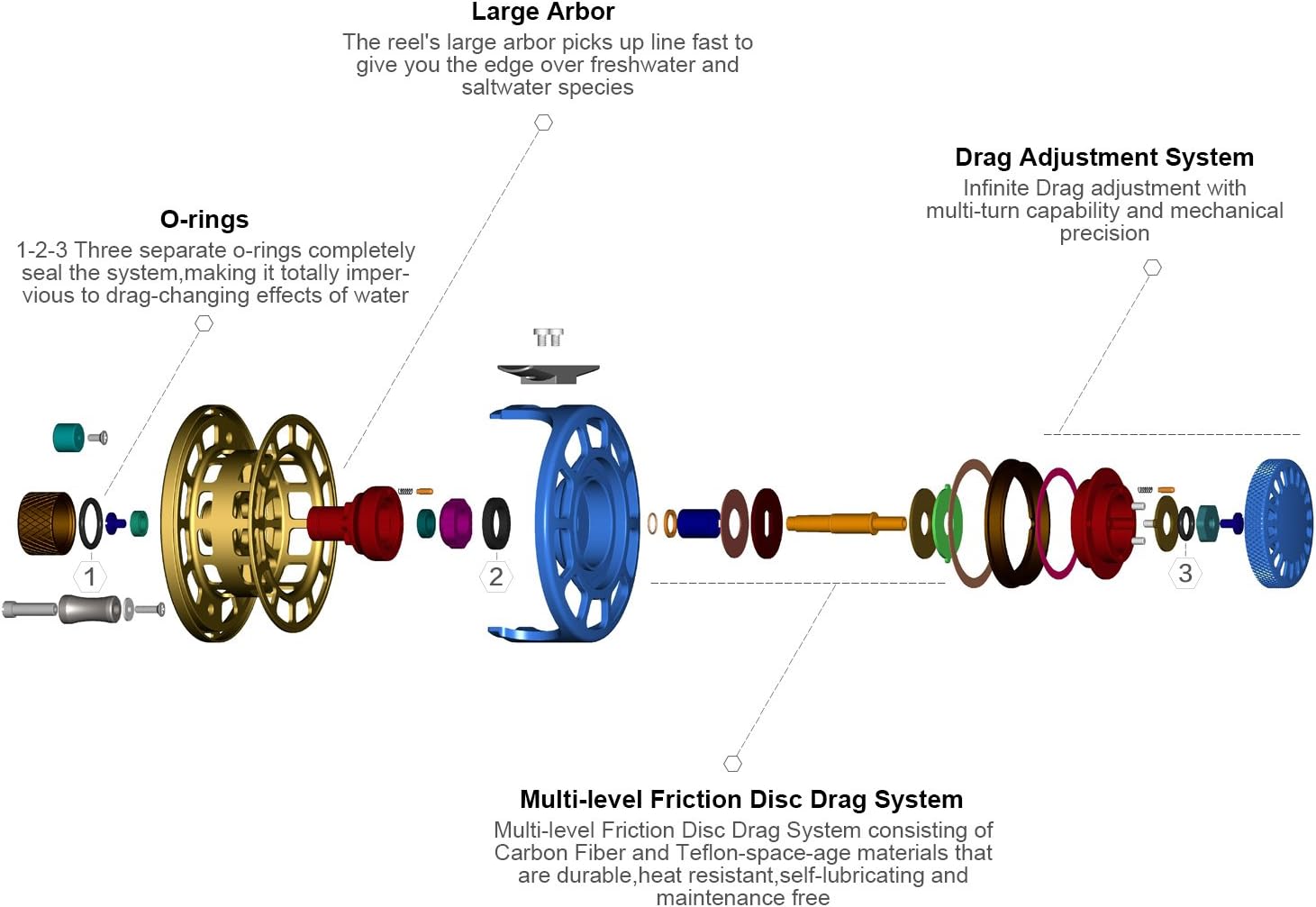

3.1 Understanding Reel Components
Familiarize yourself with the internal structure and key components of your reel for proper handling and maintenance.
3.2 Changing Hand Retrieve (Left to Right or Right to Left)
The Piscifun Platte reel is designed for easy conversion between left-hand and right-hand retrieve. To change the retrieve direction, follow these steps:
- Odkręć knurled metal screw caps to loosen and remove the spool from the reel frame.
- Locate the one-way bearing assembly inside the reel.
- Carefully remove the one-way bearing.
- Flip the one-way bearing over and reinsert it into its housing.
- Reattach the spool to the reel frame and secure the screw caps.
3.3 Spooling Fly Line and Backing
The large arbor design of the Platte reel increases retrieve rate and reduces line coil memory. Ensure proper backing and fly line capacity for your chosen line weight.
4. Operating Your Reel
4.1 Drag System Operation
The Platte reel features a fully sealed carbon-to-stainless drag system, providing smooth and consistent stopping power. The positive-click drag knob allows for accurate and repeatable drag settings. Turn the drag knob clockwise to increase drag tension and counter-clockwise to decrease it.
4.2 Ogólne zastosowanie
The large arbor design facilitates quick line retrieval, giving you an advantage when fighting both freshwater and saltwater species. The CNC-machined 6061 T6 aluminum construction ensures durability and corrosion resistance, making it suitable for various fishing environments.
4.3 Oficjalny film o produkcie
Obejrzyj oficjalny film o produkcie, aby zobaczyć dynamiczny efekt.view of the Piscifun Platte Fly Reel's features and performance.
5. Konserwacja
The fully sealed drag system of the Platte reel is designed to be maintenance-free, being impervious to water contamination. However, general care will extend the life and performance of your reel.
- Po każdym użyciu: Rinse the reel thoroughly with fresh water, especially after saltwater exposure.
- Wysuszenie: Allow the reel to air dry completely before storing. Do not expose to direct heat.
- Składowanie: Store the reel in its provided neoprene protection bag to prevent scratches and impacts.
- Smarowanie: The sealed drag system does not require internal lubrication. For other moving parts, a light application of reel oil or grease may be applied periodically, following standard reel maintenance practices.
6. Rozwiązywanie Problemów
If you encounter any issues with your Piscifun Platte Fly Fishing Reel, please refer to the following common troubleshooting tips:
- Drag feels uneven or sticky: While the drag is sealed, ensure no debris has entered the system during handling. If the issue persists, contact customer support.
- Spool not spinning freely: Check for any foreign objects or line tangles obstructing the spool. Ensure the spool is correctly seated and the screw caps are not overtightened.
- Difficulty changing hand retrieve: Ensure the one-way bearing is correctly oriented and fully seated after flipping. Refer to Section 3.2.
- Line capacity issues: Verify that the correct line weight and backing capacity are used as per specifications. Overfilling the spool can lead to issues.
For problems not addressed here, please contact Piscifun customer support.
7. Specyfikacje
Detailed specifications for the Piscifun Platte Fly Fishing Reel:
| Funkcja | Opis |
|---|---|
| Marka | Piscifun |
| Nazwa modelu | Płaska |
| Orientacja dłoni | Left Hand, Right Hand (Convertible) |
| Kolor | Brązowy |
| Technika połowu | Fly Fishing |
| Waga przedmiotu | 0.31 kilograma (ok. 10.9 uncji) |
| Rodzaj żyłki wędkarskiej | Latać |
| Materiał budowlany | CNC-machined 6061 T6 Aluminum Alloy |
| System przeciągania | Fully Sealed Carbon-to-Stainless Drag |
| Arbor Type | Large Arbor |
7.1 Line Weight and Capacity
| Grubość linii | Weight (OZ) | Diameter (IN) | Width (IN) | Backing Capacity |
|---|---|---|---|---|
| 3|4 | 6.0 | 3.3 | 1.08 | WF3F/50yds/20lbs |
| 5|6 | 6.2 | 3.6 | 1.08 | WF6F/100yds/20lbs |
| 7|8 | 7.9 | 3.8 | 1.22 | WF7F/125yds/20lbs |
| 9|10 | 8.3 | 4.1 | 1.22 | WF7F/150yds/20lbs |
8. Informacje o gwarancji
Piscifun products are manufactured to high-quality standards. For specific warranty details and terms, please refer to the warranty card included with your product or visit the official Piscifun webStrona. Zachowaj dowód zakupu na wypadek roszczeń gwarancyjnych.
9. Obsługa klienta
For further assistance, technical support, or inquiries regarding your Piscifun Platte Fly Fishing Reel, please contact Piscifun customer service. You can also visit the official Piscifun store on Amazon for more information and product resources: Piscifun Amazon Store.
