PowerStar 14AHL-BS Powersports Battery User Manual

1. Informacje dotyczące bezpieczeństwa

Please read and understand all safety instructions before handling, installing, or operating the battery. Failure to follow these instructions may result in serious injury or property damage.

• No Sparks, Flames, Smoking: Przechowywać z dala od źródeł zapłonu.
• Shield Eyes: Wear appropriate eye protection. Explosive gases can cause blindness or injury.
• Trzymać z dala od dzieci: Baterie zawierają materiały niebezpieczne.
• Sulfuric Acid Can Cause Severe Burns: Avoid contact with skin, eyes, or clothing. In case of contact, flush with water and seek medical attention.
• Read Instruction Manual Carefully: Ensure full understanding of proper usage.
• Gazy wybuchowe: Podczas ładowania i użytkowania należy zapewnić odpowiednią wentylację.

Ostrzeżenie dotyczące propozycji 65:

Produkt ten zawiera substancje chemiczne, o których władze stanu Kalifornia wiedzą, że mogą powodować raka, wady wrodzone lub inne szkody reprodukcyjne.

2. Koniec produktuview

2.1 Główne cechy

• 12V 12AH Sealed Lead-Acid (SLA) Absorbent Glass Mat (AGM) Battery
• Konstrukcja bezobsługowa
• Nut & Bolt Terminal Type
• Designed for Powersports applications including motorcycles, ATVs, UTVs, and scooters.

2.2 Wymiary produktu

The PowerStar 14AHL-BS battery has the following approximate dimensions:

• Długość: 5 5/16 cala (5.31 cala)
• Szerokość: 3 1/2 cala (3.50 cala)
• Wysokość: 6 9/16 cala (6.56 cala)

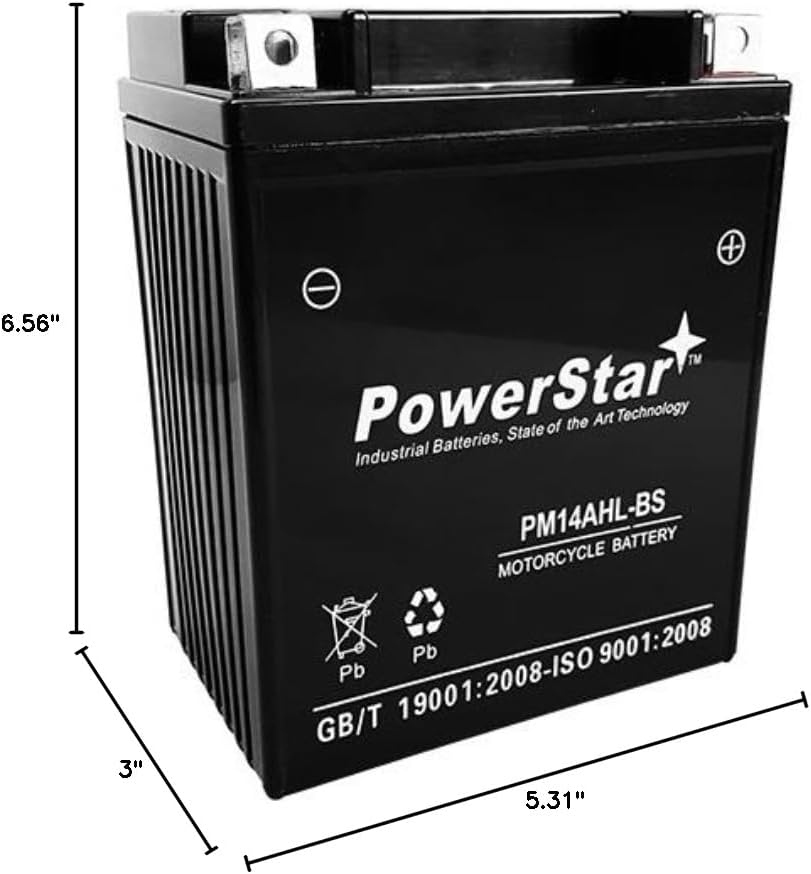

Figure 1: PowerStar 14AHL-BS Battery with labeled dimensions (Length: 5.31", Width: 3.50", Height: 6.56").

2.3 AGM Technology

This battery utilizes Absorbent Glass Mat (AGM) technology, which means the electrolyte is absorbed into a mat of fine glass fibers between the battery plates. This design provides several benefits:

• Odporny na zalanie: The absorbed electrolyte prevents spills, allowing for flexible mounting positions.
• Odporność na wibracje: The tightly packed construction enhances resistance to vibration.
• Bezobsługowy: No need to add water or check electrolyte levels.
• Niskie samorozładowanie: Retains charge for longer periods when not in use.

Figure 2: Illustration of AGM battery technology, highlighting its sealed and maintenance-free characteristics.

3. Konfiguracja i instalacja

3.1 Wstępne przygotowanie

The PowerStar 14AHL-BS battery is shipped fully charged and ready for immediate use. If the battery has been stored for an extended period (3-6 months or more) or in low temperatures, it is recommended to recharge it before first use to ensure optimal performance.

3.2 Kroki instalacji

Follow these general steps for installing your new Powersports battery. Always refer to your vehicle's specific service manual for detailed instructions.

1. Bezpieczeństwo przede wszystkim: Ensure the vehicle's ignition is off and wear appropriate safety gear, including eye protection.
2. Zlokalizuj baterię: Identify the battery compartment in your motorcycle, ATV, UTV, or scooter.
3. Odłącz stary akumulator: Disconnect the negative (-) terminal first, followed by the positive (+) terminal. Carefully remove the old battery.
4. Inspect Compartment: Clean the battery compartment and inspect cables for corrosion or damage.
5. Umieść nową baterię: Place the PowerStar 14AHL-BS battery into the compartment. Its sealed AGM design allows for mounting in various positions.
6. Podłącz nową baterię: Connect the positive (+) terminal first, then the negative (-) terminal. Ensure connections are secure using the provided nut and bolt terminals.
7. Bezpieczna bateria: Use any existing straps or clamps to secure the battery firmly in place to prevent movement during operation.

4. Działanie

Once installed, the PowerStar 14AHL-BS battery provides reliable power for starting and operating your Powersports vehicle. Ensure your vehicle's charging system is functioning correctly to maintain the battery's charge during use.

• Startowy: The battery is designed to deliver high cranking amps for quick and efficient engine starts.
• Zasilanie dodatkowe: It supplies consistent power to all electrical accessories on your vehicle.
• Niska objętośćtage Recharge: If the battery experiences low voltage, recharge it promptly using a compatible Powersports battery charger to prevent damage and ensure longevity.

5. Konserwacja

5.1 Maintenance-Free Design

The PowerStar 14AHL-BS is an AGM battery, meaning it is sealed and maintenance-free. You do not need to check electrolyte levels or add water throughout its lifespan.

5.2 Wytyczne dotyczące przechowywania

For optimal battery life, especially during periods of non-use:

• Ładowanie przed przechowywaniem: Fully charge the battery before storing it for an extended period.
• Warunki przechowywania: Store the battery in a dry, cool environment. Avoid extreme temperatures.
• Periodic Recharging: Even with low self-discharge, it is advisable to recharge the battery every 3-6 months during long-term storage to prevent deep discharge and potential damage.
• Unikaj zwarć: Ensure terminals are protected to prevent accidental short circuits during storage.

5.3 Regularne kontrole

• Połączenia terminalowe: Periodically check that the nut and bolt terminal connections are clean and tight. Loose connections can lead to poor performance and heat buildup.
• Bateria Casing: Sprawdź akumulator casing, czy nie ma śladów uszkodzeń, pęknięć lub obrzęków.
• Czystość: Keep the battery top clean and free of dirt and debris.

6. Rozwiązywanie Problemów

If you experience issues with your PowerStar 14AHL-BS battery, consider the following common troubleshooting steps:

If problems persist after attempting these solutions, consult a qualified technician or contact PowerStar customer support.

7. Specyfikacje

8. Gwarancja i wsparcie

The PowerStar 14AHL-BS Powersports Battery comes with a 2-letnia gwarancja. For warranty claims, technical assistance, or any product-related inquiries, please contact PowerStar customer support.

Zachowaj dowód zakupu w celu potwierdzenia gwarancji.
