1. Wprowadzenie
This instruction manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new Honda GX390 engine. The Honda GX390 is a powerful and reliable 13HP engine with electric start, designed for a wide range of commercial applications. Please read this manual thoroughly before operating the engine to ensure proper use and to prevent damage or injury.
Rysunek 1.1: Koniecview of the Honda GX390 Engine. This image displays the complete engine unit, highlighting its compact design and key components such as the fuel tank, air filter housing, and recoil starter.
2. Informacje dotyczące bezpieczeństwa
Your safety and the safety of others are very important. To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual. This information alerts you to potential hazards that could hurt you or others. It is not practical or possible to warn you about all hazards associated with operating or maintaining this engine.
2.1 Ważne środki ostrożności
- Zagrożenie tlenkiem węgla: Engine exhaust contains carbon monoxide, a colorless, odorless, poisonous gas. Breathing carbon monoxide can cause loss of consciousness and may lead to death. Operate the engine only in well-ventilated areas.
- Bezpieczeństwo paliwa: Gasoline is extremely flammable and its vapors are explosive. Refuel in a well-ventilated area with the engine off. Do not smoke or allow flames or sparks where gasoline is stored or where the fuel tank is being filled.
- Hot Engine Parts: The engine and exhaust system become very hot during operation and remain hot for a while after the engine stops. To prevent burns, avoid touching hot engine parts.
- Ruchome części: Keep hands, feet, hair, and clothing away from moving parts to prevent injury.
- Ostrzeżenie dotyczące propozycji 65: Ten produkt może narazić Cię na działanie chemikaliów, w tym tlenku węgla, o którym w stanie Kalifornia wiadomo, że powoduje wady wrodzone lub inne uszkodzenia rozrodcze. Aby uzyskać więcej informacji, przejdź do www.P65Warnings.ca.gov.
3. Konfiguracja
3.1 Rozpakowanie i kontrola
Carefully remove the engine from its packaging. Inspect the engine for any signs of shipping damage. If any damage is found, contact your dealer immediately.
3.2 Engine Placement
Mount the engine on a stable, level surface. Ensure adequate ventilation around the engine for proper cooling and exhaust dispersion.
3.3 Dodawanie oleju silnikowego
The engine is shipped without oil. Before starting, fill the crankcase with the recommended engine oil to the upper level mark on the dipstick. Refer to the specifications section for oil type and capacity.
Figure 3.1: Checking and filling engine oil. This image shows hands manipulating the oil drain and fill plugs on the engine's crankcase, illustrating the process of managing engine oil.
3.4 Dodawanie paliwa
Use fresh, unleaded gasoline with an octane rating of 86 or higher. Do not use stale or contaminated gasoline, or an oil/gasoline mixture. Fill the fuel tank carefully, avoiding spills.
3.5 Connecting Battery (Electric Start Models)
For electric start models, connect a fully charged 12-volt battery to the engine's electrical system. Ensure correct polarity: positive (+) to positive, negative (-) to negative. Secure all connections.
4. Obsługa silnika
4.1 Kontrola przedoperacyjna
- Sprawdź poziom oleju silnikowego.
- Sprawdź poziom paliwa.
- Sprawdź filtr powietrza.
- Check for loose fasteners or damaged parts.
4.2 Rozruch silnika (rozruch elektryczny)
- Przekręć zawór paliwa do pozycji ON.
- Move the choke lever to the CLOSED position (if engine is cold).
- Turn the engine switch to the START position. Release the switch when the engine starts.
- Once the engine warms up, gradually move the choke lever to the OPEN position.
4.3 Zatrzymywanie silnika
- Ustaw włącznik silnika w pozycji OFF.
- Ustaw zawór paliwa w pozycji WYŁĄCZONY.
4.4 Oil Alert System
The Oil Alert system is designed to prevent engine damage caused by an insufficient amount of oil in the crankcase. If the oil level falls below a safe limit, the Oil Alert system will automatically stop the engine or prevent it from starting. Always ensure the oil level is at the proper mark before operation.
5. Konserwacja
Regular maintenance is crucial for the longevity and optimal performance of your Honda GX390 engine. Perform maintenance according to the schedule provided in the full service manual.
5.1 Wymiana oleju silnikowego
Change the engine oil after the first 20 hours of operation, and every 100 hours or 6 months thereafter. Drain the oil when the engine is warm to ensure complete drainage.
5.2 Konserwacja filtra powietrza
Inspect the air filter regularly, especially when operating in dusty conditions. Clean or replace the air filter element as needed to ensure proper engine breathing and prevent dirt from entering the engine.

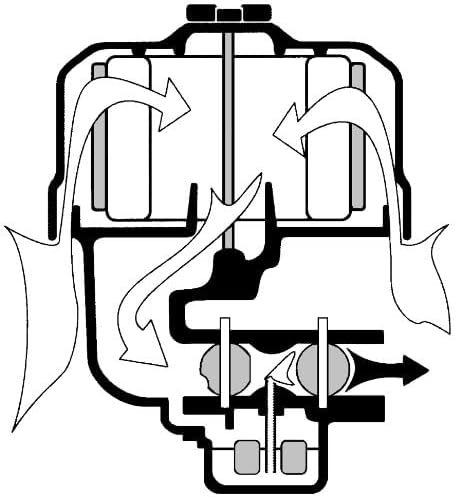

Figure 5.1: Diagram illustrating airflow through an engine component, likely related to the air intake or cooling system. This visual aids in understanding the path of air for combustion or cooling.
5.3 Kontrola świecy zapłonowej
Inspect the spark plug annually or every 100 hours. Clean or replace if necessary. Ensure the gap is set to the specified clearance.
5.4 Pielęgnacja układu paliwowego
To prevent fuel system problems, especially during storage, use a fuel stabilizer or drain the fuel tank and carburetor. Stale fuel can cause deposits that clog the fuel system.
6. Rozwiązywanie Problemów
This section provides basic troubleshooting steps for common issues. For more complex problems, consult an authorized service dealer.
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Silnik nie chce się uruchomić | No fuel; Fuel valve OFF; Engine switch OFF; Low oil level; Faulty spark plug; Dead battery (electric start) | Add fuel; Turn fuel valve ON; Turn engine switch ON; Add oil; Inspect/replace spark plug; Charge/replace battery |
| Silnik pracuje nierówno | Stale fuel; Clogged air filter; Incorrect spark plug gap | Drain and refill with fresh fuel; Clean/replace air filter; Adjust spark plug gap |
| Silnikowi brakuje mocy | Clogged air filter; Incorrect engine speed; Overload | Clean/replace air filter; Adjust throttle; Reduce load |
7. Specyfikacje
| Atrybut | Wartość |
|---|---|
| Marka | Honda |
| Numer modelu | GX390 |
| Typ silnika | 4-suwowy |
| Pojemność silnika | 418 centymetrów sześciennych |
| Maksymalna moc silnika | 11.7 Horsepower (13HP stated in feature bullets) |
| Typ paliwa | Benzyna |
| Objętość zbiornika | 6.1 litrów |
| Typ układu zapłonowego | Elektroniczny |
| Cechy specjalne | Electric Start, Fuel Efficient, Super Quiet, Oil Alert |
| Waga przedmiotu | 90 funtów |
| Kolor | Czerwony |
| UPC | 795525333039 |
Figure 7.1: The crankshaft component of the Honda GX390 engine. This image highlights the robust construction of a critical internal moving part responsible for converting linear piston motion into rotational motion.
8. Gwarancja i pomoc techniczna
8.1 Informacje o gwarancji
Honda engines typically come with a limited warranty covering defects in material and workmanship. For specific warranty terms, duration, and conditions, please refer to the warranty card included with your engine or visit the official Honda Power Equipment webZachowaj paragon jako dowód zakupu.
8.2 Obsługa klienta
For technical assistance, parts, or service, please contact an authorized Honda Power Equipment dealer. You can find a dealer near you by visiting the official Honda website. For any shipping-related inquiries or issues with your order, please contact the seller, equipatron, directly.
