Sevylor 12V 15PSI Water Pump Instruction Manual

1. Wprowadzenie

This manual provides essential information for the safe and effective use of your Sevylor 12V 15PSI Water Pump, Model 2000021940. This high-power electric pump is designed specifically for 12V DC power supply and is compatible with Stand-Up Paddleboards (SUPs). It is intended for inflation purposes only and features a pressure limit setting function for precise inflation.

2. Informacje dotyczące bezpieczeństwa

• Przeczytaj wszystkie instrukcje: Before operating the pump, thoroughly read and understand all instructions in this manual.
• Źródło zasilania: Use only with a 12V DC power source, such as a car cigarette lighter socket. Ensure the power source can provide sufficient current.
• Przegrzanie: The pump and its power connector (e.g., cigarette lighter plug) may become hot during prolonged use. Allow the unit to cool down between uses, especially if inflating multiple items. Do not operate continuously for more than 10 minutes.
• Wentylacja: Ensure adequate ventilation around the pump during operation to prevent overheating.
• Wilgoć: Do not expose the pump to water or operate it in wet conditions. This product is not waterproof.
• Dzieci i zwierzęta: Keep the pump out of reach of children and pets.
• Przeznaczenie: This pump is designed for inflating inflatable items such as SUPs, air beds, and inflatable boats. Do not use it for any other purpose.
• Limit ciśnienia: Do not exceed the recommended pressure for the item being inflated. The pump has a pressure limit setting function; use it to prevent over-inflation.
• Węże i adaptery: Ensure the hose and adapters are securely connected before operation. Inspect them regularly for wear or damage.
• Hałas: The pump generates significant noise during operation. This is normal.

3. Zawartość opakowania

Sprawdź, czy w przesyłce znajdują się wszystkie elementy wymienione poniżej:

• Sevylor 12V 15PSI Water Pump Unit
• Adapter for air beds and inflatable boats
• High-pressure hose for SUP
• Normal hose

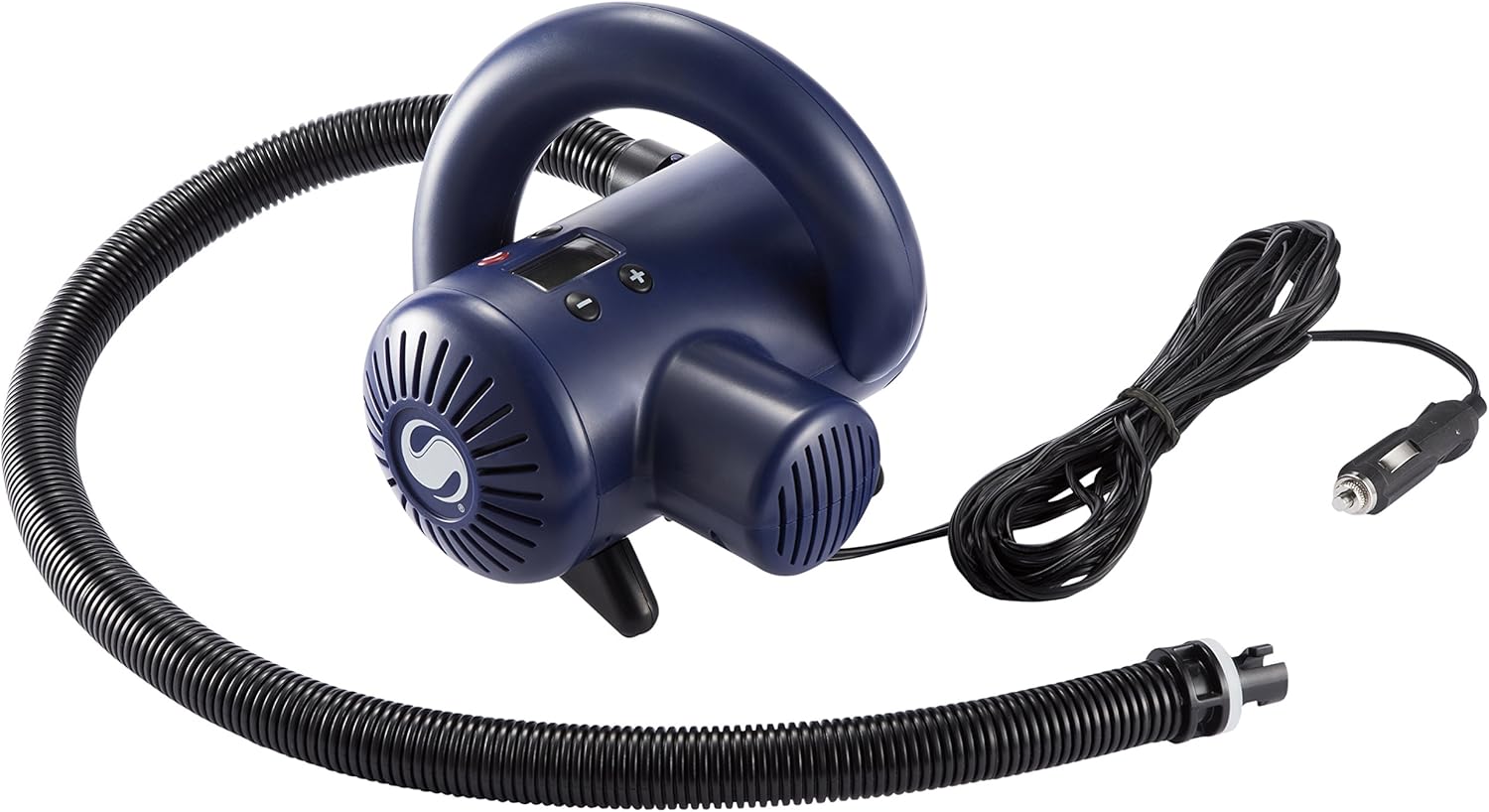

Figure 3.1: The Sevylor 12V 15PSI Water Pump, showing the main unit, attached hose, and 12V DC power cable.

Figure 3.2: Included accessories: the flexible hose and different nozzle adapters for various inflation valves.

Figure 3.3: Product packaging for the Sevylor 12V 15PSI Water Pump, showing the pump and its intended use with SUPs.

4. Konfiguracja

1. Podłącz wąż: Attach the appropriate inflation hose (high-pressure for SUP or normal) to the pump's inflation port. Ensure it is securely twisted or pushed into place.
2. Wybierz adapter: Choose the correct adapter nozzle for the valve of the item you wish to inflate. Attach it firmly to the end of the hose.
3. Podłącz do zasilania: Insert the 12V DC power plug into your vehicle's cigarette lighter socket or a compatible 12V DC power outlet. Ensure a snug fit to prevent overheating at the connection point.

5. Instrukcja obsługi

1. Ustaw żądane ciśnienie: If your pump model has a digital display and pressure setting function, use the controls to set the desired inflation pressure (e.g., 12 PSI for most SUPs, up to 15 PSI maximum for other inflatables).
2. Dołącz do zaworu: Insert the adapter nozzle firmly into the valve of the item to be inflated.
3. Rozpocznij inflację: Press the power button to begin inflation. The pump will automatically stop once the preset pressure is reached.
4. Monitoruj postęp: While the pump operates, monitor the inflation process. The pump can be loud, which is normal.
5. Odłączyć: Once inflation is complete and the pump has stopped, turn off the pump (if it hasn't automatically), then carefully remove the adapter from the valve and disconnect the power plug from the 12V DC socket.

Ważna uwaga: Avoid continuous operation for more than 10 minutes. If inflating multiple items or large items, allow the pump to cool down for at least 10-15 minutes after each 10-minute cycle to prevent damage from overheating.

6. Konserwacja

• Czyszczenie: Wipe the pump exterior with a dry or slightly damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure no water enters the pump's internal components.
• Składowanie: Store the pump in a cool, dry place, away from direct sunlight and extreme temperatures. Keep the hose and adapters neatly coiled to prevent kinking or damage.
• Kontrola węża: Regularly inspect the inflation hose and adapters for any signs of wear, cracks, or damage, especially at the connection points. High pressure can cause wear over time. Replace damaged components immediately.

7. Rozwiązywanie Problemów

8. Specyfikacje

9. Gwarancja i wsparcie

For warranty information and technical support, please refer to the documentation provided with your purchase or contact Sevylor customer service. Keep your proof of purchase for warranty claims.
