DeltaTrak 13307 Jumbo Display Thermohygrometer

1. Koniec produktuview

The DeltaTrak 13307 Jumbo Display Thermohygrometer is designed for monitoring temperature and relative humidity in various environments such as hospitals, pharmacies, blood banks, greenhouses, laboratories, and clean rooms. This device features a large LCD display for easy readability, switchable °F/°C units, and memory for minimum and maximum readings. It includes an external thermistor probe for outdoor or remote temperature monitoring and a freeze alarm setting.

• °C/°F selectable temperature display.
• Indoor and outdoor temperature sensors, plus an indoor humidity sensor.
• Jumbo display for clear temperature and humidity readings.
• Min/Max memory function to recall highest and lowest recorded values.
• Freeze Alert feature for external temperature monitoring.

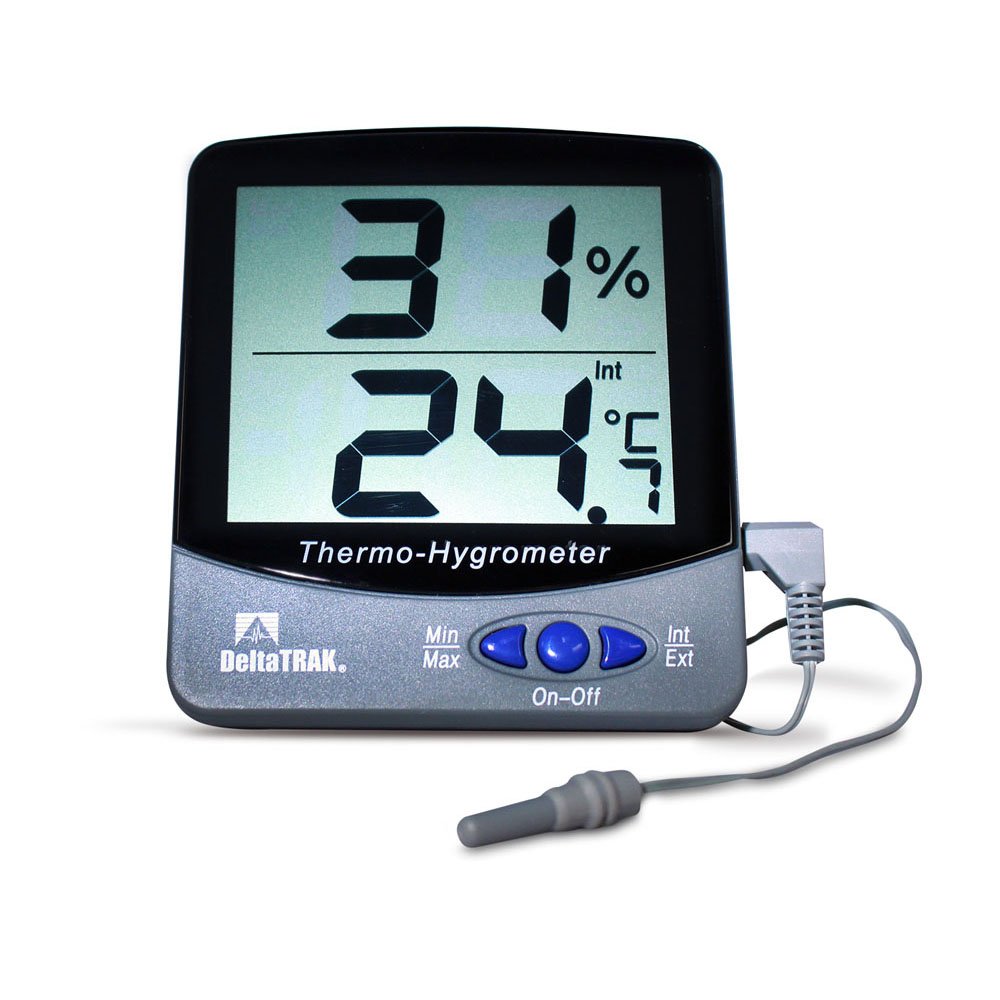

Rysunek 1: DeltaTrak 13307 Jumbo Display Thermohygrometer with external probe.

2. Konfiguracja i instalacja

2.1 Instalacja baterii

1. Znajdź komorę baterii z tyłu urządzenia.
2. Otwórz pokrywę komory baterii.
3. Włóż dwie (2) baterie AAA, zwracając uwagę na prawidłową biegunowość (+/-).
4. Close the battery compartment cover securely. The unit should power on automatically.

2.2 Umiejscowienie czujnika

• Jednostka główna: Place the main thermohygrometer unit in the desired indoor location. Ensure it is not exposed to direct sunlight, drafts, or extreme temperature fluctuations, which could affect indoor temperature and humidity readings.
• Sonda zewnętrzna: The external temperature probe has a 3-meter (9.8 feet) cable. Position the probe in the area where outdoor or remote temperature monitoring is required. The probe itself is IP67 water-resistant, making it suitable for outdoor use or in damp environments. Ensure the cable is routed safely and not pinched.

3. Instrukcja obsługi

3.1 Włączanie/wyłączanie zasilania

The unit typically powers on automatically upon battery installation. There is no dedicated power button. To turn off, remove the batteries.

3.2 °C/°F Selection

Locate the °C/°F button, usually on the back or side of the unit. Press this button to toggle between Celsius and Fahrenheit temperature display units.

3.3 Min/Max Memory Function

The thermohygrometer automatically records the minimum and maximum temperature and humidity readings since the last reset. To view te wartości:

• Naciśnij MINIMUM MAKSIMUM naciśnij przycisk raz, aby wyświetlić maksymalne zarejestrowane wartości.
• Naciśnij MINIMUM MAKSIMUM Naciśnij przycisk po raz drugi, aby wyświetlić minimalne zarejestrowane wartości.
• Naciśnij MINIMUM MAKSIMUM Naciśnij przycisk po raz trzeci, aby powrócić do bieżących odczytów.
• To clear the Min/Max memory, press and hold the MINIMUM MAKSIMUM button for approximately 3 seconds while the Min/Max values are displayed. The display will flash, indicating the memory has been cleared.

3.4 Freeze Alert Setting

The unit features a freeze alert that sounds when the external temperature reaches 0°C (32°F).

• Refer to the specific button on your unit (often labeled ALARM or ZAMRAŻAĆ) to activate or deactivate this feature.
• When activated, an alarm icon may appear on the display.
• The alarm will sound when the external probe detects a temperature of 0°C (32°F) or below.

4. Konserwacja

4.1 Czyszczenie

Wipe the unit's casing z miękkim, damp ściereczką. Nie używaj środków czyszczących ani rozpuszczalników o działaniu ściernym, ponieważ mogą one uszkodzić wyświetlacz lubasing. Ensure no liquid enters the unit's openings.

4.2 Wymiana baterii

When the display becomes dim or the unit stops functioning, it is time to replace the batteries. Follow the battery installation steps in Section 2.1. Always replace both AAA batteries simultaneously with new ones.

4.3 Pielęgnacja czujnika

The external probe is water-resistant (IP67), but the main unit is not. Avoid submerging the main unit in water. Keep the sensors free from dust and debris for accurate readings.

5. Rozwiązywanie Problemów

• Brak obrazu lub przyciemniony wyświetlacz:
  • Sprawdź biegunowość baterii.
  • Wymień baterie na nowe baterie AAA.
• Niedokładne odczyty:
  • Ensure the unit and external probe are not exposed to direct sunlight, heat sources, or strong drafts.
  • Verify the external probe is securely connected to the main unit.
  • Allow the unit to stabilize for at least 30 minutes after placement or battery change.
  • If readings consistently deviate significantly from a known accurate reference, the unit may require calibration or service. Note that the external probe only measures temperature, not humidity.
• Sonda zewnętrzna nie działa:
  • Ensure the probe's connector is fully inserted into the jack on the main unit.
  • Inspect the probe cable for any visible damage.

6. Specyfikacje

7. Gwarancja i wsparcie

For warranty information, technical support, or service inquiries, please contact DeltaTrak customer service directly. Refer to the product packaging or the official DeltaTrak webna naszej stronie znajdziesz najnowsze dane kontaktowe i warunki gwarancji.

Producent: DeltaTrak
