Faria Chesapeake Black SS 4-inch 6000 RPM Gas Tachometer User Manual

1. Wprowadzenie

This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your Faria Chesapeake Black SS 4-inch 6000 RPM Gas Tachometer. This electronic tachometer is designed to accurately monitor the engine revolutions per minute (RPM) for gas inboard and inboard/outboard (I/O) marine engines. Please read this manual thoroughly before installation and use to ensure proper function and safety.

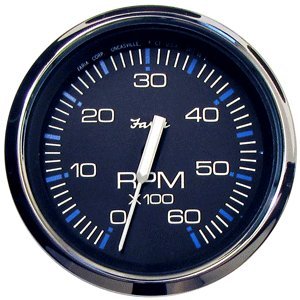

Rycina 1: Przód view of the Faria Chesapeake Black SS 4-inch 6000 RPM Gas Tachometer. The gauge features a black dial with white numerals and a stainless steel bezel.

2. Informacje dotyczące bezpieczeństwa

Podczas instalacji i obsługi należy zawsze przestrzegać następujących środków ostrożności:

• Disconnect the vessel's battery before performing any electrical work to prevent electrical shock or damage to the system.
• Ensure all wiring connections are secure and properly insulated to prevent short circuits and corrosion.
• Refer to your vessel's engine manual for specific wiring diagrams and pulse per revolution (PPR) settings.
• Do not operate the vessel if the tachometer is not functioning correctly, as this may indicate an underlying engine issue.
• Keep the tachometer free from excessive moisture and direct impact.

3. Konfiguracja i instalacja

Proper installation is crucial for accurate readings and long-term performance. Follow these steps carefully:

3.1 Mounting the Tachometer

1. Select a suitable location on your dashboard or panel that is visible to the operator and protected from direct spray.
2. Using a 3.375-inch (85mm) hole saw, carefully cut a mounting hole in the chosen location.
3. Insert the tachometer into the mounting hole.
4. Secure the tachometer using the provided mounting bracket and hardware from the rear of the panel. Tighten securely but do not overtighten.

3.2 Połączenia elektryczne

The tachometer requires three primary electrical connections:

• +12VDC (Ignition): Connect this terminal to a switched 12-volt DC power source that is active when the engine ignition is on.
• Grunt: Connect this terminal to a reliable common ground point on your vessel's electrical system.
• Źródło sygnału: Connect this terminal to one of the following signal sources, depending on your engine type:
  • Ignition System (e.g., coil negative terminal)
  • Alternator (specific tachometer output terminal)
  • Tach Signal Generator
  • Magnetic Pickup Sender

Ensure all connections are crimped and sealed properly to prevent corrosion, especially in a marine environment.

3.3 Setting Pulses Per Revolution (PPR)

The tachometer features a switch on the back to set the correct pulses per revolution (PPR) for your engine. This setting is critical for accurate RPM readings.

• Consult your engine's service manual or manufacturer's specifications to determine the correct PPR value for your specific engine.
• Locate the small selector switch on the rear of the tachometer.
• Adjust the switch to the position corresponding to your engine's PPR setting. Incorrect settings will result in inaccurate RPM readings.

Figure 2: Illustrative diagram of typical wiring connections and the Pulses Per Revolution (PPR) selector switch located on the rear of the tachometer.

4. Instrukcja obsługi

Once properly installed and configured, operating the Faria Chesapeake Black SS Tachometer is straightforward:

1. Ensure all electrical connections are secure and the battery is connected.
2. Turn the vessel's ignition key to the 'ON' or 'ACC' position. The tachometer needle may briefly sweep or settle at zero.
3. Start the engine. As the engine runs, the tachometer needle will indicate the current engine RPM.
4. Monitor the RPM during engine operation to ensure it stays within safe and recommended operating ranges as specified by your engine manufacturer.

5. Konserwacja

The Faria Chesapeake Black SS Tachometer is designed for durability and requires minimal maintenance:

• Czyszczenie: Clean the gauge face and bezel periodically with a soft, damp ściereczką. Unikaj środków czyszczących o działaniu ściernym i rozpuszczalników, które mogą uszkodzić wykończenie lub soczewkę.
• Kontrola połączenia: Annually, or if issues arise, inspect all electrical connections for corrosion or looseness. Ensure they are clean, tight, and properly insulated.
• Ochrona środowiska: While designed for marine use, protecting the gauge from prolonged direct sunlight and extreme weather when not in use can extend its lifespan.

6. Rozwiązywanie Problemów

If your tachometer is not functioning as expected, refer to the following troubleshooting guide:

7. Specyfikacje

8. Gwarancja i wsparcie

For specific warranty information regarding your Faria Chesapeake Black SS Tachometer, please refer to the documentation included with your purchase or visit the official Faria Marine Instruments website. For technical support, installation assistance, or replacement parts, please contact Faria customer service directly. Have your model number and purchase date available when contacting support.
