TEC TC-760LC

TEC TC-760LC MM/MC Phono PreampInstrukcja obsługi urządzenia lifier

Model: TC-760LC

1. Wprowadzenie

This manual provides detailed instructions for the proper installation, operation, and maintenance of your TEC TC-760LC MM/MC Phono Preamplifier. The TC-760LC is designed to boost the output of both Moving Magnet (MM) and Moving Coil (MC) phono cartridges, allowing connection to an audio amplifier or receiver that lacks a dedicated phono input. This unit ensures your turntable's signal is correctly amplified and equalized to the RIAA standard for optimal sound reproduction.

2. Informacje dotyczące bezpieczeństwa

Please read and understand the following safety precautions before operating the device:

  • Ensure the power adapter is connected to a compatible power outlet with the correct voltage.
  • Nie wystawiaj urządzenia na działanie wilgoci, deszczu ani ekstremalnych temperatur.
  • Avoid placing the unit near heat sources, such as radiators, or in direct sunlight.
  • Nie próbuj otwierać casing or service the unit yourself. Refer all servicing to qualified personnel.
  • Disconnect power from the wall outlet before making any connections or disconnections to prevent electrical shock or damage to equipment.
  • Trzymaj urządzenie z dala od dzieci i zwierząt.

3. Zawartość opakowania

Sprawdź, czy w opakowaniu produktu znajdują się wszystkie poniższe elementy:

  • TEC TC-760LC Phono Preamplifier (czarny)
  • Premium AC Adaptor (Magellan Switching Adapter)
  • Kabel RCA
  • Miniplug Adaptor
Magellan Switching Adapter for TEC TC-760LC

Image: Included AC Power Adapter. This Magellan switching adapter provides 12V at 1A output and is designed for use with the phono preampliyfikator.

4. Koniec produktuview

4.1. Główne cechy

  • Dostępny w czarnym wykończeniu.
  • Total harmonic distortion: 0.005%.
  • RIAA frequency response: 20Hz-20,000Hz +/- 0.5dB.
  • Signal-to-noise ratio: 82dB (MM) / 85dB (MC).
  • Gain: 38dB (MM) / 58dB (MC).
  • Selectable high range (100 ohm) / low range (20 ohm) MC input impedance.

4.2. Elementy sterujące na panelu przednim

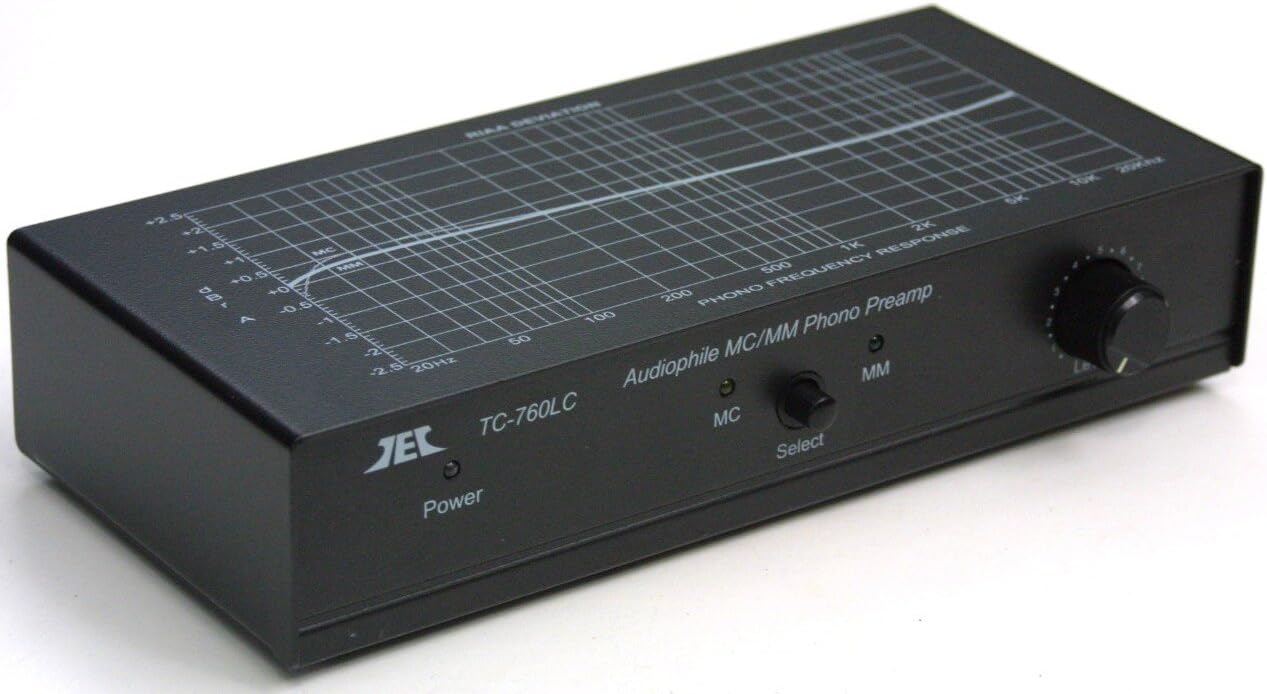

Przód view of TEC TC-760LC Phono Preampżywsze

Image: Front panel of the TEC TC-760LC Phono Preamplifier. Shows the Power indicator, MC/MM selector switch, and Level Control knob.

  • Wskaźnik zasilania: An LED that illuminates when the unit is powered on.
  • MC/MM Select Switch: A toggle switch to select between Moving Coil (MC) and Moving Magnet (MM) input modes. Ensure this matches your turntable cartridge type.
  • Kontrola poziomu: A rotary knob to adjust the output volume of the preampliyfikator.

4.3. Złącza panelu tylnego

Tył view of TEC TC-760LC Phono Preampżywsze

Image: Rear panel of the TEC TC-760LC Phono Preamplifier. Displays RCA output jacks, MM input jacks (47kΩ), MC input jacks (20Ω, 100Ω), a ground terminal, and the DC power input.

  • OUTPUT (Receiver/Amp): RCA stereo output jacks (Left and Right) for connecting to your amplifier or receiver's line-level input (e.g., AUX, CD, Tuner).
  • INPUTS (MM): RCA stereo input jacks (Left and Right) specifically for Moving Magnet cartridges. The input impedance is fixed at 47kΩ.
  • INPUTS (MC): RCA stereo input jacks (Left and Right) for Moving Coil cartridges. These inputs feature selectable impedance options: 20Ω and 100Ω, typically chosen via small switches near the inputs.
  • Terminal uziemiający: A screw terminal to connect your turntable's ground wire. This connection is crucial for minimizing hum and noise.
  • Wejście zasilania prądem stałym: A jack for connecting the included AC power adapter.

5. Konfiguracja

Follow these steps to correctly set up your TEC TC-760LC Phono PreampLiyfikator:

  1. Wyłącz wszystkie urządzenia: Before making any connections, ensure your turntable, amplifier/receiver, and the phono preamplifier are all powered off and unplugged from the wall outlet.
  2. Connect Turntable to PreampLiyfikator:
    • Connect the RCA output cables from your turntable to the appropriate INPUTS on the TEC TC-760LC (MM or MC, depending on your cartridge type).
    • Connect the ground wire from your turntable to the Ground terminal on the preamplifier. Secure the connection by tightening the screw.
  3. Connect Preamplżejszy do AmpLider/Odbiornik:
    • Connect the RCA output cables from the TEC TC-760LC's OUTPUT jacks to a line-level input on your amplifier or receiver (e.g., AUX, CD, Tuner). Ważny: Do NOT connect to your amplifier's dedicated PHONO input, as this unit is already a phono preamplifier and connecting to another phono input will result in distorted sound.
  4. Podłącz zasilacz: Plug the small barrel connector of the included AC power adapter into the DC Power Input on the rear of the preamplifier. Then, plug the AC power adapter into a suitable wall outlet.
  5. Select Cartridge Type and Impedance: Use the MC/MM Select switch on the front panel to match your turntable's cartridge type. For Moving Coil cartridges, ensure the correct impedance (20Ω or 100Ω) is selected via the small switches located near the MC input jacks on the rear panel. Consult your MC cartridge's specifications for the recommended impedance.
  6. Włączanie: First, power on your amplifier/receiver, then power on the TEC TC-760LC.

6. Instrukcja obsługi

Once the preampPo skonfigurowaniu lifiera należy wykonać następujące czynności:

  1. Wybierz wejście: Double-check that the MC/MM switch on the front panel is set to match your turntable's cartridge type (MM or MC).
  2. Dostosuj poziom: Start with the Level Control knob on the front panel at its minimum (lowest volume) setting.
  3. Odtwórz rekord: Place a record on your turntable and begin playback.
  4. Dostosuj głośność: Slowly increase the Level Control on the TEC TC-760LC and the main volume on your amplifier/receiver to achieve the desired listening level. Avoid setting the Level Control too high, which can lead to distortion.
  5. Monitoruj dźwięk: Listen carefully for any unwanted hum, buzzing, or distortion. If present, refer to the Troubleshooting section.

7. Konserwacja

To ensure the longevity and optimal performance of your phono preamplifier, postępuj zgodnie z poniższymi wskazówkami dotyczącymi konserwacji:

  • Czyszczenie: Clean the unit with a soft, dry, lint-free cloth. Do not use liquid cleaners, abrasive pads, or chemical solvents, as these can damage the finish or internal components.
  • Kontrola zapylenia: Keep the unit free from dust and debris. You may use a soft brush or compressed air to gently remove dust from vents and connectors.
  • Wentylacja: Ensure proper ventilation around the unit. Do not block any ventilation openings, and avoid placing the unit in enclosed spaces that could lead to overheating.
  • Znajomości: Periodically check all cable connections to ensure they are secure and free from corrosion. Loose connections can lead to signal loss or noise.
  • Składowanie: Jeśli urządzenie będzie przechowywane przez dłuższy okres, należy odłączyć je od zasilania i przechowywać w chłodnym, suchym miejscu, najlepiej w oryginalnym opakowaniu.

8. Rozwiązywanie Problemów

If you encounter issues with your TEC TC-760LC, consult the table below for common problems and their solutions:

Typowe problemy i rozwiązania
ProblemMożliwa przyczynaRozwiązanie
No sound or very low sound output.
  • Nieprawidłowe połączenia kablowe.
  • Wrong MM/MC selection.
  • Low volume settings on preamplifier lub ampliyfikator.
  • Faulty power adapter or no power.
  • Verify all RCA cables are securely connected to the correct inputs/outputs.
  • Ensure the MM/MC switch matches your cartridge type.
  • Increase the Level Control on the preamplifier and the volume on your amppodgrzewacz/odbiornik.
  • Check if the power indicator LED is on. Ensure the power adapter is properly connected and plugged into a live outlet.
Brzęczenie lub brzęczenie.
  • Improper grounding of the turntable.
  • Interference from other electronic devices or power cables.
  • Loose or damaged cable connections.
  • Incorrect MC impedance setting.
  • Ensure the turntable's ground wire is securely connected to the preampzacisk uziemienia urządzenia.
  • Przenieś preamplifier away from other electronic devices (e.g., power supplies, Wi-Fi routers) and route audio cables away from power cables.
  • Check all RCA connections for tightness and inspect cables for damage.
  • For MC cartridges, try switching between 20Ω and 100Ω impedance settings to find the quietest option.
Zniekształcony dźwięk.
  • Overdriven input (Level Control too high).
  • Incorrect MM/MC selection.
  • Faulty turntable cartridge or stylus.
  • Reduce the Level Control on the preampliyfikator.
  • Confirm the correct MM/MC setting for your cartridge.
  • Inspect your turntable cartridge and stylus for damage or wear. Replace if necessary.

9. Specyfikacje

  • Wymiary produktu: 7 x 3 x 1.5 cala (17.8 x 7.6 x 3.8 cm)
  • Waga przedmiotu: 2 funtów (0.91 kg)
  • Producent: Technolink
  • Numer modelu: TC-760LC BLACK
  • Całkowite zniekształcenia harmoniczne: 0.005%
  • RIAA Frequency Response: 20 Hz-20,000 Hz +/- 0.5dB
  • Stosunek sygnału do szumu (S/N): 82dB (MM) / 85dB (MC)
  • Osiągać: 38dB (MM) / 58dB (MC)
  • MM Input Impedance: 47kΩ
  • MC Input Impedance: Selectable 100 ohm / 20 ohm
  • Zasilanie: 12V DC, 1A (via included AC adapter)

10. Gwarancja i wsparcie

This product is typically covered by a manufacturer's warranty. Please refer to the documentation included with your purchase for specific warranty terms and conditions, including the duration and coverage details. For technical support, troubleshooting assistance beyond this manual, or service inquiries, please contact your retailer or the manufacturer, Technolink. Keep your proof of purchase for warranty claims.

© 2024 TEC. All rights reserved. Information in this manual is subject to change without notice.
